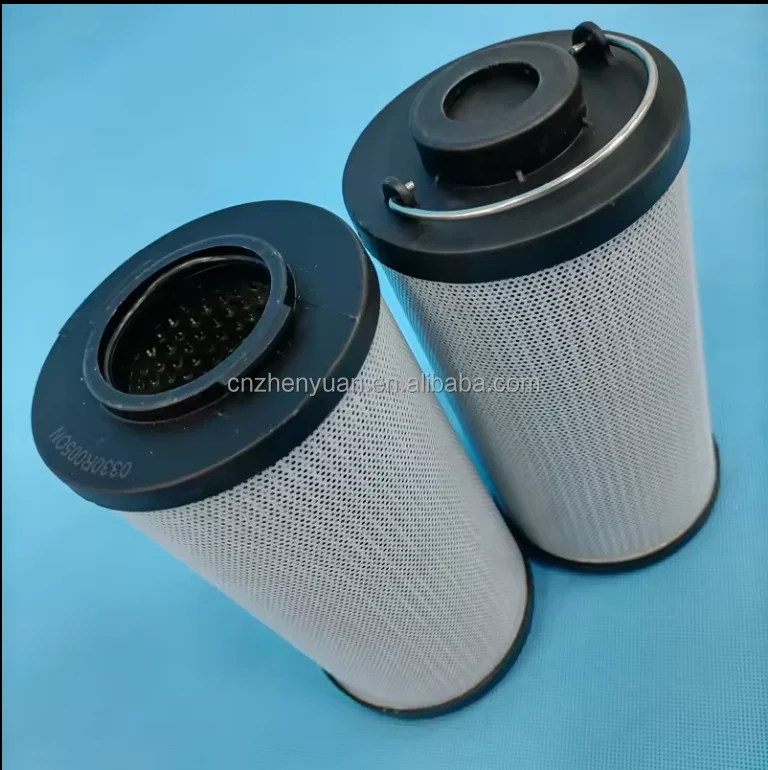

0660D010BH4HC 0990D010BN/HC 50P110QML50PP1 938291Q Replacement Hydraulic Oil Filter element
| Model Number | 0660D010BH4HC, 0990D010BN/HC, 50P110QML50PP1, 938291Q |
|---|

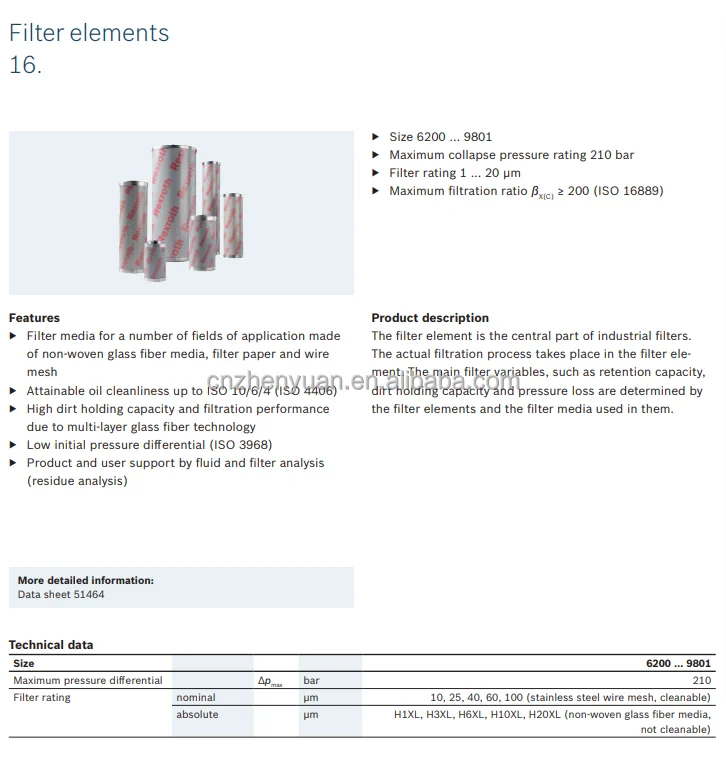

Product Description
0660D010BH4HC 0990D010BN/HC 50P110QML50PP1 938291Q Replacement Hydraulic Oil Filter element
Core performance parameters
– Filter element type: High-pressure hydraulic oil filter element, made of glass fiber folded filter material, with built-in bypass valve and check valve, connected in series in the high-pressure pipeline of the hydraulic system, suitable for precise filtration of oil in medium and high-pressure hydraulic systems.
– Filtration and pressure parameters: Rated filtration accuracy 10 μm (absolute filtration accuracy, β10≥1000); Rated working pressure: 31.5 MPa, maximum withstand pressure: 42 MPa (short-term ≤5 minutes); The bypass valve opens at a pressure of 4.0 MPa±0.5 MPa to prevent the filter element from clogging and causing a sudden increase in system pressure.
– Flow and resistance parameters: Rated flow 160 L/min (when the oil viscosity is 40 mm²/s); The initial pressure loss is ≤0.15 MPa, and the maximum allowable pressure loss during blockage is ≤0.3 MPa. The reverse sealing pressure of the check valve is ≥31.5 MPa to prevent oil backflow and contamination.
– Operating characteristics: Working oil temperature -20℃ to 100℃; The dirt-holding capacity of the filter material is ≥ 15g (dust from ISO 12103-3 A3 test); The service life under normal working conditions is ≥2000 hours (when the initial cleanliness of the oil is ISO 4406 18/15 grade).
2. Structure and connection parameters
– Structural type: Folded filter material structure, integrating glass fiber filter layer, polyester support net, carbon steel shell, and stainless steel end cover; Built-in spring-loaded bypass valve (to prevent filter element rupture) and check valve (to prevent reverse oil flow); The surface of the shell is treated with electrostatic powder coating for rust prevention.
– Core material: The filter material is borosilicate glass fiber (oil-resistant and heat-resistant, filtration efficiency ≥99.5%); The shell is made of Q235 carbon steel (wall thickness ≥ 3mm). The end cover is made of 304 stainless steel. The sealing parts are made of fluororubber (with a temperature resistance of ≤120℃ and high pressure resistance).
– Connection specification: The inlet and outlet connections are threaded (G2″ internal thread). The installation method is flange type (flange diameter 160mm, bolt hole center distance 130mm). The total length of the filter element is 450 mm, the outer diameter is 110 mm, and the weight is approximately 4.5 kg.
3. Medium and Environmental requirements
– Medium requirements: Compatible with common hydraulic media such as L-HM 32/46/68 anti-wear hydraulic oil and phosphate ester hydraulic oil; The allowable medium viscosity is 10-400 mm²/s, and the moisture content is ≤0.05%. It is strictly prohibited to filter oil containing corrosive solvents or with a solid particle concentration greater than 50 mg/L.
– Cleanliness adaptation: The initial cleanliness of the system oil is ISO 4406 18/15 grade. After filtration, the cleanliness of the oil can be improved to ISO 4406 16/13 grade. It is recommended to be used in conjunction with an oil-absorbing filter element to form a two-stage filtration system of “coarse filtration + fine filtration”.
– Environmental parameters: Operating environment temperature -20℃ to 100℃, relative humidity ≤95% (short-term condensation is allowed); With a protection grade of IP64, it is suitable for scenarios such as hydraulic stations of construction machinery and industrial high-pressure hydraulic systems.Ii. Working Principle
This filter element is a high-pressure precision filtration component. Its core achieves precise filtration of hydraulic oil and system safety protection through the collaborative mechanism of “filter material retention of impurities – bypass valve overload protection – check valve backflow prevention”. The specific process is as follows:
1. Filter the core process
High-pressure hydraulic oil enters the inner cavity of the filter housing from the filter element inlet. When it flows through the pores of the glass fiber folded filter material, the filter material intercepts solid impurities with a particle size of ≥10 μm in the oil (such as metal grinding debris, dust, rubber particles, etc.) through mechanical interception, inertial collision and adsorption. The filtered clean oil enters the main circuit of the system through the outlet of the filter element, providing a clean oil source for precision components such as the hydraulic pump and valve group.
2. Overload protection mechanism
When the filter material retains too many impurities and causes blockage, the pressure difference between the inlet and outlet of the filter element gradually increases. When the pressure difference reaches 4.0 MPa±0.5 MPa, the built-in bypass valve automatically opens, and the high-pressure oil directly flows from the inlet to the outlet through the bypass valve, preventing the filter element from breaking due to excessive pressure difference, and at the same time preventing the system from being damaged due to sudden pressure rise or lack of oil in components caused by blocked oil flow.
3. Reverse anti-pollution mechanism
A check valve is installed on the outlet side of the filter element. When the system shuts down or the pressure drops sharply, the check valve closes quickly under the reverse pressure of the oil, preventing the contaminated oil downstream from flowing back to the clean side of the filter element and avoiding the re-entry of retained impurities into the system, ensuring that the initial cleanliness of the oil meets the standards when it is started next time.Iii. Product Features and Advantages
– High precision filtration efficiency: With an absolute filtration accuracy of 10 μm and glass fiber folded filter material, β10≥1000 (i.e., the retention efficiency for 10 μm impurities ≥99.9%), it can enhance the oil cleanliness from ISO 18/15 grade to 16/13 grade, effectively reducing the wear of precision components such as hydraulic valves and pumps, and extending their service life by more than 30%.
– Excellent high-pressure resistance performance: With a rated working pressure of 31.5MPa and a 3mm thick carbon steel casing, it can withstand a short-term high-pressure impact of 42MPa. Fluororubber seals provide reliable sealing under high pressure with no leakage risk, making them suitable for high-pressure hydraulic systems such as excavators and presses.
– Large dirt-holding capacity and long service life: The folded filter material design increases the filtration area by 4 times compared to filter elements of the same volume. The dirt-holding capacity is ≥ 15g, and the normal service life under working conditions is ≥2000 hours. Compared with ordinary filter elements, the replacement frequency is reduced by 50%, reducing operation and maintenance costs.
– Complete safety protection function: The built-in bypass valve and check valve form dual protection. The bypass valve prevents the filter element from clogging and breaking, and the check valve avoids oil backflow and contamination. The surface of the filter housing is treated with electrostatic powder coating, which has excellent anti-rust performance and is suitable for outdoor working conditions that are humid and dusty.
Iv. Usage Functions and Purposes
1. Core usage functions
– Precision filtration of hydraulic oil: It retains solid impurities of 10 μm or more in the hydraulic oil, reduces the contamination level of the oil, prevents faults such as valve jamming and pump body wear caused by impurities, replaces traditional low-precision filter elements, and enhances system reliability.
– System high-pressure safety protection: When used in series in high-pressure pipelines, it can not only filter impurities but also ensure the flow of oil when the filter element is clogged through a bypass valve, preventing system pressure overload. There is no need to install an additional relief valve, simplifying the system structure.
– Maintenance of oil cleanliness: In combination with the suction oil filter element and the return oil filter element, it forms a three-stage filtration system, maintaining the oil cleanliness within ISO 16/13 grades for a long time, extending the hydraulic oil replacement cycle to over 8,000 hours, and saving 15% energy compared to systems without fine filtration.
2. Main application fields
In the field of heavy construction machinery: filtration for the main pump outlet of 20-50 ton crawler excavators, filtration for the hydraulic circuit of 30-80 ton hydraulic bulldozers, and filtration for the luffing circuit of 100-200 ton truck cranes, suitable for heavy-load and high-pressure operations.
In the field of industrial high-pressure equipment: hydraulic oil filtration for 1000-3000 ton hydraulic presses, filtration for the downward circuit of large metallurgical rolling mills, and filtration for the injection circuit of 600-1500 ton injection molding machines, suitable for precision high-pressure manufacturing scenarios.
In the field of special high-pressure systems: filtration for hydraulic systems of mine tunnel boring machines, filtration for lifting circuits of heavy cranes in ports, and filtration for auxiliary hydraulic systems of shield machines, suitable for high-pressure operations in harsh environments.
V. Applicable Machines and Scenarios
1. Adapt to the core machine
– Heavy construction machinery: 20-50 ton crawler excavators, 30-80 ton hydraulic bulldozers, 100-200 ton truck cranes, 20-40 ton loaders.
– Industrial high-pressure equipment: 1000-3000 ton hydraulic presses, large-scale metallurgical rolling mills, 600-1500 ton injection molding machines, heavy forging equipment.
– Special high-pressure equipment: mine tunnel boring machines, heavy-duty gantry cranes for ports, shield machines, large-scale garbage compression equipment.
2. Typical application scenarios
– Main pump filtration scenario of the excavator: As the filter element at the outlet of the main pump of the 30-ton excavator, it filters the high-pressure oil (pressure 31.5 MPa, flow rate 150 L/min) output by the main pump, raising the oil cleanliness from the initial 18/15 grade to 16/13 grade, preventing impurities from entering the proportional valve and causing operation lag, and extending the main pump’s service life from 6,000 hours to 8,000 hours.
– Hydraulic press filtration scenario: It is used in the main cylinder circuit of a 2000-ton press to filter high-pressure oil (pressure 25 MPa, flow rate 120 L/min), intercept metal particles generated by cylinder wear, prevent damage to the main cylinder seal, and extend the seal replacement cycle from 3,000 hours to 5,000 hours.
– Mining tunnel boring machine filtration scenario: It is matched with the hydraulic system of the mining tunnel boring machine, filtering the high-pressure oil (pressure 31.5 MPa, flow rate 160 L/min) in the drive circuit of the tunnel boring head. It has excellent anti-dust pollution ability and a service life of up to 2000 hours in the underground dusty environment, which is twice as long as that of ordinary filter elements.
Six. Similar models
1. Alternative models of the same series
-0660D005BH4HC: High-precision model of the same structure, with a filtration accuracy of 5 μm (β5≥1000), consistent rated pressure and flow parameters, suitable for systems with higher requirements for oil cleanliness (such as precision servo hydraulic systems), and the cost is 30% higher than that of the original model.
-0660D020BH4HC: A low-precision model in the same series, with a filtration accuracy of 20 μm (β20≥1000), the same pressure and flow rate, suitable for systems with lower sensitivity to impurities (such as hydraulic motor drive circuits), and a cost 20% lower than the original model.
2. Cross-series alternative models
-0660S010BH4HC: Stainless steel filter material model, the filter material is 316L stainless steel woven mesh, suitable for corrosive hydraulic oil such as phosphate ester, filtration accuracy 10 μm, rated pressure the same, cost 80% higher than the original model.
-0660D010BH2HC: Low-pressure compatible model, rated working pressure 21 MPa, filtration accuracy consistent with flow rate, compatible with medium-pressure systems (such as 600-ton injection molding machines), cost 15% lower than the original model.
-0661D010BH4HC: High-flow model, rated flow rate 250 L/min, filtration accuracy 10 μm, pressure parameters the same, suitable for high-flow systems (such as 80-ton excavators), cost 40% higher than the original model.
1263284 1300R100W/HC/-KB-W
1266155 1300R100W/HC/-V
1266155 1300R100W/HC/-V
1267678 1300R100W/HC/-V-W
1267678 1300R100W/HC/-V-W
312247 1300R100W/HC/-W
312247 1300R100W/HC/-W
304701 1300R200W
304701 1300R200W
319979 1300R200W/KB
319979 1300R200W/KB
318976 1300R200W/HC
318976 1300R200W/HC
1323475 1300R200W/HC/-B6
1323475 1300R200W/HC/-B6
319954 1300R200W/HC/-KB
319954 1300R200W/HC/-KB
319212 1300R200W/HC/-V
319212 1300R200W/HC/-V
319675 1300R200W/HC/-V-B6
319675 1300R200W/HC/-V-B6
319931 1300R200W/HC/-V-KB
319931 1300R200W/HC/-V-KB
318667 1300R200W/HC/-W
318667 1300R200W/HC/-W
315821 1300R050W/HC
301523 1300R050W/HC/-B6
301523 1300R050W/HC/-B6
307583 1300R050W/HC/-KB
307583 1300R050W/HC/-KB
1250507 1300R050W/HC/-V
1250507 1300R050W/HC/-V
1250118 1300R050W/HC/-V-B6
1250118 1300R050W/HC/-V-B6
1250214 1300R050W/HC/-V-KB
1250214 1300R050W/HC/-V-KB
308897 1300R050W/HC/-W
308897 1300R050W/HC/-W
1261218 1300R050W/HC/-W-B6
1261218 1300R050W/HC/-W-B6
1261825 1300R050W/HC/-W-KB
1261825 1300R050W/HC/-W-KB
304700 1300R100W
304700 1300R100W
1266585 1300R100W/B6
1266585 1300R100W/B6
315276 1300R100W/KB
315276 1300R100W/KB
1319056 1300R100W/V-KB
1319056 1300R100W/V-KB
314577 1300R100W/-W
314577 1300R100W/-W
311501 1300R100W/HC
311501 1300R100W/HC
318993 1300R100W/HC/-B6
318993 1300R100W/HC/-B6
314217 1300R100W/HC/-KB
314217 1300R100W/HC/-KB
301483 1300R025W/V
301483 1300R025W/V
1307993 1300R025W/-V-KB
1307993 1300R025W/-V-KB
312077 1300R025W/-W
312077 1300R025W/-W
311873 1300R025W/HC
311873 1300R025W/HC
1261944 1300R025W/HC/-B6
1261944 1300R025W/HC/-B6
311580 1300R025W/HC/-KB
311580 1300R025W/HC/-KB
319100 1300R025W/HC/-V
319100 1300R025W/HC/-V
1260711 1300R025W/HC/-V-KB
1260711 1300R025W/HC/-V-KB
1280842 1300R025W/HC/-V-W-B6
1280842 1300R025W/HC/-V-W-B6
301497 1300R025W/HC/-W
301497 1300R025W/HC/-W
1250415 1300R025W/HC/-W-B6
1250415 1300R025W/HC/-W-B6
1261745 1300R025W/HC/-W-KB
1261745 1300R025W/HC/-W-KB
315269 1300R040AM
315269 1300R040AM
1267699 1300R040AM/KB
1267699 1300R040AM/KB
1260469 1300R040AM/E
1260469 1300R040AM/E
304233 1300R050W
304233 1300R050W
1298373 1300R050W/B6
1298373 1300R050W/B6
314052 1300R050W/KB
314052 1300R050W/KB
1272292 1300R050W/-V-B6
1272292 1300R050W/-V-B6
317424 1300R050W/V-KB
317424 1300R050W/V-KB
315821 1300R050W/HC
1263052 1300R005ON
1263052 1300R005ON
1263753 1300R005ON/B6
1263753 1300R005ON/B6
1263060 1300R005ON/KB
1263060 1300R005ON/KB
1301688 1300R005ON/SFREE
1301688 1300R005ON/SFREE
1314981 1300R005ON/SFREE-KB
1314981 1300R005ON/SFREE-KB
1263056 1300R005ON/V
1263056 1300R005ON/V
1263765 1300R005ON/V-B6
1263765 1300R005ON/V-B6
1263761 1300R005ON/V-KB
1263761 1300R005ON/V-KB
1318692 1300R005ON/PO
1318692 1300R005ON/PO
1313555 1300R005ON/PO/KB
1313555 1300R005ON/PO/KB
1318694 1300R005ON/PO/V
1318694 1300R005ON/PO/V
1264510 1300R010BN4AM
1264510 1300R010BN4AM
1270010 1300R010BN4AM/KB
1270010 1300R010BN4AM/KB
1264514 1300R010BN4AM/V
1264514 1300R010BN4AM/V
127660 1300R010BN4AM/V-KB
127660 1300R010BN4AM/V-KB
1268364 1300R010ECON2
1268364 1300R010ECON2
1263053 1300R010ON
1263053 1300R010ON
1263754 1300R010ON/B6
1263754 1300R010ON/B6
1263061 1300R010ON/KB
1263061 1300R010ON/KB
1297559 1300R010ON/KB-SFREE
1297559 1300R010ON/KB-SFREE
1306650 1300R010ON/SFREE
1264501 1300R003BN4AM
1271006 1300R003BN4AM/B6
1267991 1300R003BN4AM/KB
1264505 1300R003BN4AM/V
1271839 1300R003BN4AM/V-KB
1268362 1300R003ECON2
1274832 1300R003ECON2/-E
1263051 1300R003ON
1263752 1300R003ON/B6
1300635 1300R003ON/B6-SFREE
1263059 1300R003ON/KB
1302170 1300R003ON/SFREE
1263055 1300R003ON/V
1263764 1300R003ON/V-B6
1263760 1300R003ON/V-KB
1312127 1300R003ON/V-SFREE-KB
1308074 1300R005BN4AM/V
1268363 1300R005ECON2
1268363 1300R005ECON2
1295298 1300R005ECON2/-E
1295298 1300R005ECON2/-E
1314873 1300R005MM/SFREE-KB
1314873 1300R005MM/SFREE-KBVii. Precautions for Use
1. Medium and Selection management
– Strictly compatible with the type of hydraulic oil, glass fiber filter materials are prohibited from being used in media containing corrosive solvents such as chlorine and ketone. Select the model based on the system pressure (≤31.5 MPa), flow rate (≤160 L/min) and impurity particle size (≥10 μm). It is strictly prohibited to use beyond the parameters.
Before the new system is used for the first time, the pipeline should be flushed with a temporary filter element for more than 40 minutes to remove installation impurities before replacing the filter element. When changing the hydraulic oil in the system, the filter element must be replaced simultaneously to prevent contamination by the mixture of new and old oil.
2. Installation and commissioning
Before installation, confirm the inlet and outlet directions of the filter element (marked “IN” on the shell for inlet and “OUT” for outlet). Reverse installation is strictly prohibited (reverse installation will cause the filter to fail and damage the check valve). When making flange connections, the bolts should be evenly tightened with a torque of 500 N·m, and the gasket should be coated with oil-resistant sealant.
During commissioning, first introduce low-pressure oil (5 MPa) to flush the filter element for 10 minutes, and then gradually increase the pressure to the rated level. After installation, the pressure difference between the inlet and outlet of the filter element needs to be checked (an initial pressure of ≤0.15 MPa is normal). The pressure difference often requires checking whether the installation is in place or whether the filter element is clogged.
When installed outdoors or in a humid environment, a waterproof and breathable cap should be added to the top of the filter housing to prevent rainwater from seeping in and causing the filter element to rust. A maintenance space of ≥ 100mm is reserved around the filter element to facilitate replacement operations.
3. Operation and Maintenance
During operation, monitor the pressure difference between the inlet and outlet of the filter element weekly. When the pressure difference is ≥0.3 MPa or reaches the 2000-hour service life, the filter element must be replaced immediately. When replacing, the system pressure must be turned off. Disassemble only after the pressure drops to 0 MPa to avoid injury from high-pressure oil spraying.
The spent filter elements that have been replaced must be collected and treated centrally. It is strictly prohibited to disassemble them at will (the filter materials contain oil stains, which can easily cause environmental pollution). Before installing the new filter element, it is necessary to check whether the packaging is intact. It is strictly forbidden to use damaged or damp filter elements.
It is strictly prohibited to operate for a long time with the bypass valve open (the oil is not filtered after the bypass valve is open, which will accelerate the wear of system components). If the pressure difference surges frequently, it is necessary to check whether there is abnormal wear in the system (such as the wear of the pump body and cylinder block generating a large amount of impurities).
4. Storage protection
Unused filter elements should be stored in their original packaging and sealed. They should be kept in a dry warehouse at 0-45℃ with a humidity of no more than 60%, avoiding direct sunlight, heavy object compression and oil contamination. It is strictly prohibited to store it together with corrosive gases or chemicals to prevent the filter material from deteriorating.
The storage validity period of the filter element is 2 years. If it is not used within the period, the filtration performance of the filter material (such as bubble point test) needs to be retested. Only after meeting the standards can it be used. Idle filter elements should have their packaging sealing checked every six months. If damaged, they need to be resealed.
