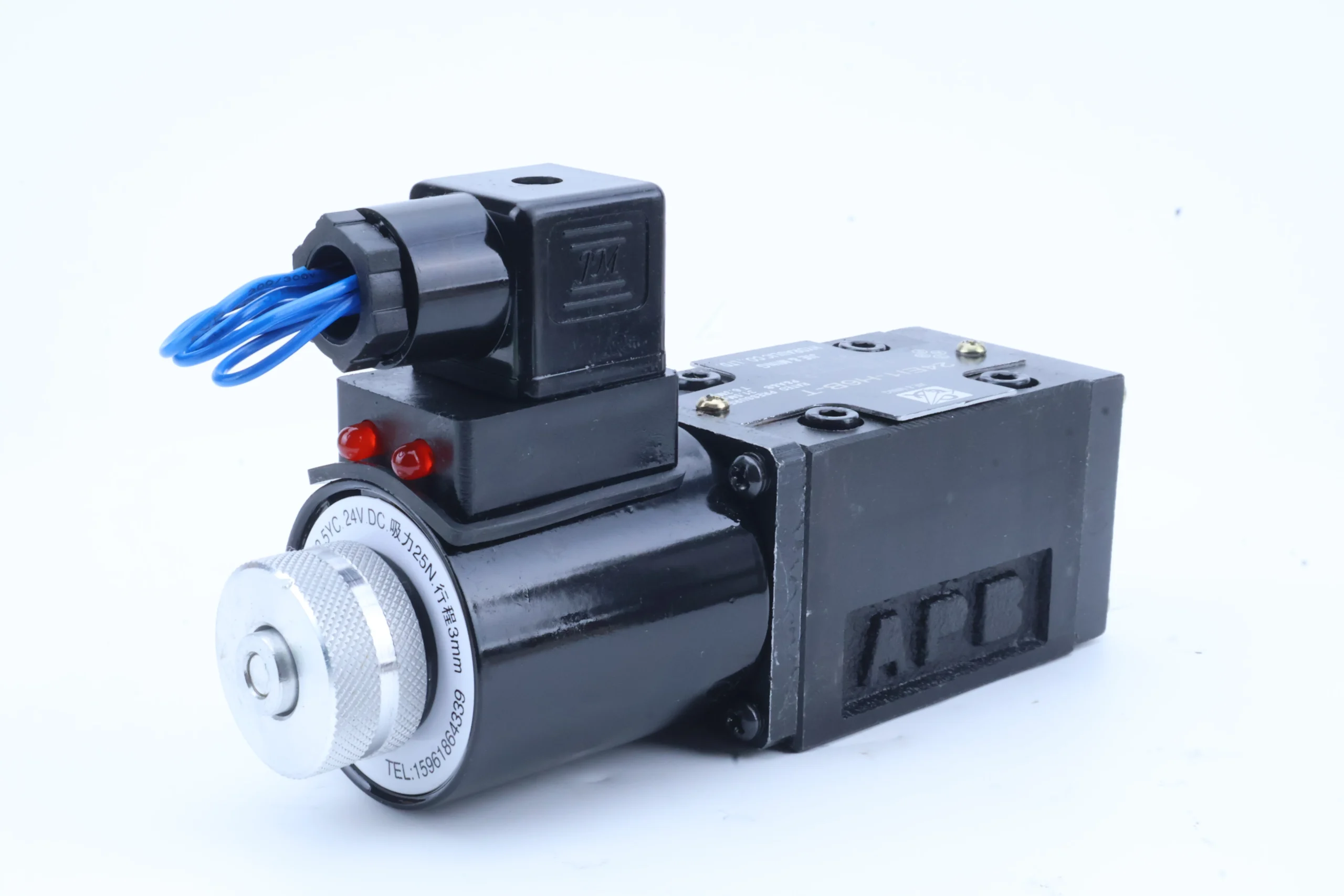

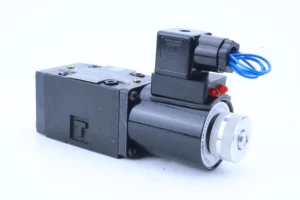

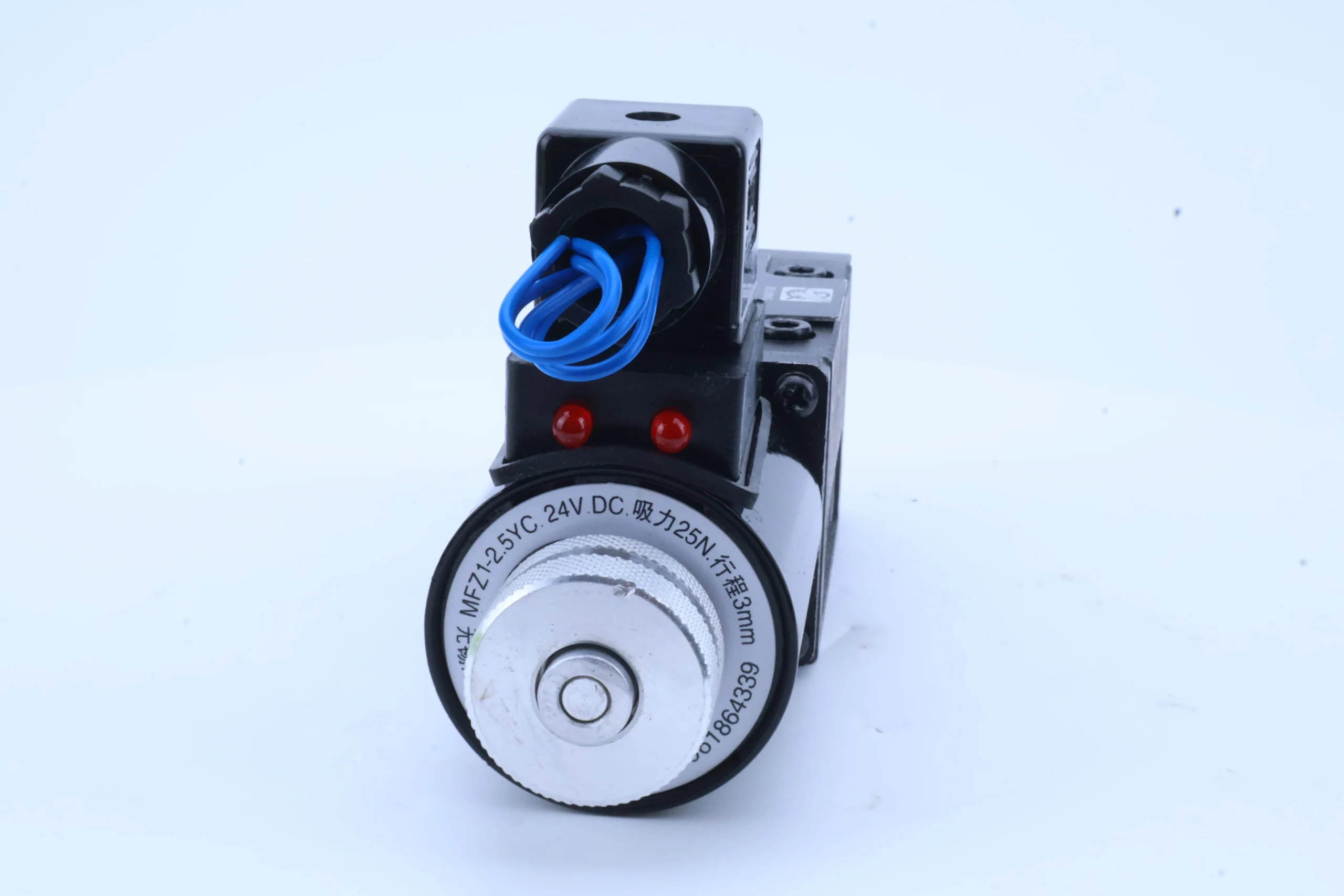

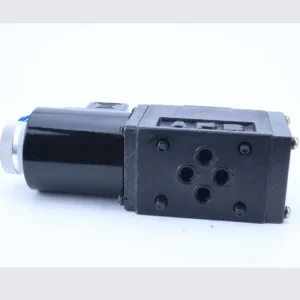

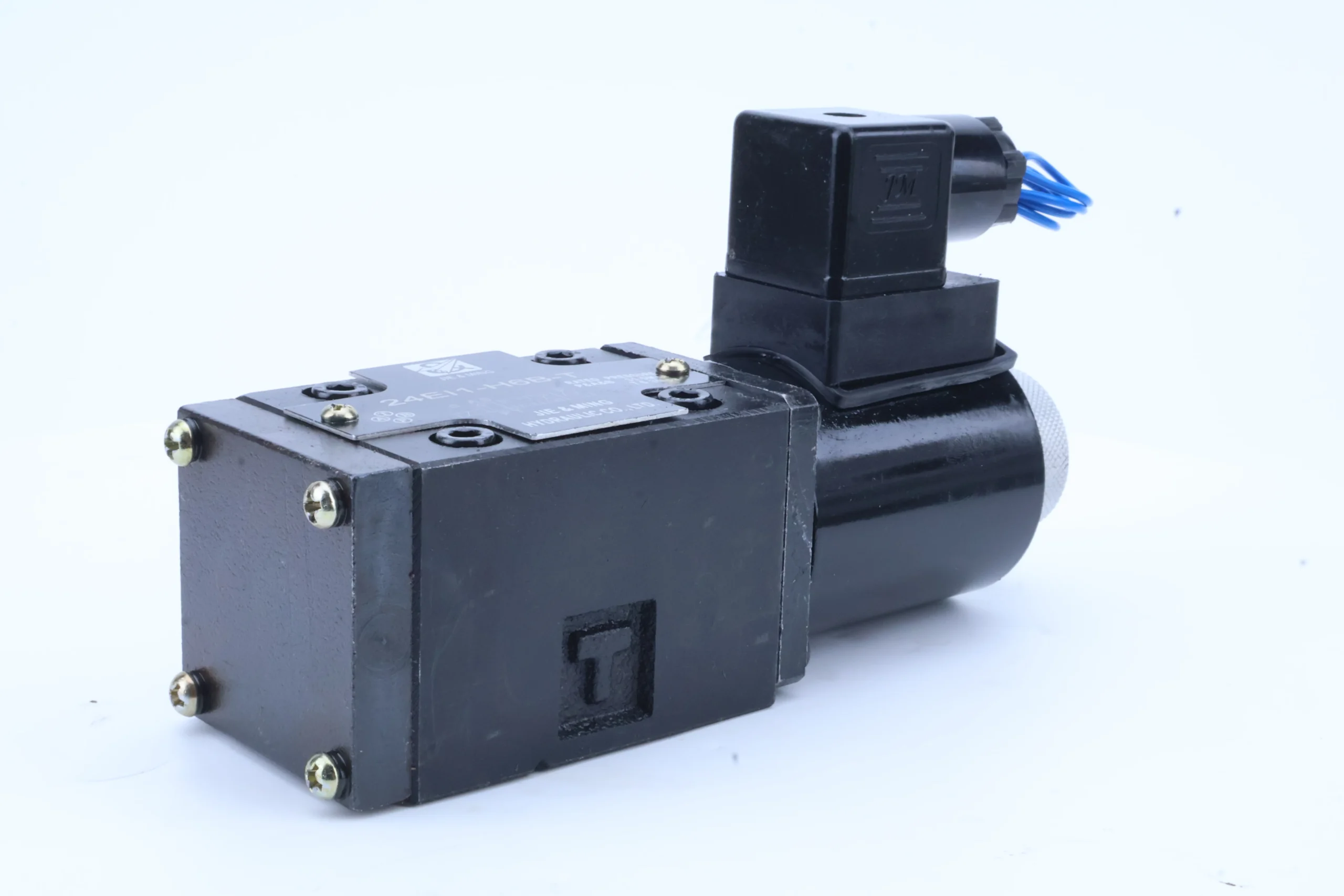

24BI1 24EI2 Series Hydraulic Solenoid Valve | 24BI2-H10B-T | DC24V Control Valve

The 24B and 24E Series from LIC Hydraulic are reliable, high-performance Solenoid Directional Control Valves designed for versatile industrial applications. These valves utilize direct-acting solenoids to shift the internal spool, directing the flow of hydraulic oil with precision. Models like 24BI2-H10B-T and 24BI3-B10H-TLH are engineered for high-cycle environments, offering rapid response and long-term durability. We provide 100% drop-in replacements, ensuring that these valves match original specifications for mounting, flow capacity, and electrical control.

Technical Highlights

• Voltage Options: Standard DC24V, AC220V, and other customized voltages.

• Max Pressure: Rated for standard medium-to-high pressure industrial circuits.

• Control Type: Direct-acting solenoid with manual override option.

• Porting: Compliant with standard industrial subplate mounting patterns.

Core Advantages

• Wet-Pin Solenoid Design: The solenoids are immersed in hydraulic oil, providing superior cooling and lubrication to the plunger, which translates to a longer service life and quieter switching.

• Precision Spool Geometry: Each spool is precision-lapped to minimize internal leakage and ensure smooth, reliable shifting even at maximum operating pressures.

• Robust Cast Housing: High-tensile iron bodies resist distortion from hydraulic surges, preventing spool sticking and ensuring consistent performance in harsh environments.

• Ease of Maintenance: Featuring plug-in connectors (like the “T” or “TLH” series) with integrated LED indicators, troubleshooting and electrical maintenance are simplified.

Expert Maintenance Tips

• Voltage Stability: For DC24V systems, ensure the power supply is stable. Low voltage can prevent the solenoid from fully shifting the spool, leading to localized overheating and valve failure.

• Fluid Cleanliness: Directional valves are sensitive to “silt” and large particles. Maintain fluid at ISO 18/16/13 to prevent spool sticking or premature wear of the sealing lands.

• Manual Override: During initial commissioning, use the manual override button (if equipped) to verify the hydraulic path before applying electrical power. Always release the override after testing.
