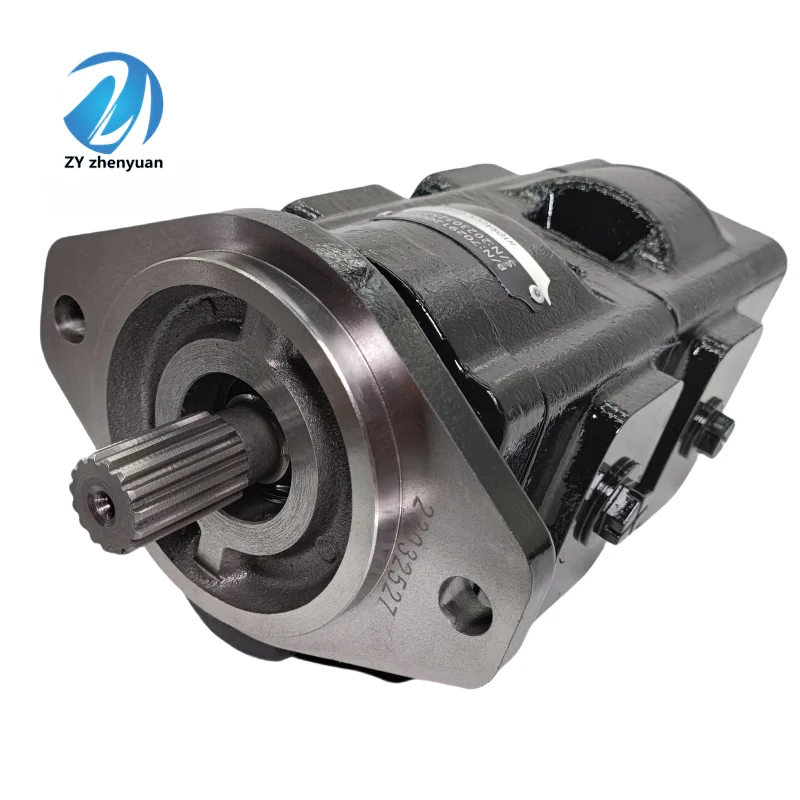

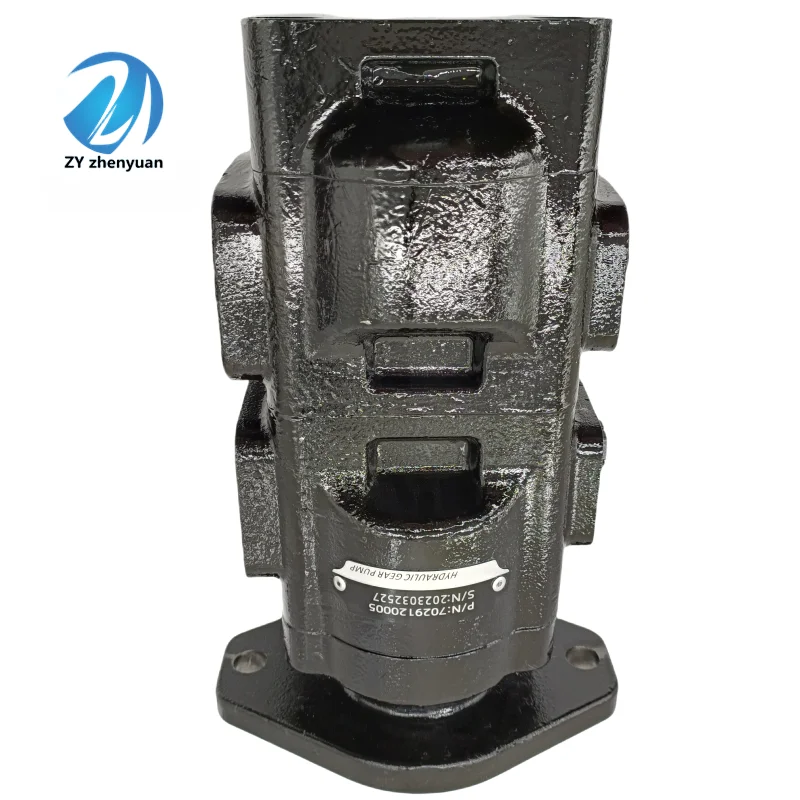

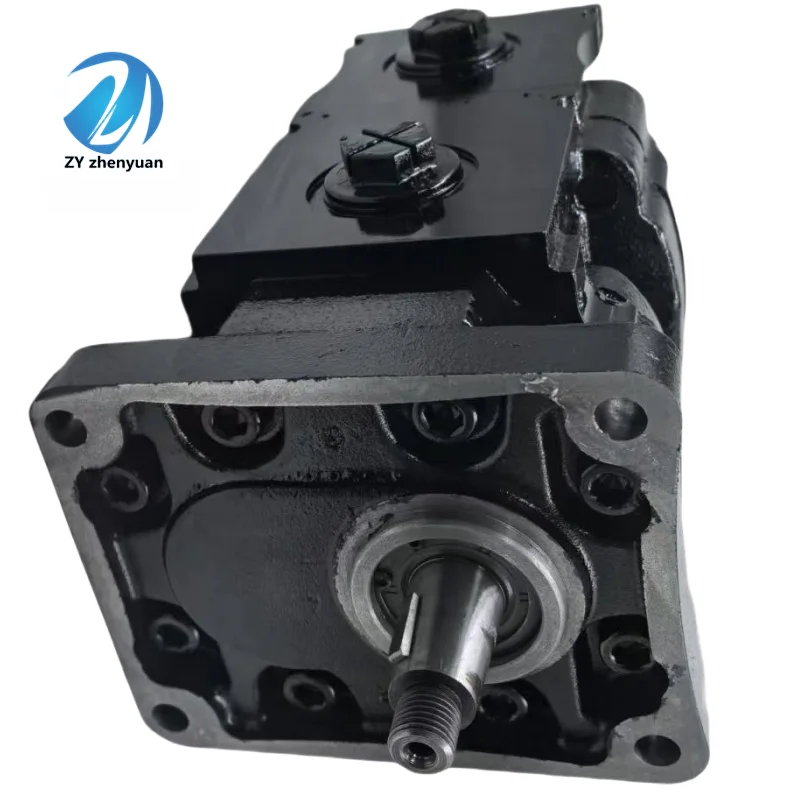

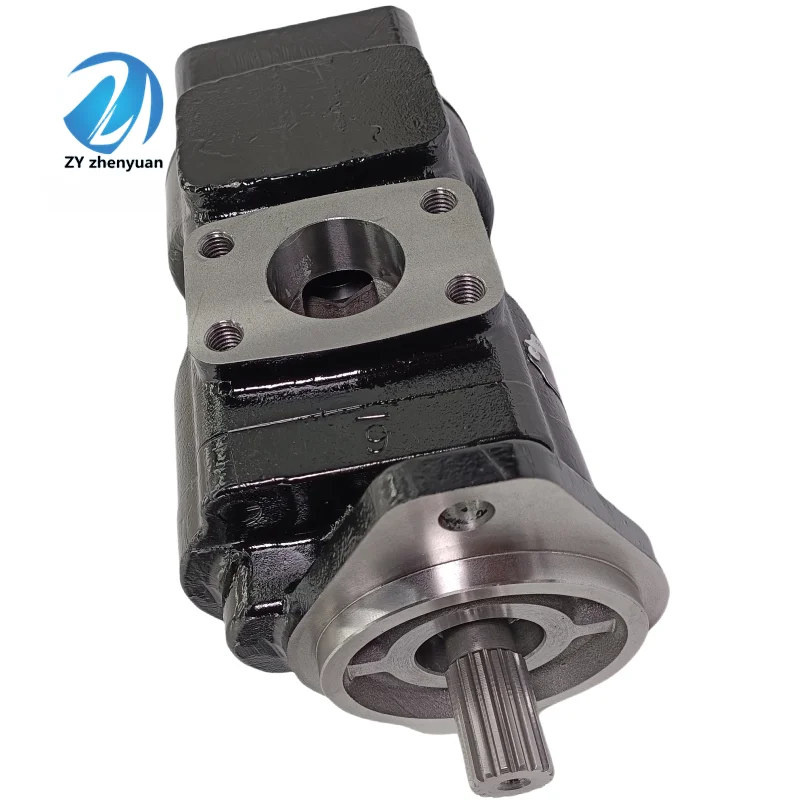

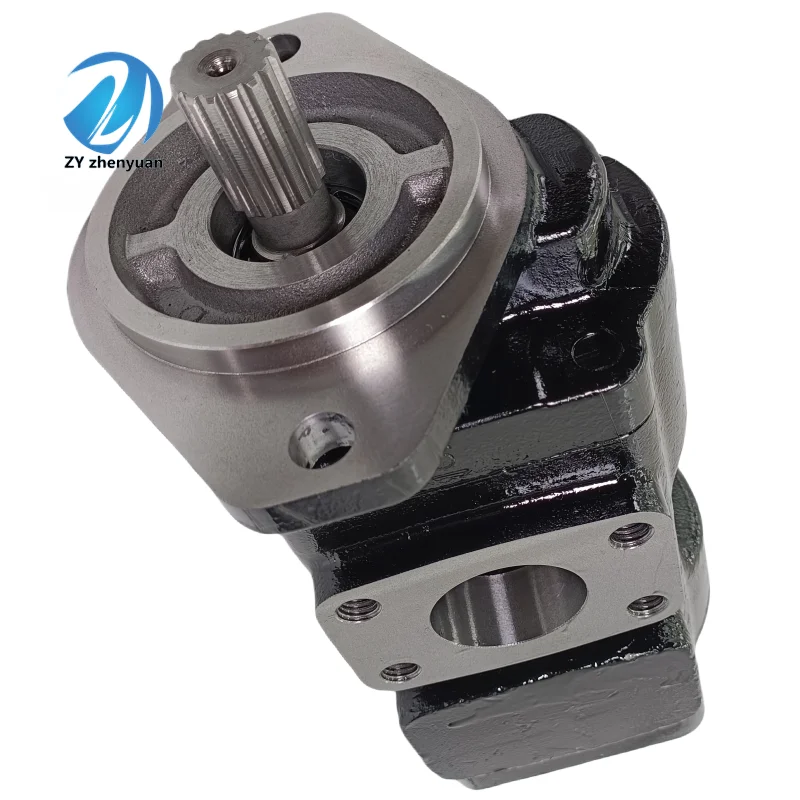

Parker PGP330 P315 Gear Pump | 3269112506 P315A296VE | High Pressure Cast Iron Pump
| Model Number | 3269112506 P315A296VE AB10-65 |
|---|
Product Description
LIC Hydraulic’s Parker Commercial PGP330 and P315 Series (including specific models 3269112506 and P315A296VE AB10-65) are premium-grade, high-pressure external gear pumps engineered for the most demanding heavy-duty applications. Featuring a classic “three-piece” ductile iron construction, these pumps are built to withstand intense shock loads and continuous high-pressure cycles. We guarantee 100% Drop-in Interchangeability with original Parker Commercial specifications. Every unit is subjected to 100% simulated load testing to ensure laboratory-grade volumetric efficiency and structural integrity, making them the ideal choice for construction, mining, and vocational truck industries.
Technical Specifications (Bulleted List)
Series Model: PGP330 / P315 (Heavy-Duty Cast Iron)
Specific Part Number: 3269112506 (PGP315 variant)
Model Code: P315A296VE AB10-65
Displacement Range: 10.2 cm³/rev to 64.0 cm³/rev (P315 frame)
Max Continuous Pressure: 241 bar (3500 PSI)
Max Intermittent Pressure: 275 bar (4000 PSI)
Maximum Speed: Up to 3000 RPM
Housing Material: High-tensile Ductile Iron
Drive Shaft Options: SAE Splined or Straight Keyed
Mounting Flange: SAE B 2-Bolt or 4-Bolt
Control Type: Fixed Displacement
Key Technical Advantages
Three-Piece Ductile Iron Construction: The main body, front cover, and rear cover are cast from high-strength ductile iron. This ensures zero housing expansion at 3500 PSI, providing vastly superior fatigue resistance compared to aluminum pumps in high-cycle operations.
Advanced Axial Clearance Compensation: Utilizing pressure-balanced floating thrust plates, the pump automatically maintains optimal gear-end clearance. This mechanism keeps volumetric efficiency above 95% throughout the product’s lifespan.
Heavy-Duty Roller Bearings: Equipped with oversized roller bearings designed for harsh environments, these pumps can handle significant radial loads and shock impulses, reducing mechanical friction and heat.
Tandem/Multiple Section Capability: The PGP330/315 architecture allows for multiple section configurations. A single drive shaft can power multiple hydraulic circuits, optimizing space and power distribution for complex machinery.
Application Areas
Vocational Trucks: Dump truck hoist systems, refuse compactor main pumps, and sweeper drives.
Construction Machinery: Steering pumps for wheel loaders and auxiliary circuits for excavators.
Industrial Equipment: High-pressure power units and metal scrap balers.
Expert Maintenance Tips
Back-Pressure Management: Since these pumps typically lack an external case drain, ensure return line back-pressure stays below 5 bar (75 PSI) to protect the shaft seal from heat-induced failure.
Rotation Verification: Always confirm the rotation (CCW or CW) before installation. Codes like P315A296VE specify the rotation; running the pump in the wrong direction will lead to immediate internal damage.
Filtration Standards: To protect the precision-ground gear teeth, we recommend maintaining system cleanliness at ISO 4406 19/17/14 or better with a 10μm absolute return filter.
