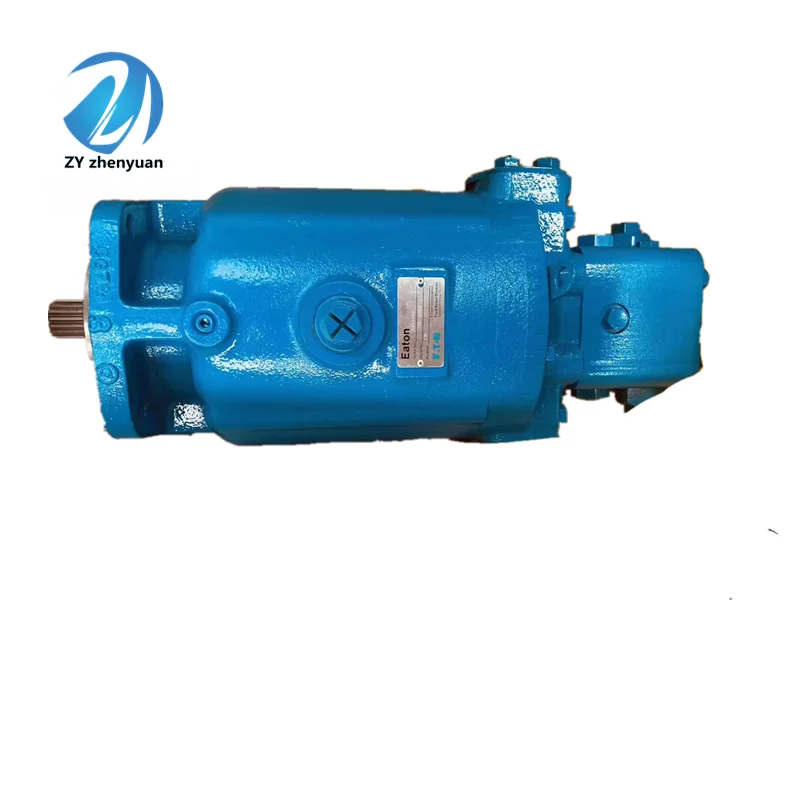

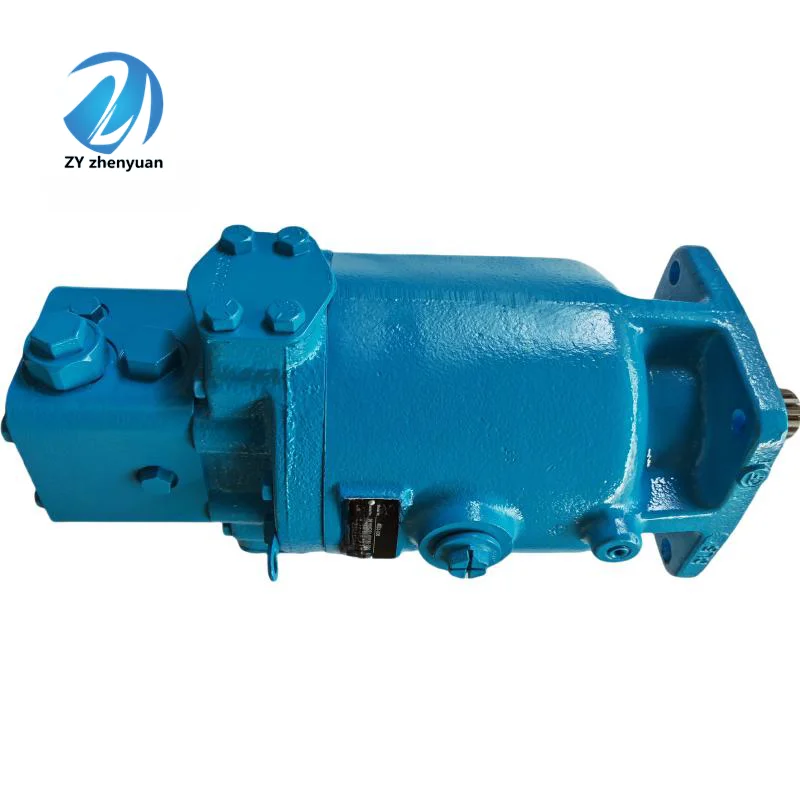

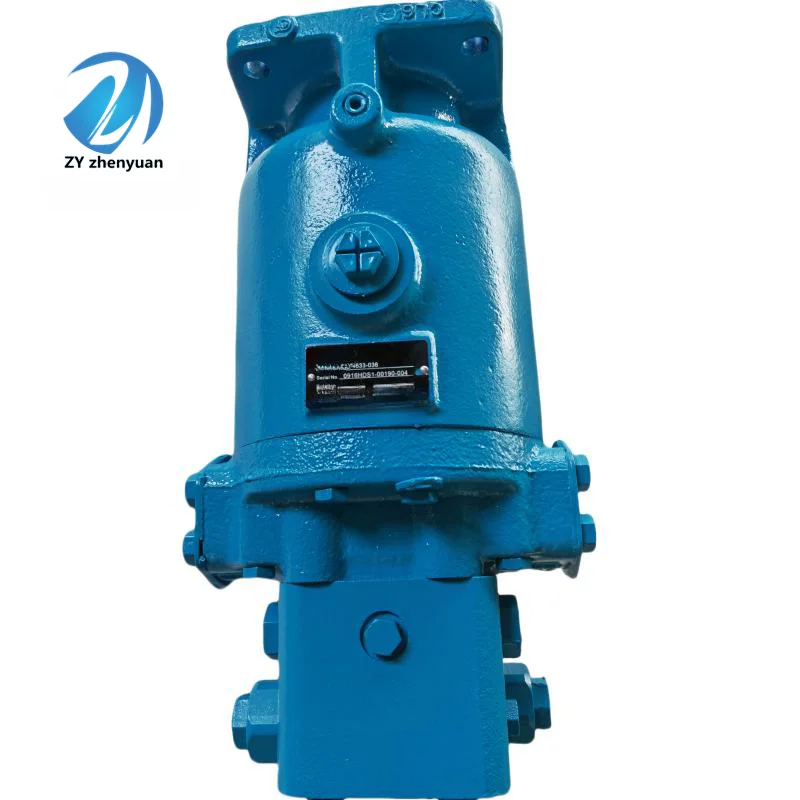

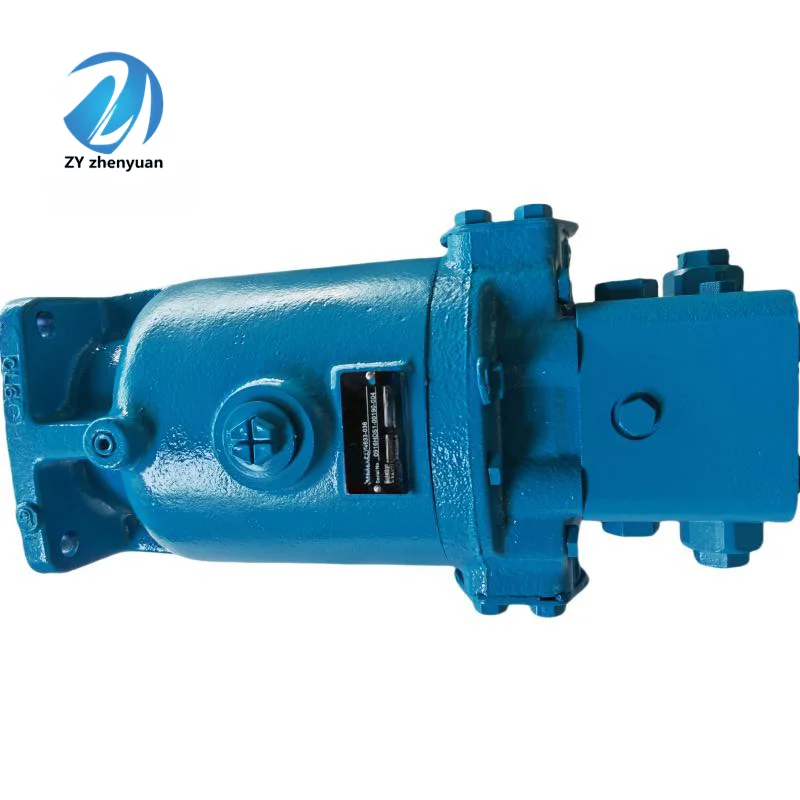

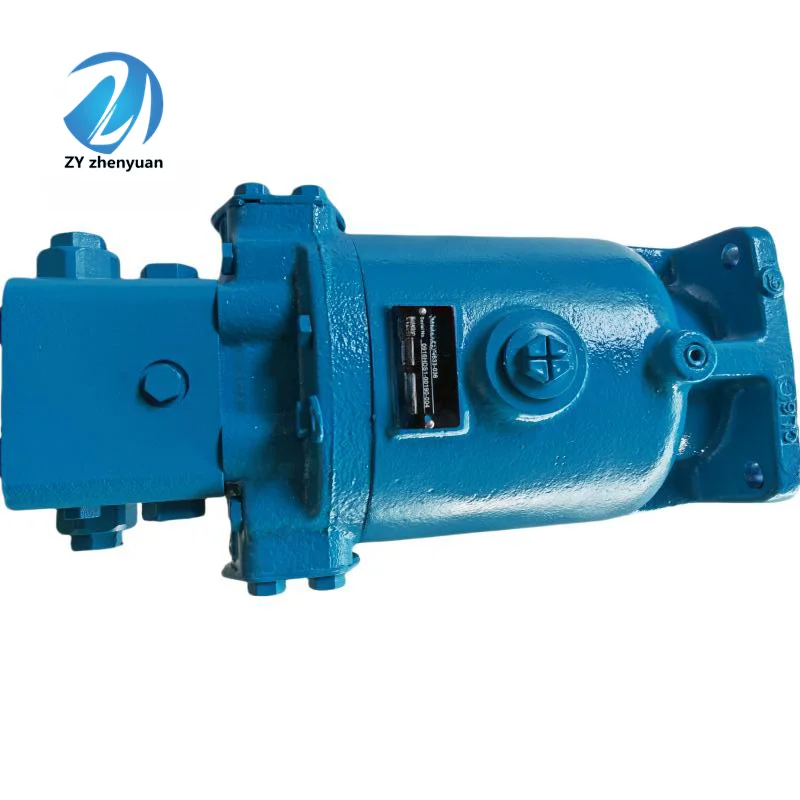

Eaton Vickers 3923 4623 5423 6423 7620 Fixed Piston Pump | 6423-545
| Model Number | 6423-049, 6423-545, 7620-094, 5423-367, 4623-115, 3923-277 |
|---|
Product Description
LIC Hydraulic offers the Eaton Vickers 3923, 4623, 5423, 6423, and 7620 Series heavy-duty fixed displacement axial piston pumps and motors. These units are the backbone of high-pressure hydrostatic transmissions (HST), capable of operating at continuous pressures up to $420\text{ bar}$ ($6000\text{ PSI}$). With specific configurations such as the 6423-545 and 4623-115, our products provide a 100% dimensional and performance match for OEM requirements. Known for their ruggedness and high power-to-weight ratio, these fixed units are ideal for paving, rolling, and mining machinery worldwide.
Technical Specifications (Quick Reference)
Series Range: 39, 46, 54, 64, and 76 displacement frames.
Max Pressure: Continuous $350\text{ bar}$ ($5000\text{ PSI}$), Peak up to $420\text{ bar}$.
Design: Fixed displacement axial piston, swashplate or bent-axis configuration.
Interchangeability: Full support for Vickers/Eaton specific dash numbers (e.g., 3923-277, 6423-049).
Key Technical Advantages
Heavy-Duty Bearings: Equipped with oversized tapered roller bearings to handle significant radial and axial loads from drive shafts.
Optimized Valve Plate: Precision-engineered valve plates reduce fluid-borne noise and pressure ripples, maintaining high volumetric efficiency at high RPMs.
Simplified Reliability: As fixed displacement units, they contain fewer moving parts than variable units, offering increased uptime and resistance to fluid contamination.
Thermal Resilience: Designed to operate efficiently across a wide temperature range, essential for outdoor construction and mining environments.
Application Areas
Paving & Compaction: Primary drive motors for asphalt pavers and vibratory rollers.
Concrete Transit: Drum drive motors for concrete mixers (replacing or supplementing Eaton 46, 54, 64 series).
Off-Highway Vehicles: Final drive systems for skid steers and specialized agricultural harvesters.
Expert Maintenance Tips
Case Drain Management: Always connect the case drain line directly to the reservoir with minimal backpressure. Excessive case pressure will damage the shaft seal and may lead to internal mechanical failure.
Filtration Standard: Maintain fluid cleanliness to at least ISO 4406 18/16/13. Piston units are highly sensitive to hard particles which can score the cylinder block and piston shoes.
Loop Flushing: In closed-loop systems, ensure the charge pump provides sufficient cooling flow to the fixed motor to prevent overheating during continuous high-load cycles.
model list:
3923-003 ACA392314R0A00MAD000000010D00000B 5423-518 ACA542337R0B00MAD0000000 30D00000B
3923-200 ACA392314R0B00MDBBB0000A30D00000B 5423-568 ACA542321L0A00MED00210EE000000C0B
3923-210 ACA392321R0B00MAD002M0D010D00000B 5423-715 ACA542337L0BLLMAD0000000 30000000B
3923-277 ACA392314L0A00HBF00000A010K00000B 5423-773 ACA542340R0ALLMCD000000C30D000A0B
3923-282 ACA392321R0ALLRGD00000000BSOLETE 5423-867 ACA542337R0B00MCD000080030D000008
3923-295 ACA392336R0A00MCD000080020G00000B 5423-889 ACA542314L0B00MAG00000FA50D0150UB
3923-352 ACA392336R0AJJEKD000000B20KD0000B 6423-005 ACA642323R1B00MAG0000000 30G00000B
3923-355 ACA392321R0ALLMAD000000030L00000B 6423-020 ACA642314R0A00MAG002KO D030000000B
3923-371 ACA392339R0A00MCD000080020G00000B 6423-034 ACA642314R0B00MDG0000000 30000000B
4623-002 ACA462314L0A00MAD000000010D00000B 6423-049 ACA642314R0A00HB000000AB40D00000B
4623-003 ACA462314R0A00MAD000000010D00000B 6423-071 ACA642323R1B00MAG00000EE 00000000B
4623-115 ACA462314R0D000B0000000010D00000B 6423-073 ACA6423-23L1A00MAG00000E E000-00000A
4623-231 ACA462321L0A00MAD000000A10D00000B 6423-081 ACA642330L1B00MDC002M0D030D013A0B
4623-294 ACA462321L0A00MAD00000EE00000000B 6423-155 ACA642314L0A00HB000000AB40D00000B
4623-396 ACA462314R0A00MDA000000B30D00000B 6423-279 ACA642337R0B00MAB0000000 30D00000B
4623-432 ACA4623140A00MAD00000AA30D00000B 6423-338 ACA642314R0A00MAD002L0A0 40D00000B
4623-472 ACA462314L0A00HB000000AB30D00000B 6423-406 ACA642330L1B00NDC002M0D030K013A0B
4623-503 ACA462314L0A00MAG002L0EE00000000B 6423-449 ACA642323R0A00MDB0000000 20D00000B
4623-522 ACA462321R1B00HDDB0000DB30K00000B 6423-511 ACA642323R1B00FSA00000EL00004000B
4623-524 ACA462314R0B00MAG00000AB30G00000B 6423-545 ACA642314L0D00MAD002L0A040D00000B
4623-552 ACA462337R0B00MAB000000030D00000B 7620-000 ACA762013L0A00MAG0000000 30D00000A
4623-553 ACA462337L0B00MAB000000030D00000B 7620-001 ACA762013R0A00MAG0000000 30D00000A
4623-608 ACA462314R0A00HB000000AB30D00000B 7620-010 ACA762027LOA0OMAG0000000 30D00000A
4623-654 ACA462314L0B00MAD00000FA40DOBBOUB 7620-011 ACA762027ROA00MAG0000000 30D00000A
5423-003 ACA542314L0A00MAG000000010D00000B 7620-037 ACA762027ROA00MAG0000000
5423-004 ACA542314R0A00MAG000000010D00000B 7620-039 ACA762013R0A00MAG000000B 30D00000A
5423-016 ACA542323R0A00MAG000000010D0000UB 7620-058 ACA762027L0B000B00000000
5423-295 ACA542314R1A00HAG0000000 7620-094 ACA762027R0B00MAG002J0D0 40D01800A
5423-367 ACA542323R0A00MAG00000EE00000000B 7620-316 ACA762013L0E00EJB005J7YF 30K00000A
5423-402 ACA542323R1B00MAE002MOEH00000000B 7620-371 ACA762013R0B00MDB002LODB 50KA0000A
5423-417 ACA5423-14L0A0OMAG002KODF 30H-00000B
3933-001 HHD393314AB1B1M1M00000B 5433-005 HHD543314AB1B1K1K00000B
3933-002 HHD393321AB1B1M1M00000B 5433-008 HHD543323AB1B1K1K00000B
3933-092 HHD393321BG1B000000000B 5433-080 HHD543321BB1B1M1M00000B
4633-002 HHD463314AB1B1K1K00000B 5433-116 HHD543314AB1B1J1J00000B
4633-010 HHD463321AB1B1L1L0000B 5433-138 HHD543321BB1B1K1K00000A
4633-029 HHD463314AC00000000000B 5433-142 HHD543330JG1H000000000B
4633-036 HHD463314AB2B1K1K00500B 5433-203 HHD543321G_001N1N00000B
4633-045 HHD463321BB1B1K1K00000B 5433-216 HHD543321BB1B1M1M02200B
4633-047 HHD463321AG1B000000000B 6433-002 HHD643314BA1B1K1K00000B
4633-111 HHD463321BB1B1L1L00000B 6433-009 HHD643314AA1B1K1K00000B
4633-132 HHD463321AG1B0000D00A0B 6433-011 HHD643321AA1B1K1K00000B
4633-139 HHD463301BH1B0000B0000B 6433-042 HHD643321BB1B1M1M00000B
4633-143 HHD463321BG1B000000000B 6433-120 HHD643321BB1B1M1M00000B
4633-153 HHD463321AG1B0000C00A0BH 6433-154 HHD643323BA1H1L1LA0000B
4633-164 HHD463314AB1B1K1KC0000B 6433-187 HHD643336KR000000C3500B
4633-190 HHD463321GZ001N1N00000B 7630-014 HHD763027AB1B1N1N00000A
