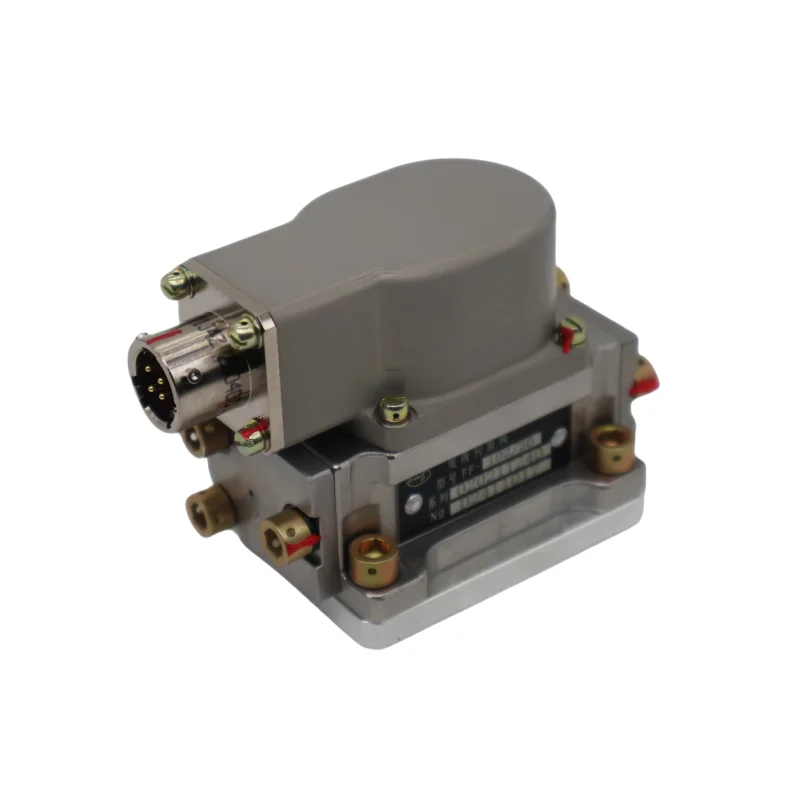

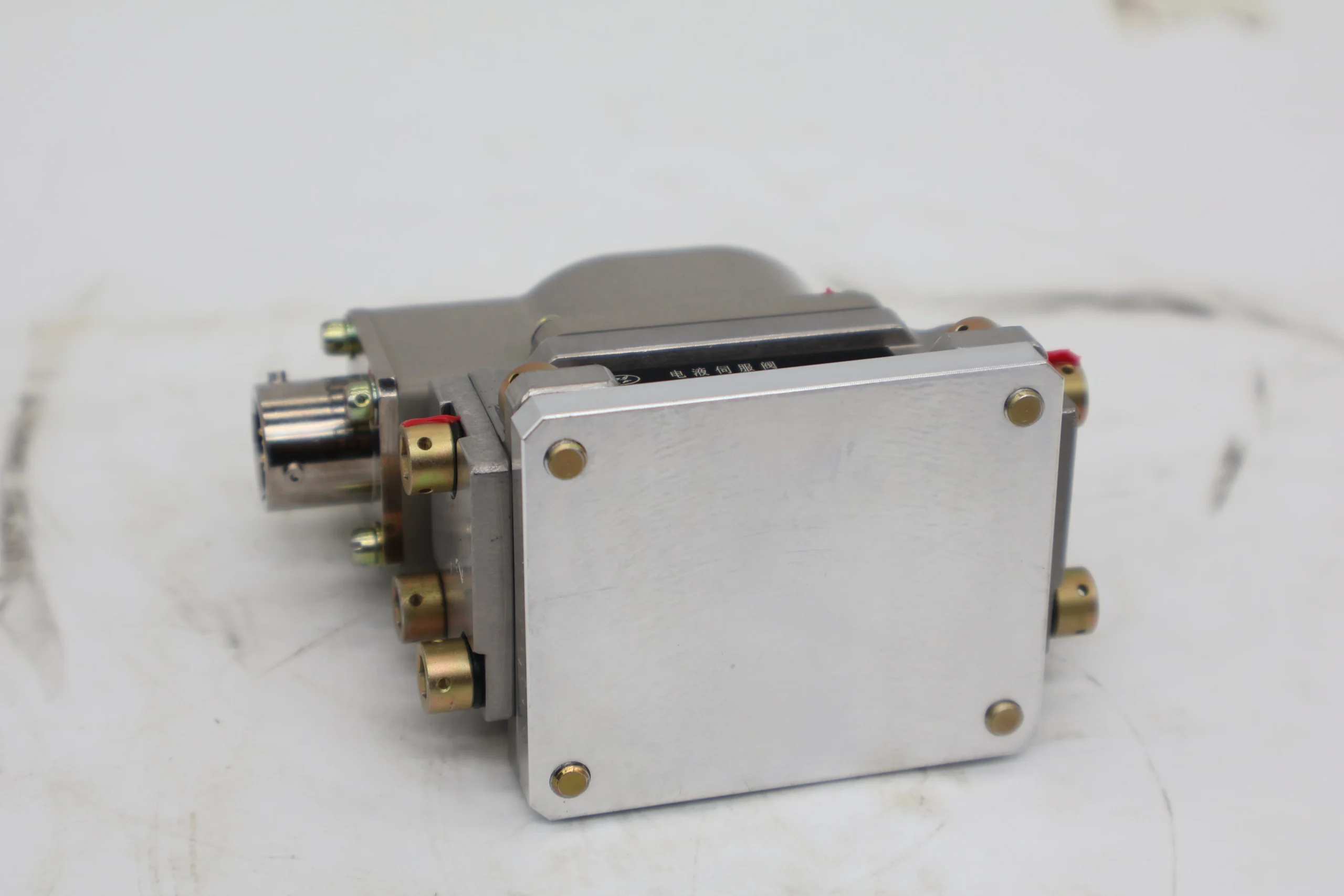

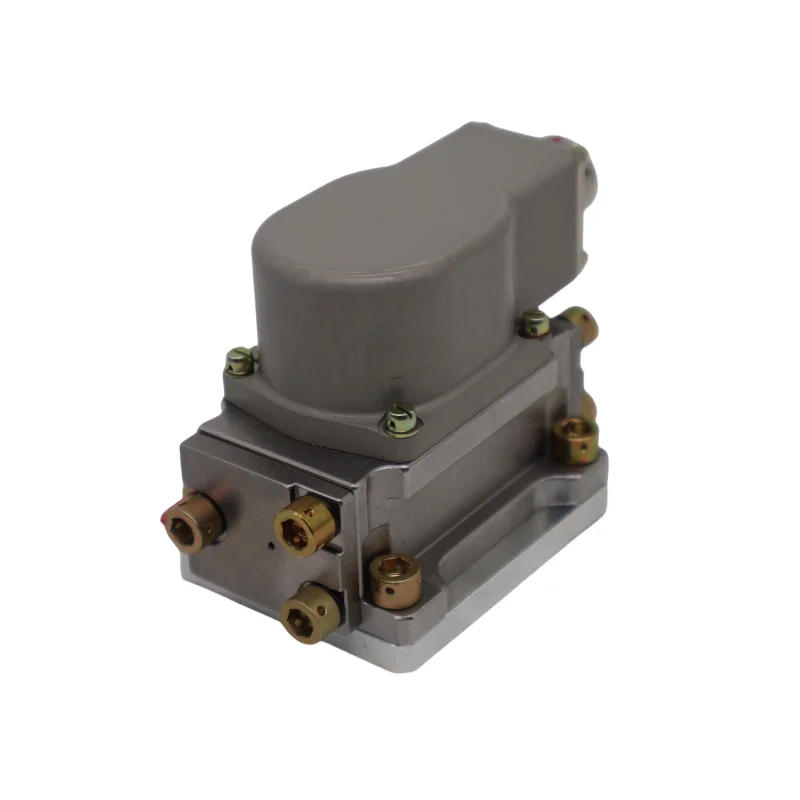

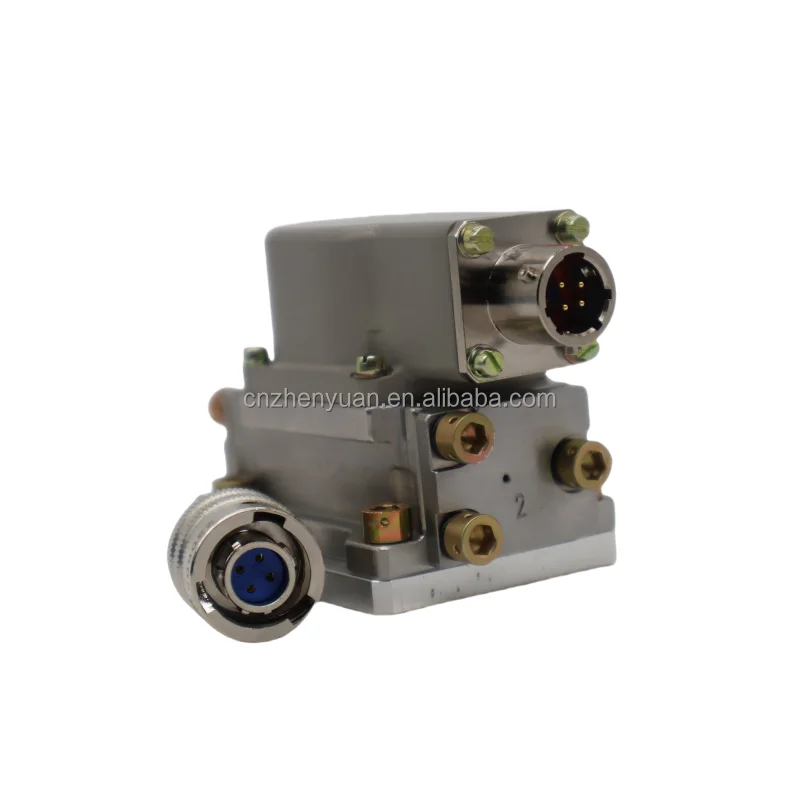

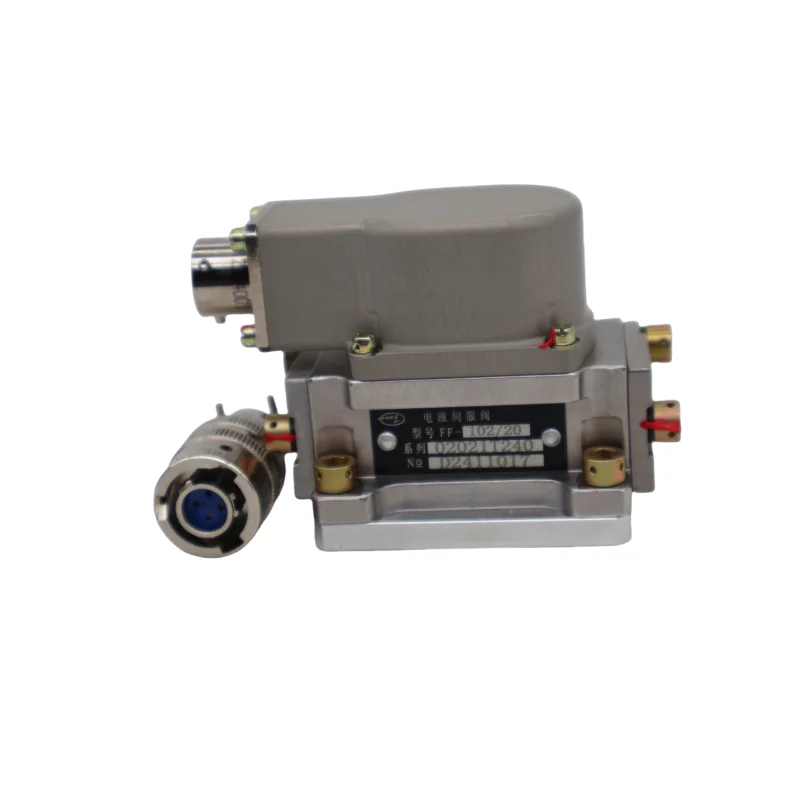

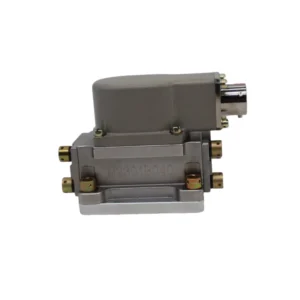

FF-102 FF-701 FF-131 Series Electro-Hydraulic Flow Control Servo Valve | 609 Institute High Response

LIC Hydraulic offers the 609 Institute FF Series, the gold standard in electro-hydraulic flow control. These nozzle-flapper type, two-stage servo valves are engineered to convert low-power electrical commands into high-precision hydraulic flow. Built to aerospace-grade specifications, the FF series is renowned for its exceptional dynamic response and minimal null shift. Our valves provide 100% original interchangeability, ensuring seamless integration into your existing systems. Each unit undergoes rigorous 100% simulated load testing to guarantee peak performance in high-frequency and harsh industrial environments.

Technical Specifications (Sample Model: FF-102)

• Model Designation: FF-102 (Two-stage Nozzle Flapper Servo Valve)

• Rated Flow (at Δp=7MPa): 4, 10, 20, 40 L/min (Optional variants)

• Rated Operating Pressure: 21 MPa to 31.5 MPa

• Supply Pressure Range: 1.5 MPa to 31.5 MPa

• Rated Current: ±10 mA / ±15 mA / ±40 mA (Per torque motor config)

• Hysteresis: < 3%

• Linearity: < 5%

• Frequency Response (at -3dB): ≥ 60 Hz to 100 Hz

• Fluid Media: Aerospace hydraulic oil, Phosphate ester fire-resistant fluid, Mineral oil

Key Technical Advantages

• High-Sensitivity Pilot Stage: The advanced nozzle-flapper design provides faster pilot response than traditional spool valves, ensuring millisecond-level reaction times for closed-loop control.

• Precision Engineering: Spool and sleeve pairs are crafted from specialty hardened steel with cryogenic treatment, ensuring micron-level tolerances and superior flow gain consistency.

• Minimal Null Shift: Features integrated thermal compensation to prevent drifting caused by temperature fluctuations, maintaining system stability during prolonged operation.

• Integrated Protection: A built-in high-density filter screen protects the sensitive pilot stage from particulate contamination, enhancing the valve’s service life in industrial environments.

Application Areas

• Aerospace & Defense: Flight simulators, actuator control systems, and ground support equipment.

• Test & Simulation: Structural fatigue testers, multi-axis vibration tables, and automotive component testing.

• Industrial Automation: CNC precision machining, steel mill roll-gap control, and steam turbine governors.

Expert Maintenance Tips

• Strict Filtration: Servo valves are highly sensitive to silt. You MUST maintain system cleanliness at NAS 1638 Class 5 or ISO 4406 14/11 or better.

• Mandatory Flushing: Always use a flushing plate to clean the hydraulic lines for at least 12 hours before installing the servo valve. Never attempt a “dry start.”

• Mechanical Null Adjustment: Use the adjustment screw on the top of the valve to correct any actuator drift at zero signal. Ensure system pressure is at operating levels during this fine-tuning.
