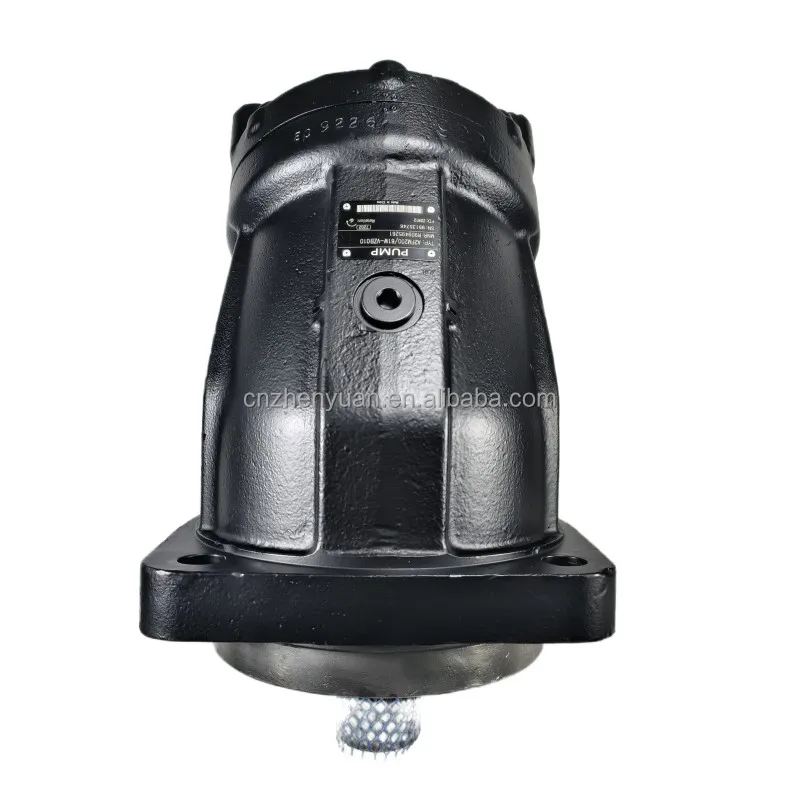

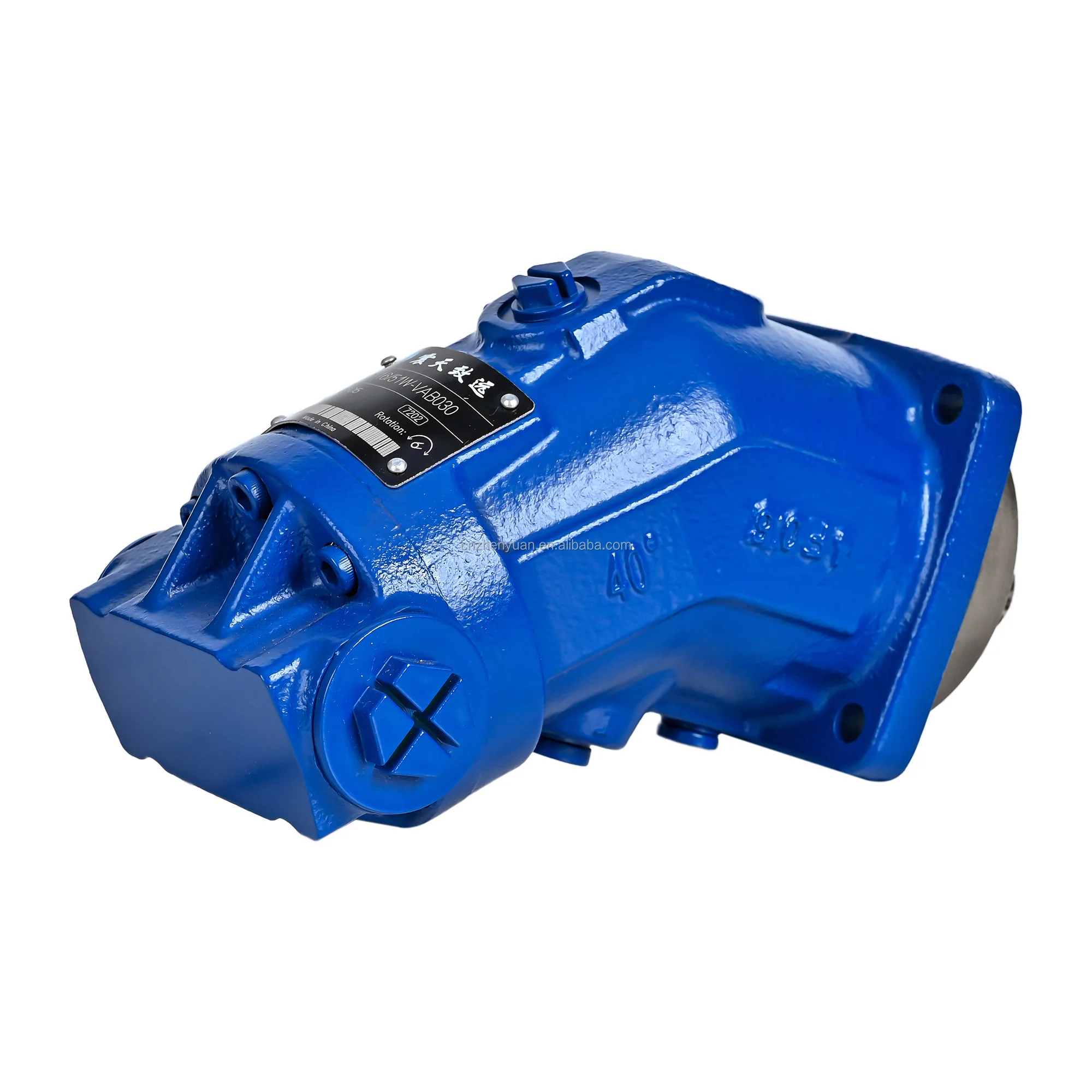

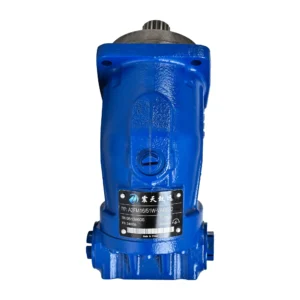

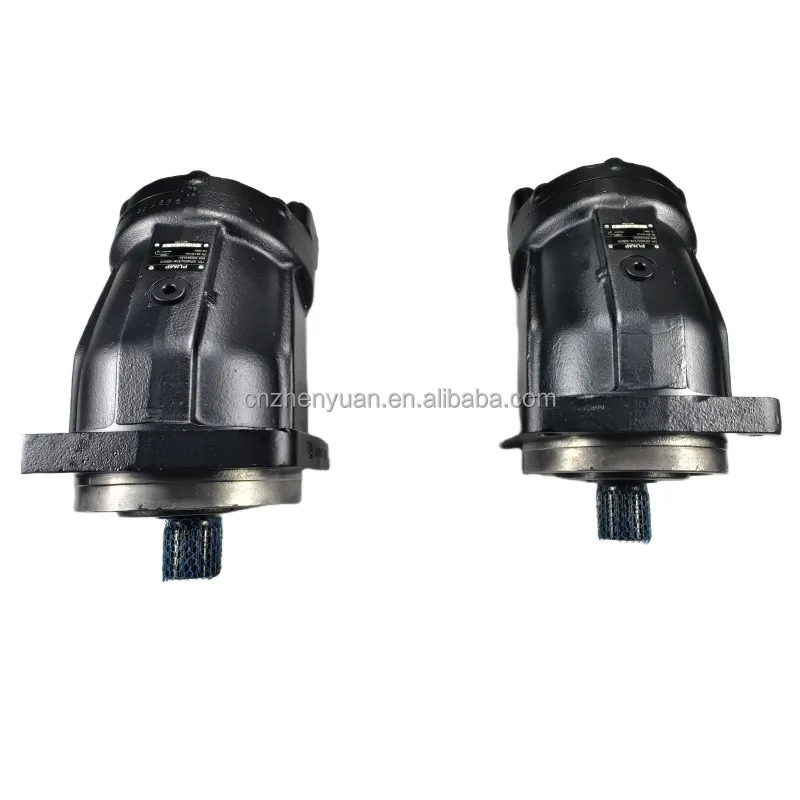

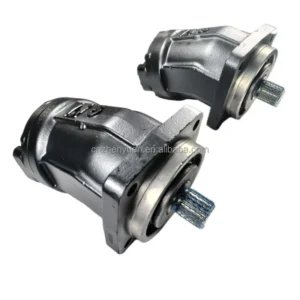

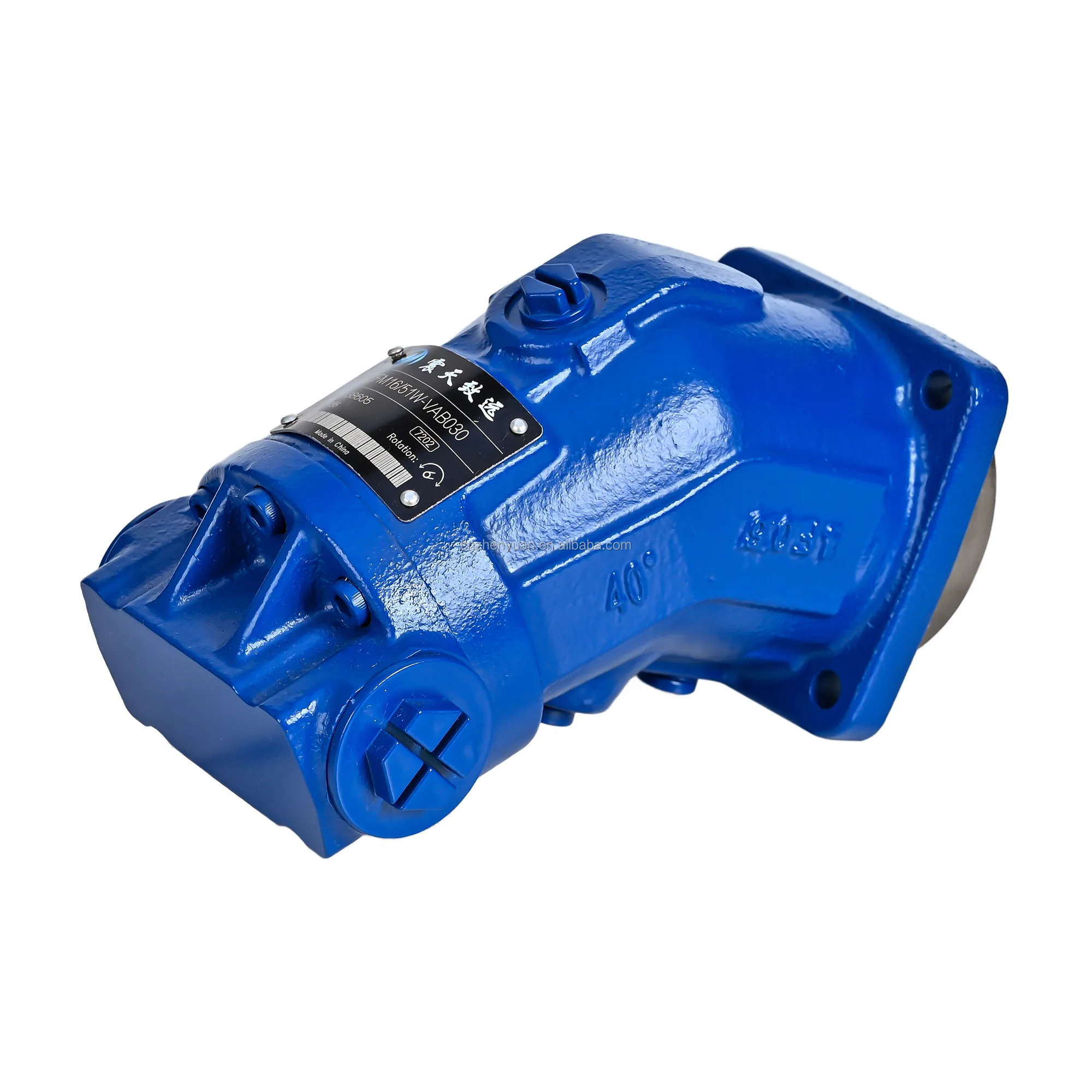

Rexroth A2FM160 Fixed Piston Motor | AA2FM160/61W-VSD527 | A2FM160/61W-NZB027
| Model Number | A2FM160/61W-PZB016, A2FM160/61W-NZB027, AA2FM160/61W-VSD527 |
|---|
Product Description
The Rexroth A2FM160 Series from LIC Hydraulic is a heavy-duty axial fixed displacement piston motor featuring a sophisticated bent-axis design. Models such as AA2FM160/61W-VSD527 and A2FM160/61W-NZB027 are engineered for both open and closed-circuit systems where high pressure and high reliability are required. The $40^\circ$ bent-axis angle provides an exceptional power-to-weight ratio. We guarantee 100% mechanical interchangeability and perform 100% testing on starting pressure, volumetric efficiency, and full-load torque output, ensuring peak performance at a continuous $400\text{ bar}$ rating.
Technical Configuration Details
Displacement: $160\text{ cm}^3\text{/rev}$.
Pressure Rating: Continuous $400\text{ bar}$ ($5800\text{ psi}$); Peak $450\text{ bar}$ ($6500\text{ psi}$).
Max Speed: Up to $3000\text{–}3600\text{ RPM}$ (intermittent).
Shaft/Flange: Available in various SAE and ISO standards (e.g., NZB, VSD, PZB types).
Design: Bent-axis axial piston for superior efficiency.
Key Technical Advantages
High Starting Torque Efficiency: The bent-axis technology minimizes mechanical friction during startup, allowing the A2FM160 to deliver smooth, consistent torque even under extreme loads—perfect for winching and heavy traction.
Rugged Construction: Built with high-strength housings and hardened internal components, this motor is designed to withstand frequent directional changes and the intense stresses of high-speed industrial operation.
Thermal Stability: Precision-lapped valve plates and pistons ensure a stable fluid film, reducing heat generation across the work cycle and extending the life of the internal seals and bearings.
Modular Integration: Standardized interfaces allow for the seamless addition of motion control valves (counterbalance or relief valves), streamlining the hydraulic manifold design.
Application Areas
Mobile Cranes: Main hoist and boom adjustment drives.
Construction Equipment: Power heads for rotary drilling rigs, track drives, and concrete mixer drums.
Marine & Offshore: Anchor winches and deck crane slewing drives.
Mining Machinery: Heavy-duty feeder drives and crusher transmission systems.
Expert Maintenance Tips
Case Drain Management: Ensure the case drain line is connected directly to the reservoir with minimal back-pressure (less than $2\text{ bar}$). High case pressure will compromise the shaft seal integrity.
Pre-Operational Priming: Never operate the motor dry. Always fill the housing with clean hydraulic oil through the highest drain port before the first run to protect the high-speed rotating assembly.
Filtration Integrity: To maintain the precision surfaces of the pistons and valve plates, maintain a filtration level of ISO 4406 18/16/13. Contamination is the primary cause of efficiency loss and internal wear.
Related Models：
R909603046 A2FM160/61W-NAB106
R909611089 A2FM160/61W-NAB106D
R902014338 A2FM160/61W-NAB181-K
R909442915 A2FM160/61W-NZB020
R909448568 A2FM160/61W-NZB027
R902255789 A2FM160/61W-PAB010
R902193028 A2FM160/61W-PAB020-S
R902198119 A2FM160/61W-PAB020D
R909438655 A2FM160/61W-PAB026
R902101974 A2FM160/61W-PAB027D-S
R909604623 A2FM160/61W-PAB106
R909448367 A2FM160/61W-PAB106D
R902067869 A2FM160/61W-PPB020
R909446410 A2FM160/61W-PPB026
R909433263 A2FM160/61W-PZB016
R909603205 A2FM160/61W-PZB026
R902215329 A2FM160/61W-PZB100
R909448010 A2FM160/61W-PZB200
R902193332 A2FM160/61W-VAB010
R902222004 A2FM160/61W-VAB010
R902204500 A2FM160/61W-VAB010
R902227710 A2FM160/61W-VAB010
R902197930 A2FM160/61W-VAB010
R902193781 A2FM160/61W-VAB010
R902197569 A2FM160/61W-VAB010
R902193427 A2FM160/61W-VAB010
R902201512 A2FM160/61W-VAB010
R902193582 A2FM160/61W-VAB010
R902253708 A2FM160/61W-VAB010
R902211969 A2FM160/61W-VAB010
R902201569 A2FM160/61W-VAB010
R902193951 A2FM160/61W-VAB010
R902208854 A2FM160/61W-VAB010
R909438770 A2FM160/61W-VAB010
R909425163 A2FM160/61W-VAB010
R902201558 A2FM160/61W-VAB010
R902107540 A2FM160/61W-VAB010-S
R902207215 A2FM160/61W-VAB010-S
R902117871 A2FM160/61W-VAB010-S
R902014209 A2FM160/61W-VAB010D
R902035088 A2FM160/61W-VAB010D
R902063989 A2FM160/61W-VAB010D
R902063992 A2FM160/61W-VAB010D-K
R902088699 A2FM160/61W-VAB010F
R902160964 A2FM160/61W-VAB010F
R902220977 A2FM160/61W-VAB010F
R902245008 A2FM160/61W-VAB010F
R902088701 A2FM160/61W-VAB010F-K
R902211964 A2FM160/61W-VAB010H
R902248047 A2FM160/61W-VAB010J
R902223126 A2FM160/61W-VAB010U-S
R902260289 A2FM160/61W-VAB020
R902193566 A2FM160/61W-VAB020
R909438338 A2FM160/61W-VAB020
R902227533 A2FM160/61W-VAB020
R902193461 A2FM160/61W-VAB020
R902211785 A2FM160/61W-VAB020
R902193883 A2FM160/61W-VAB020
R902193526 A2FM160/61W-VAB020
R902197640 A2FM160/61W-VAB020
R902226010 A2FM160/61W-VAB020
R902193405 A2FM160/61W-VAB020
R902245308 A2FM160/61W-VAB020
R902201862 A2FM160/61W-VAB020
R902239881 A2FM160/61W-VAB020
R902197800 A2FM160/61W-VAB020
R902193982 A2FM160/61W-VAB020
R902193537 A2FM160/61W-VAB020-S
R909604831 A2FM160/61W-VAB020-S
R902203057 A2FM160/61W-VAB020D
R902035084 A2FM160/61W-VAB020D
R902068926 A2FM160/61W-VAB020D
R902004347 A2FM160/61W-VAB020D
R902235393 A2FM160/61W-VAB020F
R902207328 A2FM160/61W-VAB020H
R902160997 A2FM160/61W-VAB020H
R902250594 A2FM160/61W-VAB020H-S
R902161172 A2FM160/61W-VAB027
R902197722 A2FM160/61W-VAB027
R902211682 A2FM160/61W-VAB027
R909429942 A2FM160/61W-VAB027
R902253583 A2FM160/61W-VAB027
R902198338 A2FM160/61W-VAB027
R902198359 A2FM160/61W-VAB027
R902229009 A2FM160/61W-VAB027
R902201610 A2FM160/61W-VAB027D
R902161462 A2FM160/61W-VAB027F
R902211506 A2FM160/61W-VAB027F
R902080962 A2FM160/61W-VAB027F
R902080963 A2FM160/61W-VAB027F-K
R902274967 A2FM160/61W-VAB027FJ
R902220768 A2FM160/61W-VAB027H
R902270500 A2FM160/61W-VAB027U
R902255703 A2FM160/61W-VAB027V
R909428404 A2FM160/61W-VAB030
R909428405 A2FM160/61W-VAB030
R902016730 A2FM160/61W-VAB100
R902233623 A2FM160/61W-VAB100
R902229155 A2FM160/61W-VAB100
R902193946 A2FM160/61W-VAB100
R902271263 A2FM160/61W-VAB100
R902155877 A2FM160/61W-VAB100
R902208888 A2FM160/61W-VAB100-S
R902084273 A2FM160/61W-VAB100-S
R902193438 A2FM160/61W-VAB100-S
R902000293 A2FM160/61W-VAB100D
R902080734 A2FM160/61W-VAB100D
R902035080 A2FM160/61W-VAB100D
R902080736 A2FM160/61W-VAB100D-K
R902160895 A2FM160/61W-VAB100F
R902269841 A2FM160/61W-VAB100U
R902275077 A2FM160/61W-VAB100V
R902257804 A2FM160/61W-VAB100V-S
R902014337 A2FM160/61W-VAB180
R902261245 A2FM160/61W-VAB181
R902121691 A2FM160/61W-VAB181-K
R902075364 A2FM160/61W-VAB181-K
R902115610 A2FM160/61W-VAB181-K
R902060284 A2FM160/61W-VAB181-K
R902107628 A2FM160/61W-VAB181-K
R902102528 A2FM160/61W-VAB181-K
R902124257 A2FM160/61W-VAB181-K
R902077476 A2FM160/61W-VAB181-SK
R902196046 A2FM160/61W-VAB188
R902223247 A2FM160/61W-VAB188
R902220588 A2FM160/61W-VAB188
R902196048 A2FM160/61W-VAB188
R902235472 A2FM160/61W-VAB188
R902235475 A2FM160/61W-VAB188
R902208597 A2FM160/61W-VAB188
R902170121 A2FM160/61W-VAB188-S
R902261174 A2FM160/61W-VAB188H
R902000123 A2FM160/61W-VAB190
R902052206 A2FM160/61W-VAB190-S
R902021734 A2FM160/61W-VAB190DJ
R902035078 A2FM160/61W-VAB190DJ
R902021557 A2FM160/61W-VAB190J
R902052208 A2FM160/61W-VAB191-SK
R902021736 A2FM160/61W-VAB191DJ
R902035092 A2FM160/61W-VAB191DJ-K
R902215260 A2FM160/61W-VAB191HJ
R902226264 A2FM160/61W-VAB191J
R902161094 A2FM160/61W-VAB191J
R902161288 A2FM160/61W-VAB191J
R902197554 A2FM160/61W-VAB191J
R902237361 A2FM160/61W-VAB191J
R902222003 A2FM160/61W-VAB191J
R902018484 A2FM160/61W-VAB191J-K
R902000124 A2FM160/61W-VAB192J-K
R902161394 A2FM160/61W-VBB010
R909610670 A2FM160/61W-VBB010
R902088739 A2FM160/61W-VBB010-S
R902193531 A2FM160/61W-VBB010D
R902202324 A2FM160/61W-VBB010D
R902065800 A2FM160/61W-VBB010D
R902078614 A2FM160/61W-VBB010D-K
R902193003 A2FM160/61W-VBB010H
R902251695 A2FM160/61W-VBB010V
R902227829 A2FM160/61W-VBB020
R902198153 A2FM160/61W-VBB020
R909610671 A2FM160/61W-VBB020
R902211956 A2FM160/61W-VBB020
R902249656 A2FM160/61W-VBB020
R902070675 A2FM160/61W-VBB020D
R902268708 A2FM160/61W-VBB020V
R909610711 A2FM160/61W-VBB027
R902201573 A2FM160/61W-VBB027
R902161065 A2FM160/61W-VBB027F-Y
R902217604 A2FM160/61W-VBB027H
R902269573 A2FM160/61W-VBB027V
R902031563 A2FM160/61W-VBB100
R902215000 A2FM160/61W-VBB100
R902251927 A2FM160/61W-VBB100
R902161194 A2FM160/61W-VBB100J-S
R902161057 A2FM160/61W-VBB100J-S
R902203020 A2FM160/61W-VBB188F
R902094944 A2FM160/61W-VBB190DJ-S
R902094938 A2FM160/61W-VBB190J-S
R902094946 A2FM160/61W-VBB191DJ-SK
R902211937 A2FM160/61W-VBB191J
R902094940 A2FM160/61W-VBB191J-SK
R909409217 A2FM160/61W-VPB010
R902217737 A2FM160/61W-VPB010
R902193329 A2FM160/61W-VPB010
R909429884 A2FM160/61W-VPB010
R909421441 A2FM160/61W-VPB010-S
R902035094 A2FM160/61W-VPB010D
R902021965 A2FM160/61W-VPB010D
R902197596 A2FM160/61W-VPB020
R902226461 A2FM160/61W-VPB020
R909409219 A2FM160/61W-VPB020
R902198076 A2FM160/61W-VPB020
R909418901 A2FM160/61W-VPB020-S
R902207151 A2FM160/61W-VPB027
R902193166 A2FM160/61W-VPB027
R909438720 A2FM160/61W-VPB027
R902203276 A2FM160/61W-VPB027
R902268965 A2FM160/61W-VPB027V
R909409221 A2FM160/61W-VPB030
R909429885 A2FM160/61W-VPB030
R909409223 A2FM160/61W-VPB040
R909442985 A2FM160/61W-VPB100
R902204501 A2FM160/61W-VPB100J
R902049240 A2FM160/61W-VPB100J
R992000067 A2FM160/61W-VPB100J
R902068553 A2FM160/61W-VSB010-S
R902193410 A2FM160/61W-VSB010-S
R902233243 A2FM160/61W-VSB020
R902057496 A2FM160/61W-VSB020-S
R902161491 A2FM160/61W-VSB020-S
R902233122 A2FM160/61W-VSB027
R902110395 A2FM160/61W-VSB027-S
R902068644 A2FM160/61W-VSB180-S
R902068554 A2FM160/61W-VSB181-SK
R902161081 A2FM160/61W-VSB188
R909603031 A2FM160/61W-VXB027
R902226410 A2FM160/61W-VZB010
R902241632 A2FM160/61W-VZB010
R902193528 A2FM160/61W-VZB010
R902161002 A2FM160/61W-VZB010
R909409218 A2FM160/61W-VZB010
R902193437 A2FM160/61W-VZB010
R902250991 A2FM160/61W-VZB010H
R902241917 A2FM160/61W-VZB010J-Y
R909429362 A2FM160/61W-VZB020
R902193863 A2FM160/61W-VZB020
R909409220 A2FM160/61W-VZB020
R902193868 A2FM160/61W-VZB020
R902247201 A2FM160/61W-VZB020
R902211832 A2FM160/61W-VZB020
R902239782 A2FM160/61W-VZB020
R902165176 A2FM160/61W-VZB020
R902193747 A2FM160/61W-VZB020
R902124409 A2FM160/61W-VZB020D
R902227525 A2FM160/61W-VZB020H
R902196064 A2FM160/61W-VZB020H
R902197889 A2FM160/61W-VZB027
R902201501 A2FM160/61W-VZB027
R909441090 A2FM160/61W-VZB027
R902197943 A2FM160/61W-VZB027
R902245684 A2FM160/61W-VZB027
R902241791 A2FM160/61W-VZB027
R902193959 A2FM160/61W-VZB027-S
R902207449 A2FM160/61W-VZB027F
R902233830 A2FM160/61W-VZB027F
R909409222 A2FM160/61W-VZB030
R902222205 A2FM160/61W-VZB040
R909433435 A2FM160/61W-VZB040
R902193268 A2FM160/61W-VZB040-S
R909409224 A2FM160/61W-VZB040-S
R902211676 A2FM160/61W-VZB040-S
R909605551 A2FM160/61W-VZB046
R902040090 A2FM160/61W-VZB100
R902198074 A2FM160/61W-VZB100
R902193589 A2FM160/61W-VZB100
R902099171 A2FM160/61W-VZB100F
R902197524 A2FM160/61W-VZB100F
R902099173 A2FM160/61W-VZB100F-K
