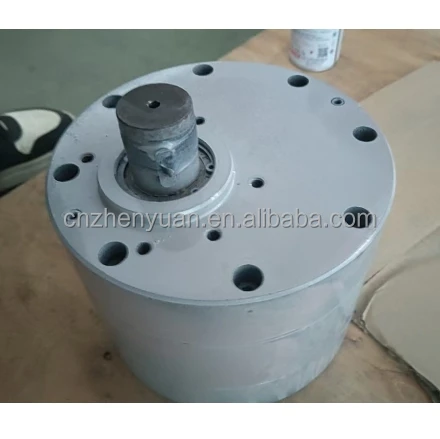

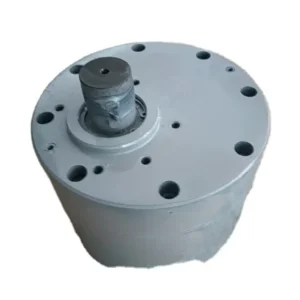

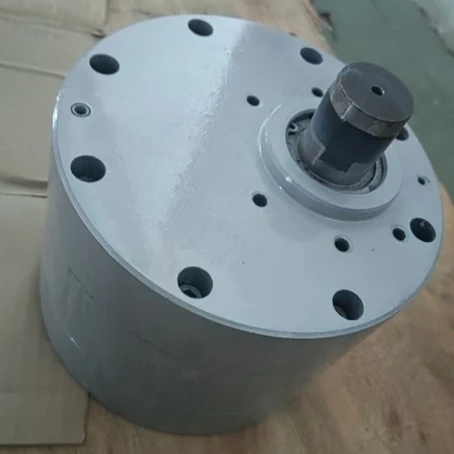

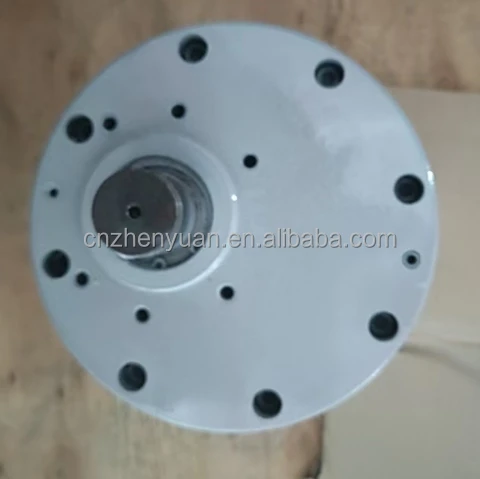

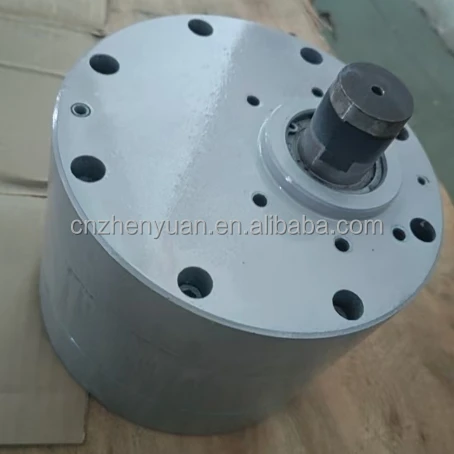

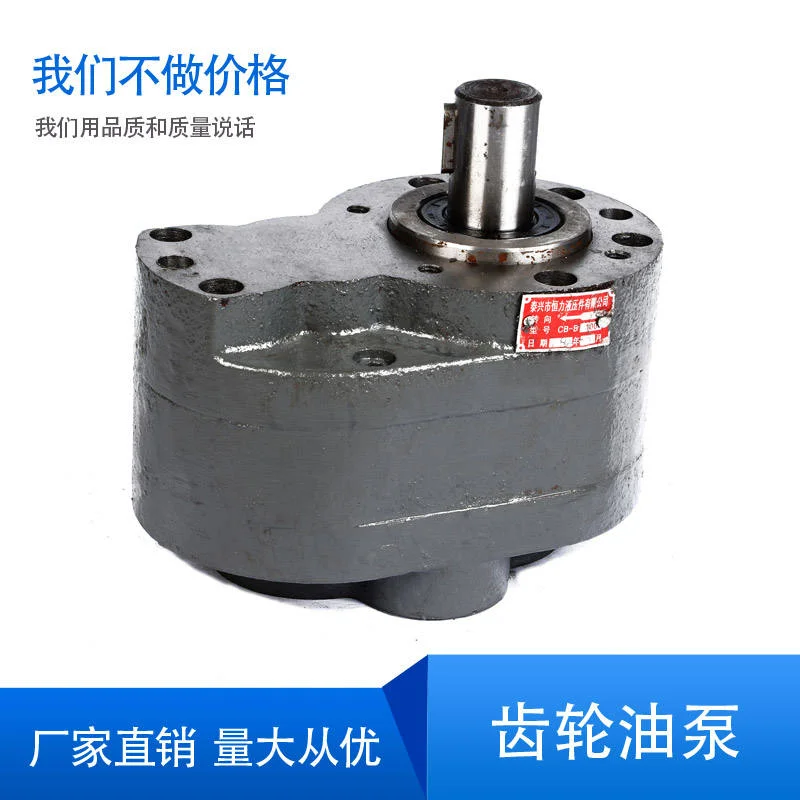

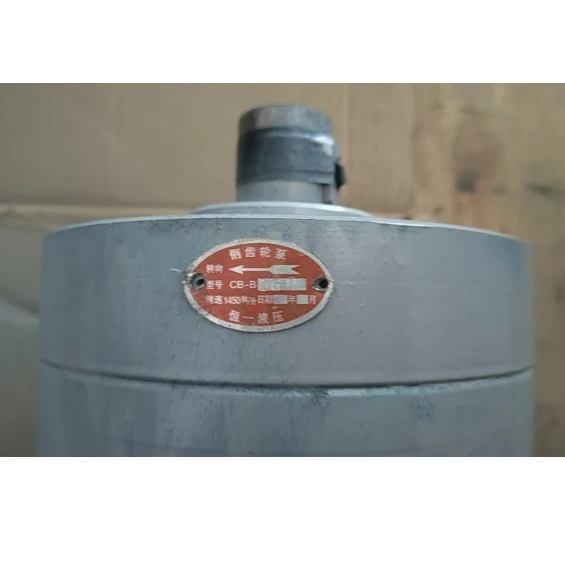

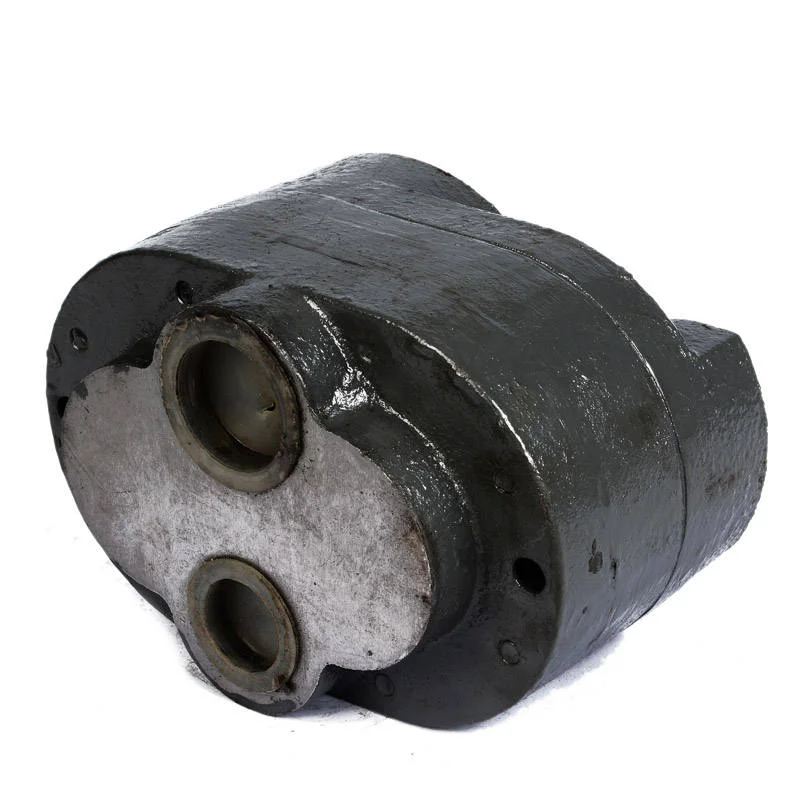

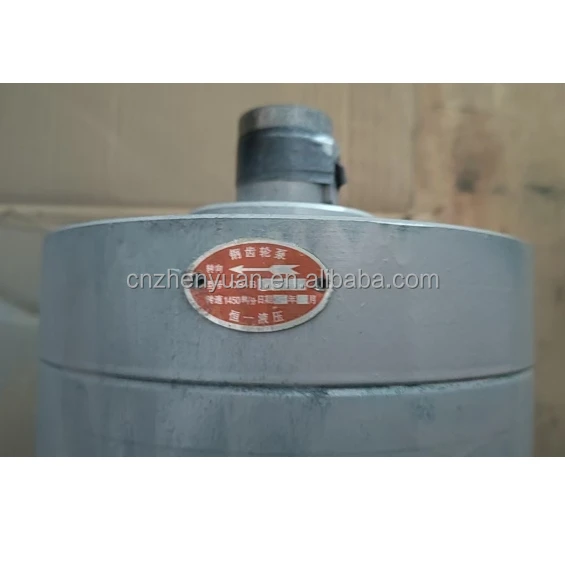

CB-B63 CB-B80 CB-B Hydraulic Gear Pump CB-B100 CB-B125 CB-B160

The CB-B series gear oil pump is a low-pressure hydraulic pump mainly used in hydraulic systems of machine tools and construction machinery, and can also be used as a lubrication pump or oil transfer pump. The following is its key information:

1. Structure and principle
Adopting a three piece design without side plates, mechanical energy is converted into hydraulic energy through a pair of meshing gears, relying on gap sealing for operation, without radial force balance or axial compensation devices
one
2.
The internal gear is in the shape of a circular arc, while the external gear is in the shape of a short amplitude outward swing, with characteristics such as low noise and good self-priming performance
2.
2. Technical parameters
Work pressure: 2.5MPa; Speed: 1450r/min; Displacement range: 2.5~125ml/r
1.
Volume efficiency: 70%~95%; Drive power: 0.13~6.5kW
one
2.
The models cover CB-B2.5 to CB-B125, and specific parameters can be found in Baidu Baike
1.
3. Application scenarios
Suitable for machine tool hydraulic systems, textile machinery lubrication, and conventional fluid transportation, mineral oil or similar vegetable oil with oil temperature ≤ 100 ℃ and viscosity 1-8E
one
