CBF-E Series Double Gear Pump | CBF-E63/40P CBF-E50/40P | High Pressure
| Model Number | CBF-E63/40P, CBF-E63/31.5P, CBF-E63/25P, CBF-E63/16P, CBF-E63/10P, CBF-E50/40P |
|---|
Product Description
LIC Hydraulic presents the CBF-E Series, the heavyweight champion of tandem high-pressure gear pumps. This series features a high-strength cast iron housing designed to withstand the brutal pressures and thermal cycles of heavy-duty mobile hydraulics. By integrating two pump sections onto a single drive shaft, models like the CBF-E63/40P provide a streamlined, space-saving solution for multi-circuit systems without sacrificing individual flow precision.
Key Technical Features
Cast Iron Durability: The robust housing eliminates the “flexing” common in aluminum pumps under high pressure, ensuring longer seal life and consistent performance.
Axial Pressure Balancing: Floating bushings automatically adjust internal clearances to compensate for wear and thermal expansion, maintaining a volumetric efficiency of over 92%.
Tandem Efficiency: Ideal for applications requiring simultaneous but independent flows (e.g., steering and lifting), reducing the complexity of the driveline.
High Pressure Capability: Rated for continuous operation at 20 MPa, with peak surges up to 25 MPa.
Expert Maintenance Tips
Rotation Check: CBF-E pumps are unidirectional. Ensure the input shaft rotation matches your PTO (Clockwise or Counter-Clockwise) before installation.
System Priming: Never start the pump dry. Fill the inlet with clean hydraulic oil and rotate the shaft by hand to lubricate the internal DU bearings and gears.
Oil Quality: Maintain oil cleanliness at ISO 4406 20/18/15. Cast iron pumps are durable, but fine metal particles can still score the floating plates, leading to pressure loss.
Related Models：
CBT-F412.5

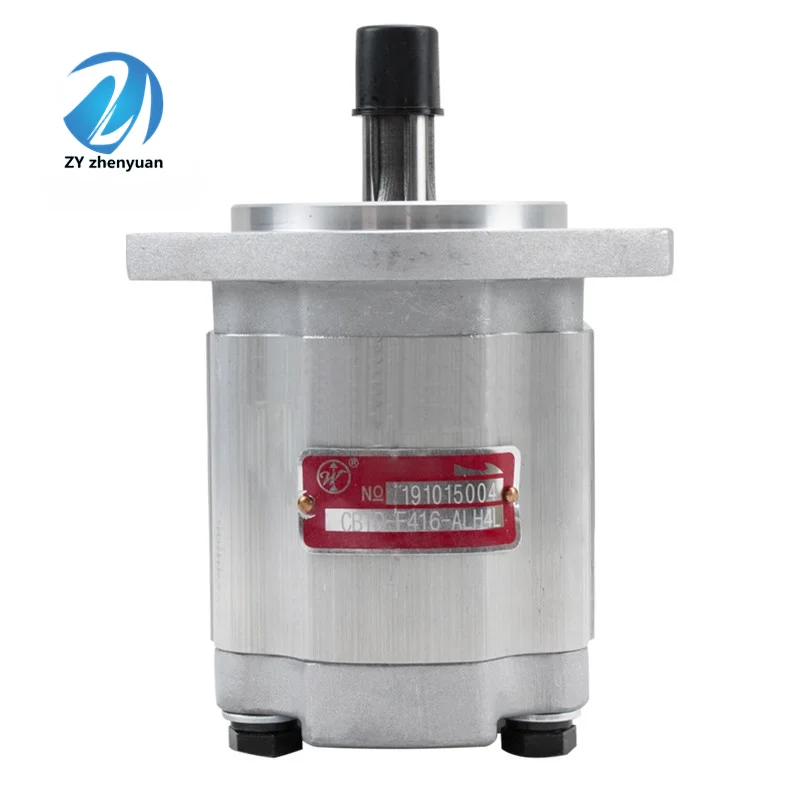

CBT-F414
