CBTs-F310 F312 F316 F320 Hydraulic Gear Pump | CBTs-F312F1Z1 High Pressure Oil Pump

Model Number	CBTs-F320F1Z, CBTs-F316F1Z1, CBTs-F314F1Z1, CBTs-F312F1Z1, CBTs-F308F1Z1, CBTs-F304F1Z1

Product Description

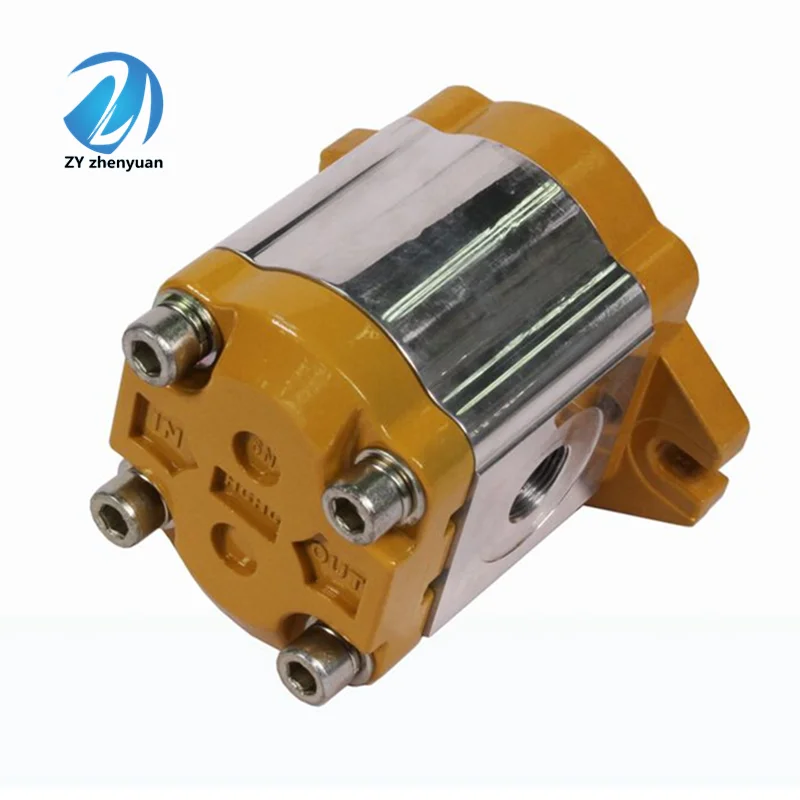

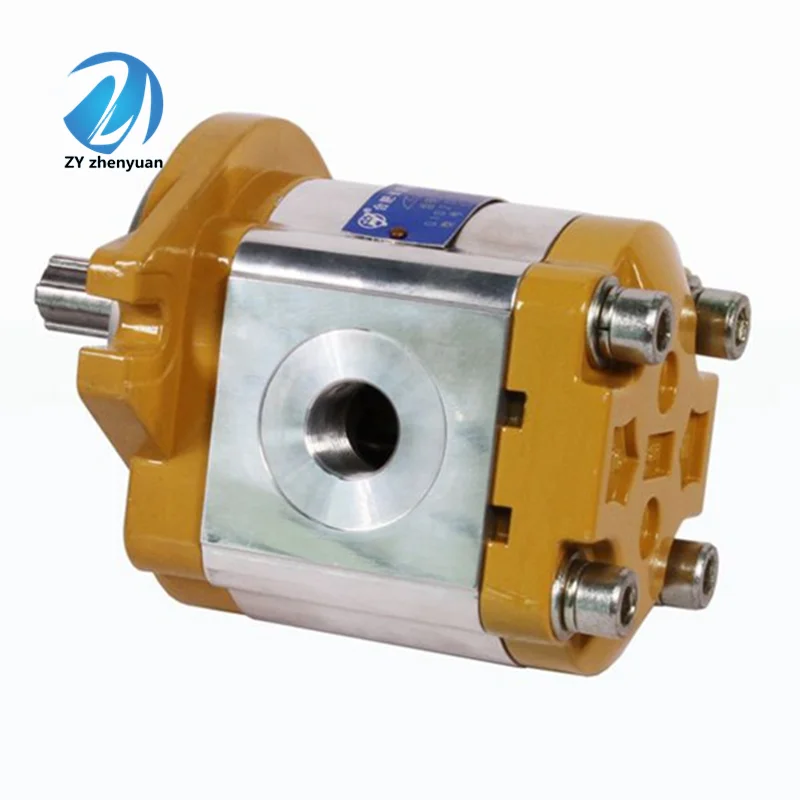

LIC Hydraulic’s CBTs Series (including CBTs-F304, F308, F312, F316, F320) high-pressure gear pumps are compact, high-efficiency power units designed for mobile machinery and agricultural equipment. Featuring a high-strength aluminum alloy extruded body and a floating bushing structure, this series offers an exceptional power-to-weight ratio. We guarantee 100% Drop-in Interchangeability with standard OEM configurations such as F1Z1 and F1Z. Every CBTs pump undergoes 100% simulated condition testing before shipping, ensuring superior volumetric efficiency and long-term mechanical reliability under high-pressure cycles.

Technical Specifications (Bulleted List)

Model Series: CBTs-F3 (F: High-pressure version)
Displacements: 4ml/r, 8ml/r, 12ml/r, 14ml/r, 16ml/r, 20ml/r
Configuration Code: F1Z1 (F1: Rectangular Flange / Z: Splined Shaft / 1: Side Inlet & Outlet)
Nominal Pressure: 20 MPa (200 bar / 2900 PSI)
Peak Pressure: 25 MPa (250 bar / 3625 PSI)
Maximum Speed: 3000 – 3500 RPM
Minimum Speed: 600 RPM
Volumetric Efficiency: ≥ 93%
Housing Material: High-tensile, anti-fatigue aluminum alloy
Seals: Premium NBR or Viton (FKM) for high-temperature resilience

Key Technical Advantages

Axial Clearance Compensation: Utilizes pressure-balanced floating bushings that automatically adjust the end-face clearance of the gears. This minimizes internal leakage and maintains stable flow even at 20 MPa pressure.
Reinforced DU Bearings: Equipped with high-capacity DU bushings optimized for frequent start-stop cycles and radial shock loads, significantly extending the service life of the drive shaft and gear set.
Precision-Ground Gear Sets: Manufactured from premium alloy steel with hardened surfaces and precision grinding, the gears ensure smooth engagement, reducing operational noise and pressure ripples.
Aerospace-Grade Aluminum Body: The extruded aluminum housing provides excellent heat dissipation and a lightweight profile, helping to control the hydraulic system’s operating temperature.

Application Areas

Agricultural Machinery: Tractor hitch systems, harvester auxiliary steering, and seeder drives.
Material Handling: Lift systems for 1-3 ton forklifts, hydraulic scissor lifts, and stackers.
Construction Equipment: Mini road rollers, street sweepers, and compact hydraulic power units.

Expert Maintenance Tips

Rotation Verification: Always verify the rotation direction before installation (CW for Right-hand, CCW for Left-hand from shaft view). Operating in the wrong direction will immediately blow out the shaft seal.
Inlet Integrity: Aluminum pumps are highly sensitive to cavitation. Regularly check the inlet port seals; air ingestion will cause loud whining noises and rapid wear of internal bushings.
Initial Priming: Never start the pump dry. Fill the pump with clean hydraulic oil through the inlet and rotate the shaft manually several times before starting the motor for the first time.
