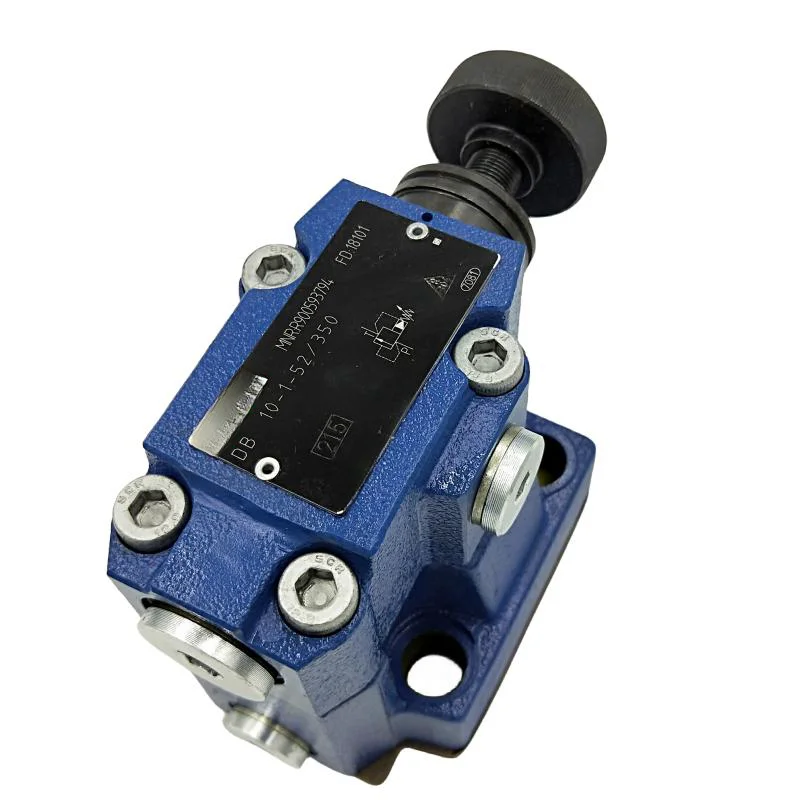

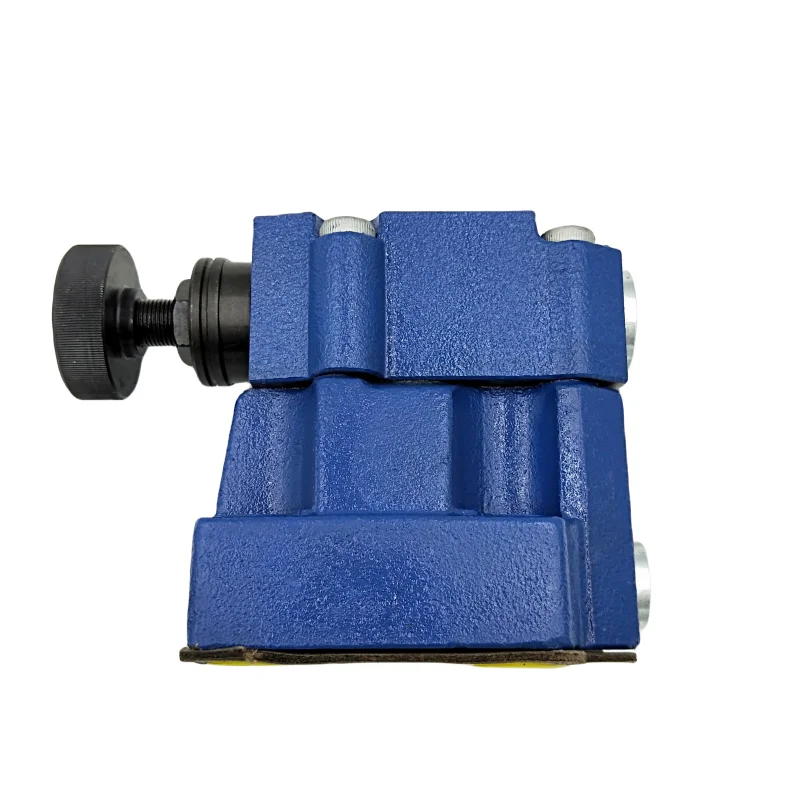

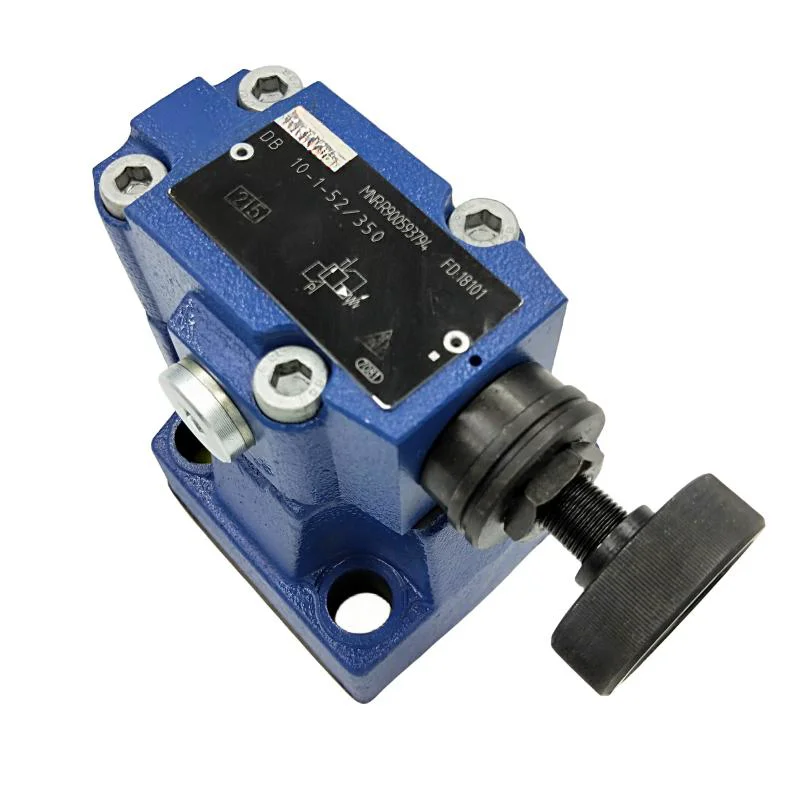

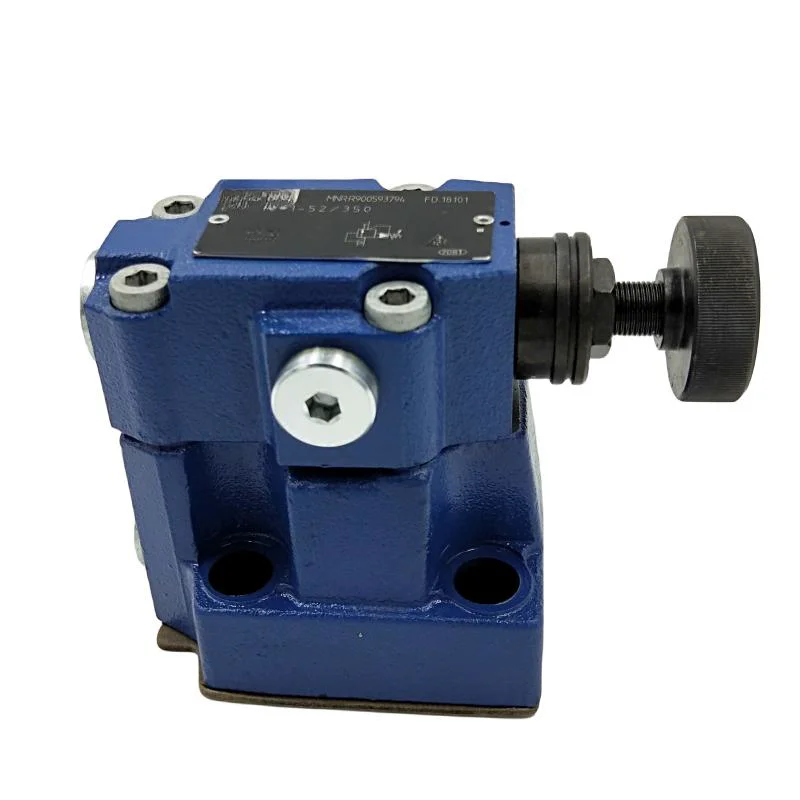

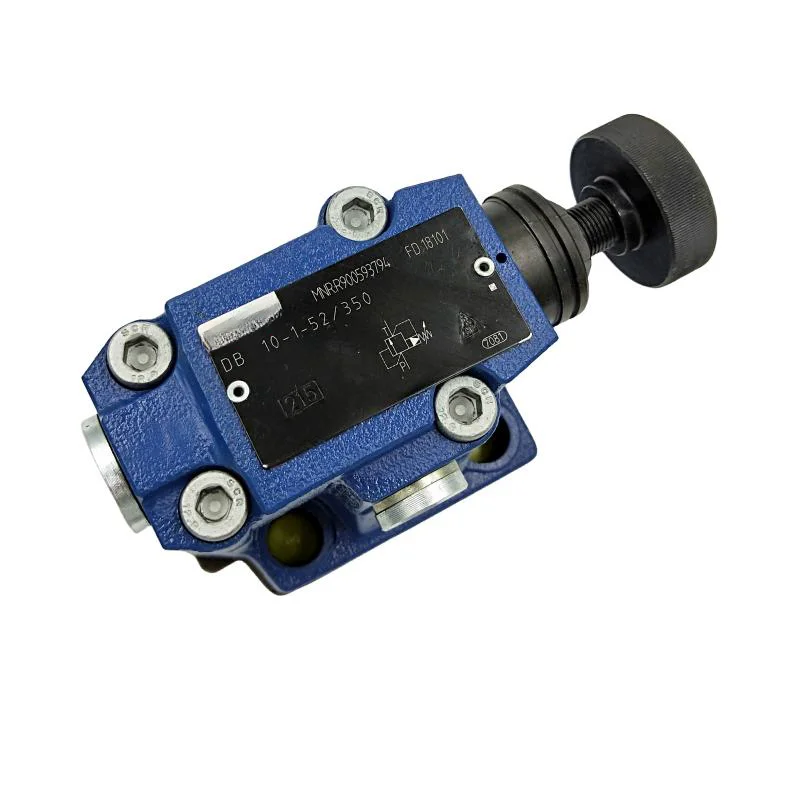

Rexroth DR Series Pressure Reducing Valve | DR10 DR20 DR30 | R900413987
| Model Number | DR20-4-43/315Y, R900413987 DR10-5-43/50Y |
|---|
Product Description
The Rexroth DR Series from LIC Hydraulic is a pilot-operated pressure reducing valve designed to maintain a constant output pressure in a hydraulic sub-circuit, regardless of input pressure fluctuations. Covering nominal sizes DR10, DR16, DR20, DR25, DR30, and DR32, these valves are industry standards for precision pressure control. Models like DR10-5-43/50Y (R900413987) and DR20-4-43/315Y feature high-response pilot stages for superior stability. We guarantee 100% mechanical interchangeability and perform 100% pressure-linearity and leakage testing, ensuring reliable operation at system pressures up to $315\text{ bar}$.
Technical Configuration Details
Series: Rexroth DR (Pilot Operated)
Nominal Sizes: NG10, NG16, NG20, NG25, NG30, NG32
Max Pressure Rating: Up to $315\text{ bar}$ ($4500\text{ psi}$)
Mounting Interface: ISO 5781 compliant
Adjustment Type: Rotary knob or screw with hex nut (Shielded)
External Drain (Y): Ensures the pilot stage remains independent of return line pressure.
Key Technical Advantages
High Precision Pressure Stability: The pilot-operated design allows the valve to react rapidly to downstream demand, maintaining a flat pressure-flow curve with minimal hysteresis compared to direct-acting alternatives.
Wide Adjustment Range: Available in multiple pressure stages ($50, 100, 200, 315\text{ bar}$), allowing users to fine-tune the pressure for delicate operations such as clamping or braking.
Robust Subplate Mounting: Fully compatible with Rexroth and other standardized manifold blocks, simplifying the upgrade or replacement process in complex industrial HPU systems.
Optional Check Valve: Models can be configured with an integrated check valve (DR…Z) to allow free return flow from the secondary side to the primary side.
Application Areas
Machine Tool Clamping: Reducing main system pressure to a safe, constant level for workpiece fixtures.
Pilot Oil Supply: Providing a stabilized control pressure for proportional and logic valves.
Braking Circuits: Ensuring repeatable and precise braking force in mobile and industrial equipment.
Secondary Component Protection: Safeguarding downstream actuators that cannot withstand full system pressure.
Expert Maintenance Tips
Clear Drain Line (Port Y): It is critical that the external drain line is routed directly to the tank without any back-pressure. Back-pressure on Port Y will increase the reduced pressure setting, potentially leading to system errors.
Setting Security: Once the desired output pressure is achieved, always tighten the locknut. Vibration in industrial environments can cause the adjustment screw to drift over time.
Strict Filtration Standards: The pilot orifice is highly sensitive to particulates. Maintain oil cleanliness at ISO 4406 19/17/14 or better to prevent the pilot spool from sticking or the orifice from clogging.
Related Models：
DR10-4-5X/50YM DR10-4-5X/100YM DR10-4-5X/200YM DR10-4-5X/315YM
DR10-4-52/50Y DR10-4-52/100Y DR10-4-52/200Y DR10-4-52/315Y
DR10-4-52/50YM DR10-4-52/100YM DR10-4-52/200YM DR10-4-52/315YM
DR10-5-5X/50Y DR10-5-5X/100Y DR10-5-5X/200Y DR10-5-5X/315Y
DR10-5-5X/50YM DR10-5-5X/100YM DR10-5-5X/200YM DR10-5-5X/315YM
DR10-5-52/50Y DR10-5-52/100Y DR10-5-52/200Y DR10-5-52/315Y
DR10-5-52/50YM DR10-5-52/100YM DR10-5-52/200YM DR10-5-52/315YM
R900341479 DR10G5-43/100YMV
R900346230 DR20-5-43/200YV
R900352253 DR20K4-1X/200YMV
R900362115 DR20G5-43/200YMV
R900396385 DR20-4-43/100YV
R900400986 DR10-4-43/50Y
R900402064 DR10-5-43/200Y
R900402741 DR10-5-43/100Y
R900402753 DR20-5-43/200Y
R900403624 DR10-5-43/100YM
R900404825 DR10-4-43/100Y
R900404826 DR20-4-43/100Y
R900404828 DR20-5-43/100Y
R900405904 DR20-5-43/315Y
DR10DP3-43/150Y
R900408460 DR10-4-43/100YM
R900408738 DR15G5-43/200YM
R900409342 DR20-5-43/50Y
R900409469 DR20K6-1X/100YMV
R900411282 DR20-5-43/100YMV
R900412382 DR20-5-43/100YM
R900412660 DR20-5-43/200YM
R900413204 DR6DP1-52/75Y
R900413241 DR6DP2-52/75Y
R900413242 DR6DP2-52/150Y
R900413243 DR6DP2-52/210Y
R900413543 DR10-5-43/315YM
R900413544 DR10G5-43/200YM
R900413987 DR10-5-43/50Y
R900414021 DR20-4-43/315Y
R900414331 DR10-4-43/315Y
R900414625 DR20-4-43/315YM
R900415429 DR10-4-43/200Y
R900415430 DR20-4-43/200Y
R900415481 DR10G5-43/315YM
R900415492 DR10-5-43/200YM
R900416915 DR10-5-43/100YV
R900417079 DR15G4-43/315YM
R900417080 DR10-4-43/100YV
R900417525 DR20G5-43/200YM
R900417545 DR20G5-43/100YM
R900417653 DR20-5-43/50YM
R900418188 DR10-5-43/50YV
R900418436 DR10G5-43/100YM
R900418952 DR20-4-43/200YM
R900419533 DR15G5-43/50YM
R900419996 DR10-4-43/315YM
R900422568 DR10K5-33/50YM
R900422809 DR6DP2-52/75YMV
R900423007 DR6DP7-52/210Y
R900425719 DR6DP2-52/75YV
R900430682 DR10K5-33/315YM
R900430976 DR10K5-33/50YMV
R900432731 DR10K5-33/100YMV
R900434785 DR10K4-33/100YMV
R900435680 DR6DP2-52/210YMV
R900435686 DR6DP2-52/150YMV
R900436586 DR6DP3-52/150YMV
R900438029 DR10K4-33/200YMV
R900438117 DR10K5-33/200YMV
R900438133 DR10K4-33/200YM
R900438134 DR10K5-33/200YM
R900438204 DR10K7-33/200YM
R900442490 DR10K4-33/100YM
R900442676 DR10K4-33/315YM
R900450073 DR6DP1-52/150YMV
R900450964 DR6DP2-52/75YM
R900455316 DR6DP2-52/210YM
R900458990 DR6DP1-52/150YM
R900459508 DR10K5-33/100YM
R900465254 DR6DP2-52/25Y
R900466591 DR6DP1-52/75YM
R900469278 DR6DP1-52/25Y
R900469827 DR10K4-33/315YMV
R900472020 DR6DP2-52/150YM
R900472190 DR6DP1-52/150Y
R900472420 DR6DP3-52/75YM
R900472470 DR6DP2-52/25YM
R900474524 DR20K5-1X/50YM
R900474525 DR20K5-1X/100YM
R900474526 DR20K5-1X/200YM
R900474527 DR20K5-1X/315YM
R900474528 DR20K4-1X/50YM
R900474529 DR20K4-1X/100YM
R900474530 DR20K4-1X/200YM
R900474531 DR20K4-1X/315YM
R900474897 DR6DP2-52/150YV
R900475604 DR6DP1-52/210YM
R900476911 DR6DP3-52/150YM
R900478697 DR6DP3-52/210Y
R900479509 DR6DP1-52/25YM
R900479797 DR10-5-43/315Y
R900479799 DR20-5-43/315YM
