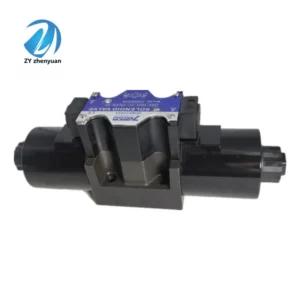

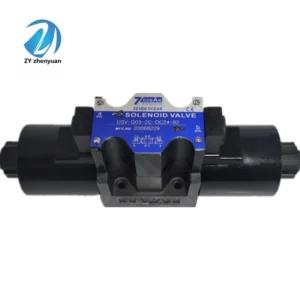

7OCEAN DSV-G02 Solenoid Valve | DSV-G02-2A-A220-90 | DSD-G03
| Model Number | DSV-G02-0A-DC2-20, DSV-G02-2A-A220-90 |
|---|
Product Description
LIC Hydraulic proudly offers the 7OCEAN (Seven Ocean) DSV and DSD Series hydraulic solenoid valves. These valves are world-renowned for their reliability in industrial directional control. Featuring a wet-pin solenoid design, the DSV-G02 and DSD-G03 series provide smooth shifting, lower noise, and an exceptionally long service life. Models such as DSV-G02-2A-A220-90 and DSV-G02-0A-DC24-20 follow strict ISO 4401 standards, making them a perfect drop-in replacement for global brands in machine tools, injection molding, and factory automation.
Technical Specifications (Quick Reference)
Frame Sizes: NG6 (D03) and NG10 (D05).
Max Operating Pressure: $315\text{ bar}$ ($4500\text{ PSI}$).
Max Flow Rate: Up to $80\text{ L/min}$ for G02; up to $120\text{ L/min}$ for G03.
Voltage Options: $110\text{V AC}, 220\text{V AC}, 24\text{V DC}, 12\text{V DC}$.
Duty Cycle: $100\%$ Continuous Duty.
Key Technical Advantages
Wet-Pin Solenoid Design: The core is immersed in system oil, providing natural lubrication and cooling while eliminating external push-rod seals that are prone to leakage.
Optimized Cast Iron Body: The high-strength cast iron valve body features five internal chambers to reduce flow resistance and minimize pressure drop.
Standard Mounting: Fully compatible with ISO 4401-AB-03-4-A and ISO 4401-AC-05-4-A interfaces, allowing for universal installation on standard manifolds.
Robust Electrical Protection: Solenoids are available with high-quality DIN connectors, offering IP65 protection against dust and water ingress.
Application Areas
Machine Tools: Spindle clamping, pallet changers, and tool turret indexing.
Industrial HPUs: Directional control for presses, shears, and lifts.
Plastics & Die Casting: Core pull and ejector sequence control.
Automated Material Handling: Conveyor sorting and hydraulic gate operations.
Expert Maintenance Tips
Manual Overrides: All 7OCEAN valves feature a manual override button. Use this only for testing and ensure the protective rubber cap is reinstalled to prevent debris from jamming the manual pin.
Mounting Torque: When installing the DSV-G02, use M5 bolts and torque them evenly to $5\text{–}7\text{ Nm}$. Over-tightening can warp the valve body, leading to spool stiction.
Filtration Standard: Maintain fluid cleanliness to at least ISO 4406 19/17/14. Fine particles can lodge in the narrow tolerances between the spool and the valve body, causing the valve to fail to shift.
Related Models：
DSD-G02-6C-DC24-31,DSD-G02-33C-DC24-31DSD-G02-1C-DC24-31,DSD-G02-8C-DC24-31DSD-G02-2N-DC24-31,DSD-G02-2A-DC24-31
DSD-G02-0A-DC24-31,DSD-G02-22A-DC24-31DSD-G02-2B-DC24-31,DSD-G02-0B-DC24-31DSD-G02-2C-A220-31,DSD-G02-0C-A220-31
DSD-G02-6C-A220-31,DSD-G02-33C-A220-31
DSD-G02-1C-A220-31,DSD-G02-8C-A220-31DSD-G02-2N-A220-31,DSD-G02-2A-A220-31
DSD-G02-0A-A220-31,DSD-G02-22A-A220-31DSD-G02-2B-A220-31,DSD-G02-0B-A220-31DSD-G02-2C-A110-31,DSD-G02-0C-A110-31
DSD-G02-6C-A110-31,DSD-G02-33C-A110-31DSD-G02-1C-A110-31,DSD-G02-8C-A110-31DSD-G02-2N-A110-31,DSD-G02-2A-A110-31
DSD-G02-0A-A110-31,DSD-G02-22A-A110-31DSD-G02-2B-A110-31,DSD-G02-0B-A110-31
DSV-G02
DSV-G02-2C-DC24-20,DSV-G02-0C-DC24-20DSV-G02-6C-DC24-20,DSV-G02-33C-DC24-20
DSV-G02-1C-DC24-20,DSV-G02-8C-DC24-20DSV-G02-2N-DC24-20,DSV-G02-2A-DC24-20
DSV-G02-0A-DC24-20,DSV-G02-22A-DC24-20DSV-G02-2B-DC24-20,DSV-G02-0B-DC24-20DSV-G02-2C-A220-20,DSV-G02-0C-A220-20
DSV-G02-6C-A220-20,DSV-G02-33C-A220-20DSV-G02-1C-A220-20,DSV-G02-8C-A220-20DSV-G02-2N-A220-20,DSV-G02-2A-A220-20
DSV-G02-0A-A220-20,DSV-G02-22A-A220-20DSV-G02-2B-A220-20,DSV-G02-0B-A220-20DSV-G02-2C-A110-20,DSV-G02-0C-A110-20
DSV-G02-6C-A110-20,DSV-G02-33C-A110-20DSV-G02-1C-A110-20,DSV-G02-8C-A110-20DSV-G02-2N-A110-20,DSV-G02-2A-A110-20
DSV-G02-0A-A110-20,DSV-G02-22A-A110-20DSV-G02-2B-A110-20,DSV-G02-0B-A110-20
DSD-G03
DSD-G03-2C-DC24-30,DSD-G03-0C-DC24-30DSD-G03-6C-DC24-30,DSD-G03-33C-DC24-30
DSD-G03-1C-DC24-30,DSD-G03-8C-DC24-30DSD-G03-2N-DC24-30,DSD-G03-2A-DC24-30DSD-G03-0A-DC24-30,DSD-G03-22A-DC24-30
DSD-G03-2B-DC24-30,DSD-G03-0B-DC24-30DSD-G03-2C-A220-30,DSD-G03-0C-A220-30DSD-G03-6C-A220-30,DSD-G03-33C-A220-30
DSD-G03-1C-A220-30,DSD-G03-8C-A220-30DSD-G03-2N-A220-30,DSD-G03-2A-A220-30
DSD-G03-0A-A220-30,DSD-G03-22A-A220-30DSD-G03-2B-A220-30,DSD-G03-0B-A220-30DSD-G03-2C-A110-30,DSD-G03-0C-A110-30
DSD-G03-6C-A110-30,DSD-G03-33C-A110-30DSD-G03-1C-A110-30,DSD-G03-8C-A110-30DSD-G03-2N-A110-30,DSD-G03-2A-A110-30
DSD-G03-0A-A110-30,DSD-G03-22A-A110-30DSD-G03-2B-A110-30,DSD-G03-0B-A110-30DSV-G03系列DSV-G03-2C-DC24-20,DSV-G03-0C-DC24-20
DSV-G03-6C-DC24-20,DSV-G03-33C-DC24-20DSV-G03-1C-DC24-20,DSV-G03-8C-DC24-20DSV-G03-2N-DC24-20,DSV-G03-2A-DC24-20
DSV-G03-0A-DC24-20,DSV-G03-22A-DC24-20DSV-G03-2B-DC24-20,DSV-G03-0B-DC24-20DSV-G03-2C-A220-20,DSV-G03-0C-A220-20
DSV-G03-6C-A220-20,DSV-G03-33C-A220-20DSV-G03-1C-A220-20,DSV-G03-8C-A220-20DSV-G03-2N-A220-20,DSV-G03-2A-A220-20
DSV-G03-0A-A220-20,DSV-G03-22A-A220-20DSV-G03-2B-A220-20,DSV-G03-0B-A220-20DSV-G03-2C-A110-20,DSV-G03-0C-A110-20
DSV-G03-6C-A110-20,DSV-G03-33C-A110-20DSV-G03-1C-A110-20,DSV-G03-8C-A110-20DSV-G03-2N-A110-20,DSV-G03-2A-A110-20
DSV-G03-0A-A110-20,DSV-G03-22A-A110-20DSV-G03-2B-A110-20,DSV-G03-0B-A110-20
DSD-G02
DSD-G02-2C-DC24-31,DSD-G02-0C-DC24-31
DSD-G02-6C-DC24-31,DSD-G02-33C-DC24-31DSD-G02-1C-DC24-31,DSD-G02-8C-DC24-31DSD-G02-2N-DC24-31,DSD-G02-2A-DC24-31
DSD-G02-0A-DC24-31,DSD-G02-22A-DC24-31DSD-G02-2B-DC24-31,DSD-G02-0B-DC24-31DSD-G02-2C-A220-31,DSD-G02-0C-A220-31
DSD-G02-6C-A220-31,DSD-G02-33C-A220-31
DSD-G02-1C-A220-31,DSD-G02-8C-A220-31DSD-G02-2N-A220-31,DSD-G02-2A-A220-31
DSD-G02-0A-A220-31,DSD-G02-22A-A220-31DSD-G02-2B-A220-31,DSD-G02-0B-A220-31DSD-G02-2C-A110-31,DSD-G02-0C-A110-31
DSD-G02-6C-A110-31,DSD-G02-33C-A110-31DSD-G02-1C-A110-31,DSD-G02-8C-A110-31DSD-G02-2N-A110-31,DSD-G02-2A-A110-31
DSD-G02-0A-A110-31,DSD-G02-22A-A110-31DSD-G02-2B-A110-31,DSD-G02-0B-A110-31
