DUPLOMATIC Pressure Relief Valve RQ3-P5/41 RQ3-P3-41 RQ3-P3/M/41/V RQ3-P, RQ5-P and RQ7-P pilot Operated Pressure Relief Valves
| Model Number | RQ3-P3/M/41/V, RQ3-P3-41, RQ3-P5/41 |
|---|
Product Description
DUPLOMATIC Pressure Relief Valve RQ3-P5/41 RQ3-P3-41 RQ3-P3/M/41/V RQ3-P, RQ5-P and RQ7-P pilot Operated Pressure Relief Valves
This number belongs to the proportional relief valve series in the Dipma solenoid valve product line, and similar products also include models such as RQ3-P3/41 and RQ3-P6/41
Dipma is a professional hydraulic component manufacturer, and its relief valve products are widely used in industrial hydraulic systems, with pressure regulation and system protection functions.
Number structure analysis
The Dipma product number usually includes the following parts:
The prefix “RQ3” indicates the product series (proportional relief valve)
P5 “: may represent interface size or pressure rating
’41’: may refer to a specific feature or configuration version
Similar numbers, such as RQM5-P5/A/60N-D24K1, also follow the same naming convention
Technical features
As a proportional relief valve, this model should have the following characteristics:
Electromagnetic proportional control method
Adjustable pressure setting range
Suitable for hydraulic circuits with accumulators
May support multiple voltage specifications (such as D24K1 representing 24V DC)
DUPLOMATIC RO3-P-5
DUPLOMATIC RO3-P5-41
DUPLOMATIC RO3-P5/40
DUPLOMATIC RO3-P5-M-41
DUPLOMATIC RO3-P3
DUPLOMATIC RO7-P6/M/41/V
DUPLOMATIC ROM5-P5/A/60ND24K1/CM
DUPLOMATIC ROM5-P5/A/60N-D24K1
DUPLOMATIC RO5-P5/M/41
DUPLOMATIC RO5-P6/M/41
DUPLOMATIC ROR3-P5/1/142
DUPLOMATIC ROA5-P5/1/I/M/42
Plate installation
RQ3-P ISO 6264-06 (CETOP R06)
RQ5-P ISO 6264-08 (CETOP R08)
RQ7-P ISO 6264-10 (CETOP R10)

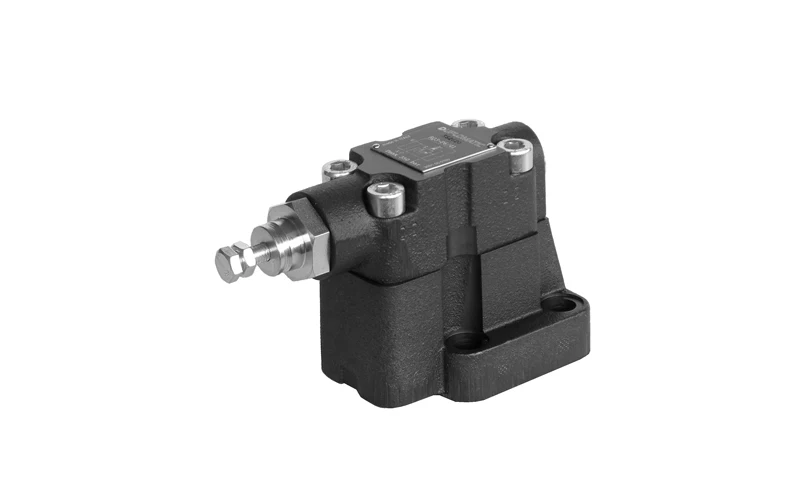

This valve is a pilot operated relief valve, and the main valve adopts a cylindrical valve core and a cone seal.
Plate installation complies with ISO 6264 (CETOP RP 121H) standard.
The X port can be used as a remote pilot port (see hydraulic symbol table).
The RQ * – P valve allows the full flow of the pump to pass through when the system pressure approaches the set value of the relief valve.
A wide oil passage can reduce pressure drop and improve energy efficiency.
RQ3-P series
High working pressure of 350 bar
High flow rate 200l/min
Environmental temperature range -20/+50 ° C
Oil temperature range -20/+80 ° C
Oil viscosity range 10 ÷ 400cSt
The allowable high pollution level of oil is based on ISO 4406:1999 grade 20/18/15
Recommended oil viscosity 25cSt
Weight 3,5kg
RQ5-P series
High working pressure of 350 bar
High flow rate 400l/min
Environmental temperature range -20/+50 ° C
Oil temperature range -20/+80 ° C
Oil viscosity range 10 ÷ 400cSt
The allowable high pollution level of oil is based on ISO 4406:1999 grade 20/18/15
Recommended oil viscosity 25cSt
Weight 4.3kg
RQ7-P
High working pressure of 350 bar
High flow rate of 500l/min
Environmental temperature range -20/+50 ° C
Oil temperature range -20/+80 ° C
Oil viscosity range 10 ÷ 400cSt
The allowable high pollution level of oil is based on ISO 4406:1999 grade 20/18/15
Recommended oil viscosity 25cSt
Weight 6.5kg
hydraulic oil
When using mineral hydraulic oil HL or HM that complies with ISO 6743-4 standard, use NBR seal. For HFDR oil, use FPM seal (code V). When the working oil temperature exceeds 80 ° C, it will cause rapid aging and deterioration of hydraulic oil and seals.
adjustment knob
RQ type valves can be equipped with SICBLOC adjustment knobs. When operating, the knob should be pressed and rotated. If necessary, add option M to the order model.
DIPLOMATIC overflow valve order model from Italy:
RQ3-P5/41
RQ3-P5/M/41
RQ3-P6/41
RQ3-P6/M/41
RQ5-P5/41
RQ5-W5/41
RQ5-P6/41
RQ7-P5/41
RQ7-P6/41
RQ7-P6/M/41
