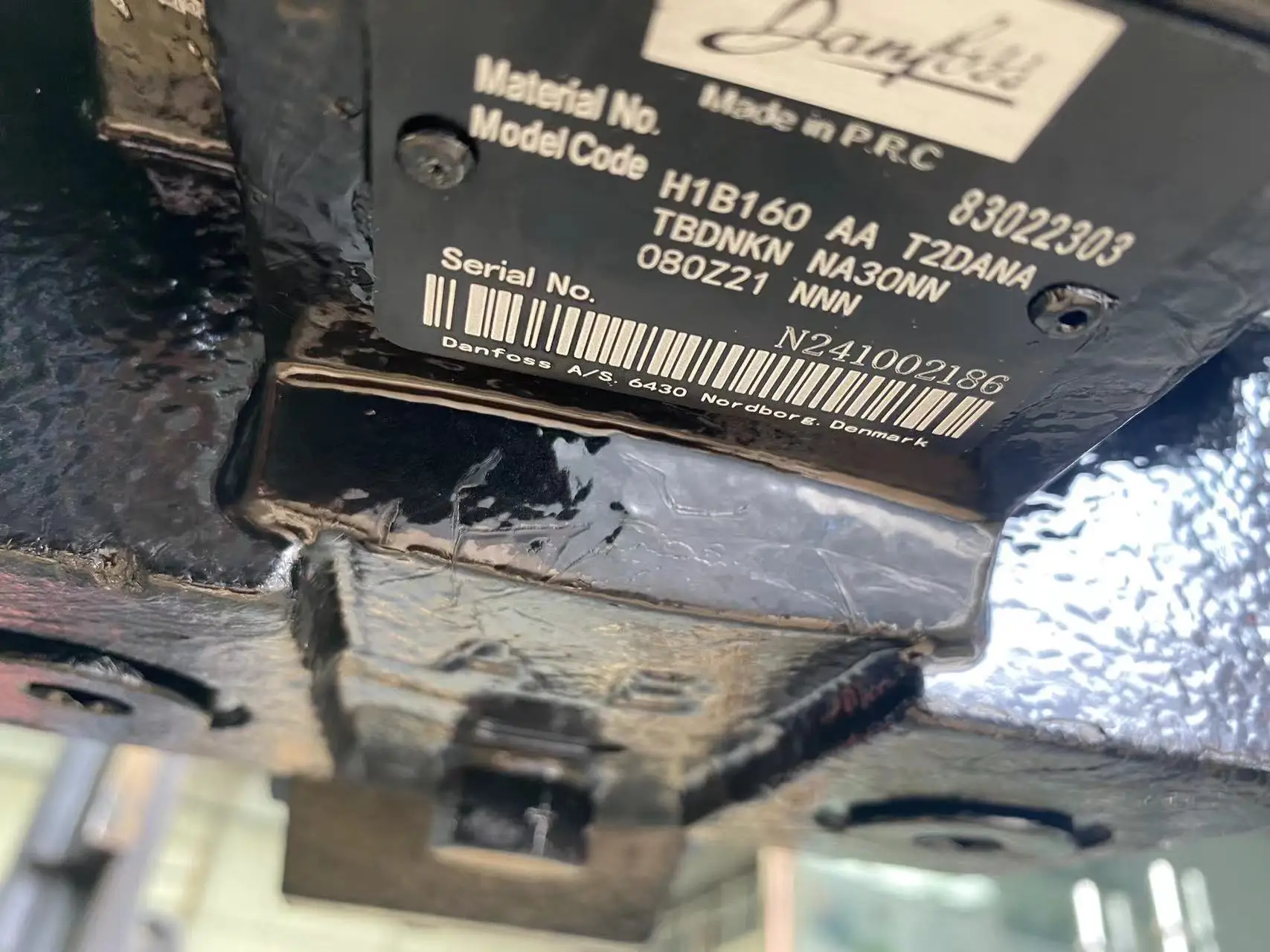

H1B160AAT2DANATBDNKNNA30NN080Z21NNN Variable Displacement Hydraulic Motor H1B060 H1B080 H1B110 H1B250 H1B210 H1B160
| Model Number | H1B160AAT2DANATBDNKNNA30NN080Z21NNN |
|---|
Product Description
H1B160AAT2DANATBDNKNNA30NN080Z21NNN Variable displacement hydraulic motor H1B060 H1B080 H1B110 H1B250 H1B210 H1B160

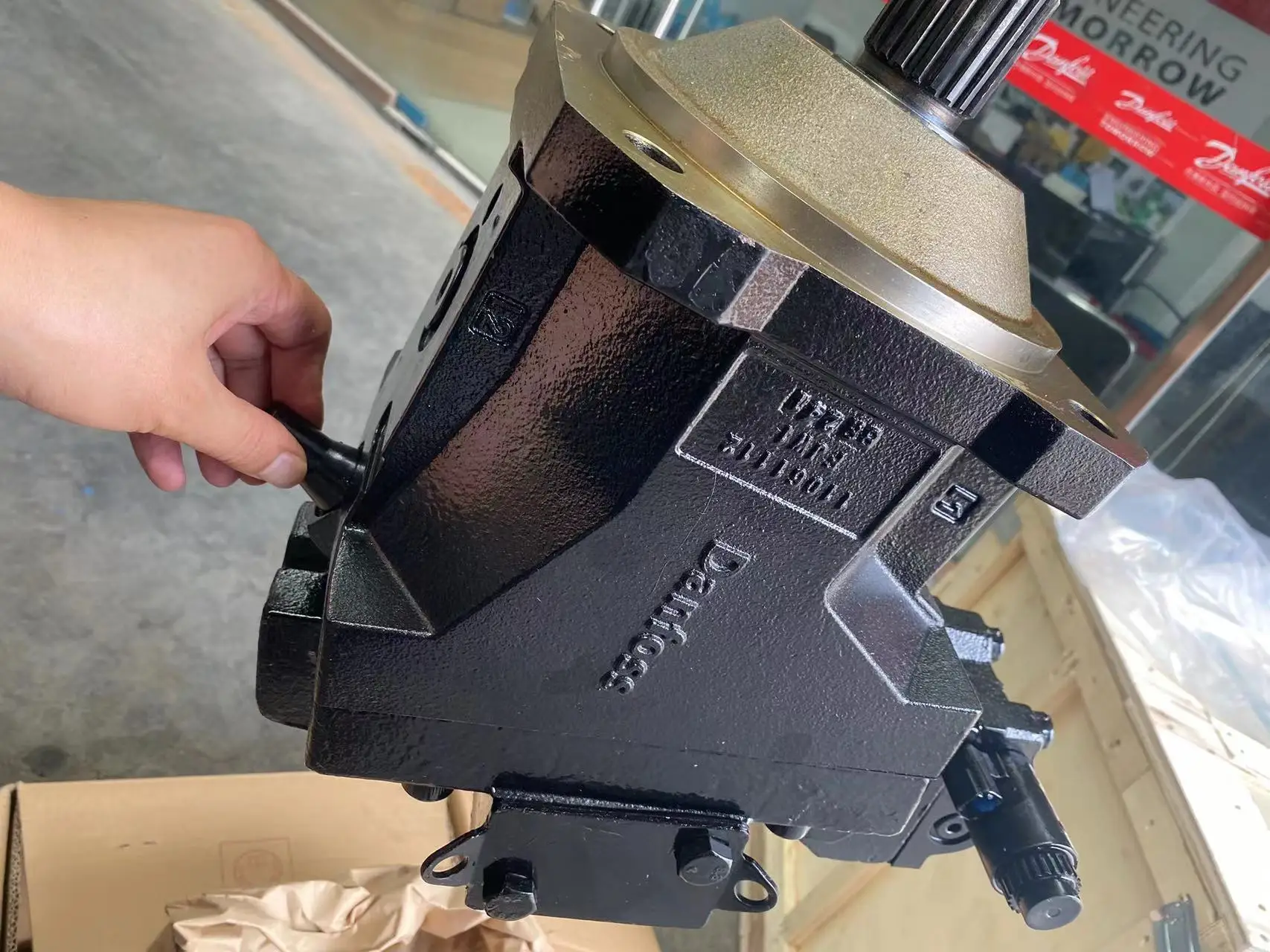

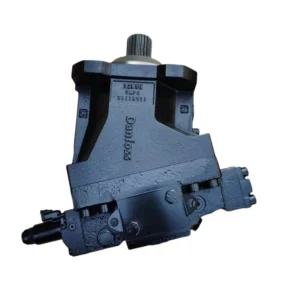

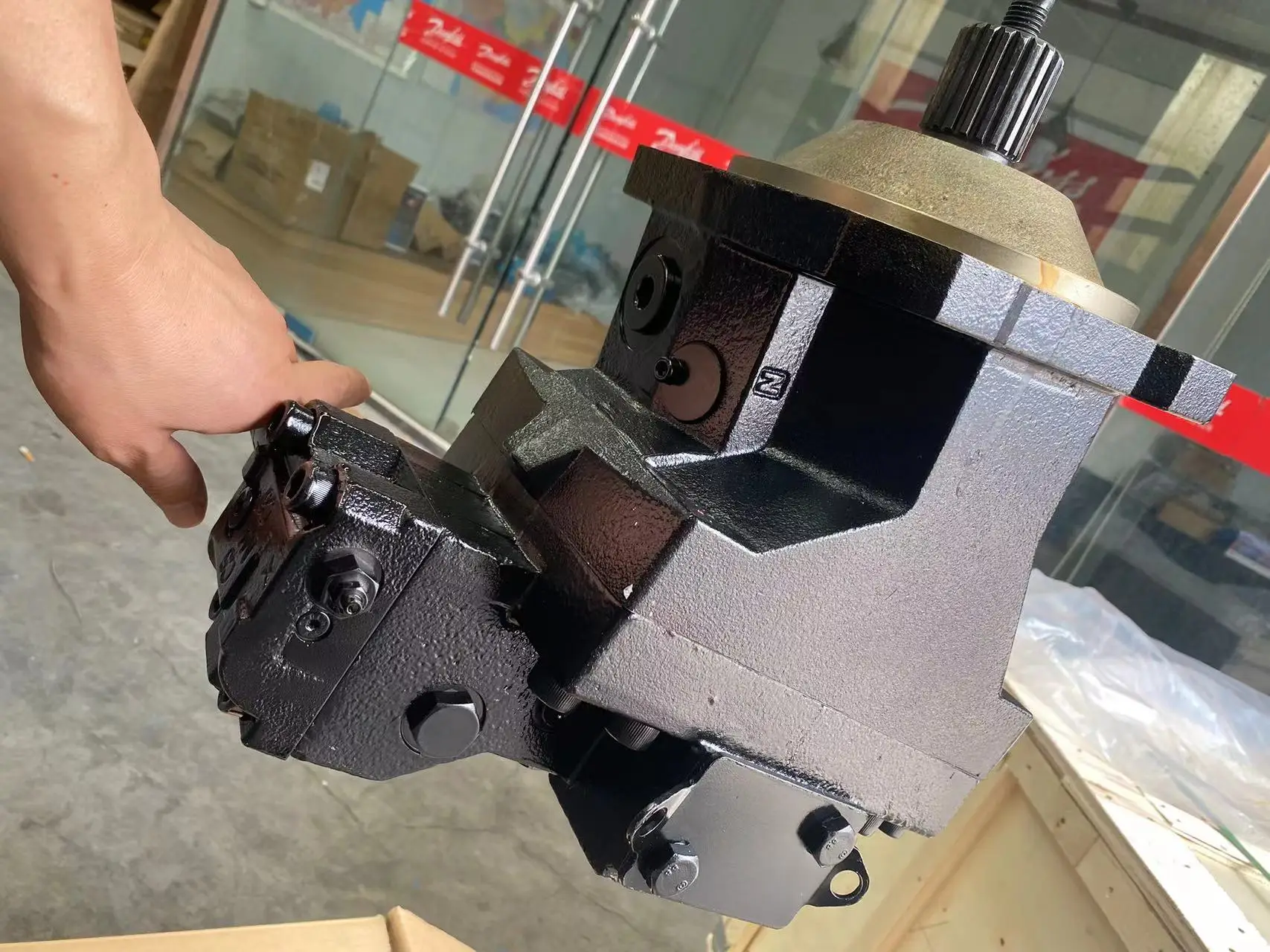

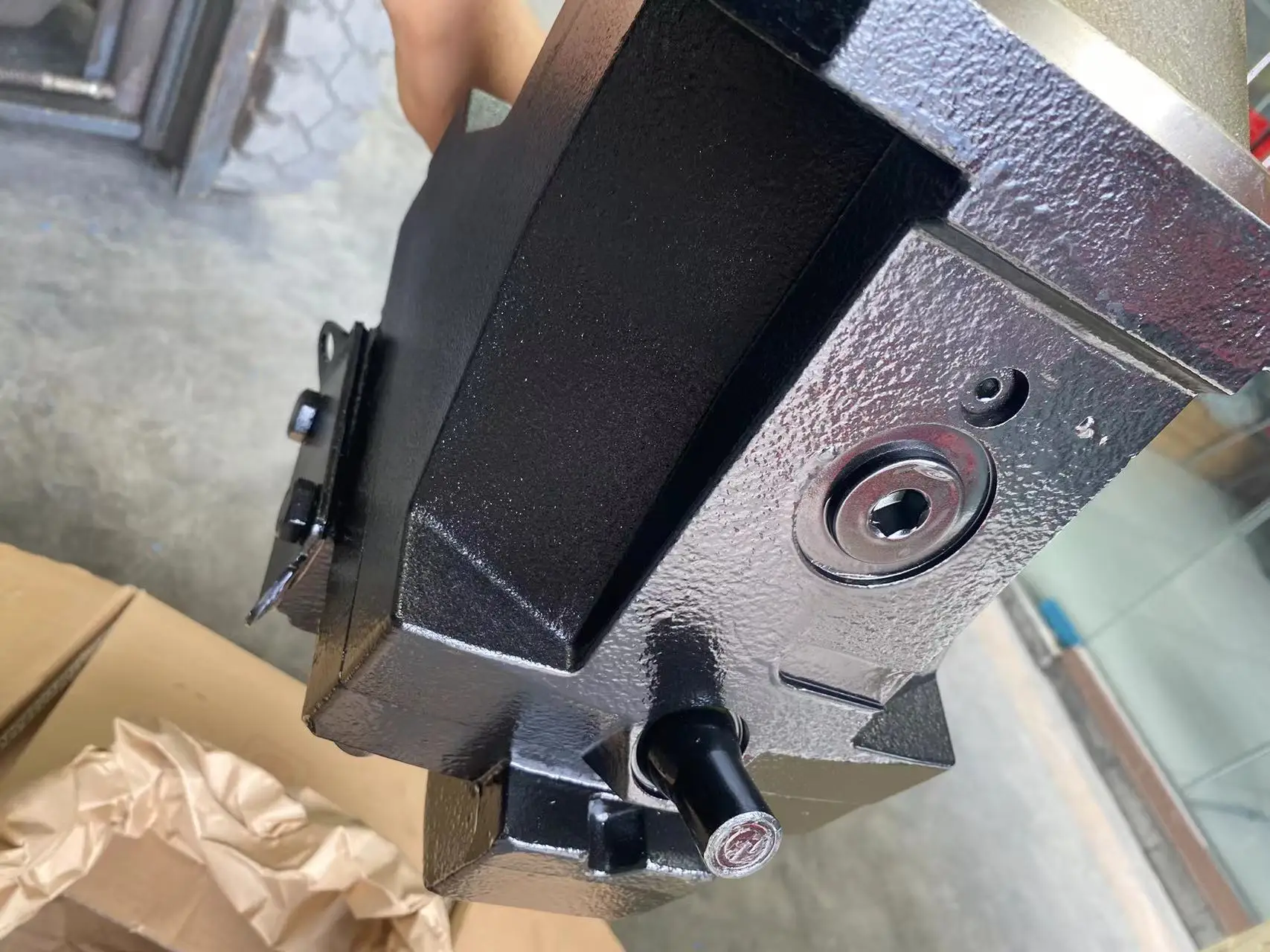

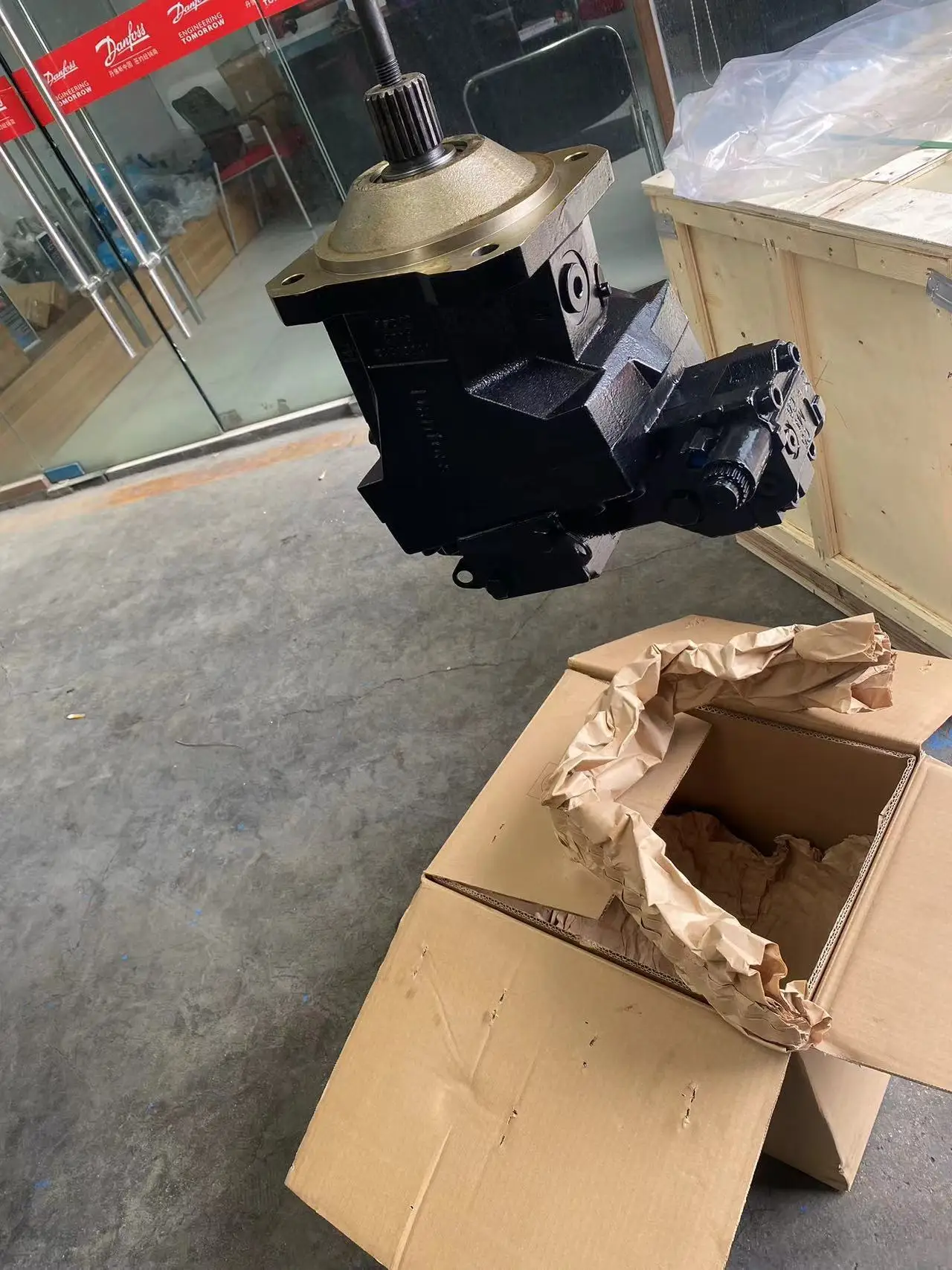

Sauer H1B060 H1B080 H1B110 H1B160 H1B210 H1B250 H1B Bent Axis Hydraulic Motor.
Series H1 variable displacement motors are bent axis design, incorporating spherical pistons.
These motors are designed primarily to be combined with other products in closed circuit systems to transfer and control hydraulic
power. Series H1 motors have a large maximum/minimum displacement ratio of 5:1 and high output speed capabilities.
The expanded function of zero degree capability, coupled with a high performance 32 degree maximum angle, creates opportunities to
easily improve the machine performance.
A complete family of controls and regulators are available to fulfill the requirements of a wide range of applications.
Motors normally start at maximum displacement. This provides maximum starting torque for high acceleration.
All controls utilize internally supplied servo pressure. This may be overridden by a pressure compensator which functions when the
motor is operating in motor and pump modes. A defeat option is available to disable the pressure compensator override when the
motor is running in pump mode during deceleration/braking.
The pressure compensator option features a low pressure rise to ensure optimal power utilization throughout the entire isplacement
range of the motor.
Speed sensor options are available to cover all frame sizes and flange styles.
Hydraulic fluid:
Before starting project planning, please refer to our data sheets RE 90220 (mineral oil), RE 90221 (environmentally acceptable
hydraulic fluids) and RE 90223 (HF hydraulic fluids) for detailed information regarding the choice of hydraulic fluid and
application conditions. The variable pump A4VG is unsuitable for operation with HFA, HFB and HFC. If HFD or environmentally
acceptable hydraulic fluids are being used, the limitations regarding technical data and seals mentioned in RE 90221 and RE 90223
must be observed. When ordering, please indicate the used hydraulic fluid
Series H1 variable displacement motors are bent axis design, incorporating spherical pistons.
These motors are designed primarily to be combined with other products in closed circuit systems to transfer and control hydraulic
power. Series H1 motors have a large maximum/minimum displacement ratio of 5:1 and high output speed capabilities.
The expanded function of zero degree capability, coupled with a high performance 32 degree maximum angle, creates opportunities to
easily improve the machine performance.
A complete family of controls and regulators are available to fulfill the requirements of a wide range of applications.
Motors normally start at maximum displacement. This provides maximum starting torque for high acceleration.
All controls utilize internally supplied servo pressure. This may be overridden by a pressure compensator which functions when the
motor is operating in motor and pump modes. A defeat option is available to disable the pressure compensator override when the
motor is running in pump mode during deceleration/braking.
The pressure compensator option features a low pressure rise to ensure optimal power utilization throughout the entire isplacement
range of the motor.
Speed sensor options are available to cover all frame sizes and flange styles.
Hydraulic fluid:
Before starting project planning, please refer to our data sheets RE 90220 (mineral oil), RE 90221 (environmentally acceptable
hydraulic fluids) and RE 90223 (HF hydraulic fluids) for detailed information regarding the choice of hydraulic fluid and
application conditions. The variable pump A4VG is unsuitable for operation with HFA, HFB and HFC. If HFD or environmentally
acceptable hydraulic fluids are being used, the limitations regarding technical data and seals mentioned in RE 90221 and RE 90223
must be observed. When ordering, please indicate the used hydraulic fluid
