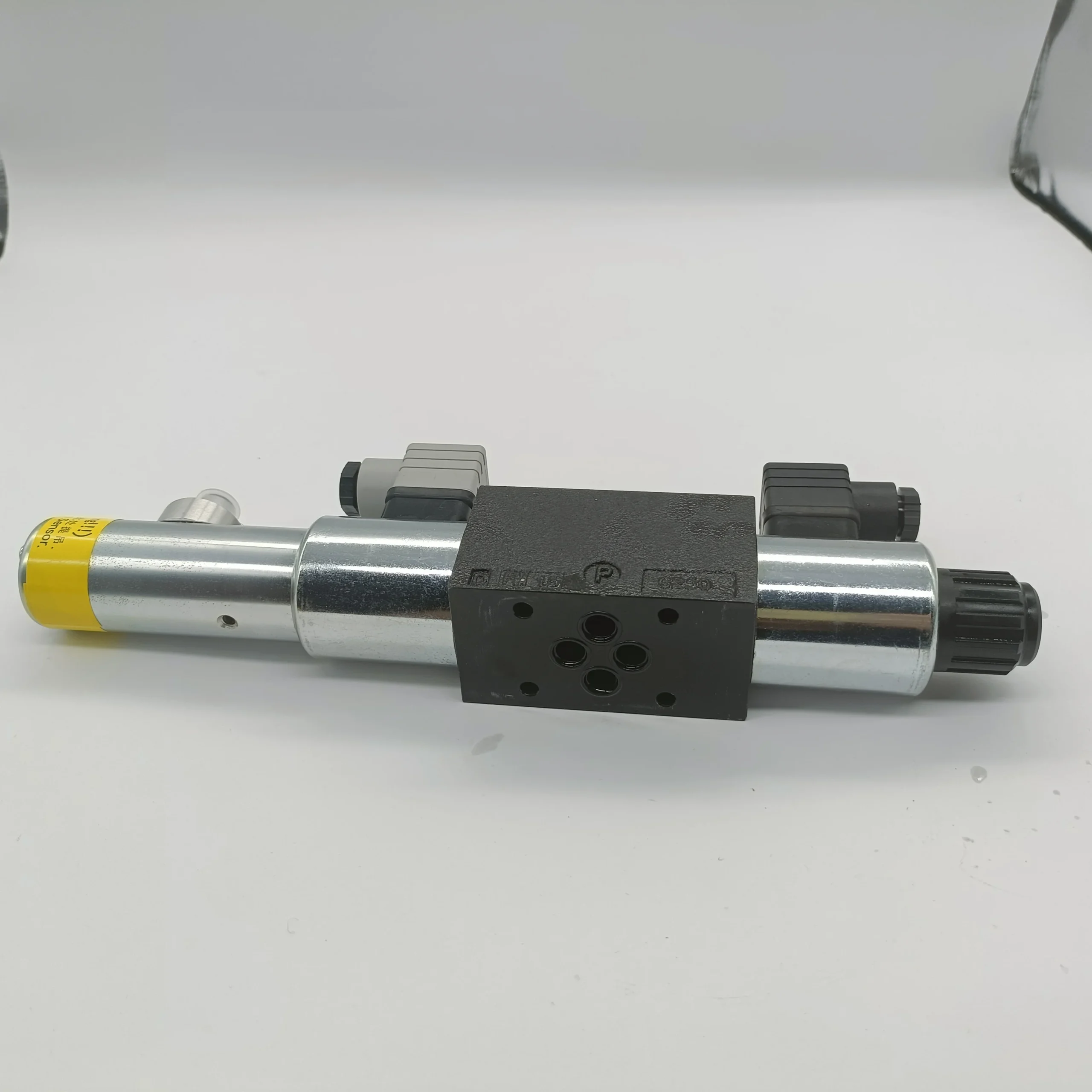

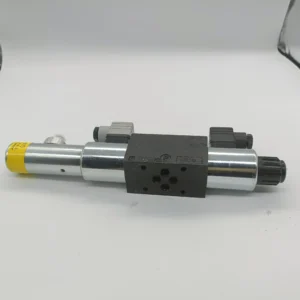

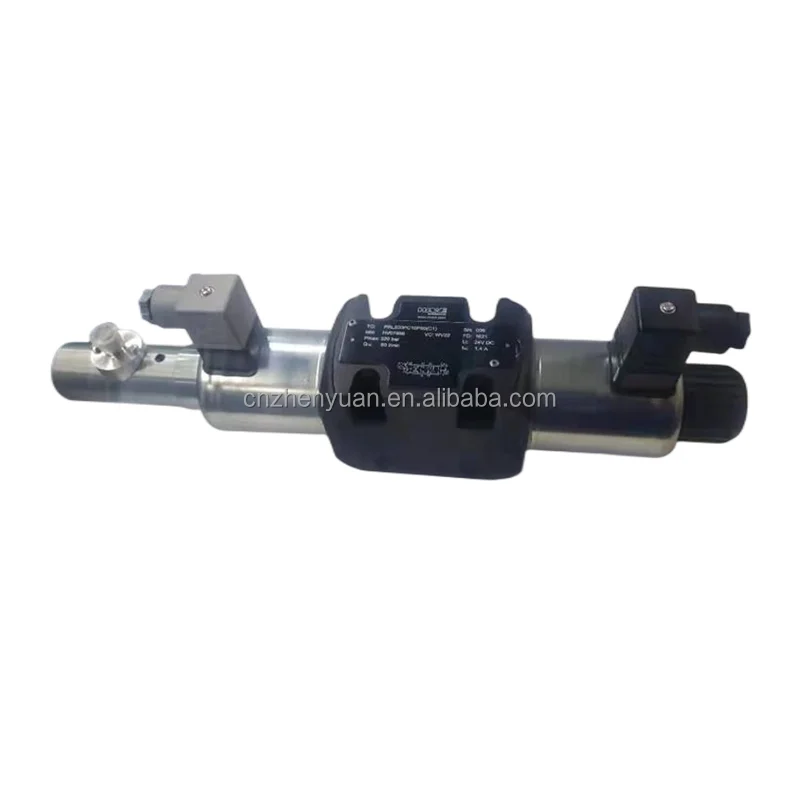

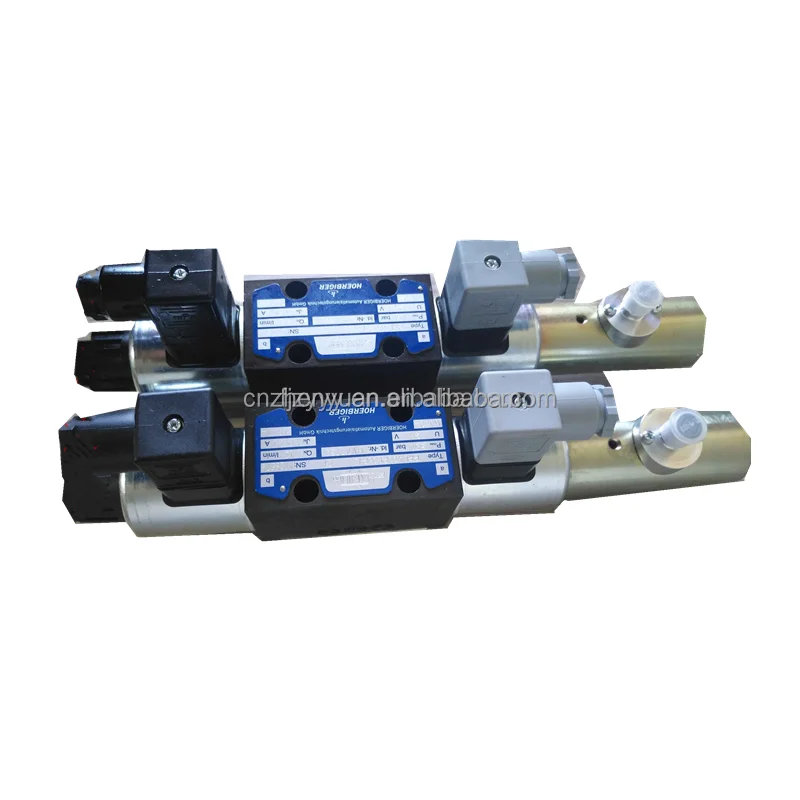

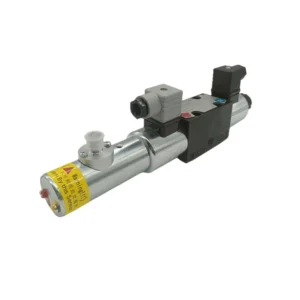

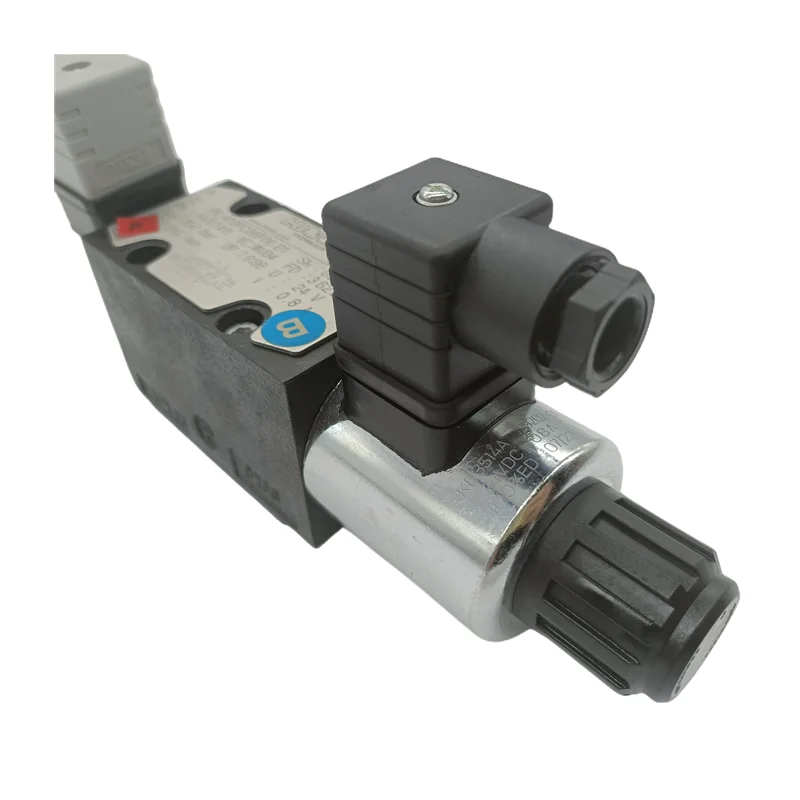

HOERBIGER PRL PIL Series Proportional Valve | PRL400 PRL500 | PRL400PC06P18 HV08083

LIC Hydraulic’s HOERBIGER PRL & PIL Series proportional solenoid directional valves are the premium choice for sophisticated hydraulic control. The PRL series (including PRL400 and PRL500) translates electronic signals into seamless hydraulic flow and pressure adjustments. We provide 100% Drop-in Interchangeability for the high-precision model PRL400PC06P18 (HV08083). Built with high-response linear solenoids and hardened valve components, these valves are designed for continuous duty at pressures up to $315\text{ bar}$, offering minimal hysteresis and superior repeatability for modern industrial automation.

Technical Specifications (Bulleted List)

• Series Models: PRL400, PRL500, PIL Series.

• Specific P/N: PRL400PC06P18 (Internal ID: HV08083).

• Nominal Size: NG6 (Cetop 3).

• Rated Pressure: $315\text{ bar}$ ($4568\text{ PSI}$).

• Max Flow: Up to $40\text{–}60\text{ L/min}$ (depending on spool selection).

• Command Signal: $0\text{–}10\text{ V}$ or $4\text{–}20\text{ mA}$ (requires proportional amplifier).

Key Technical Advantages

• Ultra-Fast Dynamic Response: The low-inertia spool design allows for rapid switching frequencies, essential for synchronized movements in high-speed injection molding and stamping presses.

• Superior Linearity: Laser-cut spool notches ensure a highly predictable relationship between the electrical input and hydraulic output, maintaining precise control over machine speed and position.

• Built-in Pressure Compensation: The “PC” designation signifies integrated compensation that stabilizes flow regardless of fluctuating load pressures, ensuring consistent machine performance.

• High Resistance to Wear: The valve body and spools undergo specialized hardening processes, providing long-term protection against the abrasive effects of high-velocity fluid flow.

Application Areas

• Injection Molding: Precise control of injection speed and clamping pressure.

• Metal Forming: Critical velocity control for hydraulic presses and bending machines.

• Material Handling: Smooth acceleration and deceleration for heavy-load industrial robots.

Expert Maintenance Tips

• Amplifier Synchronization: Proportional valves like the PRL400 must be paired with a calibrated electronic amplifier. Always tune the Dither frequency on the amplifier to minimize friction and prevent the spool from sticking (especially at low signal levels).

• Fluid Filtration Standards: To protect the micron-level tolerances of the PRL series, maintain system filtration at ISO 4406 17/15/12 or better. Contamination is the leading cause of “ghost” movements or signal lag.

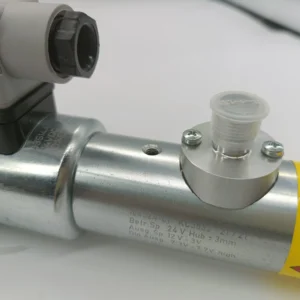

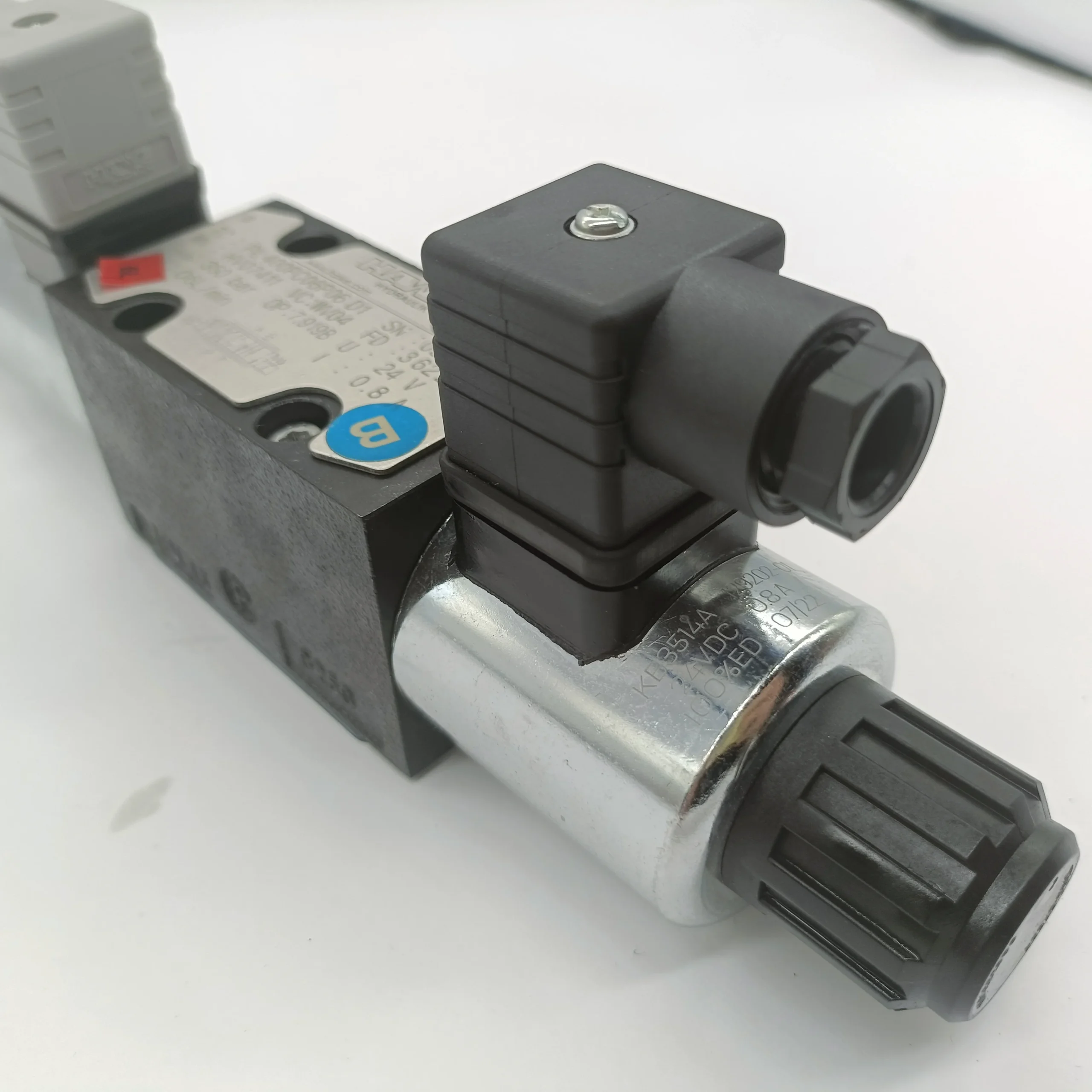

• Coil Maintenance: Regularly check the electrical resistance of the solenoid. Overheating due to poor ventilation can lead to coil failure; ensure the ambient temperature stays within the valve’s rated operating window.
