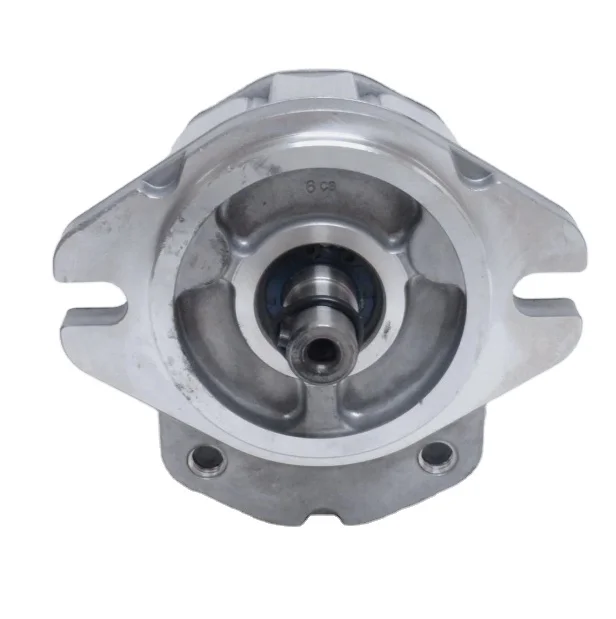

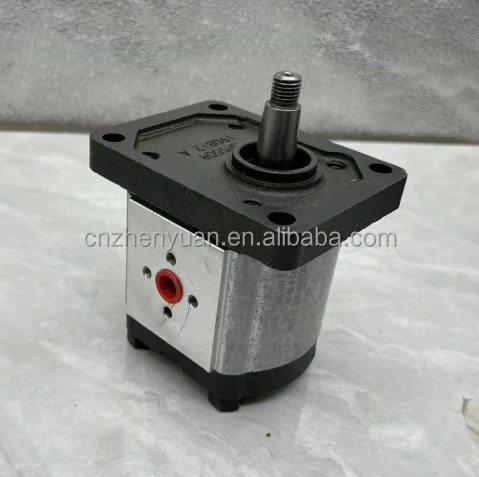

HPL – HPG Series Multiple Aluminium Gear Pumps HPGPA336D21G7G6B00 HPGPA336D21G7G6B00
| Model Number | HPGPA336D21G7G6B00 |
|---|
Product Description
HPL – HPG Series multiple pumps HYDRAULIC PUMP HPGPA336D21G7G6B00 HPGPA336D21G7G6B00 Aluminium gear pumps and motors
1. The range of Gear Pumps and Motors is available in 4 basic frame sizes for flows up to 108lpm and pressure up to 250kgf/ cm2
(3500psi). 2. High tensile extruded aluminum alloy body and die casting covers machined as accurate tolerance, which ensure high
volumetric and mechanical efficiency and low noise level. 3. Viton o-ring and back-up ring ensure high temperature proof. 4.
Internal bearing design ensures high pressure capacity. 5. Clockwise, counter-clockwise and reverse rotations are available. 6.
For comprehensive applications, the gear pump can be optionally mounted with cartridge relief or lifting valves. 7. The
Synchronous Flow Divider can be assembled as multiple stages as requirements. The synchronous accuracy can achieve 95% compare
than 70% of dividing valve. 8. If you need customized services, please contact us promptly. We would like to find a common ground
with you on the order amount and processing fees after receiving the product drawing
1. Recommended Fluids Petroleum-based fluids. For other fluids, please contact local distributors. 2. Recommended Viscosity &
Temperature Circumstance Temperature : -15~80°C ( 5~176°F ) Viscosity : 12~ 800cSt Recommended Viscosity: 16~40cSt Filtration :
Suction Side – 60mm ; Pressure Side – 10 ÷ 25mm 3. Installation & Drive Installation and Drive of pumps must avoid radial and
axial loads on the shaft. The coupling should be able to compensate eventual misalignment errors and the shaft alignment must be
within 0.8mm ( 0.003″ ) TIR. 4. Pressure at Inlet The lowest absolute pressure allowed in the Inlet side is 0.7kgf/cm2 . 5. Others
If any application as below, please contact local distributors: Operating fluid temperature is above 60°C (140°F) Mounting
attitude is other than horizontal. Changing shaft rotation, internal parts. Special materials for seals, o-ring or covers.
(3500psi). 2. High tensile extruded aluminum alloy body and die casting covers machined as accurate tolerance, which ensure high
volumetric and mechanical efficiency and low noise level. 3. Viton o-ring and back-up ring ensure high temperature proof. 4.
Internal bearing design ensures high pressure capacity. 5. Clockwise, counter-clockwise and reverse rotations are available. 6.
For comprehensive applications, the gear pump can be optionally mounted with cartridge relief or lifting valves. 7. The
Synchronous Flow Divider can be assembled as multiple stages as requirements. The synchronous accuracy can achieve 95% compare
than 70% of dividing valve. 8. If you need customized services, please contact us promptly. We would like to find a common ground
with you on the order amount and processing fees after receiving the product drawing
1. Recommended Fluids Petroleum-based fluids. For other fluids, please contact local distributors. 2. Recommended Viscosity &
Temperature Circumstance Temperature : -15~80°C ( 5~176°F ) Viscosity : 12~ 800cSt Recommended Viscosity: 16~40cSt Filtration :
Suction Side – 60mm ; Pressure Side – 10 ÷ 25mm 3. Installation & Drive Installation and Drive of pumps must avoid radial and
axial loads on the shaft. The coupling should be able to compensate eventual misalignment errors and the shaft alignment must be
within 0.8mm ( 0.003″ ) TIR. 4. Pressure at Inlet The lowest absolute pressure allowed in the Inlet side is 0.7kgf/cm2 . 5. Others
If any application as below, please contact local distributors: Operating fluid temperature is above 60°C (140°F) Mounting
attitude is other than horizontal. Changing shaft rotation, internal parts. Special materials for seals, o-ring or covers.
13 HGP-1A, HGP-11A 17 HGP-2A, HGP-22A 21 HGP-3A, HGP-3A2D, HGP-3AI, HGP-3AS, HGP-33A, HGP-53A 31 HGP-4A 35 HGP-5A, HGP-5AI,
HGP-55A, HGP-53A 57 HGP-55AI
