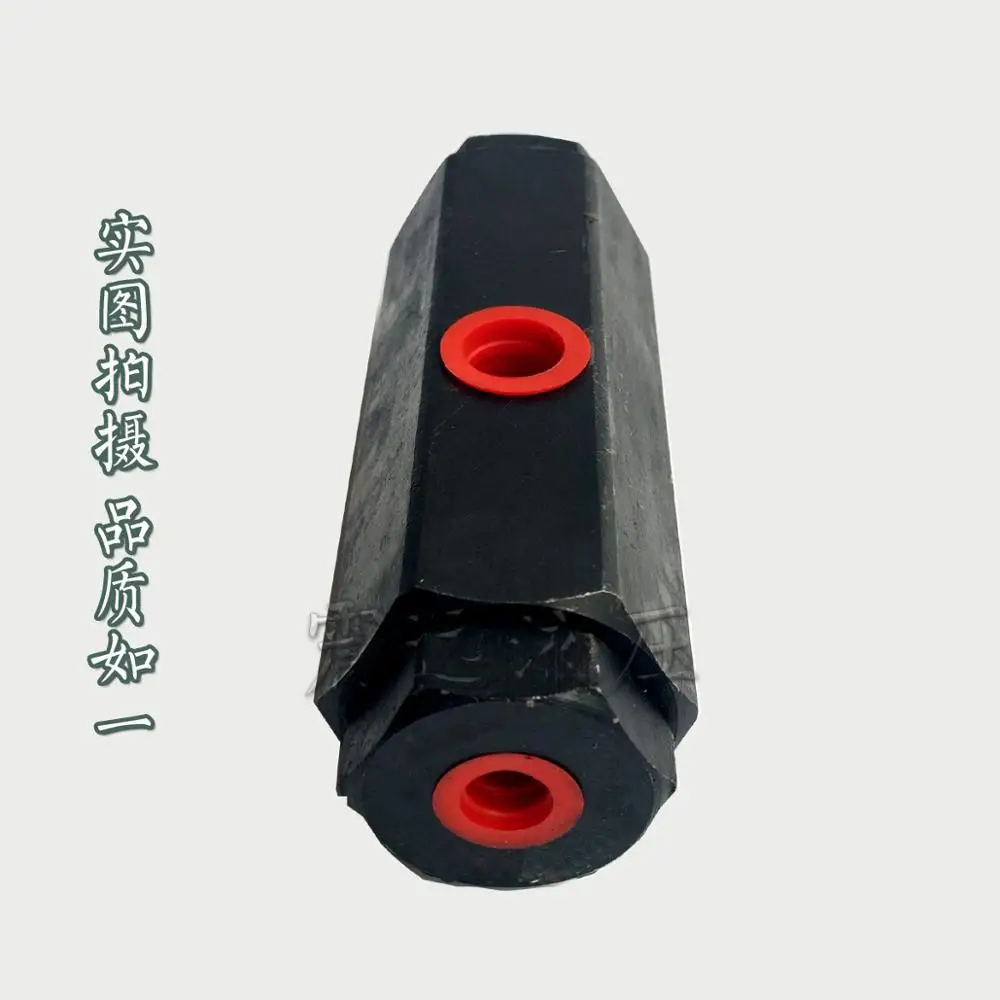

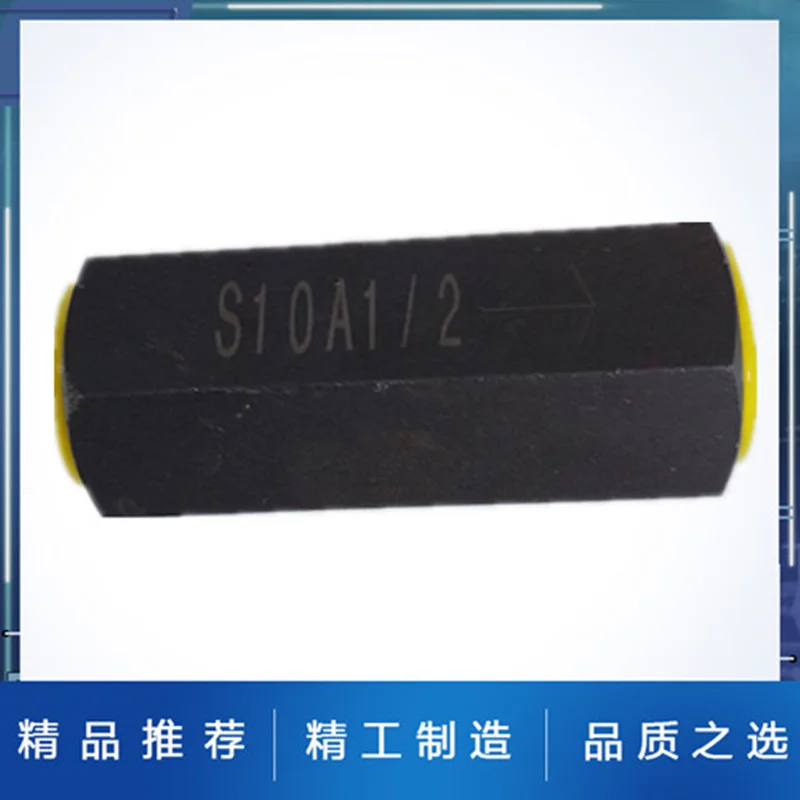

Huade Hydraulic One-way Valve S6 S8 S10 S15 S6A12B S8A12B S10A12B S15A12B S20A12B S25A12B S30A12B Hydraulic Check Valve
| Model Number | S6A12B, S20A12B, S8A12B, S25A12B, S10A12B, S30A12B, S15A12B |
|---|
Product Description
Huade Hydraulic one-way valve S6 S8 S10 S15 S6A12B S8A12B S10A12B S15A12B S20A12B S25A12B S30A12B hydraulic check valve
The SV and SL valves are hydraulic pilot-operated check valves of poppet type design, which may be opened to permit flow in the
reverse direction. These valves are used for the isolation of operating circuits which are under pressure, i.e, as a safeguard
against the lowering of a load when a line break occurs or against creeping movement of hydraulically locked actuators. The valve
basically comprises of the housing, the poppet, a compression spring, the control spool, as well as a optional decompression feature
as a ball poppet valve.
* Sizes 10 to 30
* For subplate mounting
* Connection location to ISO 5781
* With internal or external pilot oil drain, optional
* With or without a decompression feature, optional
* Version with decompression feature for dampened decompression (minimizing possible pressure shocks)
reverse direction. These valves are used for the isolation of operating circuits which are under pressure, i.e, as a safeguard
against the lowering of a load when a line break occurs or against creeping movement of hydraulically locked actuators. The valve
basically comprises of the housing, the poppet, a compression spring, the control spool, as well as a optional decompression feature
as a ball poppet valve.
* Sizes 10 to 30
* For subplate mounting
* Connection location to ISO 5781
* With internal or external pilot oil drain, optional
* With or without a decompression feature, optional
* Version with decompression feature for dampened decompression (minimizing possible pressure shocks)
