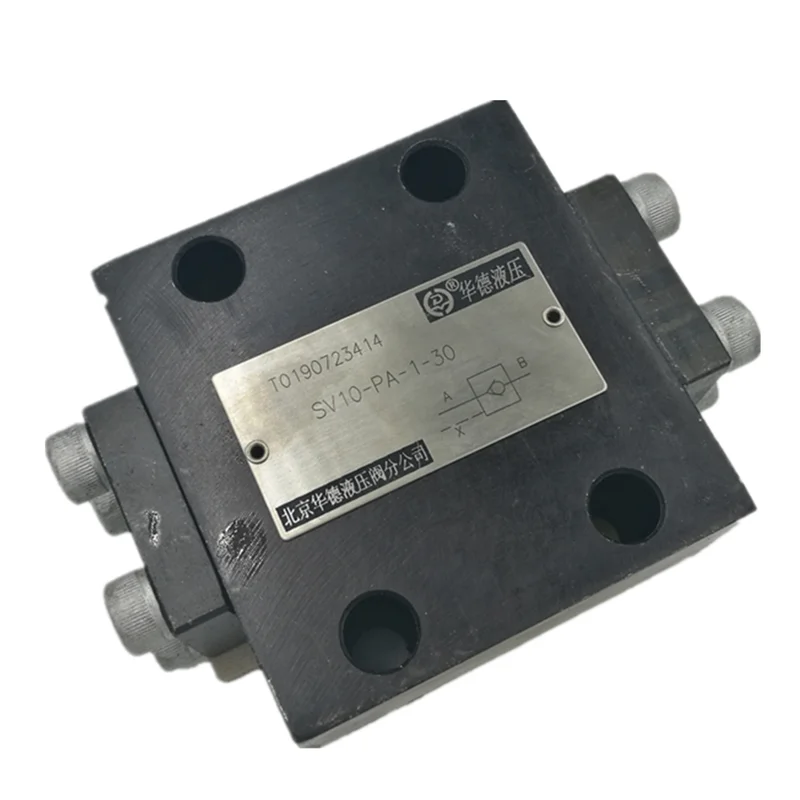

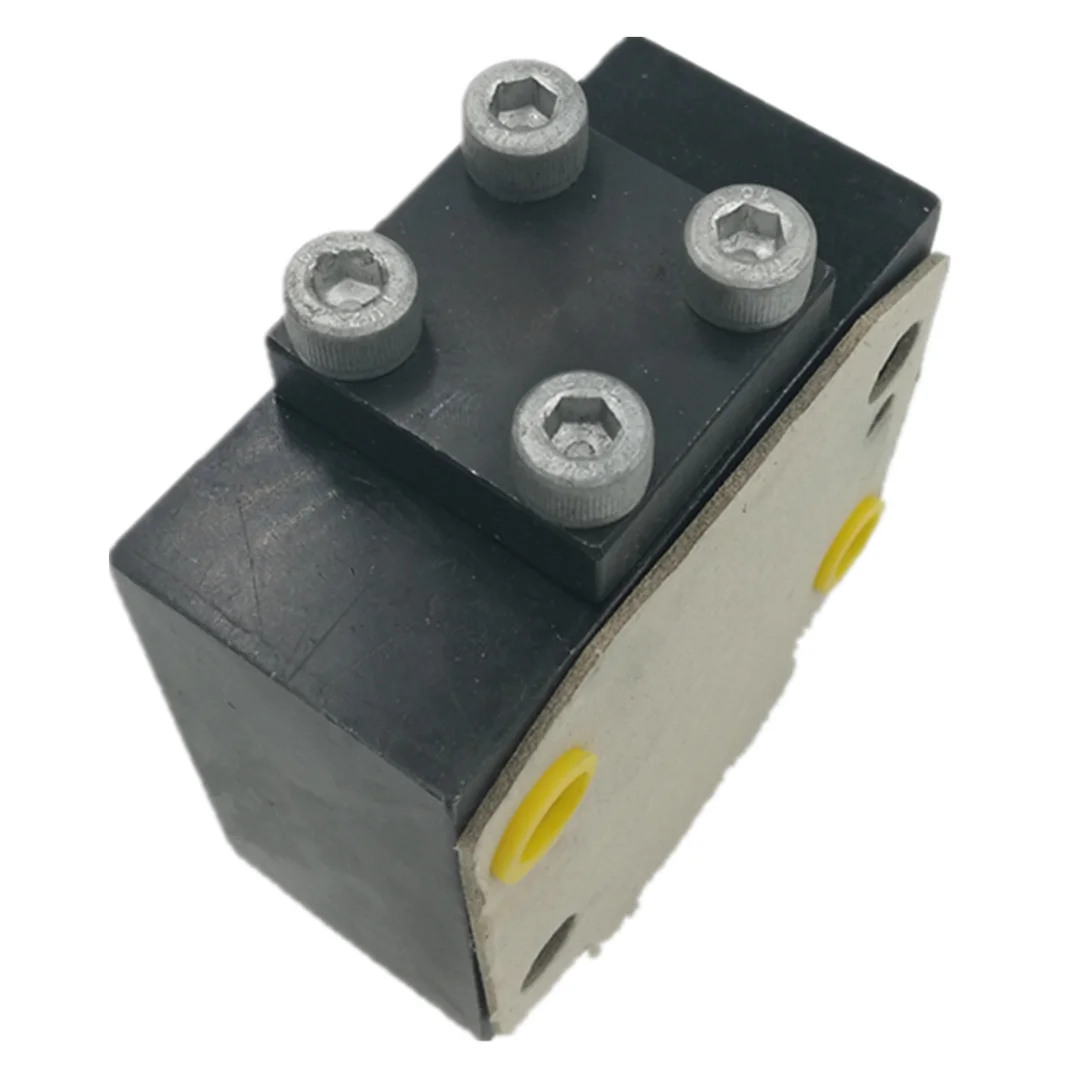

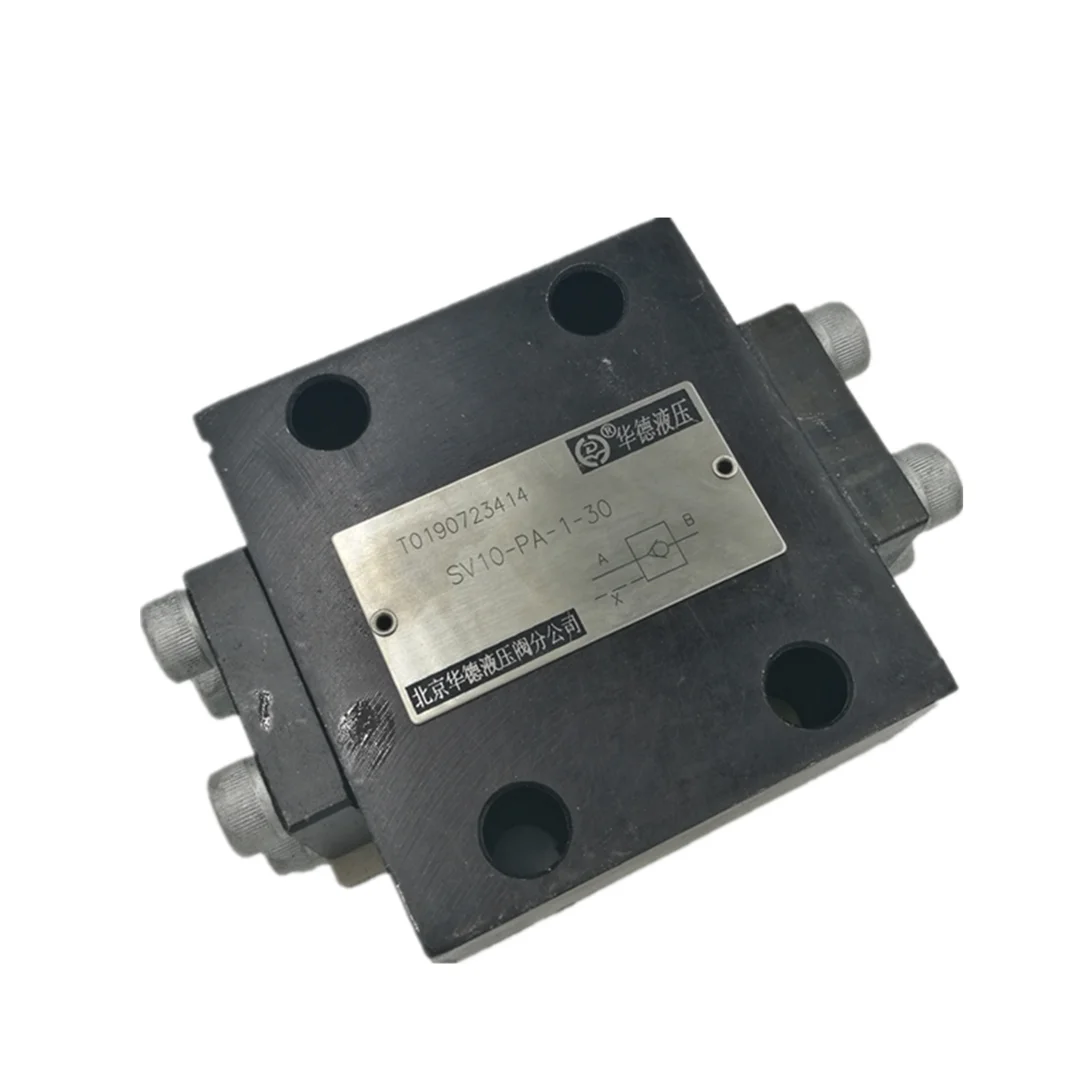

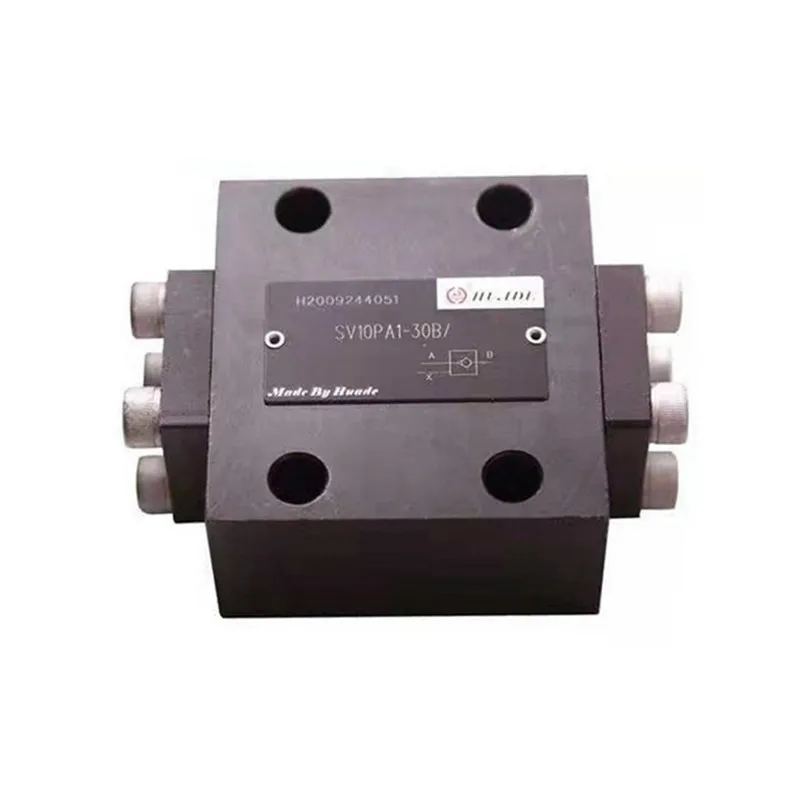

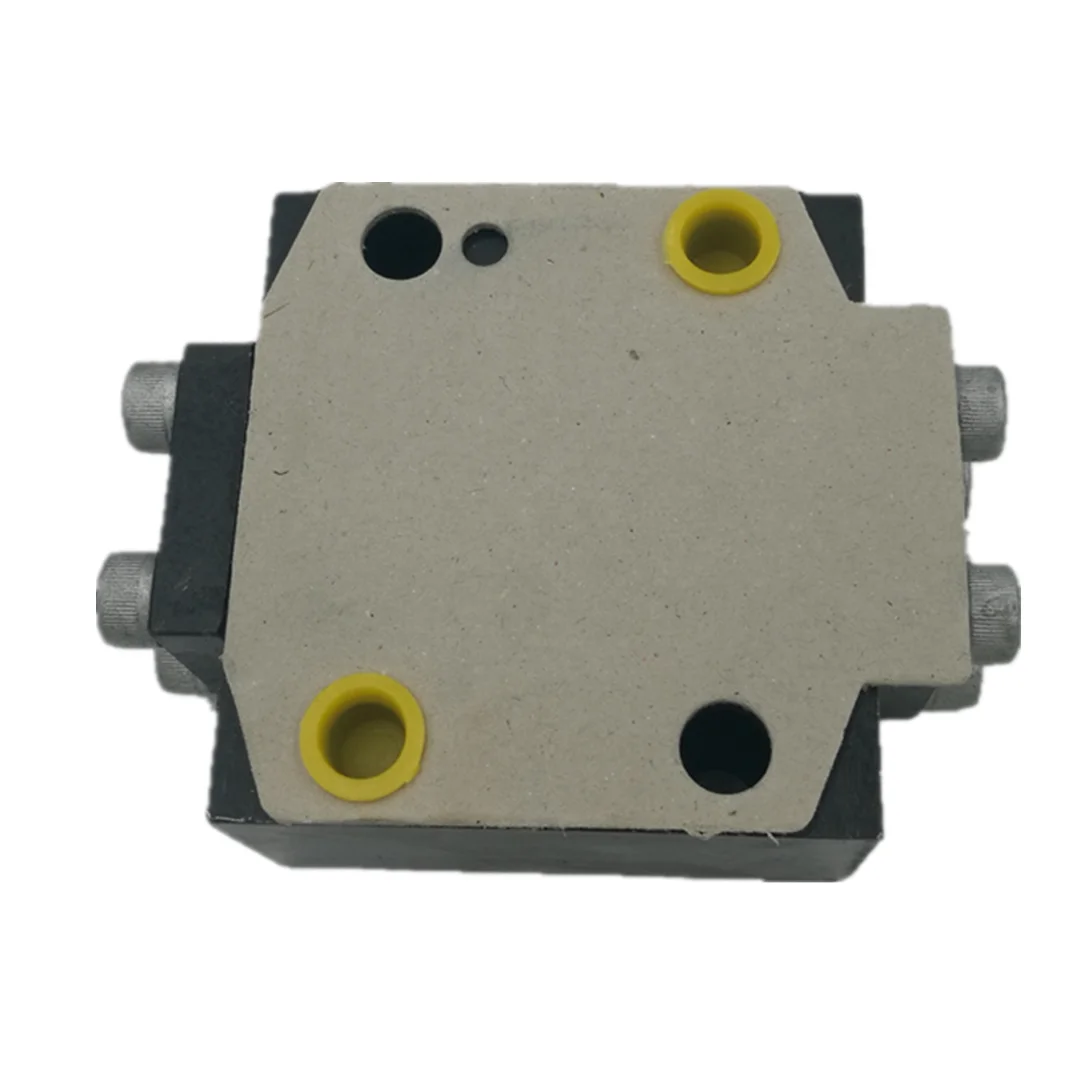

Huade Valvula De Control Check Valve SL & SV SV20 SV10 SV30 Series SV20PA1-4X/ SV10PA1-40B SV20PA1-40B pilot Operated VALVE
| Model Number | SV20PA1-4X/, SV10PA1-40B, SV20PA1-40B, SV20, SV10, SV30 |
|---|
Product Description
Huade Valvula de control check valve SL & SV SV20 SV10 SV30 series SV20PA1-4X/ SV10PA1-40B SV20PA1-40B pilot operated VALVE
The SV and SL valves are hydraulic pilot operated check valves of poppet type design which may be opened to permit flow in the
reverse direction. These valves are used for the isolation of operating circuits which are under pressure, i.e. as a safe guard
against the lowering of a load when a line break occurs or against creeping movement of hydraulically locked actuators. The valve
basically comprises of the housing, the poppet, a compression spring, the control spool as well as optional decompression feature
as a ball poppet valve.
* Sizes 10 to 30
* For subplate mounting
* Connection location to ISO 5781
* With internal or external pilot oil drain, optional
* With or without a decompression feature, optional
* Version with decompression feature for dampened decompression (minimizing possible pressure shocks)
reverse direction. These valves are used for the isolation of operating circuits which are under pressure, i.e. as a safe guard
against the lowering of a load when a line break occurs or against creeping movement of hydraulically locked actuators. The valve
basically comprises of the housing, the poppet, a compression spring, the control spool as well as optional decompression feature
as a ball poppet valve.
* Sizes 10 to 30
* For subplate mounting
* Connection location to ISO 5781
* With internal or external pilot oil drain, optional
* With or without a decompression feature, optional
* Version with decompression feature for dampened decompression (minimizing possible pressure shocks)
