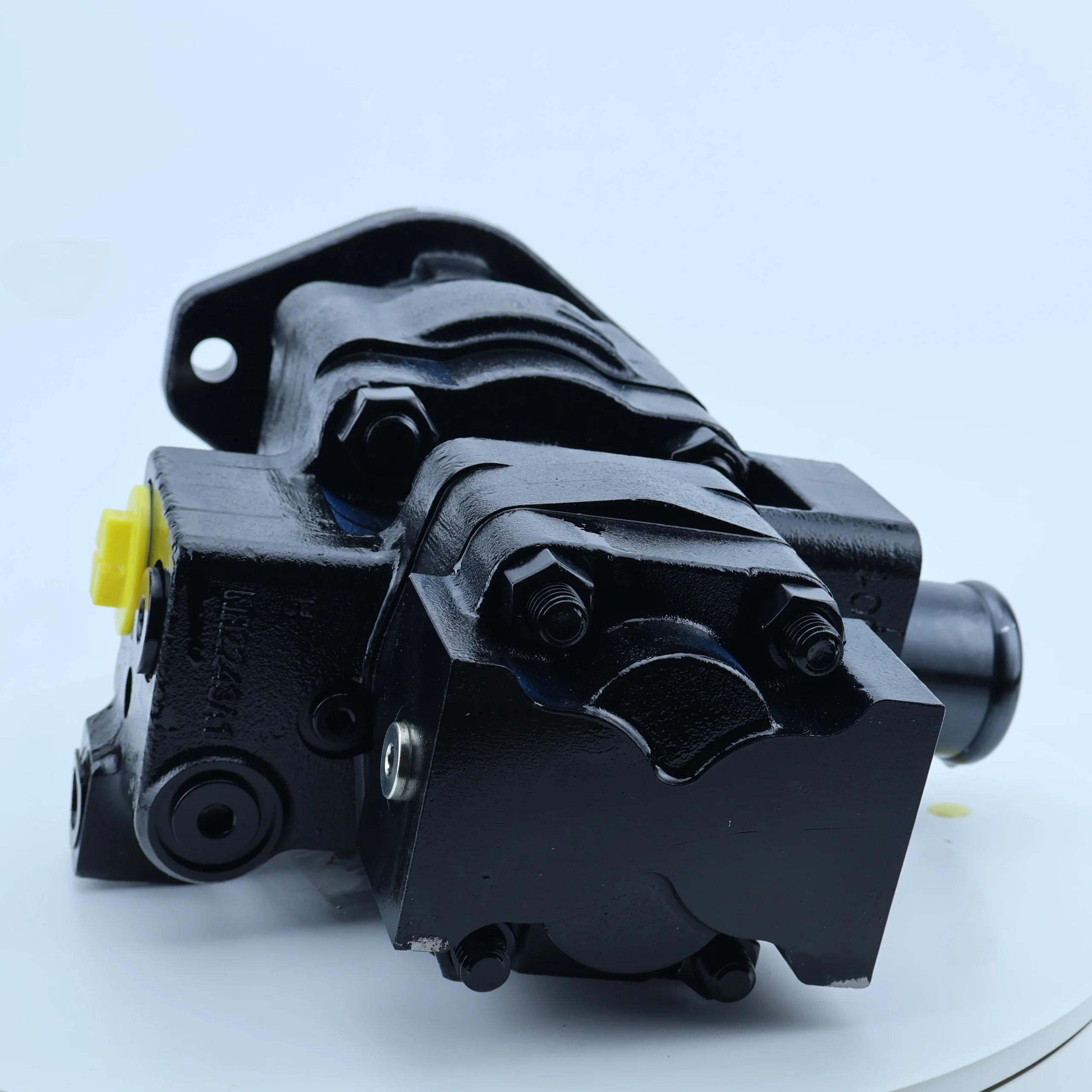

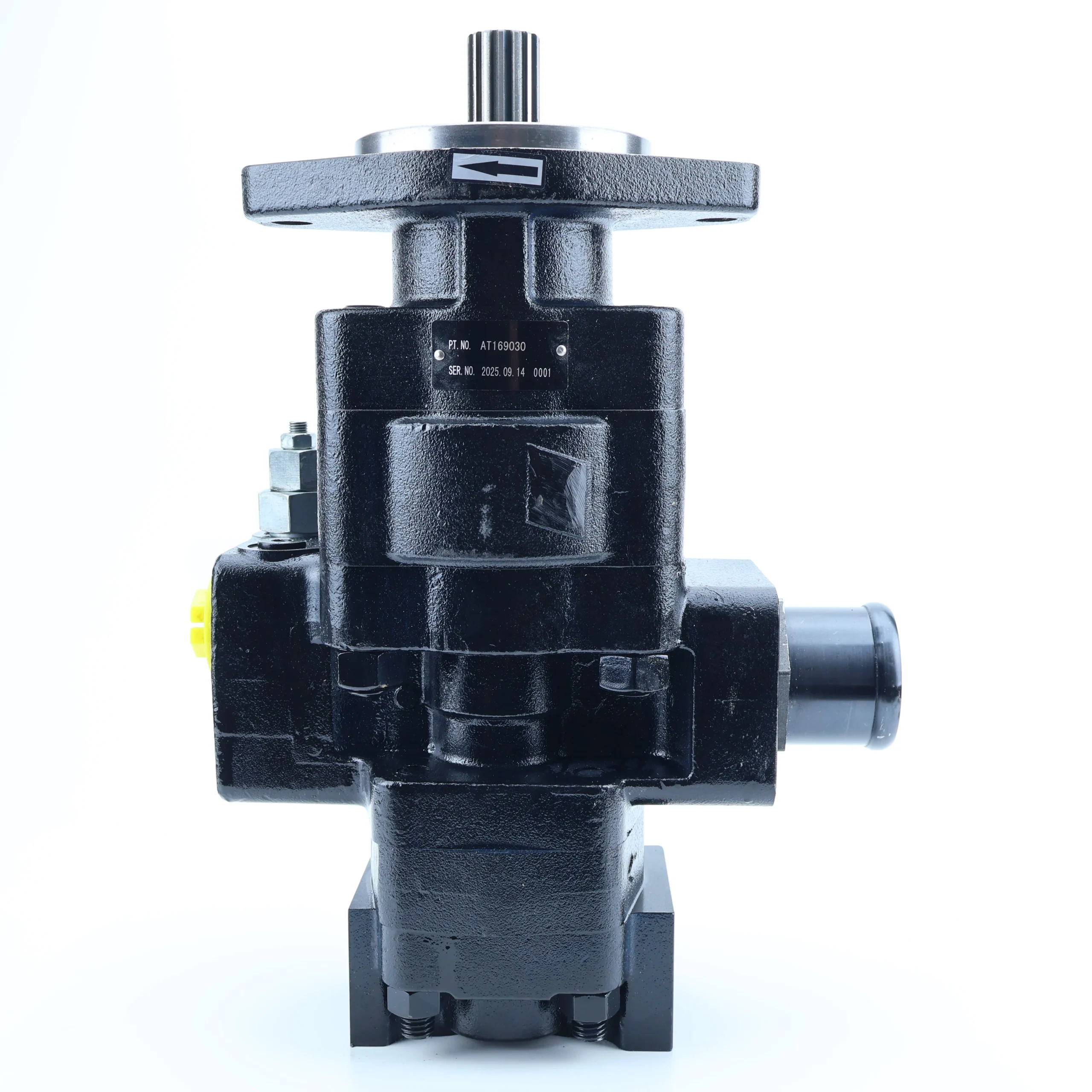

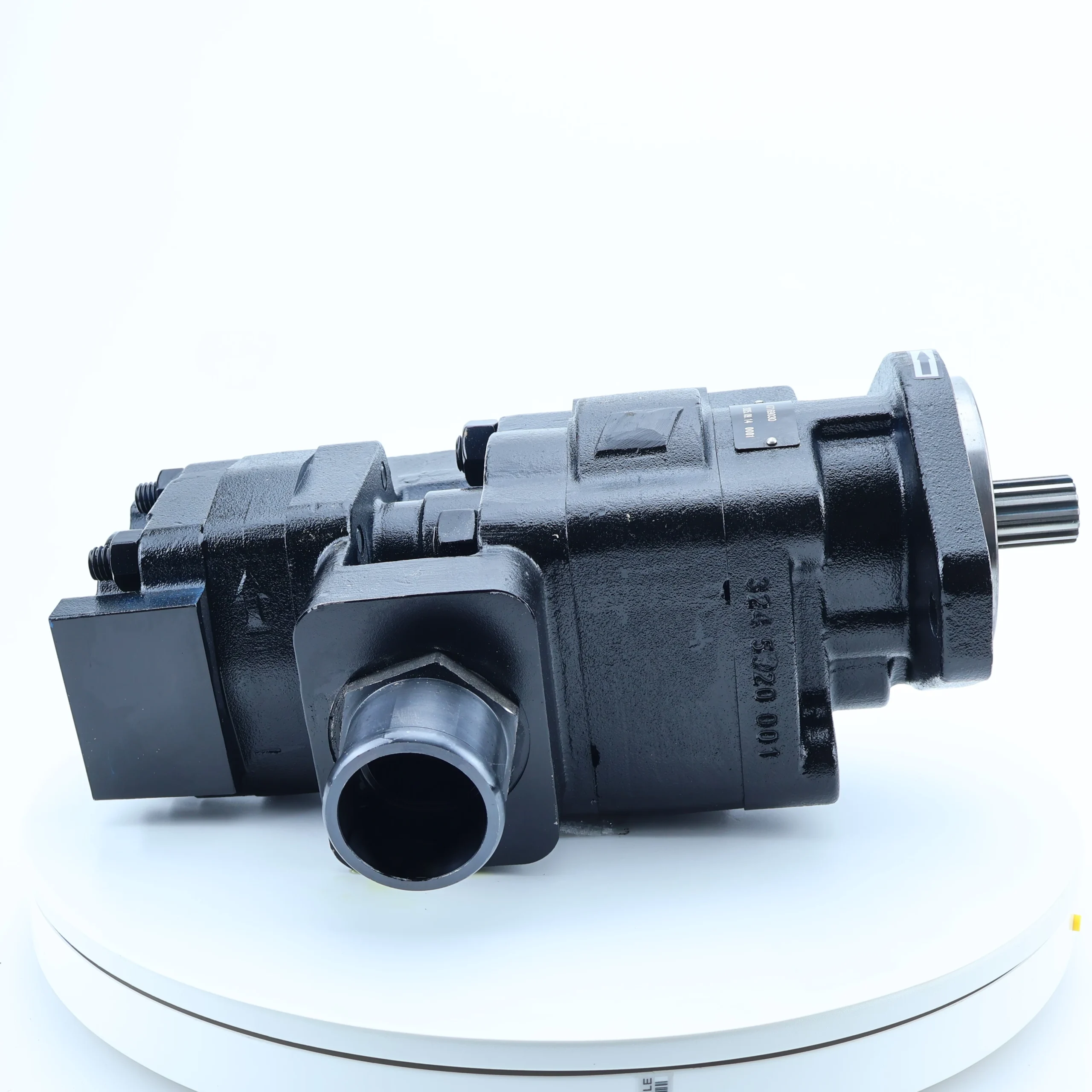

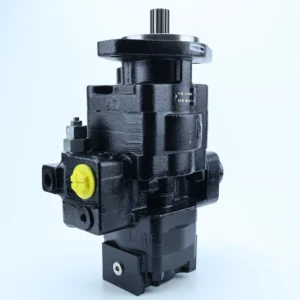

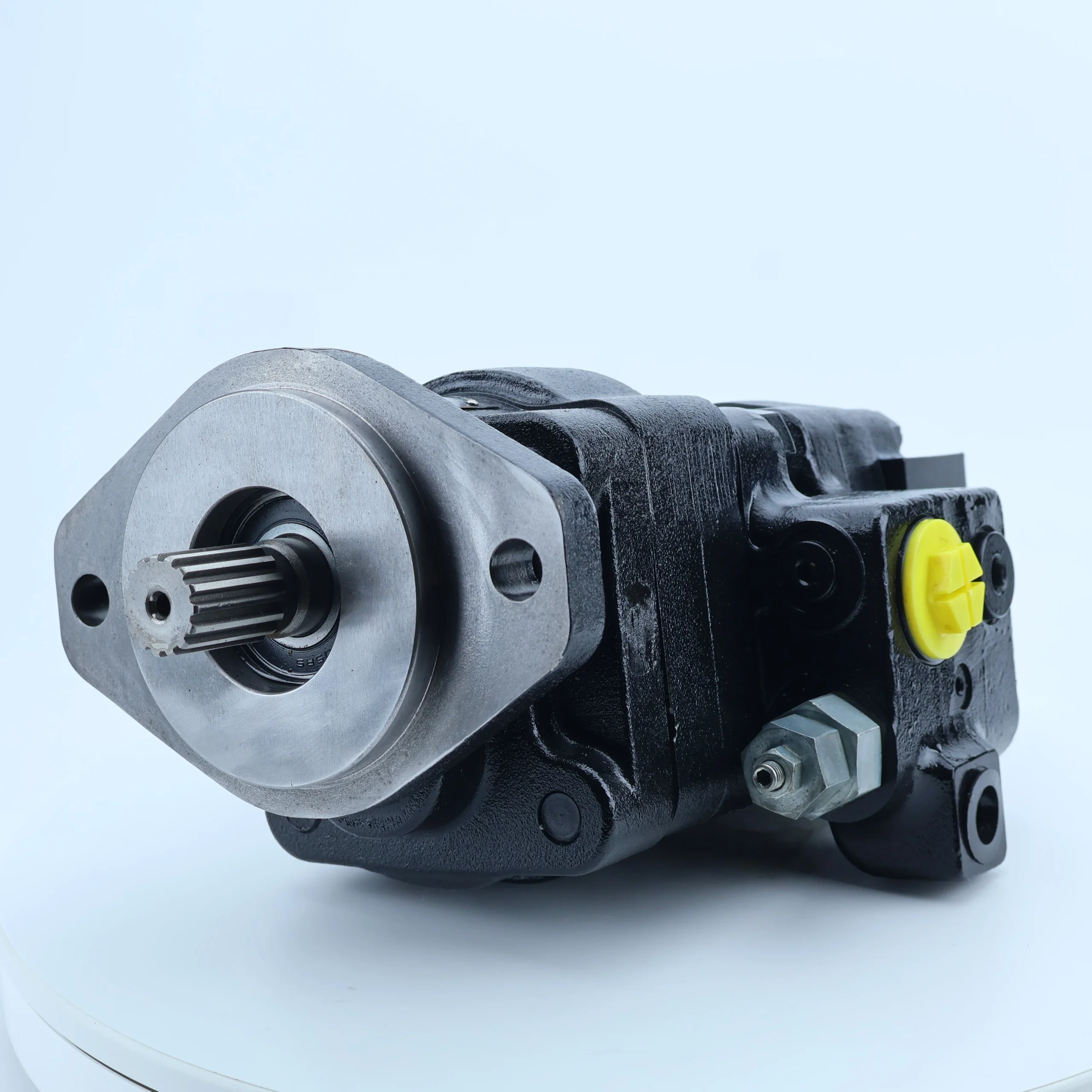

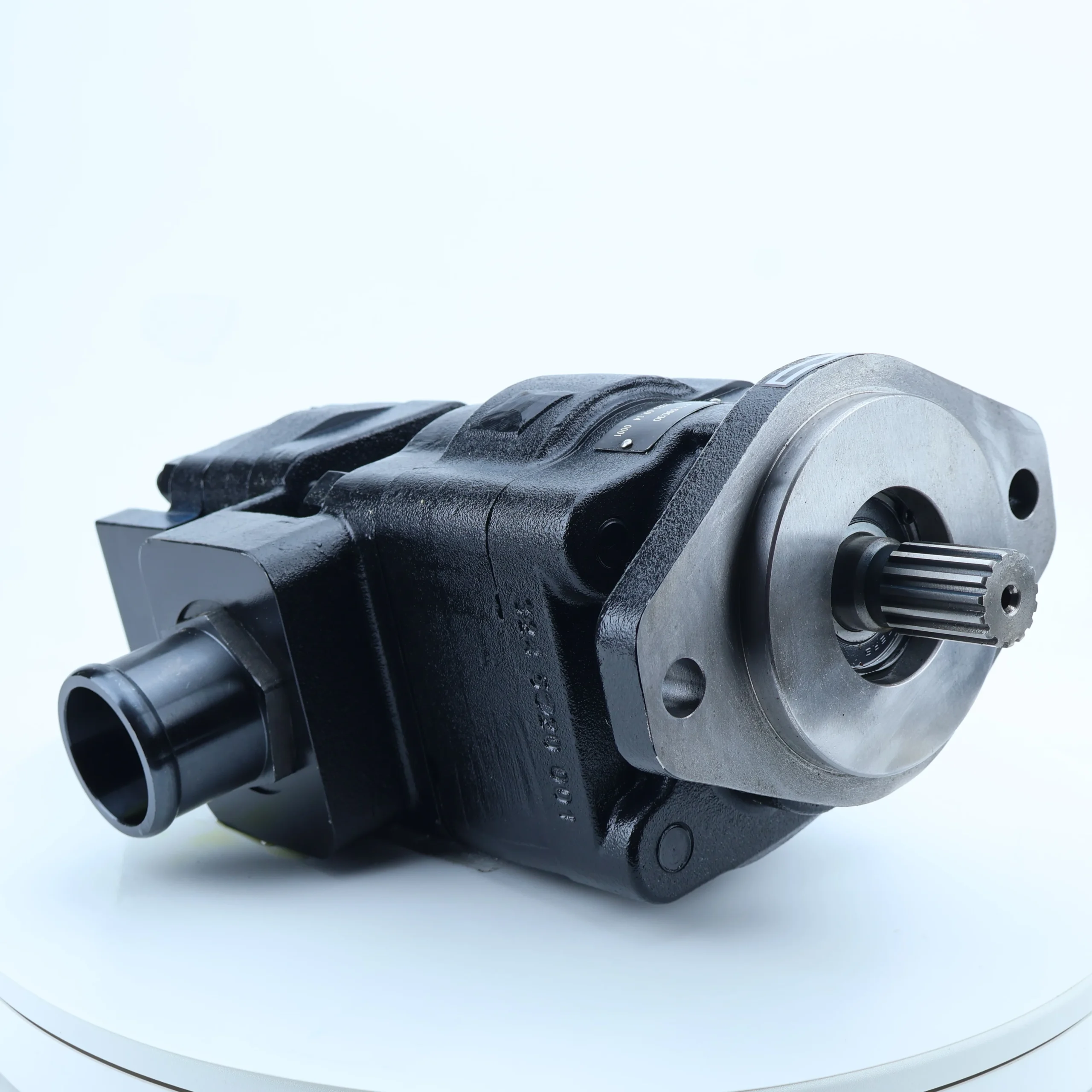

Hydraulic Gear Oil High Pressure Pump AT179792 AT169030 AT331223 310SK 315SK 325J 310G
| Model Number | AT169030 |
|---|
Product Description
Hydraulic Gear Oil Pump AT179792 AT169030 AT331223 High Pressure Hydraulic Pump for 310SK 315SK 325J 310G Loader
“shipping weight” : 27.0794kg
largest dimension: 44.7cm
middle dimension: 25.4cm
smallest dimension: 18.5cm
2. Working Principle:
The AT169030 gear pump is a positive displacement pump. It achieves the suction and discharge of liquids through the meshing and rotation of two gears. When the gear rotates, the volume of the space on the disengaged side of the gear increases from small to large, creating a vacuum and drawing in the liquid. The volume of space on the meshing side of the gears decreases from large to small, squeezing out the liquid and thus achieving the transportation of the liquid.3. Product Features and Advantages:
Reliable quality: Made of high-quality materials and subject to strict quality inspection, it ensures stable operation in all kinds of harsh working environments.
High efficiency: The precise gear design ensures high pumping efficiency, providing a powerful and stable power source for mechanical equipment.
Good durability: It can withstand high-pressure and high-load work, reducing the frequency of maintenance and replacement, and lowering the usage cost.
Good sealing performance: Effectively prevents leakage and ensures the safety of work.
4. Usage functions and purposes:
The function of the gear pump AT169030 is to convert hydraulic energy into mechanical energy, providing power for the hydraulic system of the equipment and driving the operation of hydraulic actuating components such as hydraulic cylinders and hydraulic motors. It is mainly used in the hydraulic system of loaders, providing power for the lifting, flipping and other actions of the loader’s bucket.
5. Applicable machines and scenarios:
It is suitable for excavators of models such as 310E, 310SE, and 315SE, as well as related equipment equipped with engines 4045 TT 050 and 4045 TT 056. It is mainly applied in the field of construction machinery.
6. Similar models: AT331223, etc.
7. Precautions for Use
Pre-startup inspection: Inspect the appearance of the pump body to ensure that the shell has no cracks and the connecting bolts are not loose. Check the hydraulic oil level, which should be between the upper and lower limits of the oil gauge, and the oil should be free of deterioration and impurities. Manually rotate the pump shaft to feel if the rotation is smooth, without any jamming or abnormal noise. Check the inlet and outlet valves to ensure that the inlet valve is fully open and the outlet valve is half-open.
Start-up operation: If it is the first start-up or start-up after a long period of inactivity, the motor should be jog 2-3 times first to confirm that the pump rotation direction is consistent with the marking. After normal startup, slowly open the oil outlet valve. Wait until the pressure at the pump outlet stabilizes, then fully open the valve to avoid component impact caused by pressurized startup.
Operation monitoring: Real-time monitoring of pressure, temperature and sound. The pressure fluctuation range should be controlled within ±5% of the rated pressure. The temperature of the pump body shell should not exceed 60℃, the temperature of the bearing part should not exceed 70℃, and the oil temperature should be controlled between 30 and 50℃. There should be no sharp abnormal noise during normal operation.
Shutdown and maintenance: Before shutting down, first close the oil outlet valve and then cut off the motor power supply. If the pump is to be out of use for a long time, the medium in the pump and pipelines should be drained, and anti-rust oil should be applied to the metal parts. Regularly clean the oil inlet filter screen, check the quality of the oil, and replace the deteriorated oil in time.
