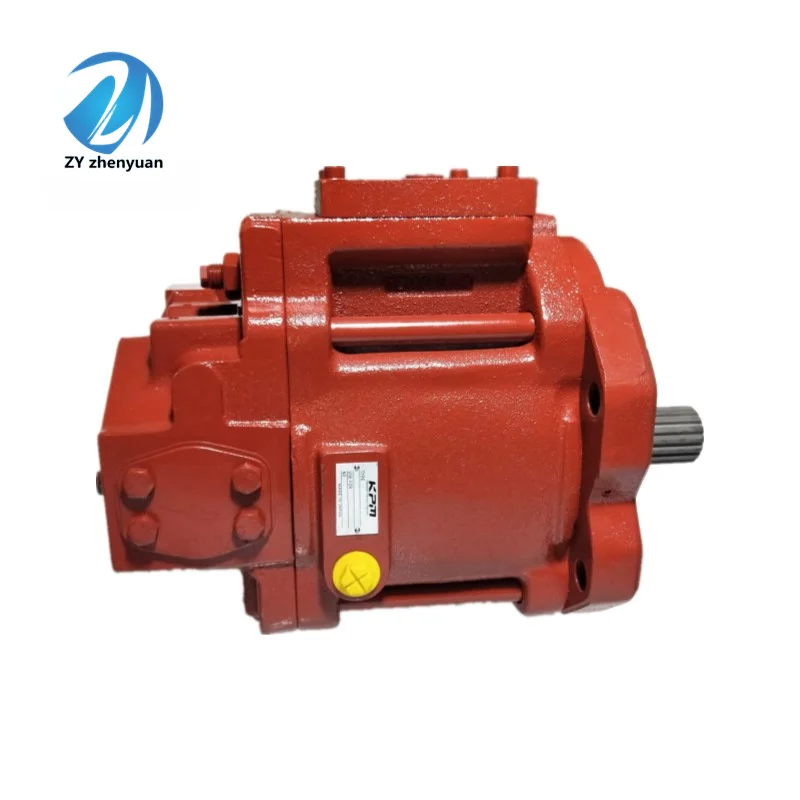

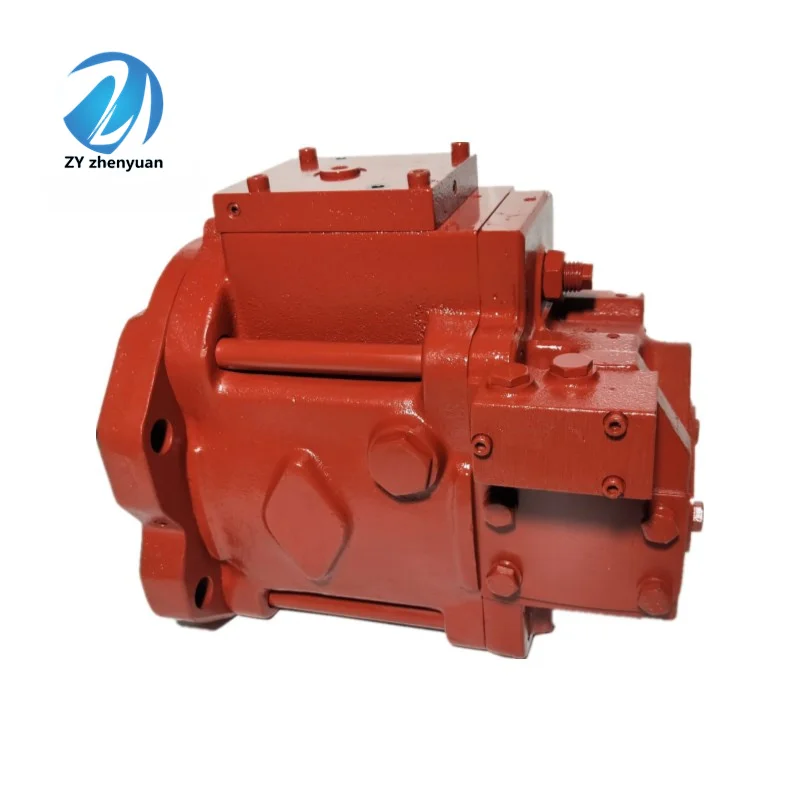

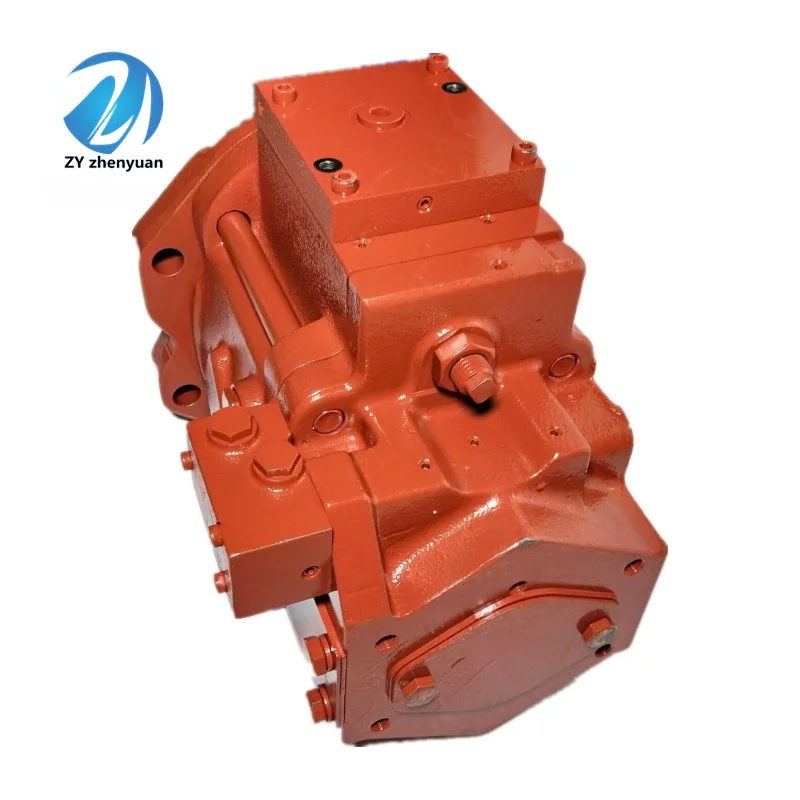

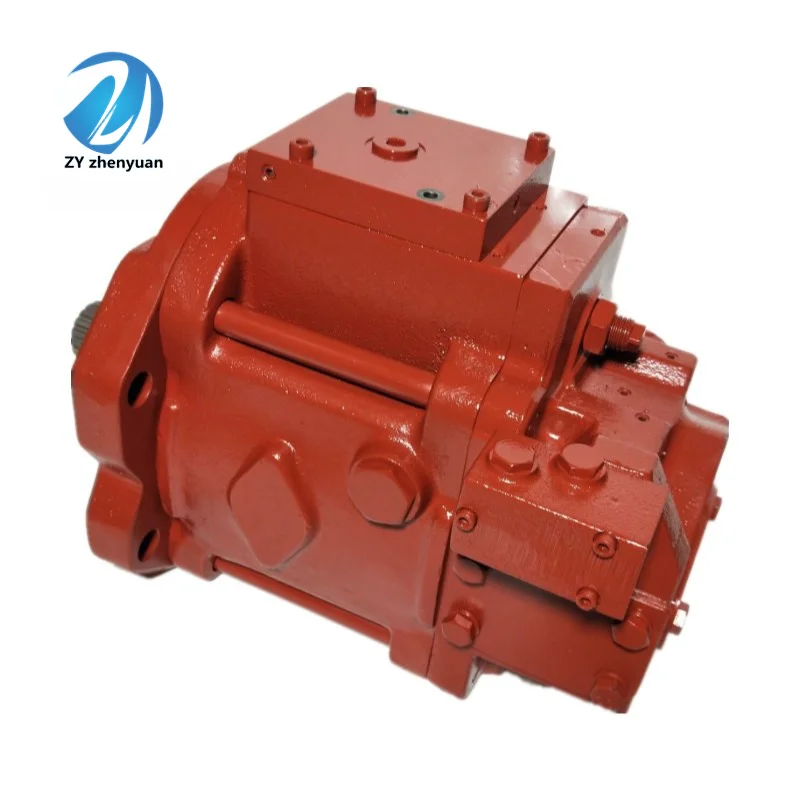

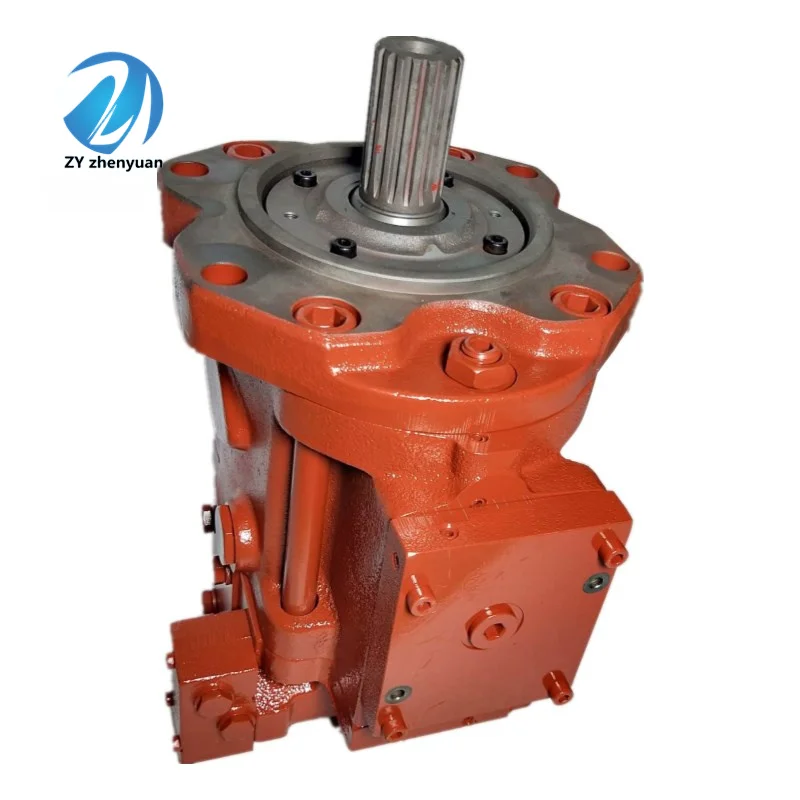

Kawasaki K3V112S Hydraulic Main Pump | K3V112DT K3V112DTP | EX120-2 PC120-6
| Model Number | K3V112S-1X5R |
|---|
Product Description
LIC Hydraulic’s Kawasaki K3V112 Series swash-plate axial piston pumps are the global benchmark for excavator hydraulic power. This series features the single pump K3V112S and the tandem configurations K3V112DT/DTP/DP, specifically engineered for 12 to 14-ton class machinery. We guarantee 100% Drop-in Interchangeability for iconic models such as Hitachi EX120-2/3 and Komatsu PC120-6. Built for extreme reliability and high power density, every K3V112 unit undergoes 100% dynamic load testing to ensure precise flow control and smooth multi-function movements under the harshest job site conditions.
Technical Specifications (Bulleted List)
Series Models: K3V112S, K3V112DT, K3V112DTP, K3V112DP
Displacement: $112\text{ cc/rev}$ (Single) / $112\text{ cc/rev} \times 2$ (Tandem)
Rated Pressure: $34.3\text{ MPa}$ ($4974\text{ PSI}$)
Peak Pressure: $39.2\text{ MPa}$ ($5685\text{ PSI}$)
Compatible Machines:
Hitachi: EX100, EX120-1/2/3/5
Komatsu: PC120-5, PC120-6
Control Types: Negative Flow Control (NFC), Constant Power Control, Total Horsepower Control.
Key Technical Advantages
Robust Rotating Group: The pistons and slippers are reinforced with specialized alloys to sustain high volumetric efficiency even after thousands of hours of high-pressure cycling.
High-Response Regulator: The integrated servo mechanism ensures rapid displacement adjustment, matching engine output perfectly to prevent stalling and maximize fuel efficiency.
Superior Contamination Resistance: The K3V series is renowned for its durability in dusty and high-vibration environments, offering a longer MTBF (Mean Time Between Failure) than many competitors.
Quiet & Stable Operation: Advanced port plate geometry and swash-plate damping reduce pressure ripples, leading to quieter operation and less fatigue on downstream hydraulic components.
Application Areas
Excavator Main Hydraulics: Powers the boom, arm, bucket, and swing functions.
Drilling Rigs: Provides consistent high-torque power for rotary drilling operations.
Heavy Lifting: Driving crawler tracks and winch motors on cranes.
Expert Maintenance Tips
Pre-Start Priming: Always pre-fill the pump case with clean hydraulic oil through the highest drain port before the first start. A dry start will result in immediate and catastrophic internal failure.
Inlet Line Inspection: Cavitation is the number one killer of K3V pumps. Check all suction hoses for leaks or collapses, and always replace the suction filter when installing a new unit.
Regulator Adjustment: If the excavator is “stalling” the engine or moving sluggishly, have a technician calibrate the regulator’s power setting. Do not attempt to dismantle the sensitive regulator springs without professional tools.
K3V112S-105L-1P29K3V112S-105L-1P29
K3V112S-105R-1M12
K3V112S-105R-1M12K3V112S-105R-1M12
K3V112S-105R-1P09
K3V112S-105R-1P09K3V112S-105R-1P09
K3V112S-105R-1P19
K3V112S-105R-1P19K3V112S-105R-1P19
K3V112S-105R-5M02
K3V112S-105R-5M02K3V112S-105R-5M02
K3V112S-105R-5M02-1
K3V112S-105R-5M02-1K3V112S-105R-5M02-1
K3V112S-105R-5M02-2
K3V112S-105R-5M02-2K3V112S-105R-5M02-2
K3V112S-105R-5M12
K3V112S-105R-5M12K3V112S-105R-5M12
K3V112S-107L-4009
K3V112S-107L-4009K3V112S-107L-4009
K3V112S-107L-4009-1
K3V112S-107L-4009-1K3V112S-107L-4009-1
K3V112S-107L-4019
K3V112S-107L-4019K3V112S-107L-4019
K3V112S-10RR-1P19
K3V112S-10RR-1P19K3V112S-10RR-1P19
K3V112S-10TR-1M22
K3V112S-10TR-1M22K3V112S-10TR-1M22
K3V112S-10TR-5M02
K3V112S-10TR-5M02K3V112S-10TR-5M02
K3V112S-10TR-5M22
K3V112S-10TR-5M22K3V112S-10TR-5M22
K3V112S-10VL-4E09
K3V112S-10VL-4E09K3V112S-10VL-4E09
K3V112S-115L-1E08
K3V112S-115L-1E08K3V112S-115L-1E08
K3V112S-115L-1E18
K3V112S-115L-1E18K3V112S-115L-1E18
K3V112S-116L-1E18
K3V112S-116L-1E18K3V112S-116L-1E18
K3V112S-119L-1PC9
K3V112S-119L-1PC9K3V112S-119L-1PC9
K3V112S-145L-1PB9
K3V112S-145L-1PB9K3V112S-145L-1PB9
K3V112S-145R-5N19
K3V112S-145R-5N19K3V112S-145R-5N19
K3V112S-165L-1M02
K3V112S-165L-1M02K3V112S-165L-1M02
K3V112S-165L-1P29
K3V112S-165L-1P29K3V112S-165L-1P29
K3V112S-165L-5M02
K3V112S-165L-5M02K3V112S-165L-5M02
K3V112S-165L-5M02-1
K3V112S-165L-5M02-1K3V112S-165L-5M02-1
K3V112S-165R-1M02
K3V112S-165R-1M02K3V112S-165R-1M02
K3V112S-165R-1P09
K3V112S-165R-1P09K3V112S-165R-1P09
K3V112S-165R-1P29
K3V112S-165R-1P29K3V112S-165R-1P29
K3V112S-165R-5M02
K3V112S-165R-5M02K3V112S-165R-5M02
K3V112S-165R-5M02-1
K3V112S-165R-5M02-1K3V112S-165R-5M02-1
K3V112S-16FL-5E00
K3V112S-16FL-5E00K3V112S-16FL-5E00
K3V112S-175R-1P29-1
K3V112S-175R-1P29-1K3V112S-175R-1P29-1
K3V112S-175R-1P29-2
K3V112S-175R-1P29-2K3V112S-175R-1P29-2
K3V112S-177L-1009
K3V112S-177L-1009K3V112S-177L-1009
K3V112S-185L-1009
K3V112S-185L-1009K3V112S-185L-1009
K3V112S-185L-1P29
K3V112S-185L-1P29K3V112S-185L-1P29
K3V112S-185R-1009
K3V112S-185R-1009K3V112S-185R-1009
K3V112S-185R-1P29
K3V112S-185R-1P29K3V112S-185R-1P29
K3V112S-191L-8N04
K3V112S-191L-8N04K3V112S-191L-8N04
K3V112S-191L-9N04
K3V112S-191L-9N04K3V112S-191L-9N04
K3V112S-195L-1P19
K3V112S-195L-1P19K3V112S-195L-1P19
K3V112S-195R-1M02
K3V112S-195R-1M02K3V112S-195R-1M02
K3V112S-197L-1009
K3V112S-197L-1009K3V112S-197L-1009
K3V112S-19BR-1009
K3V112S-19BR-1009K3V112S-19BR-1009
K3V112S-19BR-1009-1
K3V112S-19BR-1009-1K3V112S-19BR-1009-1
K3V112S-19XR-1E99-1
K3V112S-19XR-1E99-1K3V112S-19XR-1E99-1
K3V112S-19XR-1P99
K3V112S-19XR-1P99K3V112S-19XR-1P99
K3V112S-1B0L-1P09
K3V112S-1B0L-1P09K3V112S-1B0L-1P09
K3V112S-1B1L-8P07
K3V112S-1B1L-8P07K3V112S-1B1L-8P07
K3V112S-1B1L-8P07-1
K3V112S-1B1L-8P07-1K3V112S-1B1L-8P07-1
K3V112S-1B5L-1P29
K3V112S-1B5L-1P29K3V112S-1B5L-1P29
K3V112S-1B5R-1L09
K3V112S-1B5R-1L09K3V112S-1B5R-1L09
K3V112S-1B5R-1P09
K3V112S-1B5R-1P09K3V112S-1B5R-1P09
K3V112S-1B6L-1E19
K3V112S-1B6L-1E19K3V112S-1B6L-1E19
K3V112S-1B8L-1Y09
K3V112S-1B8L-1Y09K3V112S-1B8L-1Y09
K3V112S-1BRL-1P19
K3V112S-1BRL-1P19K3V112S-1BRL-1P19
K3V112S-1BVL-1L09
K3V112S-1BVL-1L09K3V112S-1BVL-1L09
K3V112S-1BVR-1L09
K3V112S-1BVR-1L09K3V112S-1BVR-1L09
K3V112S-1C7L-1F29
K3V112S-1C7L-1F29K3V112S-1C7L-1F29
K3V112S-1E0L-8009
K3V112S-1E0L-8009K3V112S-1E0L-8009
K3V112S-1F7L-1U09
K3V112S-1F7L-1U09K3V112S-1F7L-1U09
K3V112S-1F7L-4019
K3V112S-1F7L-4019K3V112S-1F7L-4019
K3V112S-1F8L-4019
K3V112S-1F8L-4019K3V112S-1F8L-4019
K3V112S-1F8L-4019-1
K3V112S-1F8L-4019-1K3V112S-1F8L-4019-1
K3V112S-1H5L-1M02
K3V112S-1H5L-1M02K3V112S-1H5L-1M02
K3V112S-1JVR-1P89
K3V112S-1JVR-1P89K3V112S-1JVR-1P89
K3V112S-1JVR-5E29
K3V112S-1JVR-5E29K3V112S-1JVR-5E29
K3V112S-1JVR-UE29
K3V112S-1JVR-UE29K3V112S-1JVR-UE29
K3V112S-1JXR-5E29
K3V112S-1JXR-5E29K3V112S-1JXR-5E29
K3V112S-1L1L-8N14
K3V112S-1L1L-8N14K3V112S-1L1L-8N14
K3V112S-1L1L-9N04
K3V112S-1L1L-9N04K3V112S-1L1L-9N04
K3V112S-1L5L-1M02
K3V112S-1L5L-1M02K3V112S-1L5L-1M02
K3V112S-1L5R-1M02
K3V112S-1L5R-1M02K3V112S-1L5R-1M02
K3V112S-1L5R-1M02-1
K3V112S-1L5R-1M02-1K3V112S-1L5R-1M02-1
K3V112S-1L5R-1M02-2
K3V112S-1L5R-1M02-2K3V112S-1L5R-1M02-2
K3V112S-1L7L-1E99
K3V112S-1L7L-1E99K3V112S-1L7L-1E99
K3V112S-1L7L-1F19
K3V112S-1L7L-1F19K3V112S-1L7L-1F19
K3V112S-1L7L-1F19-1
K3V112S-1L7L-1F19-1K3V112S-1L7L-1F19-1
K3V112S-1LJL-1E99-1
K3V112S-1LJL-1E99-1K3V112S-1LJL-1E99-1
K3V112S-1LJL-1E99-2
K3V112S-1LJL-1E99-2K3V112S-1LJL-1E99-2
K3V112S-1LJL-1E99-3
K3V112S-1LJL-1E99-3K3V112S-1LJL-1E99-3
K3V112S-1LJL-1E99-4
K3V112S-1LJL-1E99-4K3V112S-1LJL-1E99-4
K3V112S-1LJL-1E99-5
K3V112S-1LJL-1E99-5K3V112S-1LJL-1E99-5
K3V112S-1LJL-1E99-6
K3V112S-1LJL-1E99-6K3V112S-1LJL-1E99-6
K3V112S-1P5L-1P49
K3V112S-1P5L-1P49K3V112S-1P5L-1P49
K3V112S-1P5L-1P49-1
K3V112S-1P5L-1P49-1K3V112S-1P5L-1P49-1
K3V112S-1P5L-1P49-2
K3V112S-1P5L-1P49-2K3V112S-1P5L-1P49-2
K3V112S-1P5L-1P49-3
K3V112S-1P5L-1P49-3K3V112S-1P5L-1P49-3
K3V112S-1P5L-1P49-4
K3V112S-1P5L-1P49-4K3V112S-1P5L-1P49-4
K3V112S-1P5L-1P49-5
K3V112S-1P5L-1P49-5K3V112S-1P5L-1P49-5
K3V112S-1Q5L-1M12
K3V112S-1Q5L-1M12K3V112S-1Q5L-1M12
K3V112S-1Q5R-1M02
K3V112S-1Q5R-1M02K3V112S-1Q5R-1M02
K3V112S-1Q5R-1M12
K3V112S-1Q5R-1M12K3V112S-1Q5R-1M12
K3V112S-1S5L-1P09
K3V112S-1S5L-1P09K3V112S-1S5L-1P09
K3V112S-1S5L-1P59-1
K3V112S-1S5L-1P59-1K3V112S-1S5L-1P59-1
K3V112S-1S5L-1P59-2
K3V112S-1S5L-1P59-2K3V112S-1S5L-1P59-2
K3V112S-1S7L-1N09
K3V112S-1S7L-1N09K3V112S-1S7L-1N09
K3V112S-1V5R-1M12
K3V112S-1V5R-1M12K3V112S-1V5R-1M12
K3V112S-1V5R-1M12-1
K3V112S-1V5R-1M12-1K3V112S-1V5R-1M12-1
K3V112S-1V5R-8M09
K3V112S-1V5R-8M09K3V112S-1V5R-8M09
K3V112S-1V6R-1E29
K3V112S-1V6R-1E29K3V112S-1V6R-1E29
K3V112S-1VTR-1M22
K3V112S-1VTR-1M22K3V112S-1VTR-1M22
K3V112S-1Z5R-1P69
K3V112S-1Z5R-1P69K3V112S-1Z5R-1P69
