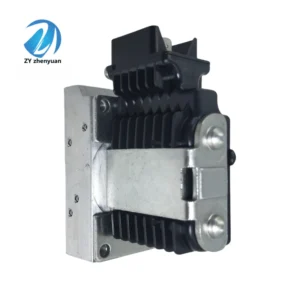

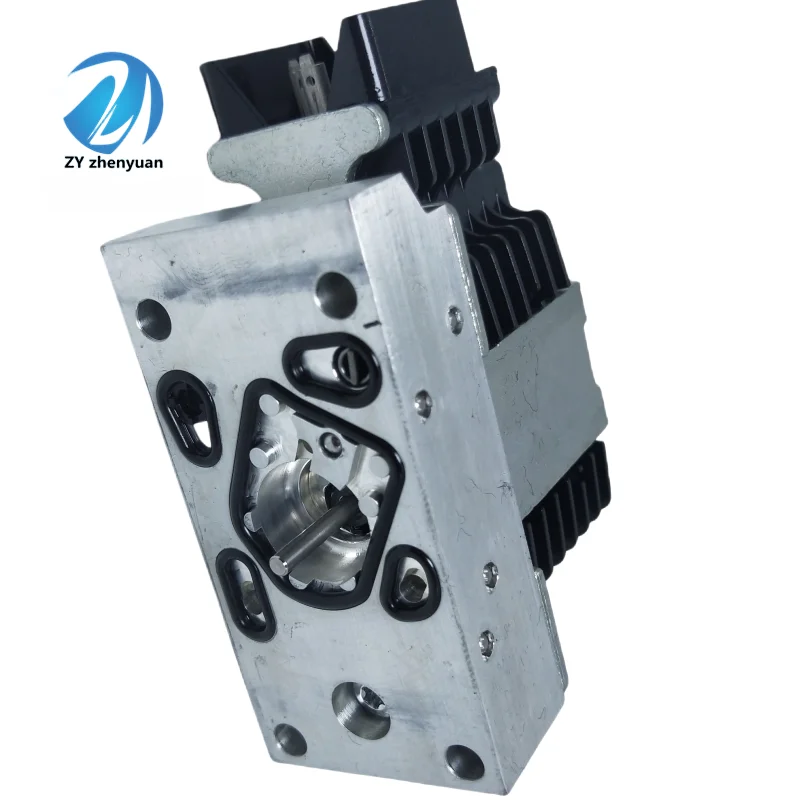

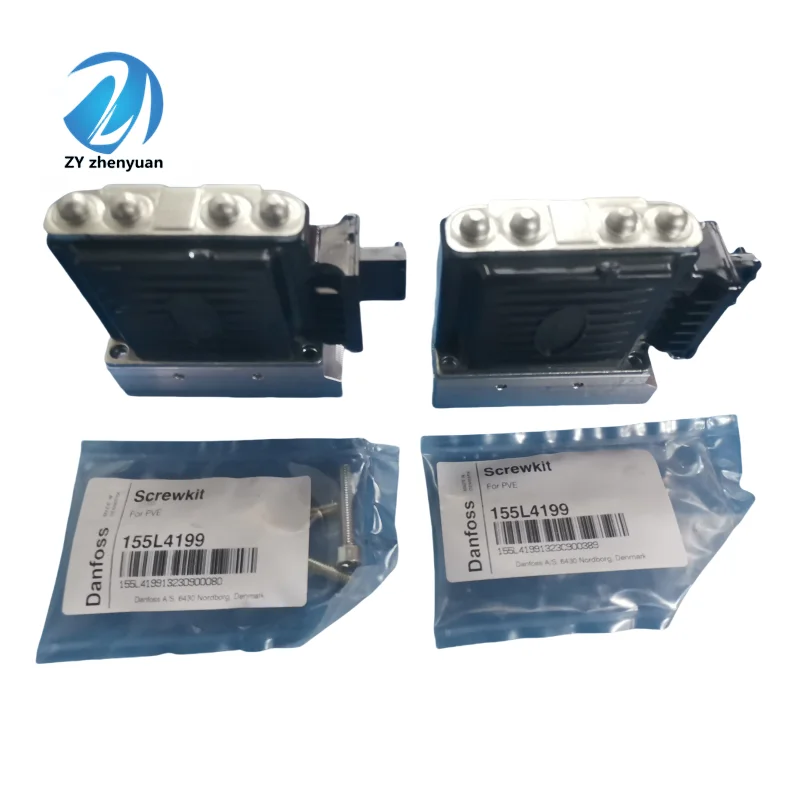

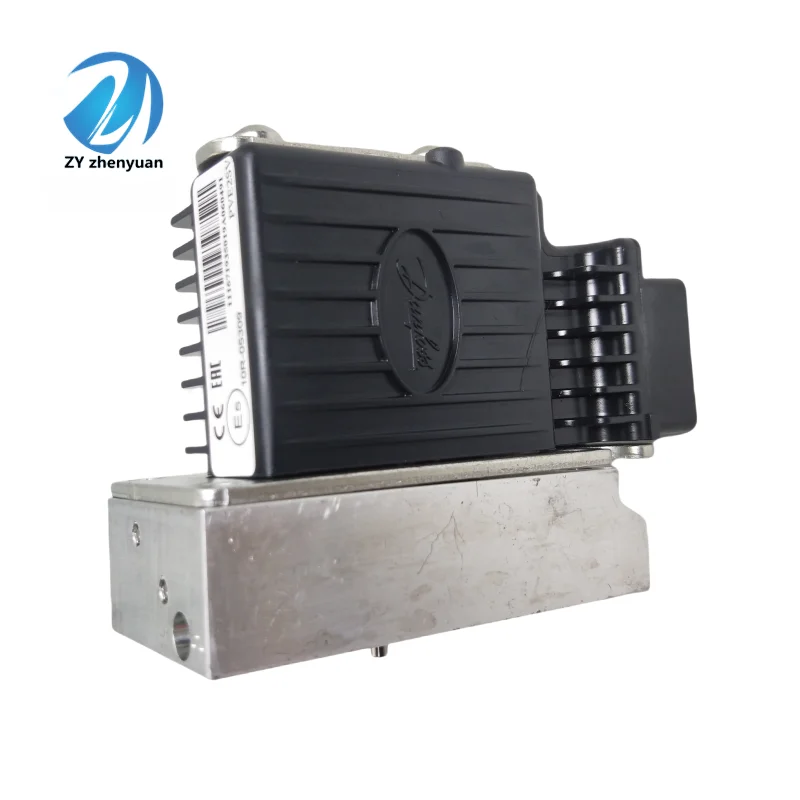

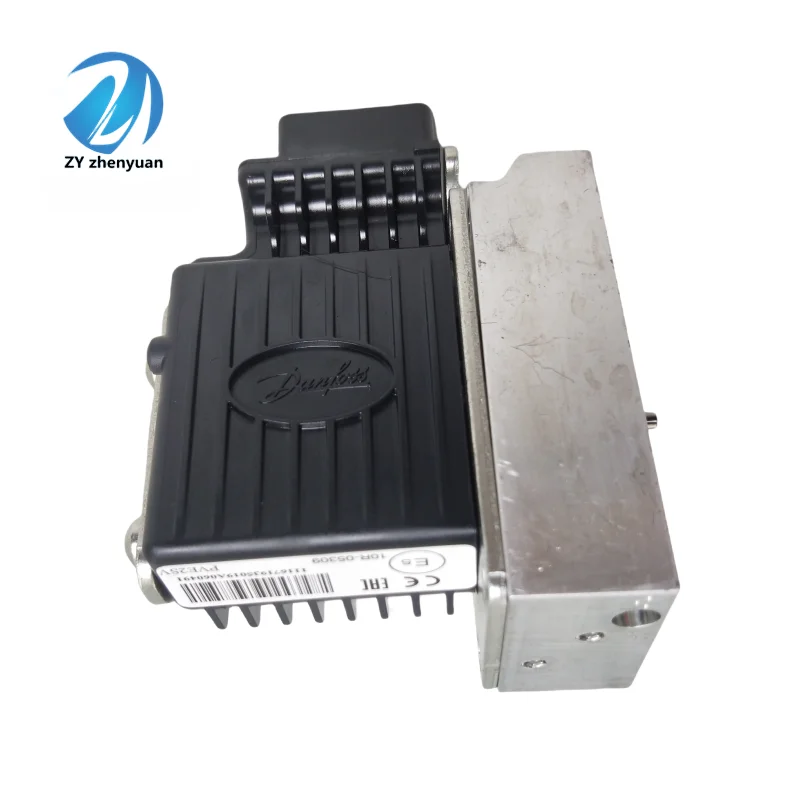

Danfoss PVEH32 Actuator | 157B4032 157B4075 11166825 | PVG 32 Proportional Valve

The Danfoss PVEH Series Actuators from LIC Hydraulic are the high-performance electrical interface for PVG 32 proportional valves. Utilizing an advanced integrated LVDT (Linear Variable Differential Transformer), models like the 157B4032 and 157B4075 provide active closed-loop spool position control. This ensures that the hydraulic flow remains perfectly proportional to your electrical input signal, regardless of oil viscosity or load pressure. We provide 100% drop-in replacements, fully compatible with original Hirschmann or AMP connectors and control voltages.

Technical Highlights

• Control Signals: Supports standard $0\text{–}10\text{V}$ or ratiometric ($25\%\text{–}75\%$ of $U_{dc}$) voltage signals.

• Part Numbers: 157B4032, 157B4075, 11166825, 157B4036, 11166819P.

• Response Time: High-speed actuation optimized for dynamic machine movements.

• Feedback: Continuous LVDT spool-position monitoring.

Core Advantages

• Precision and Repeatability: The PVEH actuator compensates for hydraulic flow forces on the spool, maintaining consistent movement and eliminating dead bands, which is crucial for precision lifting and automated functions.

• Integrated Safety Monitoring: Each unit features a built-in fault monitoring system. If the internal LVDT detects a deviation between the command and the actual spool position, the actuator enters a safe state and triggers a diagnostic signal.

• Ruggedized Electronics: Encapsulated in high-strength composite housing, these actuators are resistant to vibration, moisture, and hydraulic fluids, making them the gold standard for outdoor mobile applications.

• Simplified Integration: Designed for the “plug-and-play” era, the PVEH series requires no complex calibration in the field, allowing for rapid replacement and minimal machine downtime.

Expert Maintenance Tips

• Signal Integrity: Ensure the power supply ($U_{dc}$) is stable. Voltage fluctuations can cause the actuator to trigger a fault mode (flashing red LED).

• Oil Cleanliness: While the PVEH controls the valve electronically, the pilot oil flowing through the valve must be clean (ISO 18/16/13). Contaminants in the pilot gallery can lead to erratic spool movement or “sticking.”

• Connector Sealing: When replacing a unit (e.g., 11166825), ensure the seal on the Hirschmann or AMP connector is intact. Moisture ingress into the plug is the leading cause of signal ghosting and intermittent faults.
