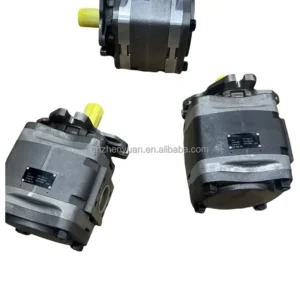

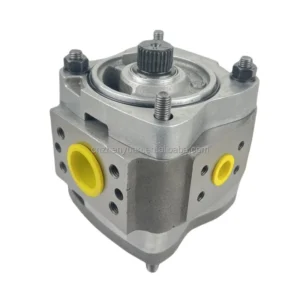

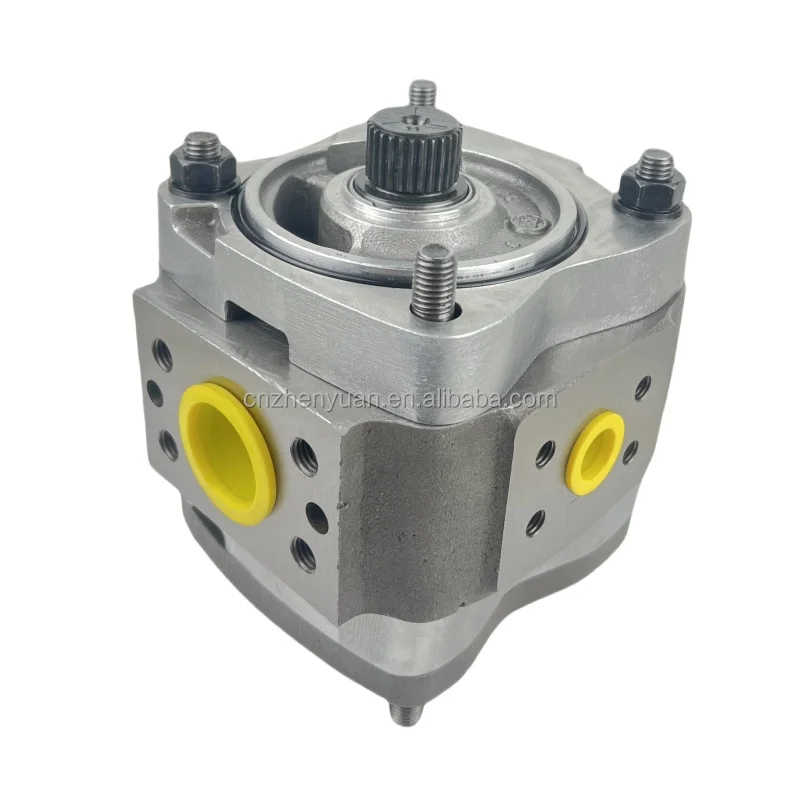

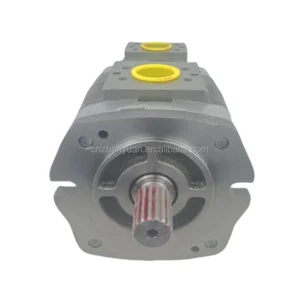

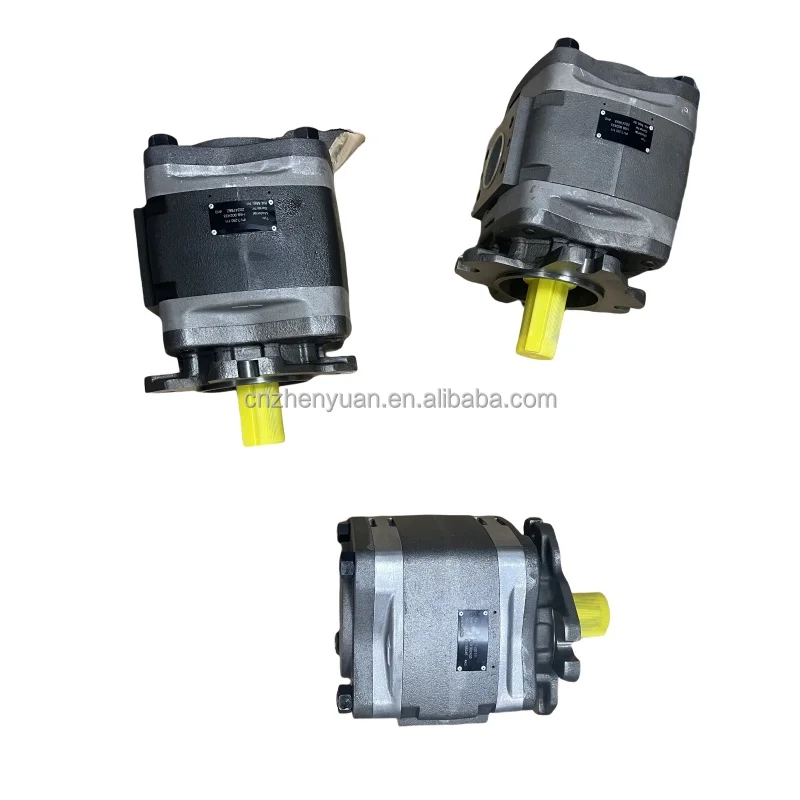

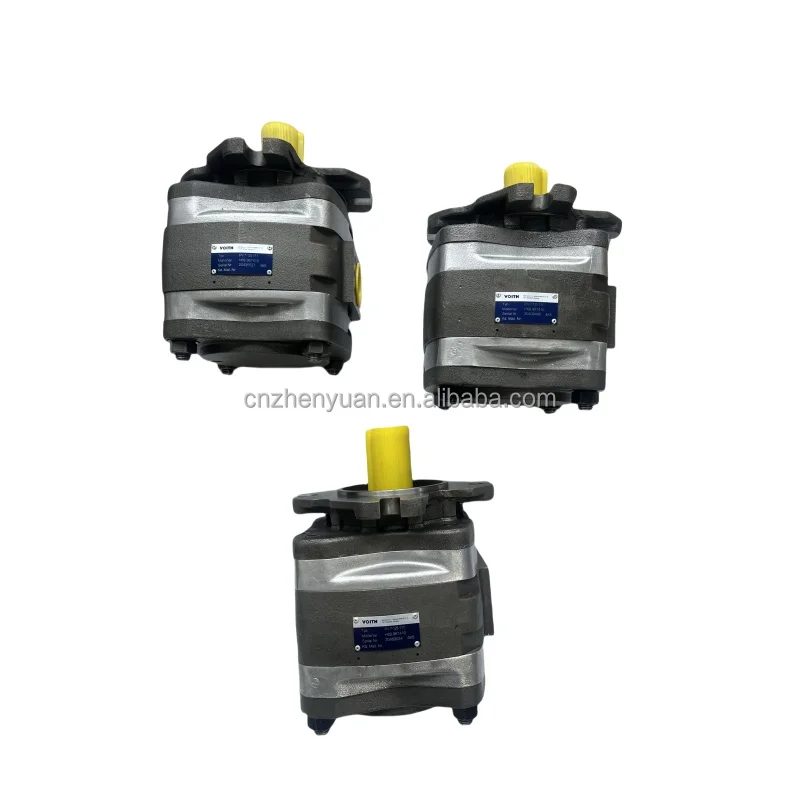

IPV3 IPV4 IPV5 IPV IPV6 IPV7 Series IPV3-5-601 IPV3-10-101 Hydraulic Internal Gear Pump Plastic Machine IPV

Advantages
+ High volumetric and overall efficiency
+ Very good pulsation behavior
+ Robust and compact
+ Low noise emission
+Multiple flow capable

Function
By rotation of the gears inside the pump, the pressure fluid
(usually hydraulic oil) is drawn into the cavity between the
pinion and internal gear. Optimized cross-sectional areas on
suction side as well as on pressure side allow operation over
a wide range of speed.In the radial direction, the gear chambers are closed by gear
meshing and the filler piece. In the axial direction, the axial
plates seal the pressure chamber with the minimal possible
gap. This design minimizes volume losses and increases
efficiency.
