Product Description

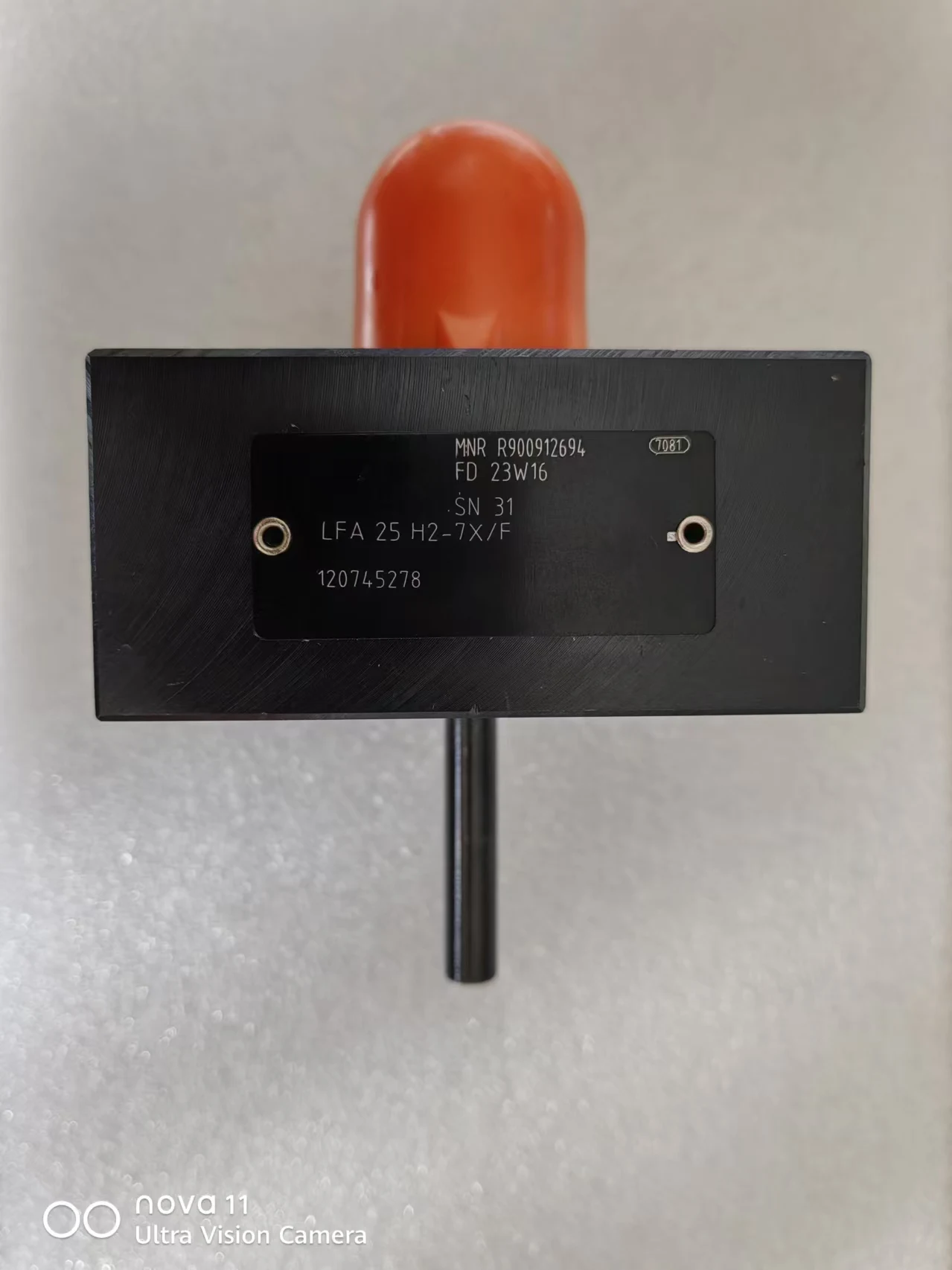

LIC Hydraulic provides the Rexroth LFA Series, a high-precision range of control covers for 2-way cartridge valves (logic valves). Engineered to ISO 7368 standards, the LFA series—spanning sizes LFA16 to LFA80—functions as the control brain for the LC series main inserts. The featured model, LFA25H2-7X/F, is specifically designed for proportional pressure relief circuits. When combined with a proportional pilot valve, it allows for seamless, stepless pressure regulation in high-flow systems. Built for durability and precision, the LFA series is the definitive choice for engineers requiring robust, scalable hydraulic logic control in heavy industrial environments.
Technical Highlights
Integrated Proportional Logic: Optimized internal pilot channels allow for the direct mounting of pilot valves to achieve precise pressure-current linearity.
ISO 7368 Interchangeability: Guaranteed “drop-in” compatibility with all standard cartridge valve manifolds, reducing design complexity and lead times.
Superior Dynamic Stability: Precision-machined control volumes minimize pressure oscillations and ensure smooth transitions during high-speed switching.
High Pressure Integrity: Rated for continuous operation up to $315\text{–}420\text{ bar}$, ensuring safety and reliability in critical press and molding applications.
Application Areas
Heavy Industrial Presses: Primary pressure regulation for forging, stamping, and extrusion lines.
Plastic & Rubber Machinery: Accurate injection and clamping force control in high-capacity molding machines.
Steel Industry: Dynamic control for continuous casting and rolling mill hydraulic power units (HPUs).
Expert Maintenance Tips
Monitor Pilot Orifices: The small internal orifices within the LFA25 cover are critical for response timing. Ensure they are free of debris to prevent irregular pressure behavior.
System Bleeding: Always use the integrated bleed ports to remove air from the pilot circuit. Trapped air is the primary cause of instability in proportional pressure systems.
Filtration Vigilance: To protect the precision-ground pilot interfaces, maintain a fluid cleanliness level of ISO 18/16/13. Particle contamination can lead to spool sticking or premature wear of the pilot seat.
Related models：

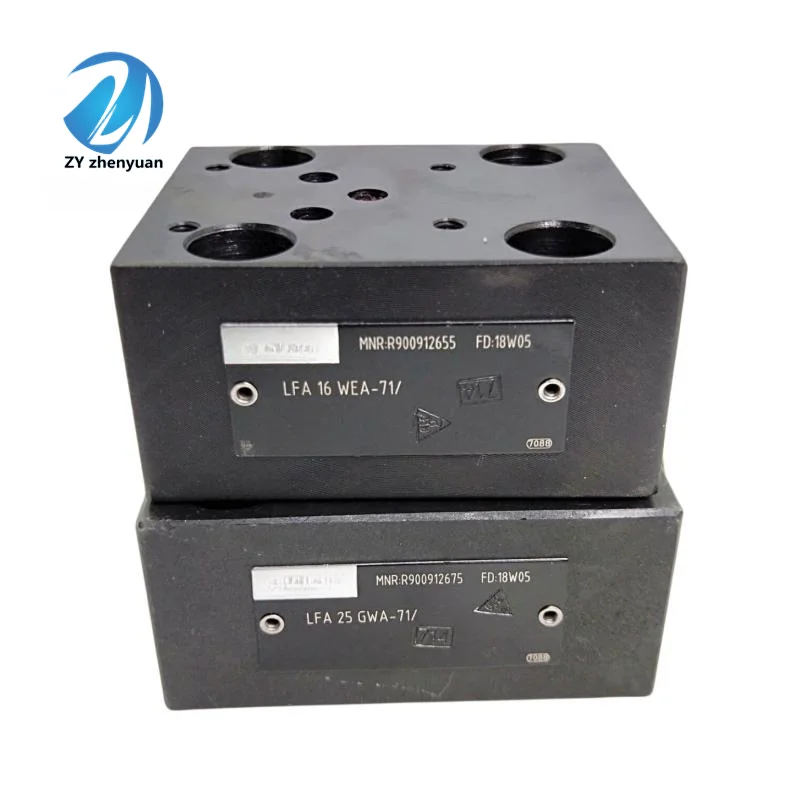

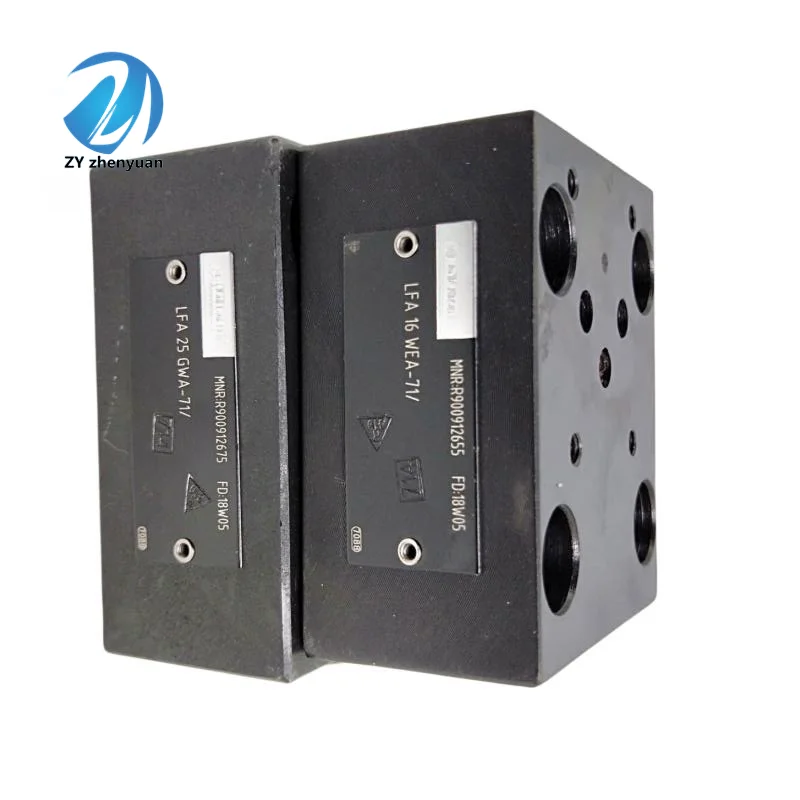

LFA16WEA-71/A07P12
