Parker P1/PD Series Piston Pump | PD028 PD060 PD100 | PD028PS02SRS5BC00E1200000
| Model Number | PD028PS08SR5AC00R020PB00, PD028PS02SRS5BC00E1200000 |
|---|
Product Description

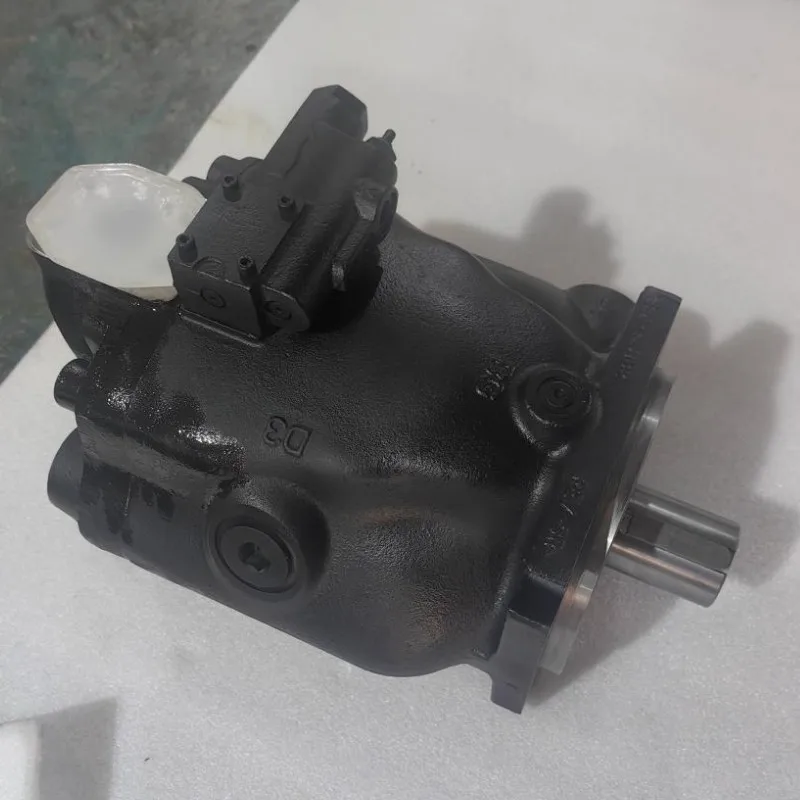

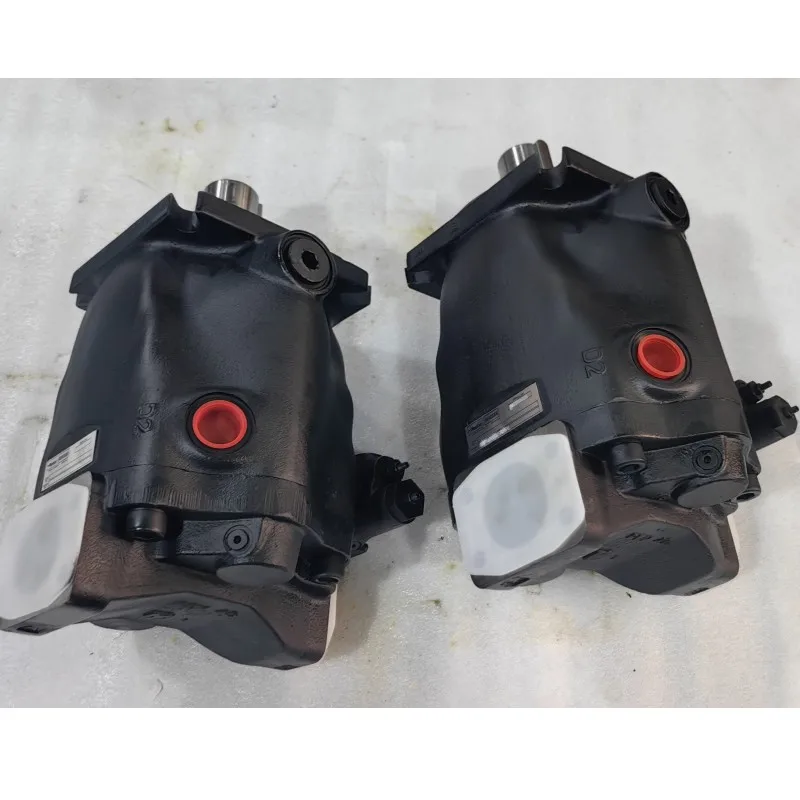

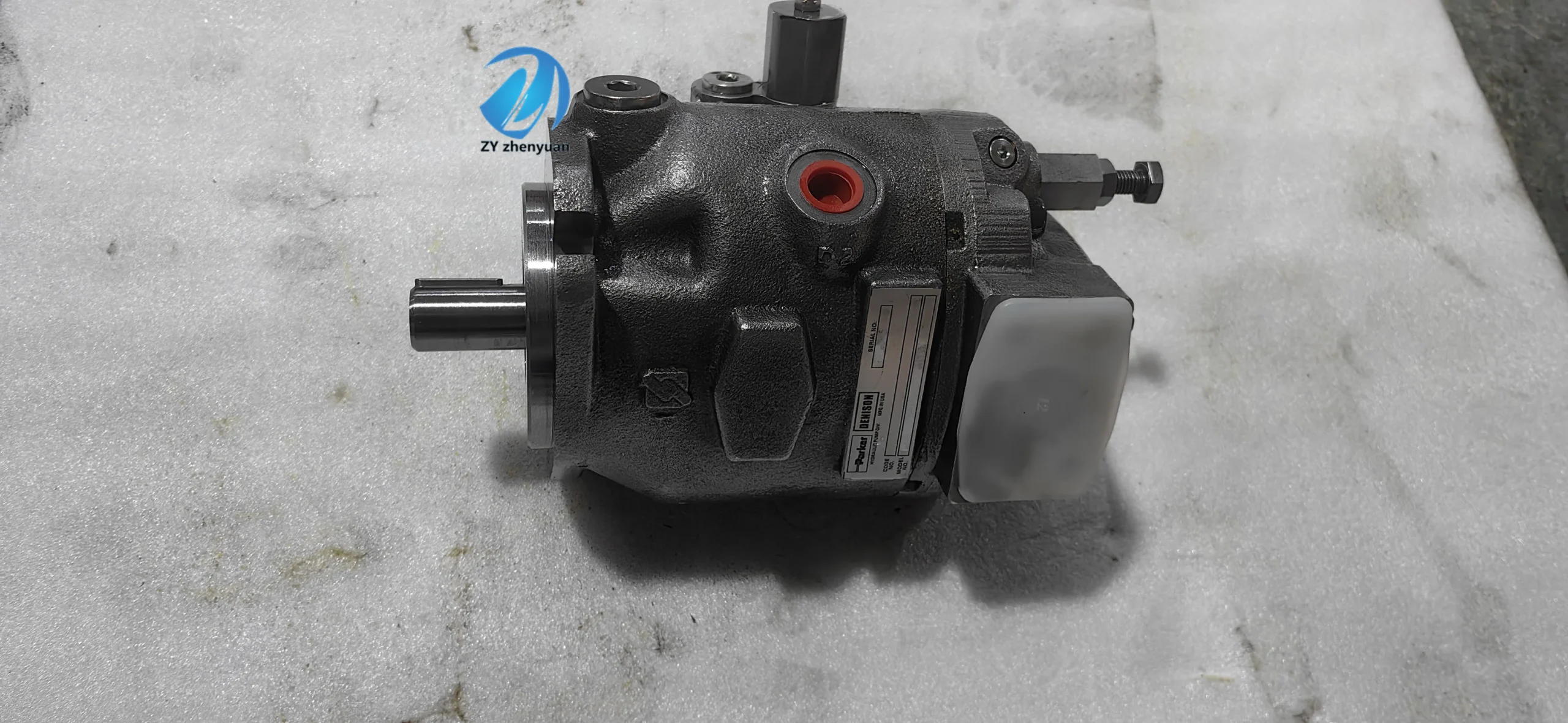

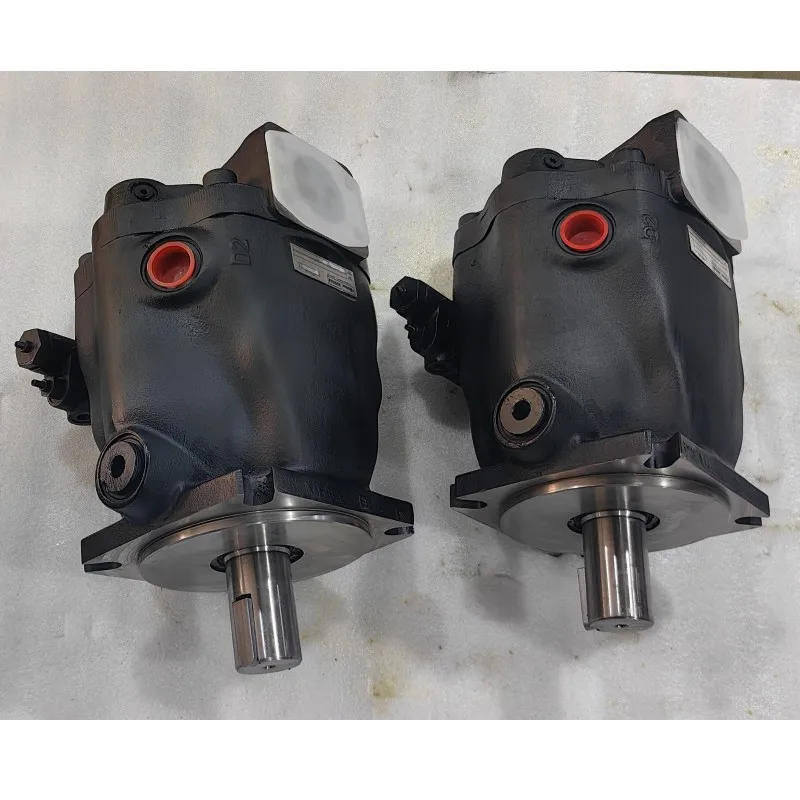

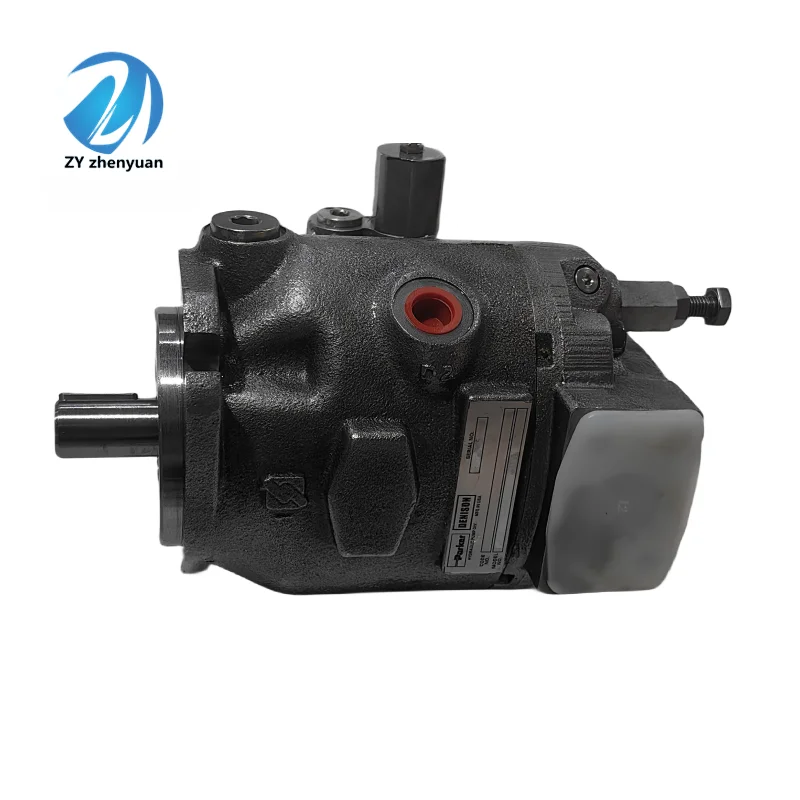

LIC Hydraulic’s Parker P1/PD Series axial piston pumps are the premier choice for open-circuit hydraulic systems requiring high performance and compact integration. While the P1 is optimized for industrial use, the PD Series (covering PD028, PD060, PD075, PD085, and PD100) is ruggedized for severe mobile equipment environments. We offer 100% Drop-in Interchangeability for complex configurations such as PD028PS08SR5AC00R020PB00. Rated for continuous operation at 280 bar (4060 PSI), these pumps feature specialized noise-reduction technology and a robust cast iron housing. Every unit is 100% factory-tested for control responsiveness and volumetric efficiency to ensure seamless operation in your global fleet.
Technical Specifications (Model Breakdown)
Series Models: PD018, PD028, PD045, PD060, PD075, PD100, PD140.
Nominal Pressure: $280\text{ bar}$ ($4060\text{ PSI}$).
Peak Pressure: $320\text{ bar}$ ($4640\text{ PSI}$).
Control Options: Pressure Limiter (Standard), Load Sensing, and Remote Compensators.
Design: Swash-plate axial piston with thru-drive capability for tandem pumping.
Material: High-strength cast iron housing for superior vibration damping.
Key Technical Advantages
Whisper-Quiet Operation: The P1/PD series features a unique “ripple chamber” in the housing and optimized valve plate timing that drastically reduces fluid pulsations and operational noise.
Superior Power Density: Its compact footprint allows for easier installation in tight engine compartments without sacrificing flow or pressure capability.
Enhanced Bearing Life: Engineered with large-diameter bearings to withstand high radial loads, significantly extending the MTBF (Mean Time Between Failures) in high-vibration applications.
Fast Response Displacement Control: The variable displacement mechanism is tuned for rapid reaction, allowing for precise power management and improved fuel efficiency in electronic-controlled systems.
Application Areas
Mobile Equipment: Secondary circuits for excavators, steering for loaders, and primary hydraulics for compactors.
Industrial Power Units: Energy-saving servo-hydraulic stations for injection molding and bending machines.
Material Handling: Main hydraulic source for heavy-duty forklifts and telehandlers.
Expert Maintenance Tips
Case Drain Installation: Ensure the case drain line is correctly sized and returned to the tank below the oil level. Excessive case pressure is the number one cause of shaft seal leaks and internal slipper damage.
Air Bleeding: Before the initial start-up, loosen the bleed plug on top of the pump housing to evacuate trapped air. Failure to do so will cause cavitation and instant damage to the valve plate during prime.
Contamination Control: Maintain fluid cleanliness at ISO 4406 18/16/13. Protecting the high-precision piston surfaces from particulates is critical for maintaining peak volumetric efficiency over thousands of hours.
05E-01158-5 PD140PM04SRS5BC00S0000000
05E-1529-5 PD140PS02SRS5BAM0S1000000
05E-01235-5 PD140PS02SRS5BC00S100000
02E-82487-5 PD140PS02SRS5AC00S1000000
PD060PA02SRS5AC00S0000000
PD060PM04SRS5BC00S0000000
PD045PS02SRS5AAN0E0000000
PD060PS02SRS5AAM0S1000000 02E-85927-5
PD060PC02SRS5AC00E1200000
PD140PB04SRS5AAN0S100PB00
PD060PA02SRS5AC00S0000000
PD028PA02SRS5AC00R0200000
PD140PS02SRS5AAM0S1000000 02E-82953-5
PD060PC02SRS5AC00E1200000
PD100PA02SRS5AL0TS1000000
PD060PD02SRS5AC00E1400000
PD060PD02SLS5AC00E1400000
PD140PS02SRS5ACOOS100 02E-82487-5
PD100PS02SRS5ARHOS100 02E-83887-5
02E-82843-5 PD075PS02SRS5AC00E0000000
PD060PC02SRS5AC00E1200000
PD140PB04SRS5ASD2S100PB00
PD045PS02SRS5AAN0E0000000
PD140PS02SRS5AAN0S00
PD060PS02SRS5BC00S0000000
PD018PB04SRS5BC00E1200000
PD018PB04SRS5BC00R0200000
PD028PA02SRS5BAM0R1000000 05E-01842-5
PD028PA02SRS5BAM0T00A0000 05E-01843-5
PD028PA02SRS5BAM0T02A0000 05E-01844-5
PD028PA02SRS5BC00E1000000 05E-01845-5
PD028PA02SRS5BC00R0200000 05E-01846-5
PD028PA02SRS5BC00R1200000 05E-01847-5
PD028PA02SRS5BC00R120PB00
PD028PS02SRS5BC00E0200000
PD028PS02SRS5BC00E1000000 05E-01941-5
PD028PS02SRS5BC00E100PB00 05E-01942-5
PD028PS02SRS5BC00E1200000 05E-01943-5
PD028PS08SRS5BC00R1000000 05E-01986-5
PD028PS08SRS5BC00R1200000 05E-01987-5
PD028PS08SRS5BC00T00APB00 05E-01988-5
PD045PA02SRS5AAN0E0000000 02E-87955-5
PD045PA02SRS5BAM0R1000000 05E-02353-5
PD045PA02SRS5BL00E120PB00 05E-02363-5
PD045PA02SRS5BL00R1000000 05E-02364-5
PD045PM04SRS5AALTT00A0000 02E-99983-5
PD045PM04SRS5BAM0R1000000
PD045PM04SRS5BAM0T00BPB00 05E-02401-5
PD018PA02SRS5BC00E0200000 05E-00385-5
PD018PA02SRS5BC00R0200000
PD018PA02SRS5BC00R020PB00
PD018PA02SRS5BC00R1200000 05E-00386-5
PD018PA02SRS5BL00E3200000 05E-00225-5
PD018PA04SRS5BC00R1200000
PD018PA04SRS5BC00R120PB00 05E-02017-5
PD018PA04SRS5BC00T02HPB00
PD018PA04SRS5BL00E0200000 05E-00388-5
PD018PA06SLS5BL00R0200000 05E-00389-5
PD045PM04SRS5BC00R0000000 05E-02404-5
PD045PS01SRU5AAM0R0000000 02E-85898-5
PD045PS01SRU5AAM0R0200000 02E-87538-5
PD060PA02SRS5BC00E0000000 05E-02914-5
PD060PA02SRS5BC00E1000000 05E-02915-5
PD060PA02SRS5BC00S0000000 05E-02916-5
PD060PA02SRS5BC00S1000000
PD060PA02SRS5BL00S0000000
PD060PA02SRS5BL00S1000000
PD060PA02SRS5BL00T00C0000
PD060PA04SRS5AALTS0000000 02E-86950-5
PD060PC01SRS5BAM0T00B0000 05E-02953-5
PD060PC01SRS5BC00E1200000 05E-02954-5
PD060PC01SRS5BC00S1000000 05E-02955-5
PD060PC01SRS5BC00T00B0000 05E-02956-5
PD060PC01SRS5BL00E1200000 05E-02957-5
PD060PC01SRS5BL00T00APB00 05E-02958-5
PD060PC02SLS5AAMTS1000000 02E-87992-5
PD060PS01SLS5BC00E1000000 05E-03032-5
PD060PS02SLS5BL00S0000000 05E-03081-5
PD060PS02SLS5BL00S1000000
PD060PS02SLU5AAM0E0200000 02E-87051-5
PD060PS02SLU5AC00S0000000 02E-88871-5
PD060PS02SRU5AAM0T00H0000 02E-87187-5
PD060PS02SRU5AAM0T00K0000 02E-85766-5
PD060PS02SRU5AAM0T10A0000 02E-89823-5
PD060PS02SRU5AAN0S1000000 02E-88575-5
PD060PS02SRU5AAN0T00A0000 05E-00244-5
PD075PA02SRS5AL00E1000000 02E-84973-5
PD060PS01SLS5BC00S0000000 05E-03033-5
PD060PS01SLS5BC00S1000000 05E-03034-5
PD060PS01SLS5BL00E0000000
PD060PS01SLS5BL00E1000000 05E-03036-5
PD060PS01SLS5BL00S0000000 05E-03037-5
PD060PS01SLS5BL00S1000000 05E-03038-5
PD060PS01SLS5BL00S100PB00 05E-03039-5
PD060PS02SLS5BC00E1000000 PD060PA02SRS5AC00E0000000
PD060PA02SRS5AC00S1000000
PD060PA04SRS5AALTS0000000
PD060PB04SRS5AAM0S0000000
PD060PB04SRS5AAM0S000PB00
PD060PB04SRS5AC00S0000000
PD060PB04SRS5AC00S100PB00
PD060PB04SRS5AL00S0000000
PD060PB04SRS5AL00S1000000
PD060PB04SRS5AL20S100PB00
PD060PC01SRS5AC00S1000000
PD060PC02SLS5AAM0T00H0000
PD060PC02SLS5AC00E1200000
PD060PC02SLS5AL00E1200000
PD060PC02SRS5AAM0E1200000
PD060PC02SRS5AAM0S1000000
PD060PC02SRS5AAMTE120PB00
PD060PC02SRS5AC00E1000000
PD060PC02SRS5AC00E1200000
PD060PC02SRS5AC00S0000000
PD060PC02SRS5AC00S1000000
PD060PC02SRS5AC00T00C0000
PD060PC02SRS5AC10T00B0000
PD060PD01SLS5AC00E1400000
PD060PD01SLS5AL00E1400000
PD060PD01SRS5AAM0E1400000
PD060PD01SRS5AC00E1400000
PD060PD01SRS5AC00S1000000
PD060PD01SRS5AL00E1400000
PD060PD02SLS5AC00E1400000
PD060PD02SRS5AALTE1400000
PD060PD02SRS5AAM0E1400000
PD060PD02SRS5AAMTE1400000
PD060PD02SRS5AC00E0000000
PD060PD02SRS5AC00E1400000
PD060PD02SRS5AC00S1000000
PD060PD02SRS5AL00E0000000
PD060PD02SRS5AL00E1400000
PD060PM04SRS5AC00S0000000
PD060PM04SRS5AC00S1000000
PD060PS01SLS5AC10E1000000
PD060PS01SRS5AAM0E0000000
PD060PS01SRS5AC00S100PB00
PD060PS01SRS5AL00S100PB00
PD060PS02SLS5AALTE0000000
PD060PS02SLS5AC10E1000000
PD060PS02SRS5AAF0S1000000
PD060PS02SRS5AAM0S0000000
PD060PS02SRS5AC00E0000000
PD060PS02SRS5AC00E100PB00
PD060PS02SRS5AC00S1000000
PD060PS02SRS5AC00S110PB00
PD060PS02SRS5AC00T00A0000
PD060PS02SRS5AC10E1000000
PD060PS02SRS5AC10S1000000
PD060PS02SRS5AL00E1000000
