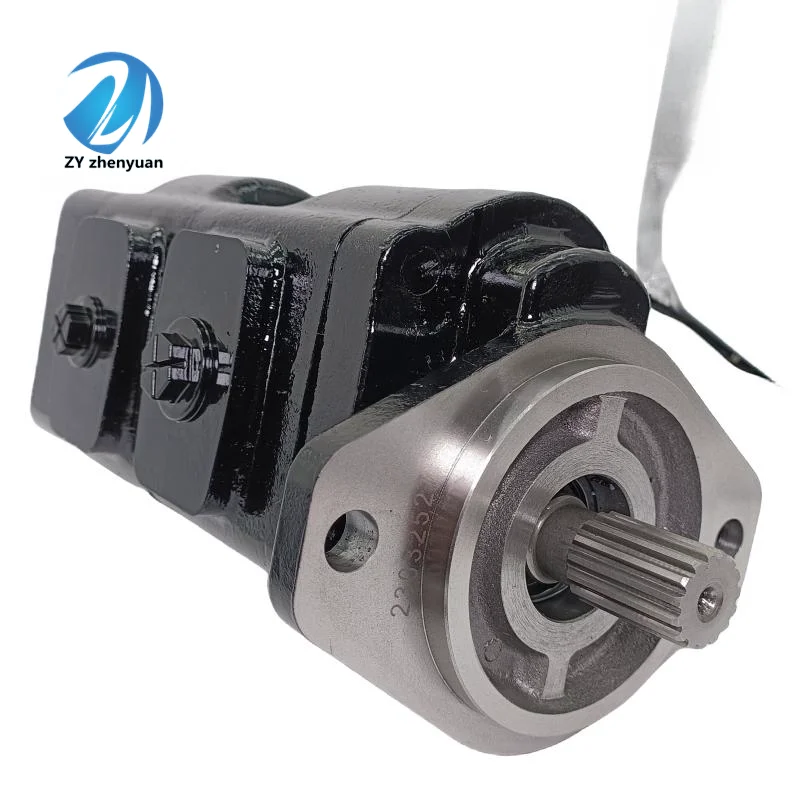

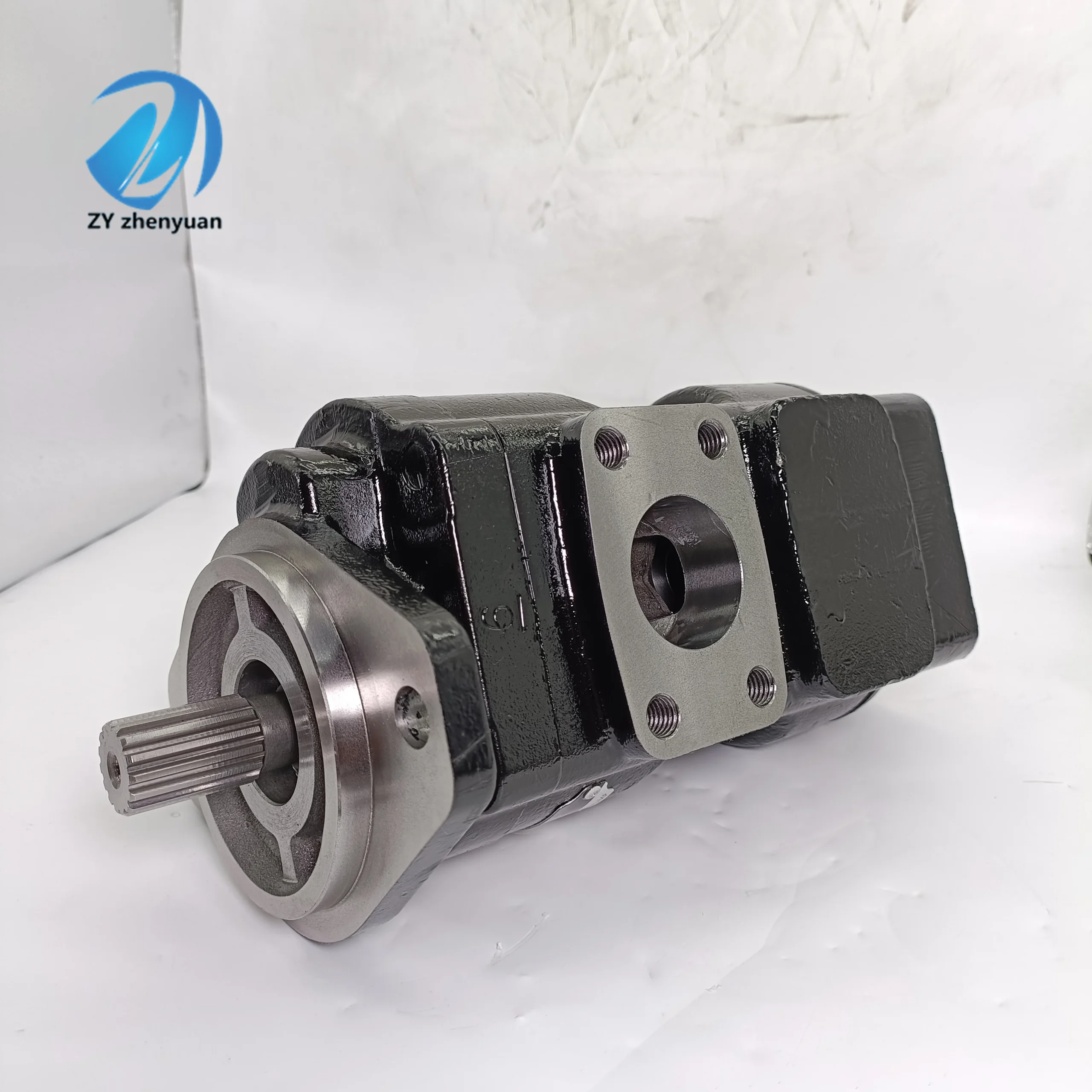

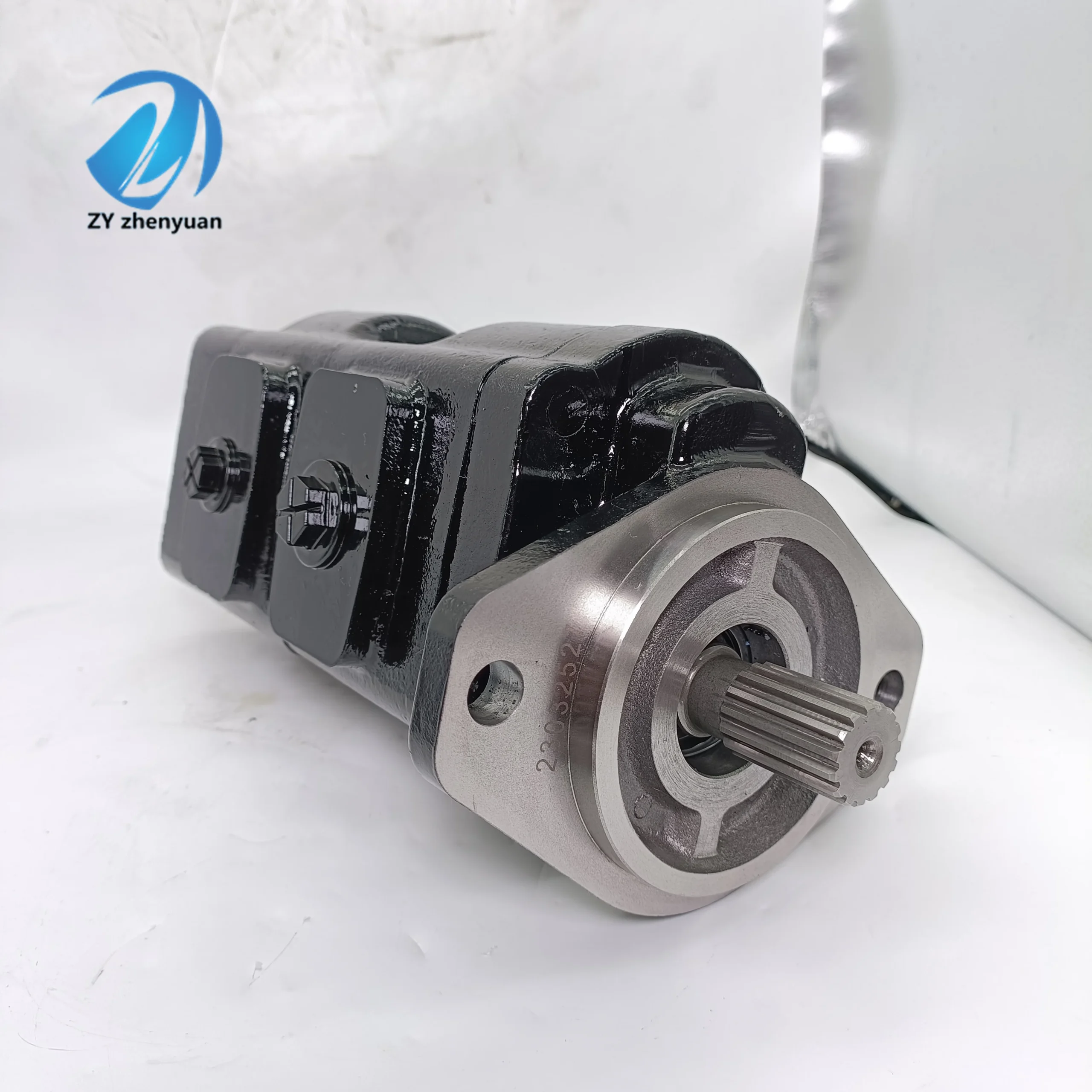

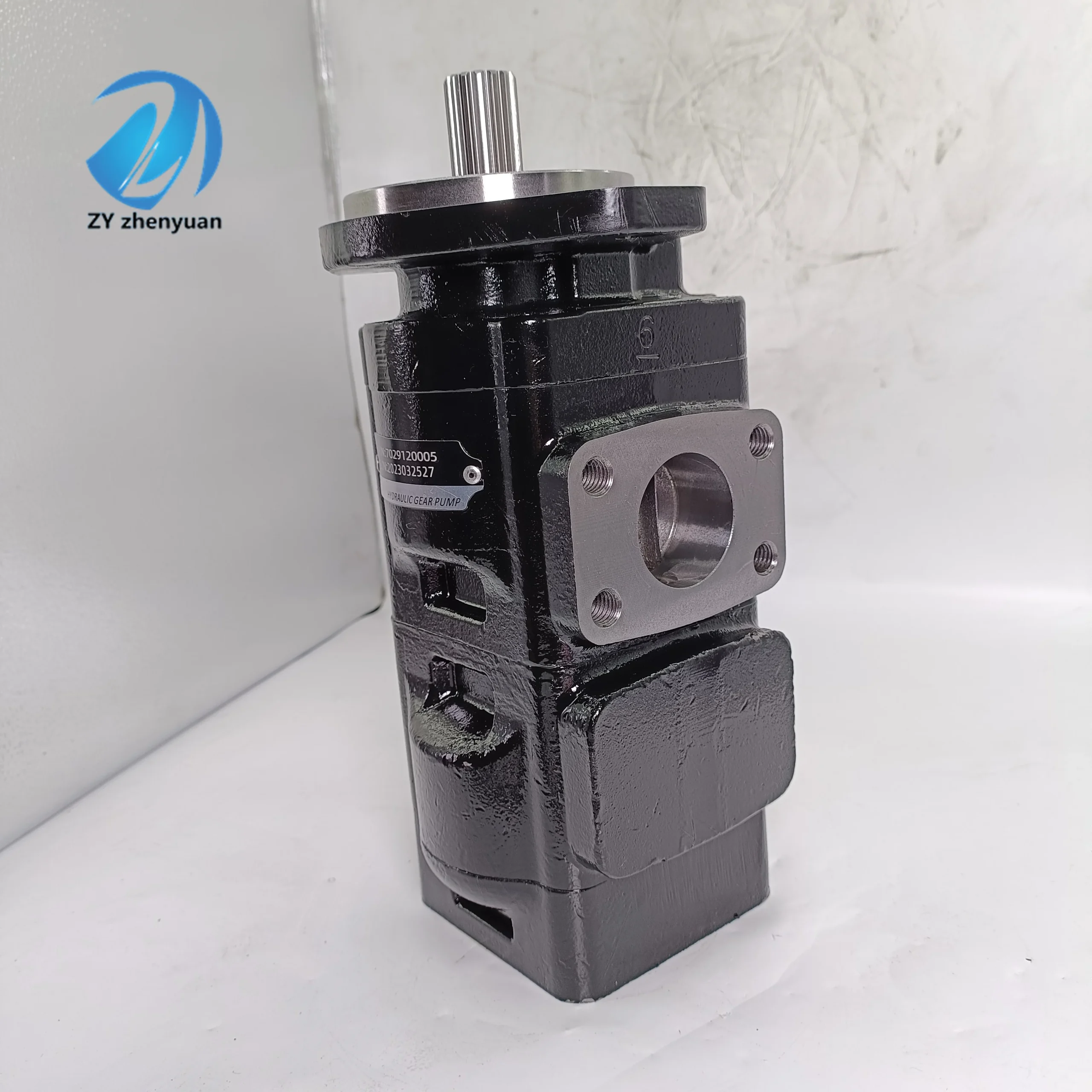

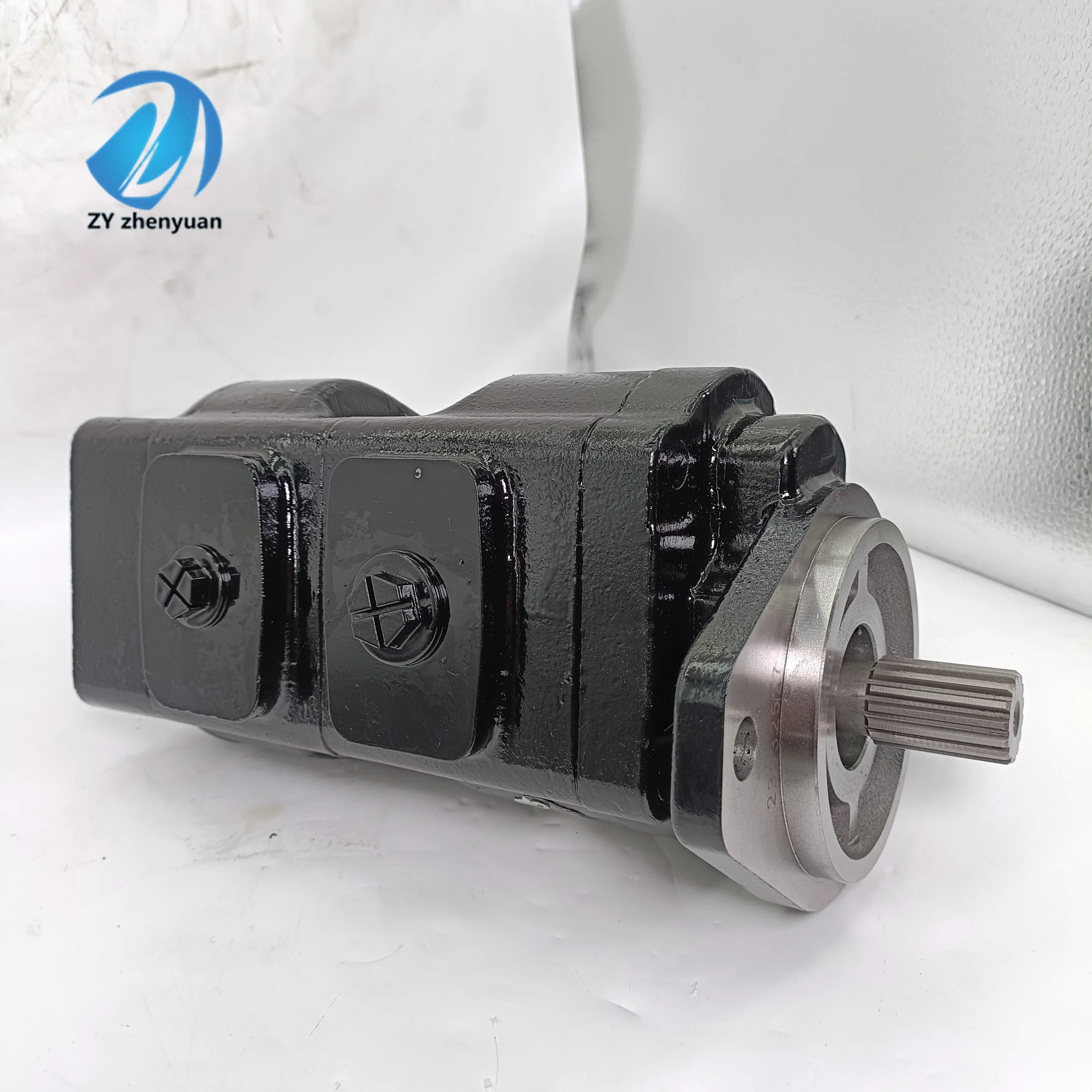

Parker PGP620 Replacement High Pressure Hydraulic Gear Pump

The PGP600, PGP620, and PGP640 series high-performance external hydraulic gear pumps manufactured by LIC Hydraulic (including accurate interchangeable codes such as 7029531001, 7029531008, 7029531011, and 7029531017) are high-end fluid power components engineered for demanding mobile mobile-machinery and heavy industrial plant networks. Fully matching the standard mounting pilot, output shaft configurations, port flange definitions, and volumetric flow curves, this product line delivers 100% drop-in interchangeability with original Parker Hannifin (including legacy Commercial Pump series) PGP620 heavy-duty configurations.

To combat the persistent industrial challenge of volumetric efficiency drop-off caused by internal pressure bypassing under continuous high-temperature loads, LIC has optimized the internal hydrostatically balanced axial thrust plate architecture. Every unit across our PGP620 line undergoes 100% full-load simulated high-pressure operational factory testing before dispatch. Maintaining a robust volumetric retention above 93% under continuous 275 bar workloads, our pumps exhibit exceptional fatigue boundaries, reduced pressure ripples, and rigid structural reliability, representing a premium choice for international B2B distributors and system integrators.

Technical Specifications

Accurate, catalog-verified technical engineering parameters for the PGP620 series configurations:

• Product Series: PGP620 Heavy-Duty Industrial Cast Iron Gear Pump Platform

• Interchangeable Part Number Examples: 7029531001 / 7029531008 / 7029531011 / 7029531017

• Displacement Spectrum (PGP620 Full Series): 16.0 cm³/rev to 52.0 cm³/rev

• Continuous Operating Pressure Limit: Up to 275 bar (27.5 MPa / 4000 psi)

• Intermittent Peak Operating Pressure: Up to 310 bar (31.0 MPa / 4500 psi)

• Maximum Continuous Rotational Speed: 3000 rpm

• Minimum Allowable Operating Speed: 500 rpm

• Displacement Control Format: Fixed Displacement, matching hydrostatically balanced axial thrust plates

• Housing Material Construction: High-tensile interlocking two-piece heavy-duty ductile cast iron

• Net Unit Weight: Approx. 14.5 kg (31.9 lbs for single pump format, subject to minor flange variance)

Key Technical Advantages

• Interlocking Two-Piece High-Tensile Cast Iron Casing: Moving away from standard low-pressure aluminum alloy construction, LIC utilizes premium high-tensile ductile cast iron for the entire outer housing. This micro-dense crystalline structure ensures the pump body resists any micro-radial expansion or casing deflection under full continuous 275 bar pressures, sealing off internal cross-port leakage while acting as an effective structural acoustic barrier.

• Hydrostatically Balanced Floating Thrust Plates for Axial Compensation: The internal gear flanks are enveloped by specialized floating thrust plates. Driven by precise pilot oil channels that direct high-pressure fluid behind the plates, the assembly self-adjusts its micro-clearances against gear wear. This self-compensating layout locks volumetric efficiency above 93% over thousands of operating hours under continuous severe load.

• Micro-Finished Monoblock Forged Gear-Shaft Assembly: Both driver and driven gear elements are precision-forged as solid monoblocks from premium structural alloy steel, followed by case-hardening and ultra-precise CNC tooth flank grinding. This micrometer-level tooth profile geometry results in perfect mesh engagement at 3000 rpm, radically flattening fluid trapping ripples and lowering mechanical fatigue stress on downstream piping.

• Heavy-Duty DU Sleeve Bearings with Forced Lubrication Channels: The internals are supported by high-load DU composite sleeve bearings. Paired with integrated cold-oil recirculation channels, hydraulic fluid is forced continuously through the bearing clearances to carry away thermal energy. This guarantees reliable fluid-film lubrication and prevents shaft galling, multiplying overall duty cycles relative to conventional bushing setups.

Application Areas

The PGP600 and PGP620 series high-pressure cast iron gear pumps excel in environments demanding structural robustness and high pressure-retaining thresholds:

• Construction & Earthmoving Machinery: Powering pilot or auxiliary steering circuits on wheel loaders, core work functions on midi-excavators, and ripper valve controls on heavy bulldozers.

• Material Handling & Port Automation: Serving as the primary lift pump on heavy-duty container forklifts, truck-mounted hydraulic tipping lines, and auxiliary steering systems on reach stackers.

• Modern High-Capacity Agriculture: Running automated header-drive adjustments on large combine harvesters and three-point rear hitch lift assemblies on heavy-duty tractors.

• Fixed Industrial High-Pressure HPUs: Deployed as the fluid power heart in scrap metal baling compressors, refuse compaction equipment, and auxiliary fluid networks within steel mills.

Expert Maintenance Tips

• Mandatory Fluid Pre-Filling & Manual Shaft Priming: Internal micro-clearances inside the PGP620 assembly are extremely close. Prior to starting up a newly installed unit (such as a replacement for 7029531001), fill the gear chamber entirely with clean anti-wear hydraulic oil through the inlet port and manually rotate the input drive shaft several times. Operating dry will score the floating plates instantly during the initial seconds of startup, causing catastrophic pump failure.

• Eliminate Air Ingress to Prevent Cavitation Erosion: High-speed cast iron gear pumps generate substantial intake vacuum forces. Inspect all suction line joints to ensure airtight seals and clean the inlet strainer regularly. High suction restriction creates vapor bubbles that implode violently inside the pressure zone, creating microscopic liquid hammers that pit the cast iron walls and gear faces.

• Enforce Rigorous Contamination Management: Because external gear pumps are naturally vulnerable to hard microscopic particulate matter, abrasive debris traversing the mesh will scratch the floating thrust plates, leading to severe, irreversible internal bypassing. Maintain fluid cleanliness parameters strictly to ISO 4406 19/16/13 or cleaner, backed by high-beta magnetic element filtration in the return path.
