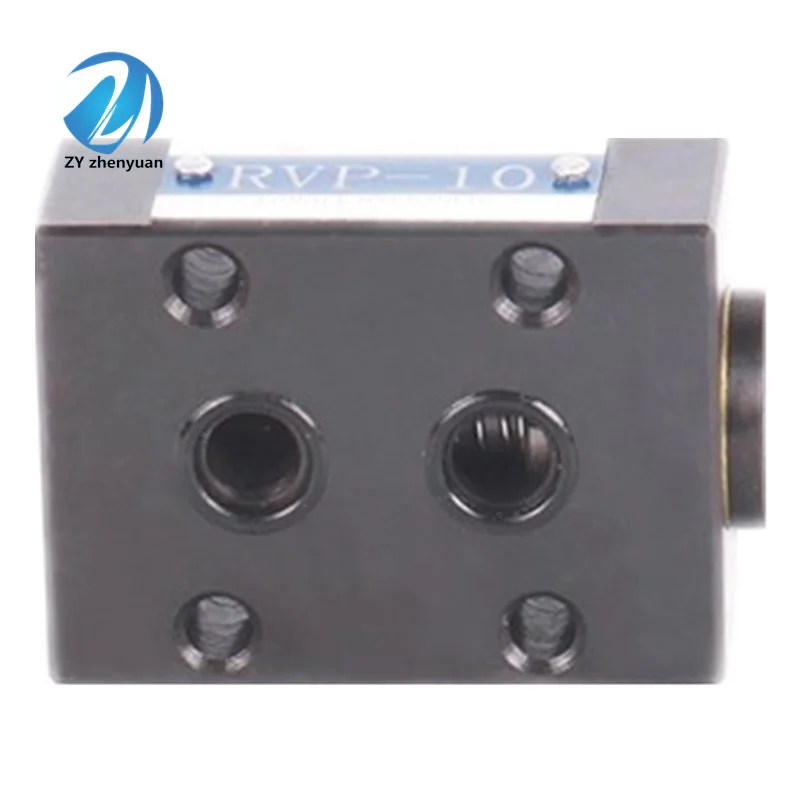

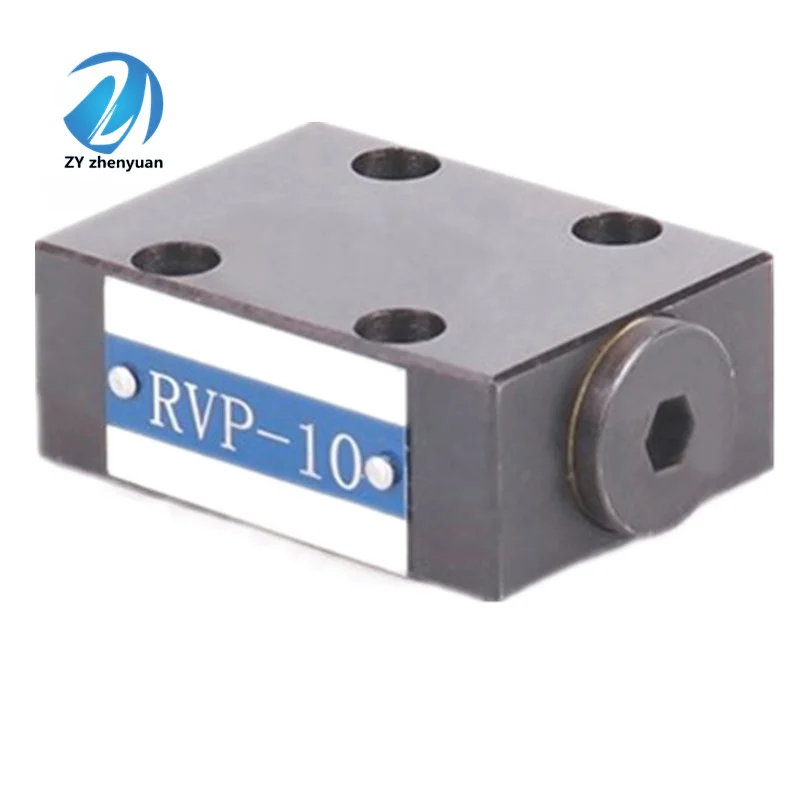

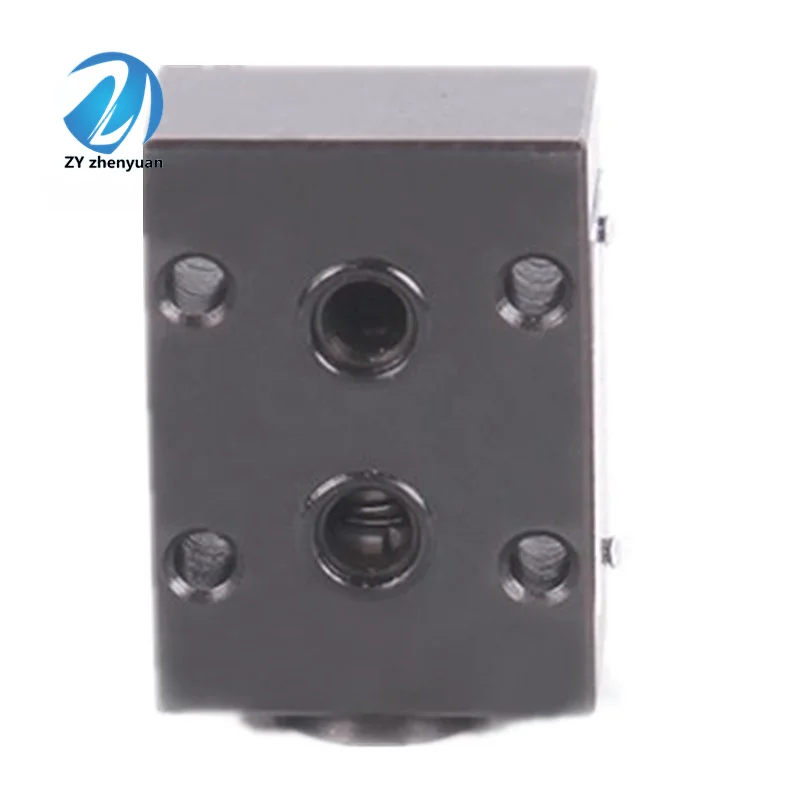

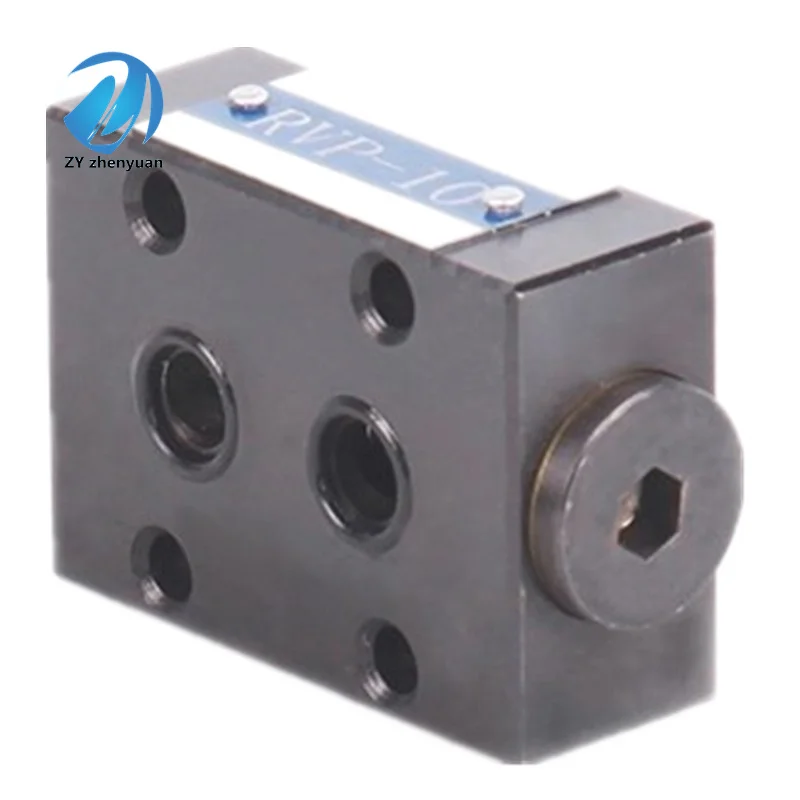

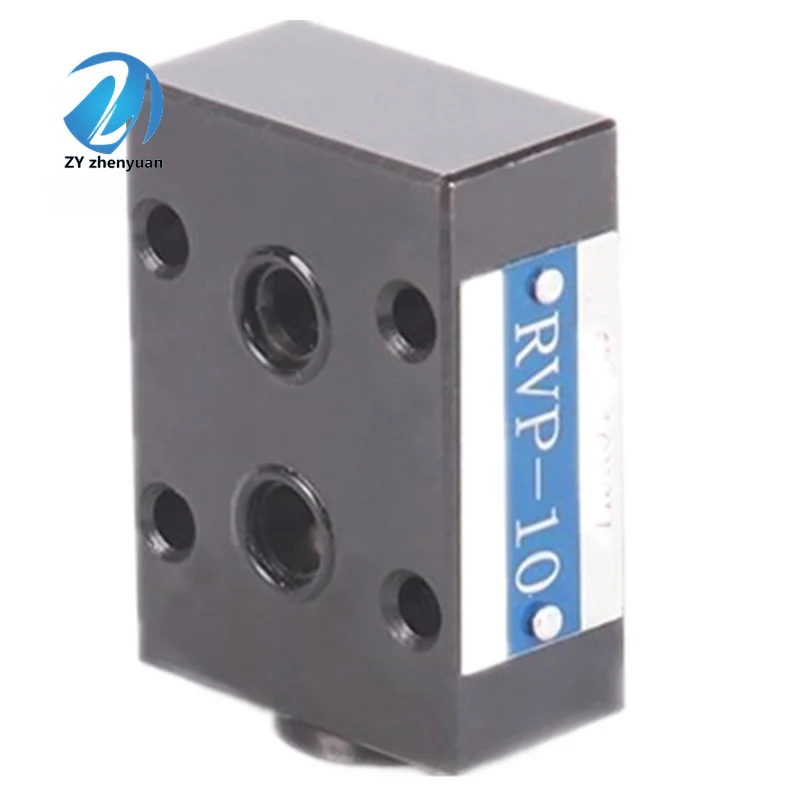

Rexroth RVP6 RVP10 RVP16 RVP20 Series Replacement Hydraulic Check Valve

The RVP series high-performance inline pipeline-mounted hydraulic check valves manufactured by LIC Hydraulic (comprehensively matching specific model codes including RVP6-10B, RVP8-10B, RVP10-10B, RVP12-10B, RVP16-10B, RVP20-10B, RVP25-10B, and RVP30-10B) are essential fluid-control elements engineered to allow unidirectional oil flow, eliminate fluid backflow, and maintain circuit backpressure. Conforming perfectly to international industrial female pipe-thread connection criteria, calibrated cracking pressure thresholds, volumetric flow ratings, and internal poppet sealing profiles, this entire valve platform delivers 100% drop-in interchangeability with Bosch Rexroth RVP series (Design Series 10B) standard check valves.

In high-pressure hydrostatic transmission lines or accumulator lock circuits, sub-tier check valves under continuous reverse flow shocks are prone to micro-cracking and scouring along the poppet sealing cone. This triggers heavy internal bypass leakage, drift of active cylinders, and disruptive pipeline water hammer vibrations. LIC addresses these operational faults by optimizing the metal-to-metal hardened poppet seating pair and implementing a streamlined fluid channel cavity. Every single inline check valve assembly undergoes 100% full-load simulated high-frequency dynamic reversal, low-viscosity flow, and high-pressure drop-tight holding factory testing prior to shipment. Sustaining leak-free performance up to a 315 bar working ceiling with low forward pressure drop, our check valves present a reliable procurement choice for global B2B distributors, HPU builders, and hydraulic system integrators.

Technical Specifications

Accurate, catalog-verified technical engineering parameters in compliance with standard Bosch Rexroth RVP Series 10B metrics:

• Product Series: RVP Series Inline Threaded Hydraulic Check Valve Platform (Design Series 10B)

• Nominal Sizes & Maximum Flow Capacities (Size & Max Flow):

  • RVP6: Size 06, Max flow up to 40 L/min (10.5 GPM)

  • RVP8: Size 08, Max flow up to 60 L/min (15.8 GPM)

  • RVP10: Size 10, Max flow up to 100 L/min (26.4 GPM)

  • RVP12: Size 12, Max flow up to 160 L/min (42.2 GPM)

  • RVP16: Size 16, Max flow up to 250 L/min (66.0 GPM)

  • RVP20: Size 20, Max flow up to 350 L/min (92.4 GPM)

  • RVP25: Size 25, Max flow up to 450 L/min (118.8 GPM)

  • RVP30: Size 30, Max flow up to 600 L/min (158.5 GPM)

• Nomenclature Code Structural Breakdown Example (RVP10-10B/…):

  • RVP: Inline direct-mounted check valve (Internal female pipe thread configuration).

  • 10: Nominal diameter sizing indicator (Size 10mm).

  • 10B: Component structural design series 10B (denotes absolute dimensional replication of mainstream market standard boundaries).

  • Cracking Pressure Suffix Code: Available option settings matching standard 0.5 bar (Standard base), 1.5 bar, 3.0 bar, or 5.0 bar spring configurations.

• Maximum Rated Operating Pressure Limit: 315 bar (31.5 MPa / 4560 psi)

• Reverse Leakage Metrics: Precision-fitted metal-to-metal seating ensuring long-term hydrostatic position holding with zero visual bypass leakage.

• Fluid Compatibility: Mineral-based hydraulic fluids (DIN 51524 compatible) or Phosphate Ester fluids (utilizing optional Viton/FKM seal arrays).

• Chassis Construction Material: High-tensile monolithic steel or heavy cast iron core valve bodies finished with an anti-corrosion chemical blackening protective matrix.

• Connection Interface: Standard Metric Thread or G-Thread (BSPP / ISO 228-1) female threaded direct coupling.

Key Technical Advantages

• Ultra-Precision Lapped & Hardened Poppet Core Assembly: The internal valve poppet and seating throat are machined from heavy-duty steel alloy and subjected to full-penetration hardening to 58-62 HRC. The seating geometries are micro-lapped to secure sub-micron roundness profiles. This ensures an airtight metal seal that withstands solid particulate abrasion and eliminates position-drift under holding loads.

• CFD Optimized Low-Resistance Internal Geometry: The interior flow path of the valve body is engineered utilizing Computational Fluid Dynamics (CFD) simulation software. By expanding the circumferential throat cross-section around the unseated poppet, localized flow restrictions, boundary turbulence, and dead zones are minimized, reducing forward flow fluid temperature rise and pressure drop by over 25%.

• Anti-Fatigue Guided Concentric Spring Sub-Assembly: The internal return spring is coupled with a dedicated concentric centering guide cage. This configuration restricts radial shifting or wobbling of the poppet during sudden high-flow open/close cycles, preventing tilt wear and ensuring consistent reseating performance over millions of operational cycles.

• Solid Monolithic Leak-Free Core Envelope: The high-strength single-block metal valve housing features zero split-planes, secondary adapter interfaces, or welds. This design entirely isolates the valve from external fluid weeping caused by high structural line vibration or intense pressure pulsations, offering high torque resistance during piping installation.

Application Areas

The RVP series inline check hydraulic valves provide high operating pressure thresholds, expanded flow paths, and reliable zero-leakage check control across extensive applications:

• Large Metallurgy Forging Presses & Cylinder Load-Holding Loops: Serving as a zero-leakage drop protection safety lock and pressure containment element on the lower rod chambers of heavy clamping or forming cylinders.

• CNC Machine Tool Power Units & Accumulator Isolation Circuts: Installed as an energy isolation barrier on automated automated manufacturing power packs to retain high-pressure accumulator energy after the primary pump shifts to standby mode.

• Mobile Construction Machinery & Heavy Transport Outriggers: Acting as an anti-cavitation backpressure check line on excavator track drives, crane winch lines, or multi-stage aerial platform return configurations.

• Multi-Pump Parallel Hydraulic Power Units (HPUs): Configured at the main discharge outlet of individual pumps within a shared multi-pump network to prevent active high-pressure fluid from back-driving idle backup pumps.

Expert Maintenance Tips

• Cross-Verify the Cracking Pressure Suffix During Fleet Replacement Selection: Check valve behavior is governed by its internal spring rate. If the unit is intended for circuit backpressure or anti-cavitation, select higher rating spring configurations such as 3.0 bar or 5.0 bar; if it serves as a simple pump outlet anti-reversal mechanism, specify the lowest rating (0.5 bar) spring to lower line pressure drops. Never replace components based solely on nominal plumbing size matching.

• Isolate Thread Sealing Compounds From the Front Three Threads During Installation: The RVP platform relies on inline female threads (e.g., RVP16-10B). When applying PTFE thread tape or liquid anaerobic pipe sealants, leave the first two to three front thread pitches completely bare. Excess debris shearing off during connection tightening will travel straight into the internal poppet seat, blocking complete closure and causing heavy backflow leakage.

• Enforce Rigid Oil Cleanliness Controls to Prevent Core Silting Jam Malfunctions: High-pressure check valves are sensitive to microscopic ferrous silt, weld slag, and thread residue. If fine particles collect along the cylindrical guiding skirt of the internal poppet, the clearance will suffer from silting friction jams, locking the valve permanently open or closed. Maintain systemic fluid configurations to ISO 4406 20/18/15 or better.
