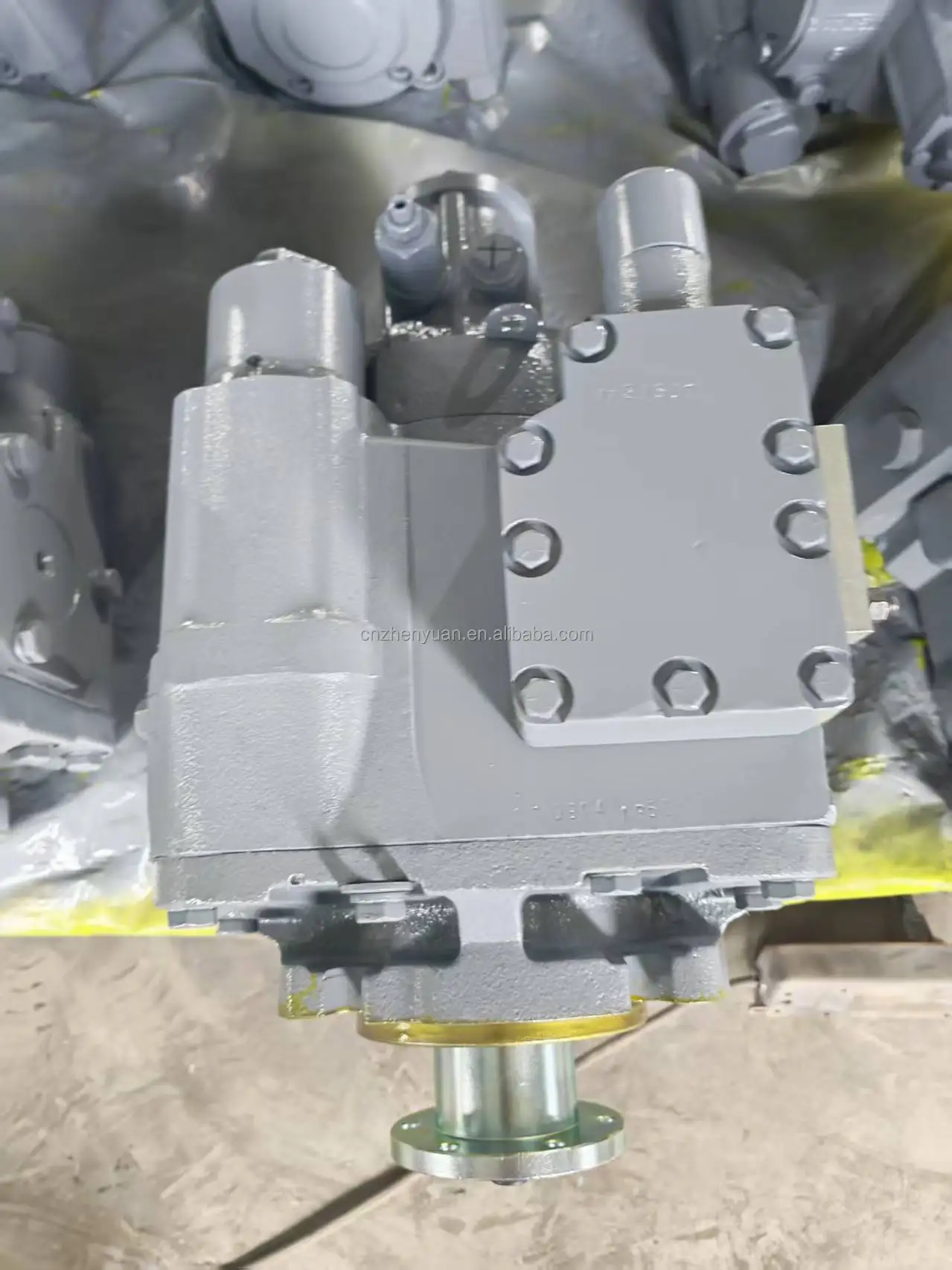

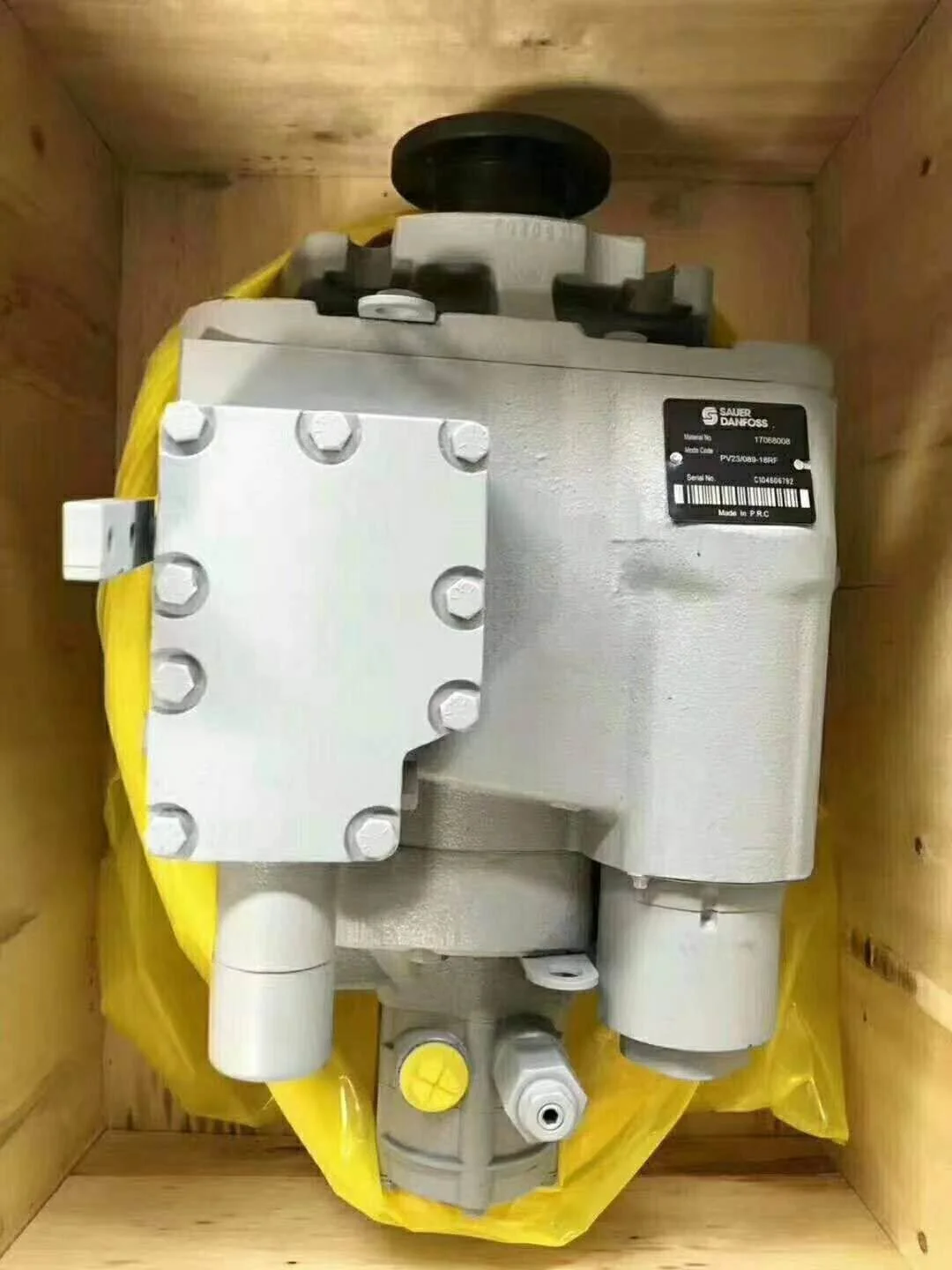

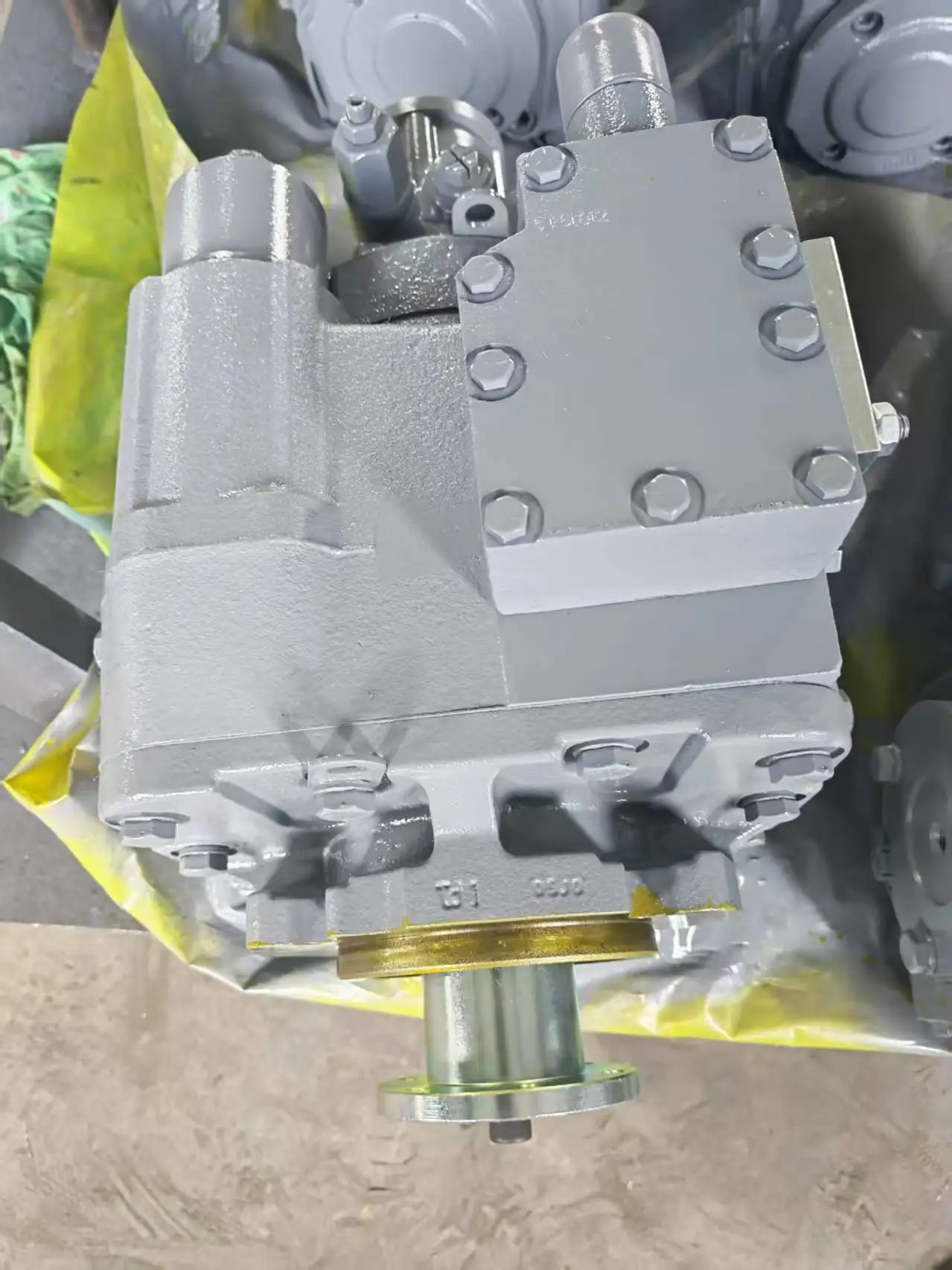

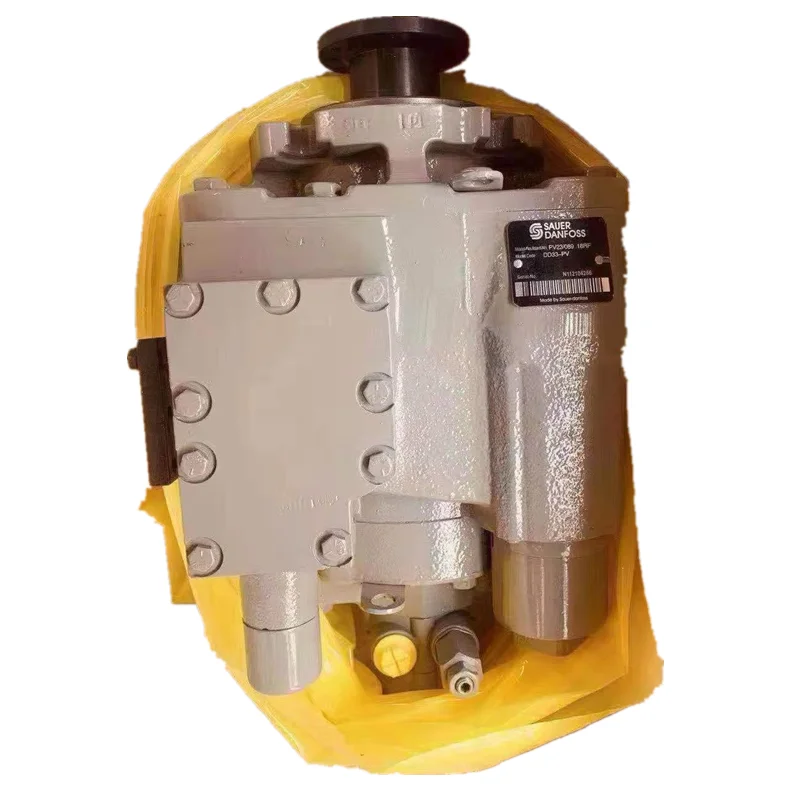

SPV2 SPV2/070-R6Z-PS183-CXX-B1 328708 Hydraulic Pump for Concrete Mixer Truck

axial piston variable displacement pumps are of swash plate design with variable flow capability suitable for hydrostatic
transmissions with closed loop circuit. Tilting the swash plate to the opposite side of the neutral or zero displacement position
reverses flow direction. axial piston variable displacement pumps are well engineered and easy to handle. The full-length
shaft with a highly efficient tapered roller bearing arrangement offers a high loading capacity for external radical forces. The
hydro-mechanical servo displacement control maintains the selected swash plate position and hence pumps displacement. Upon release
of the control handle, the swash plate automatically returns to zero position and the flow reduces to zero. High case pressures
can be achieved without leakage even at the lowest temperatures by using suitable shaft seals. The servo valve arrangement offers
the facility to incorporate function regulators and remote control systems. Axial piston units are designed for easy servicing.
Complete dismantling and reassembly can be carried out with standard hand tools, and all components or sub-assemblies are
replaceable. Axial piston variable displacement pumps of the pattern are made by licensed producers worldwide, providing
consistent service and fully interchangeable parts.
