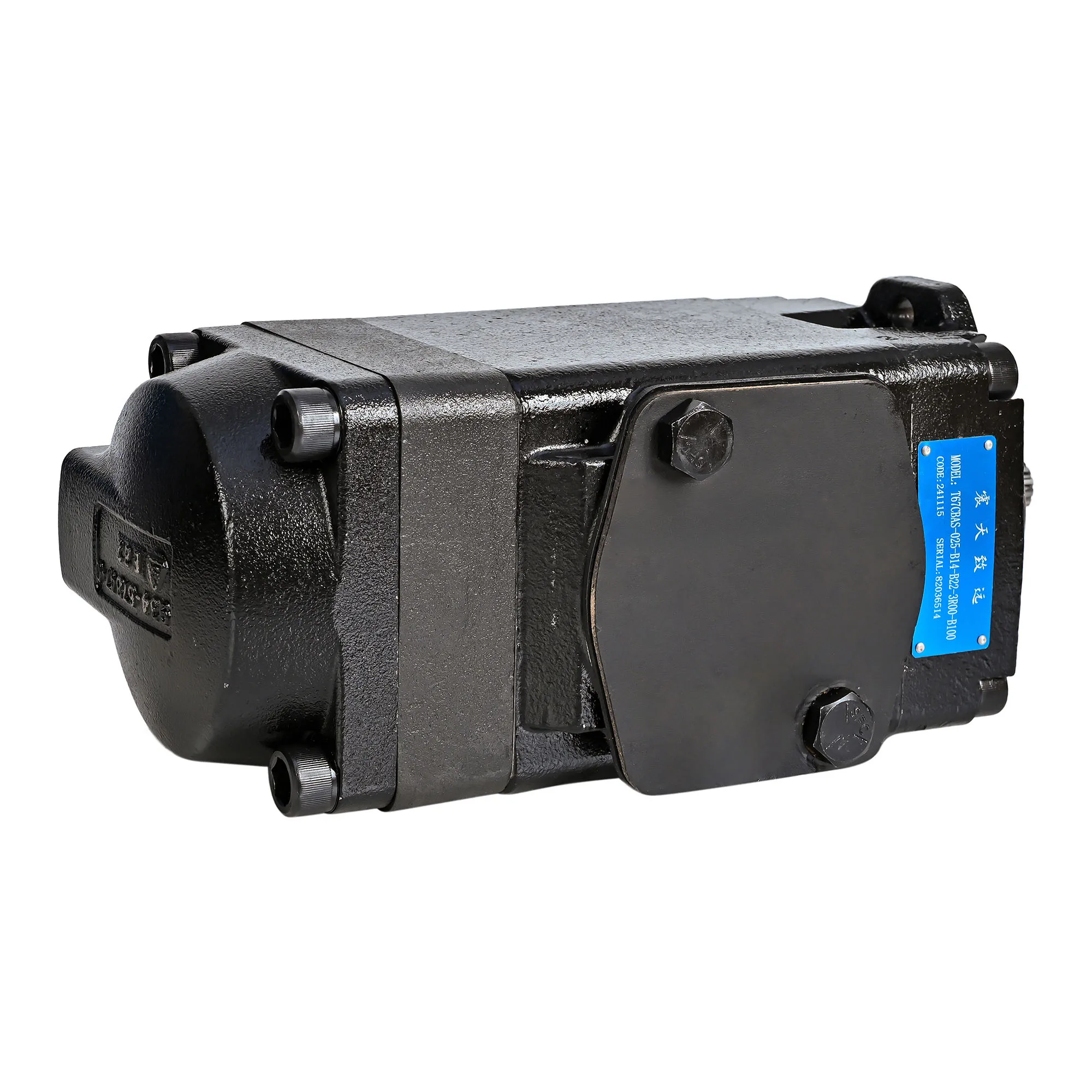

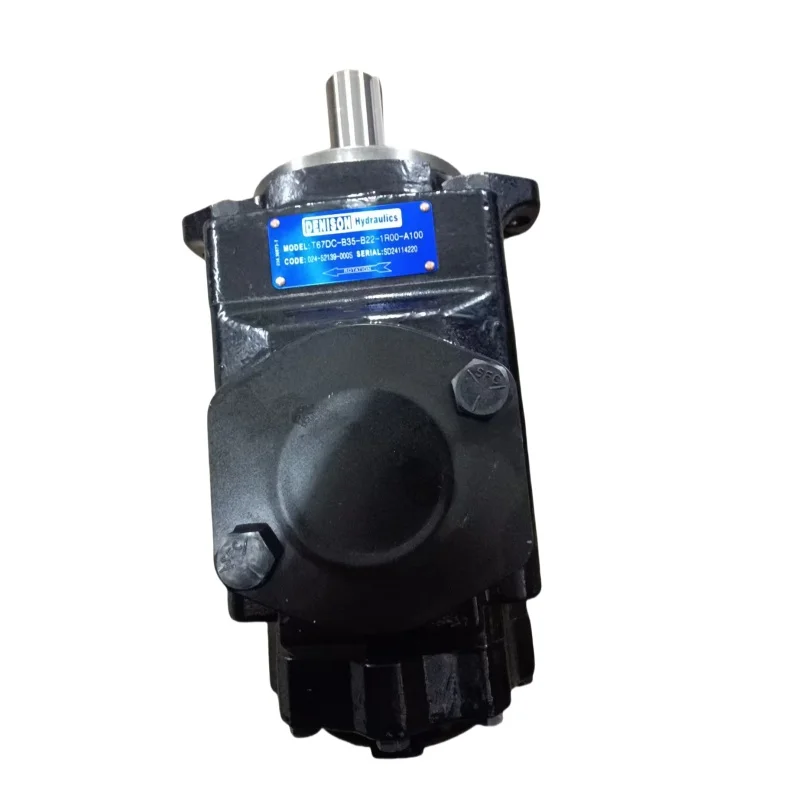

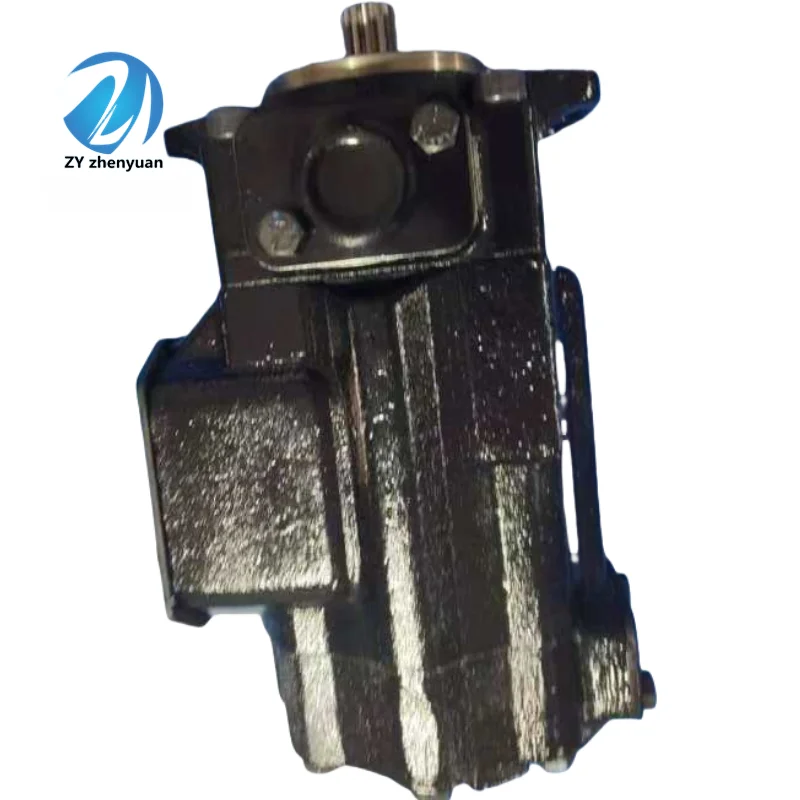

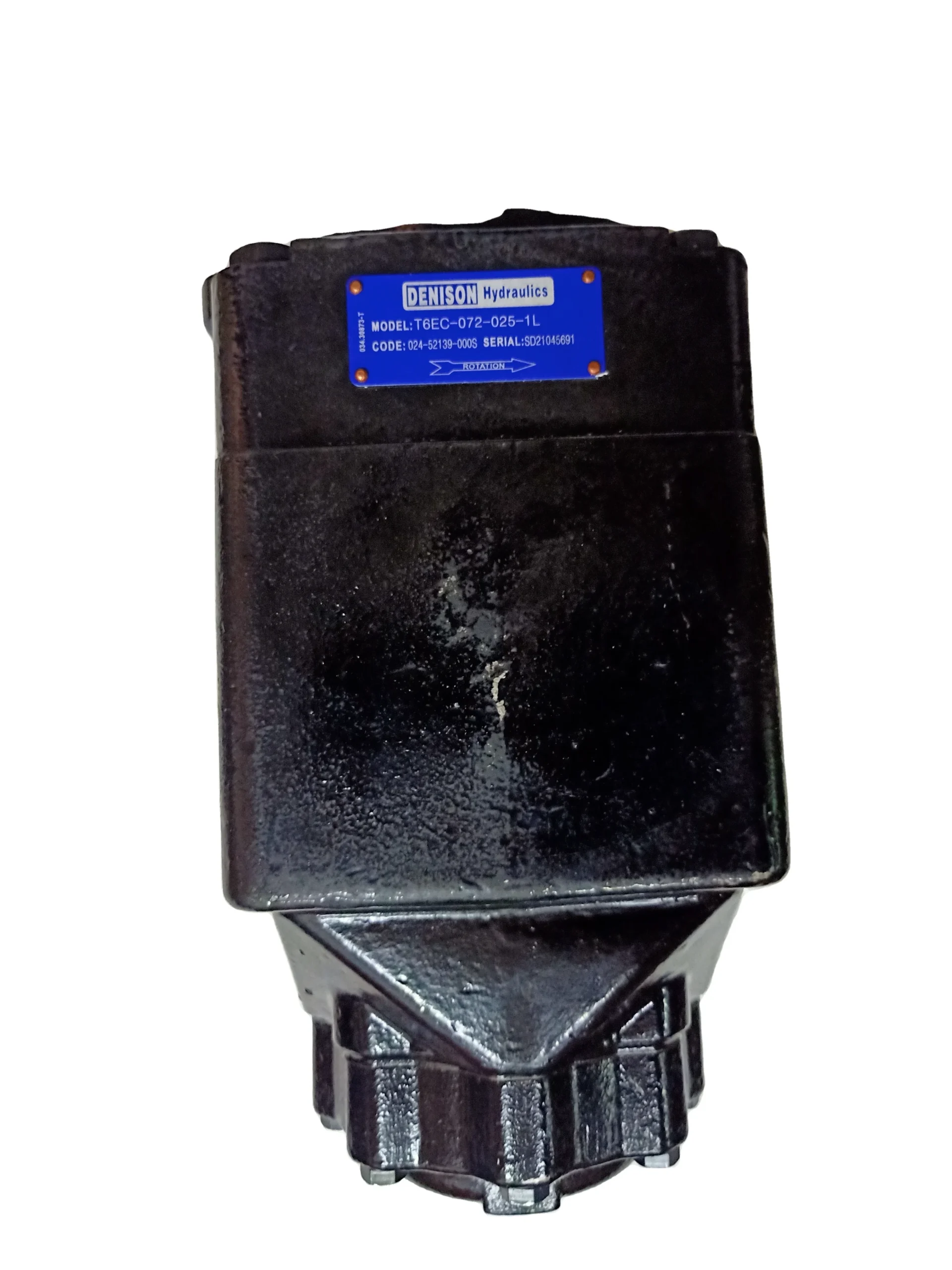

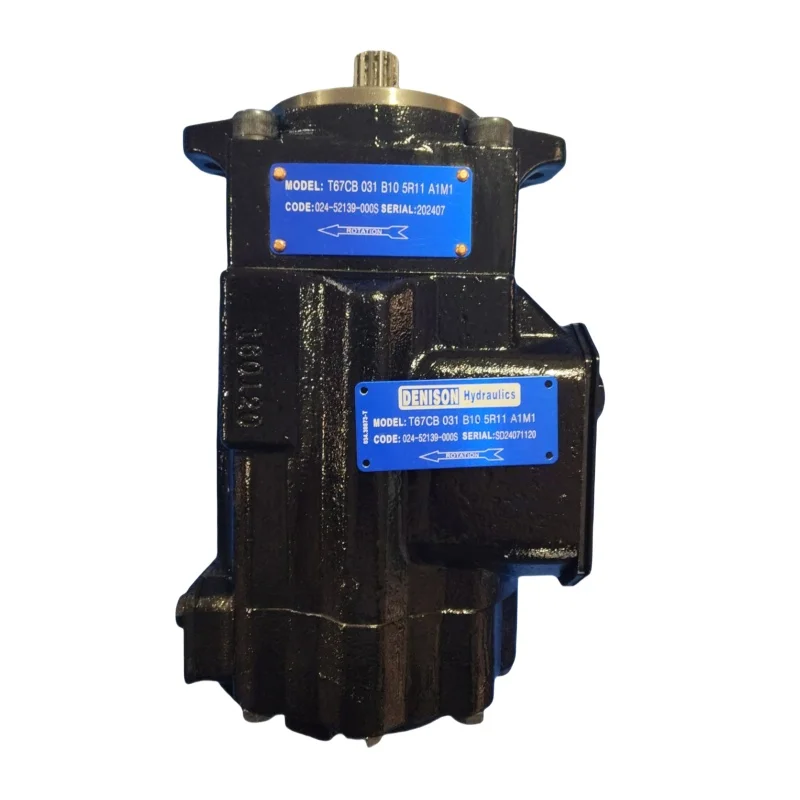

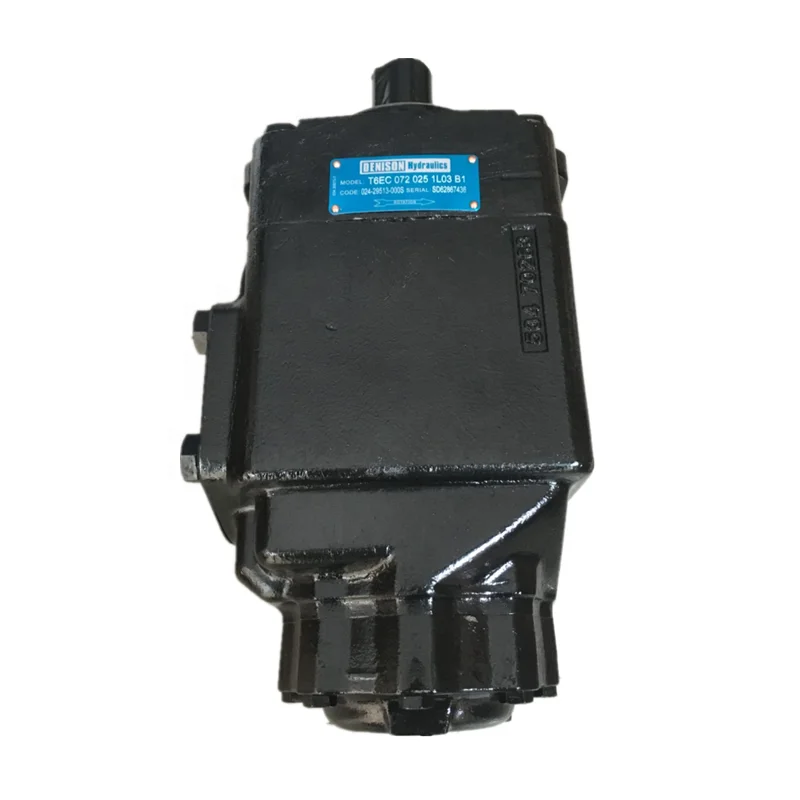

Parker Denison T6ED Vane Pump | T6ED-066-045-1R00-B1 | T6EE T6CM T6DM
| Model Number | T6ED-066-045-1L00-B1, T6ED-066-045-1R00-B1 |
|---|
Product Description
The Parker Denison T6ED Series from LIC Hydraulic is a heavy-duty, fixed displacement double vane pump designed for high-pressure industrial and mobile circuits. Models like the T6ED-066-045-1R00-B1 combine a high-flow T6E cartridge with a versatile T6D cartridge on a single shaft. Featuring Denison’s patented “Double Lip” vane technology, these pumps excel at continuous pressures up to $240\text{ bar}$. We guarantee 100% mechanical interchangeability with original Parker Denison units. Every pump is 100% load-tested to ensure maximum volumetric efficiency and whisper-quiet operation in the field.
Technical Specifications
Series: Denison T6ED / T6EE / T6CM / T6DM (Double & Triple options)
Displacement Combination (e.g., 066-045):
P1 (T6E): $213.3\text{ ml/r}$
P2 (T6D): $144.4\text{ ml/r}$
Max Operating Pressure: $240\text{ bar}$ ($3500\text{ psi}$)
Max Speed: $2200\text{–}2500\text{ RPM}$
Rotation: 1R (CW) / 1L (CCW)
Seal Options: B1 (NBR) or Viton for high-temperature fluids
Cartridge Type: Drop-in replaceable kits for easy maintenance
Key Technical Advantages
Double Lip Vane Design: This unique feature balances the pressure on the vane tips, reducing internal friction and stator wear. It ensures high volumetric efficiency across the entire pressure range while keeping noise levels exceptionally low.
Modular Cartridge Design: The T6ED is engineered for serviceability. The internal rotating groups (cartridges) can be replaced without removing the pump from the machine, drastically reducing downtime and lowering total cost of ownership.
High Power-to-Weight Ratio: Despite its rugged construction, the T6ED delivers massive flow rates in a compact envelope, making it ideal for high-output power units where space is at a premium.
Exceptional Contamination Resistance: While all hydraulic components prefer clean oil, the T6 series’ robust design and optimized porting provide superior resilience against minor fluid impurities compared to standard piston pumps.
Application Areas
Industrial Machinery: Injection molding machines, die-casting units, metal balers, and large hydraulic presses.
Mobile Solutions: Reach stackers, large excavator auxiliary circuits, and mining drill rigs.
Marine Operations: Powering deck cranes, winches, and steering gear systems.
Expert Maintenance Tips
Pre-Lubrication is Critical: Before the first start, fill the pump housing with clean hydraulic oil. Dry starts are the leading cause of vane and stator scoring in new installations.
Filtration Standards: Maintain oil cleanliness to ISO 4406 18/16/13 or better. Protecting the precision-ground cam ring surface is vital for maintaining the pump’s quiet operation and high pressure.
Check Inlet Vacuum: Ensure the inlet pressure stays within $0.8$ to $2\text{ bar}$ absolute. Cavitation caused by restricted suction or dirty inlet filters will lead to immediate internal damage and excessive vibration.
