Parker TE Series Hydraulic Motor | TE0165CW260AAAC | TE0230FS250AAFA | Orbit Motor

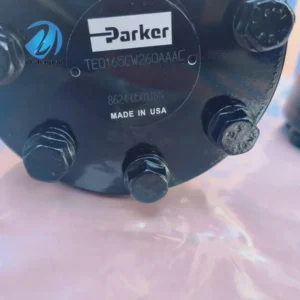

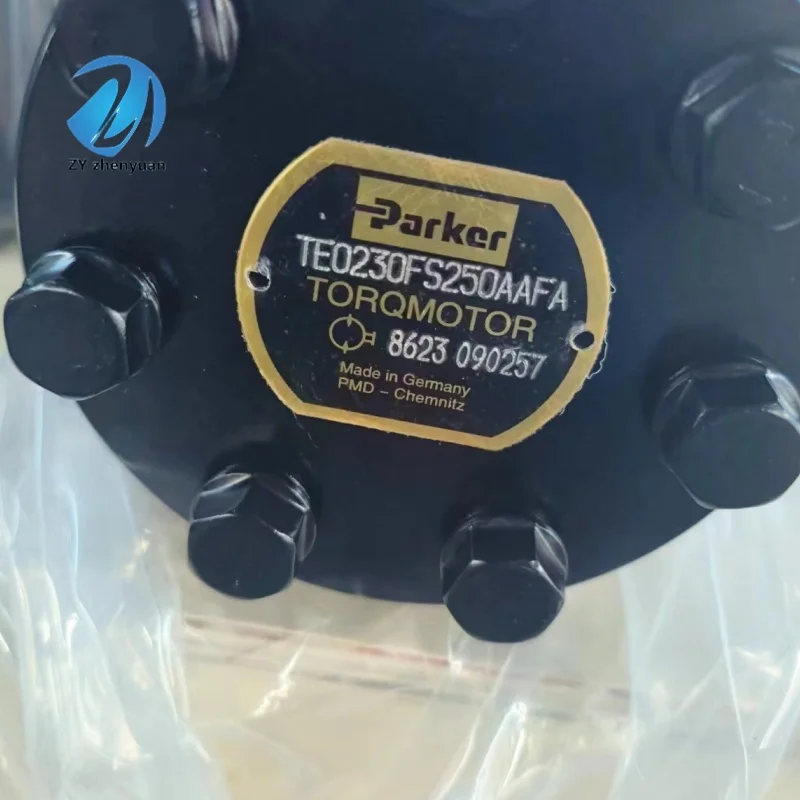

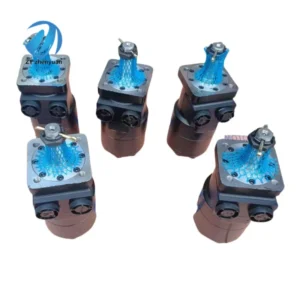

The Parker TE Series from LIC Hydraulic is a highly versatile Low-Speed High-Torque (LSHT) orbit motor designed for high-performance durability. Models like the TE0165CW260AAAC and TE0230FS250AAFA utilize high-precision Gerotor technology to deliver smooth, consistent torque even at minimal RPMs. Engineered for rugged mobile and industrial environments, these motors feature heavy-duty bearings that can handle substantial side loads. We provide 100% drop-in replacements for original Parker TE units, guaranteeing seamless mechanical and hydraulic compatibility.

Technical Highlights

• Displacements: $165\text{ cc/rev}$ and $230\text{ cc/rev}$ options.

• Max Pressure: Up to $140\text{ bar}$ continuous ($175\text{ bar}$ intermittent).

• Max Torque: High startup torque efficiency ($\ge 90\%$).

• Bearing System: Integrated heavy-duty needle bearings for high radial loads.

Core Advantages

• Radial Load Robustness: Unlike light-duty motors, the TE series is built to support sprockets and pulleys mounted directly on the shaft, reducing assembly complexity and cost.

• High-Pressure Shaft Seal: The specialized seal architecture allows for operation in systems with significant back pressure, often eliminating the need for an external drain line.

• Smooth Low-Speed Control: Optimized internal timing and precision-lapped components ensure jitter-free rotation, critical for precision feeding and tracking applications.

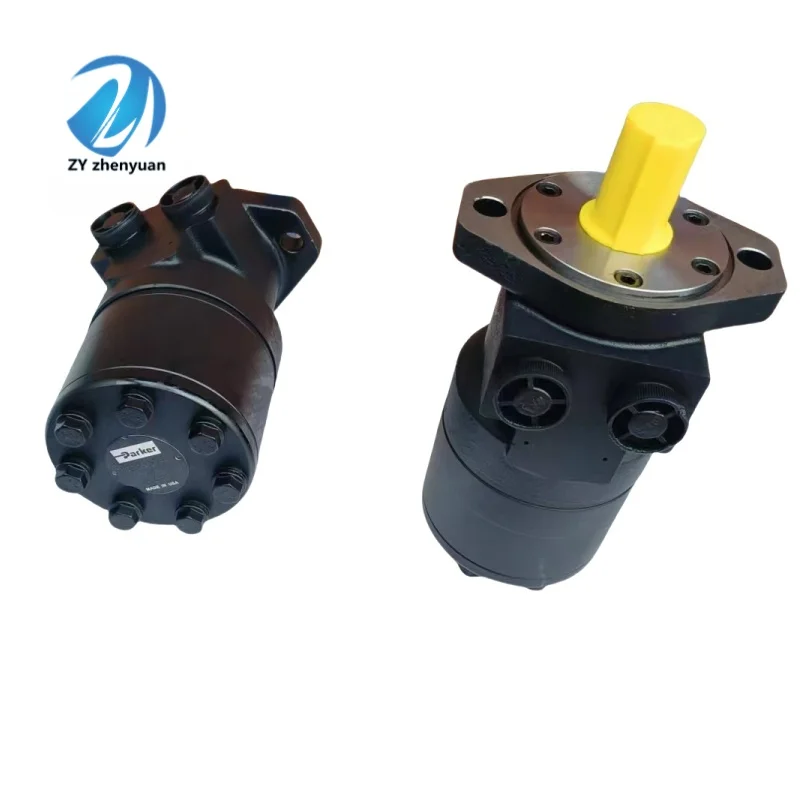

• Versatile Mounting: Available in standard 2-bolt and 4-bolt flanges with multiple shaft and porting options (SAE, Metric, or NPT).

Application Areas

• Turf & Garden: Drive motors for commercial mowers and attachment drives.

• Agriculture: Feeding mechanisms for harvesters and seeder drive systems.

• Conveyors: Reliable power for industrial sorting and packaging lines.

• Municipal Vehicles: Salt spreaders and brush drives for street sweepers.

Expert Maintenance Tips

• Fluid Viscosity: Ensure the hydraulic oil maintains a viscosity above $20\text{ cSt}$ during operation. If the oil becomes too thin due to heat, the internal lubricating film on the Gerotor rollers will degrade, leading to rapid wear.

• Mounting Bolt Torque: Always use high-grade bolts (Grade 8.8 or higher) and torque them to OEM specifications. Loose mounting can lead to vibration and eventually crack the motor flange.

• System Flushing: Before installing a replacement motor, flush the hydraulic lines. Debris from a previous motor failure is the #1 cause of “premature death” for new orbit motors.
