Parker Char-Lynn TG Series Orbital Motor | TG0785 TG0625 TG0530

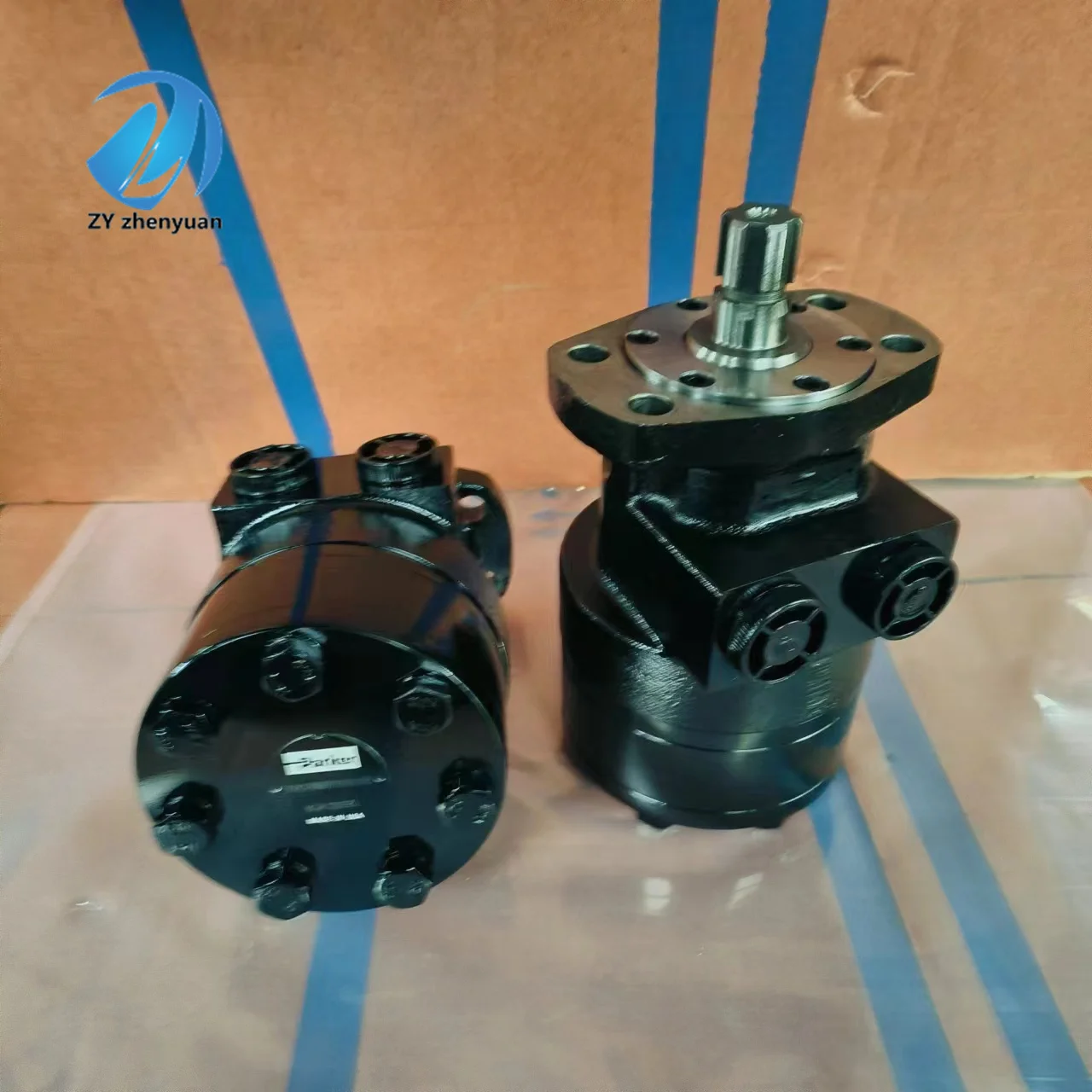

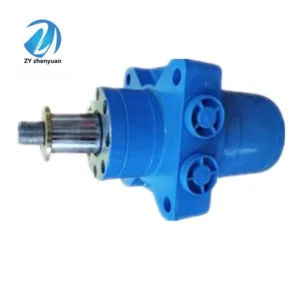

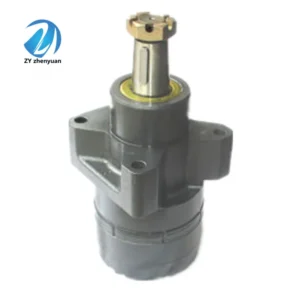

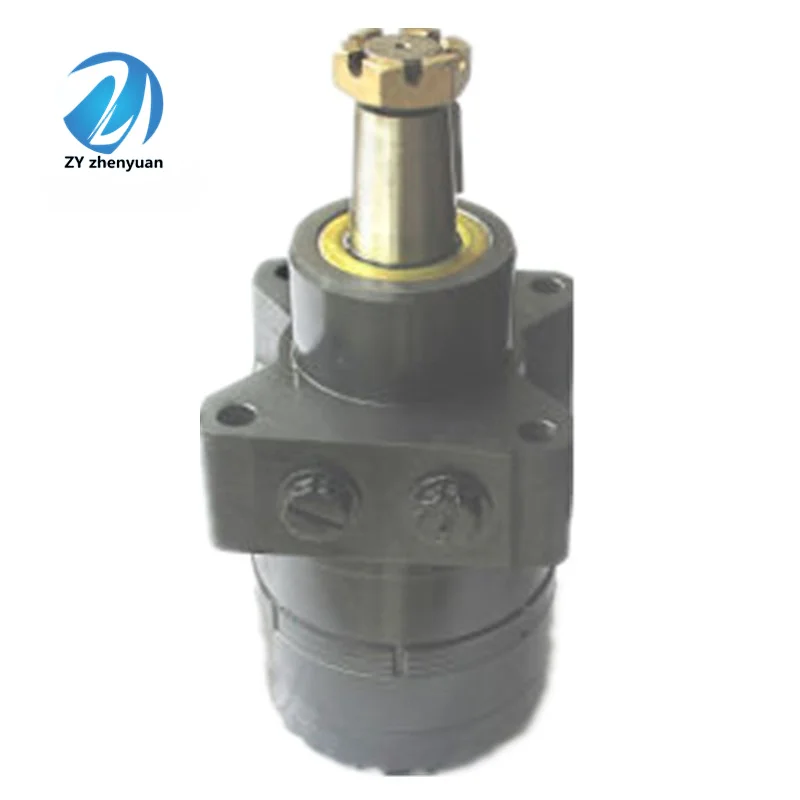

The TG series (encompassing a comprehensive premium geometric displacement array including TG0360, TG0405, TG0475, TG0530, TG0625, TG0785, and TG0960, specifically directed by technical model ordering numbers TG0785AA010AAAA, TG0785AA030AAAA, and TG0785AA030AAAB) manufactured by LIC Hydraulic are heavy-duty, fixed displacement Low-Speed High-Torque (LSHT) orbital hydraulic motors. They are engineered for fluid power delivery in high-load industrial, marine, and mobile equipment applications. Complying with standardized 4-bolt magneto / SAE A mounting interfaces, 1-1/4 inch cylindrical straight keyed or splined output drive configurations, and unified SAE / O-ring boss main port threads, this entire product matrix provides 100% drop-in interchangeability with original Parker (Ross Torqlink) classic TG series heavy industrial orbital motors.

During heavy fieldwork (such as agricultural harvesting header propulsion, utility winch winding, or horizontal directional drilling), orbital motors encounter severe cyclic shock loads, elevated case return backpressures, and extreme overhung bending moments on the output shaft. Standard light-duty alternatives often fail under these stressors, suffering from internal drive link fractures, premature wear-plate bypass, or a complete loss of starting torque under low-speed conditions. LIC addresses these chronic application vulnerabilities by reinforcing the structural casing with high-strength ductile iron and optimizing the pressure-compensated hydrostatic valving interface. Every single TG series motor undergoes 100% full-load factory testing that challenges the unit against maximum pressure shocks, rapid directional switching, and high overhung radial loads prior to shipment. This ensures that the motor maintains steady torque delivery and precise volumetric tracking under continuous working pressures up to 200 bar, providing global B2B procurement managers, heavy machinery OEMs, and aftermarket parts networks with a dependable drive solution.

Technical Specifications

Accurate, catalog-verified technical engineering parameters in compliance with standard Parker Hannifin Torqlink TG series technical manuals:

• Product Series: TG Series Heavy-Duty Face-Distribution Axial Orbital Hydraulic Motor Platform (Torqlink System)

• Model Number Specification Code Breakdown (e.g., TG0785AA030AAAA / TG0785AA030AAAB):

  • TG: Primary series classification for high-power-density, heavy-duty orbital fluid motor platforms.

  • 0785: Displacement designation index, establishing a geometric displacement volume of 786 cm³/rev (47.9 in³/rev).

  • AA: Mounting flange and fluid port layout, indicating a standard 4-bolt magneto style configuration paired with 7/8-14 UNF O-ring boss ports.

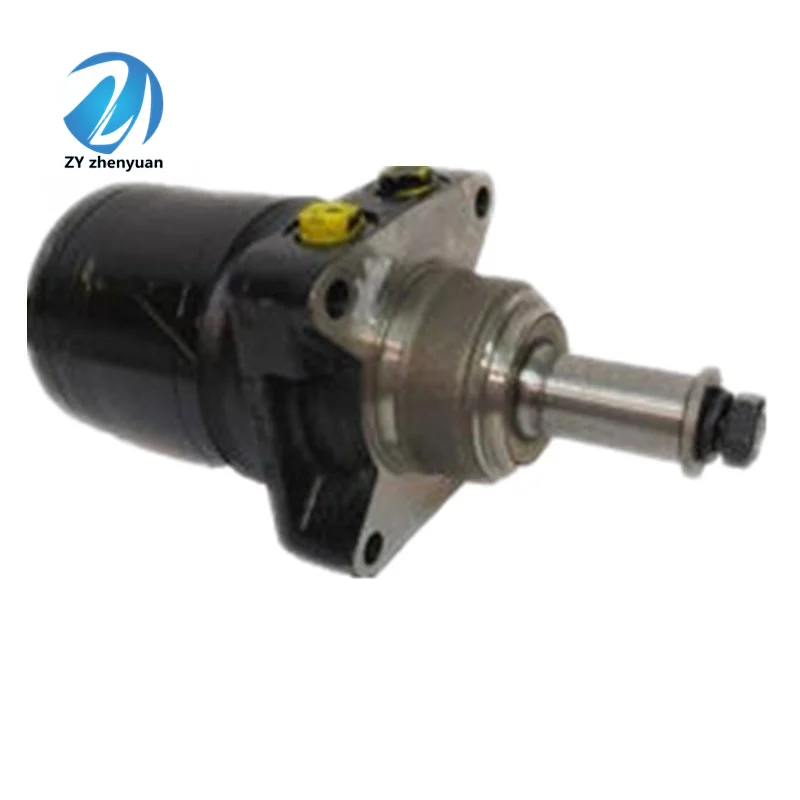

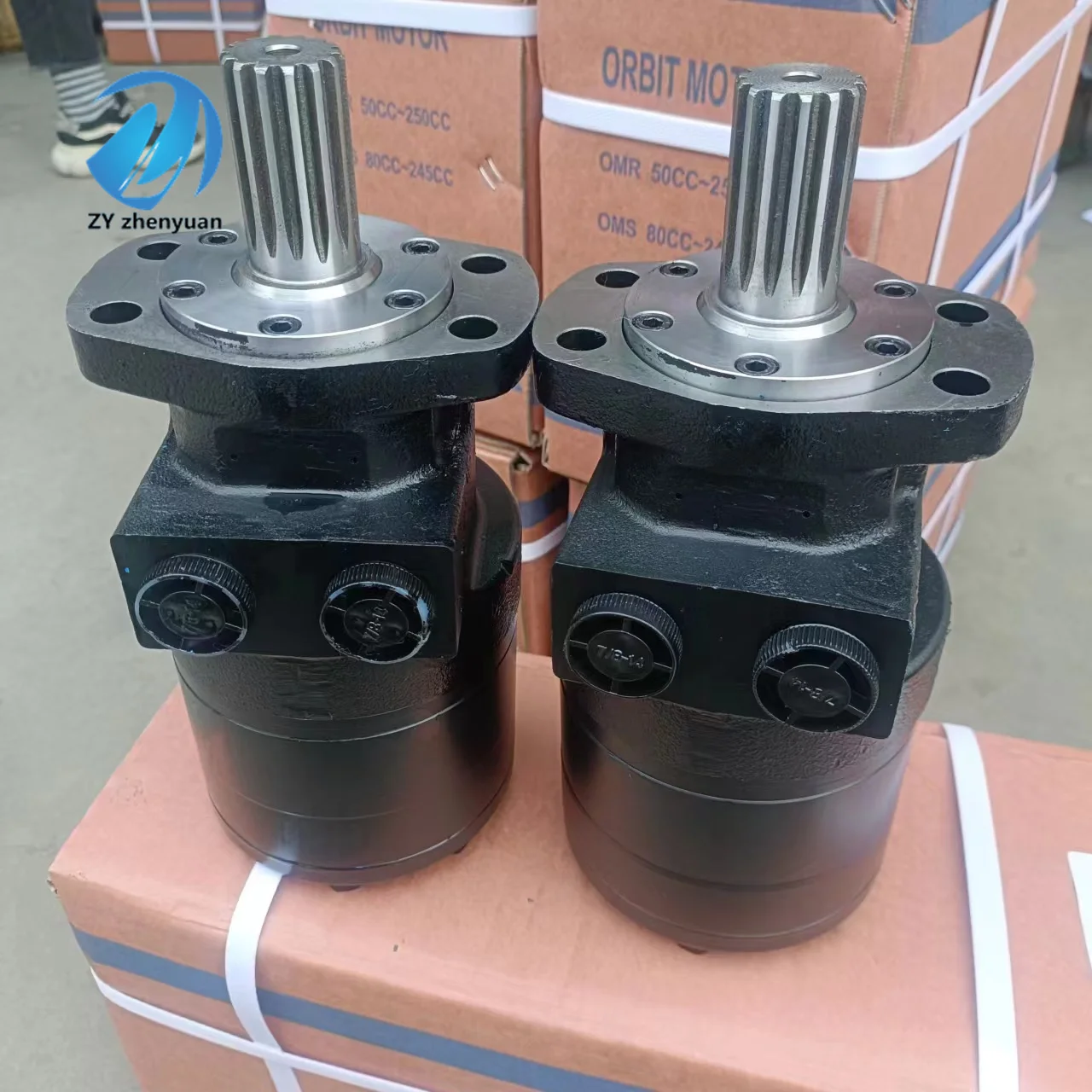

  • 030: Output shaft profile, specifying a 1-1/4 inch (1.25″) straight parallel keyed drive shaft with a 5/16-24 UNF end tap, or an alternative high-capacity 14-tooth splined shaft.

  • AA: Internal build designation and factory exterior finishing standard (Corrosion-resistant matte black epoxy coating).

  • AA / AB: Technological end-cover configuration modifiers (“AA” indicates standard configuration; “AB” integrates a low-friction shaft seal combined with an enhanced case relief passageway).

• Total Matrix Displacement Coverage Framework:

  • TG0360: 359 cm³/rev

  • TG0405: 406 cm³/rev

  • TG0530: 529 cm³/rev

  • TG0625: 623 cm³/rev

  • TG0785: 786 cm³/rev

  • TG0960: 959 cm³/rev

• Maximum Operating Pressure Limits (Based on TG0785 Sizing):

  • Continuous Rated Pressure: 140 bar (14.0 MPa / 2030 psi)

  • Intermittent Peak Pressure: 200 bar (20.0 MPa / 2900 psi)

  • Transient Maximum Spike Pressure: 240 bar (24.0 MPa / 3480 psi)

• Maximum Output Torque Rating (TG0785 Profile): Continuous torque rating up to 1490 N·m; Intermittent peak output capability up to 2050 N·m.

• Allowable Rotational Velocity Range: Smooth minimum rotation down to 5 rpm; Continuous maximum speed up to 150 rpm (Smaller frames like TG0360 support up to 300 rpm).

• Maximum Continuous Flow Influx: 115 L/min (30 GPM)

• Maximum Permissible Overhung Radial/Axial Shaft Load: Up to 16,000 N (approx. 3,600 lbs) of external tension force at the shaft center point.

• Net Individual Mass Weight: TG0785 base configuration approx. 17.1 kg (37.7 lbs).

Key Technical Advantages

• Heavy-Duty Oversized Drive Link: The internal drive link features a 25% larger cross-sectional diameter compared to conventional light-duty designs. It incorporates crowned splines with forced hydrodynamic lubrication paths. This structural skeleton effectively absorbs bending stresses caused by sudden load variations, eliminating the risk of link failure during high-frequency forward/reverse rotational cycling.

• Hydrostatically Balanced Wear Plate Geometry: The motor features an independent face-distribution wear plate backed by a pressure-energized balance ring. This configuration uses internal system fluid pressure to keep the wear plate sealed against the geroler element. This continuous clearance compensation maintains volumetric efficiency above 92% across thousands of hours of high-pressure operation.

• High-Pressure, Anti-Extrusion Shaft Seal Array: Integrated within the front mounting housing is a composite shaft seal utilizing an advanced Nitrile compound reinforced with a PTFE anti-extrusion back-up ring. This seal profile is engineered to withstand continuous internal case pressures of up to 140 bar without requiring an external case drain line, helping simplify overall machine system plumbing.

• Integrated Dual-Directional Thrust Needle Bearings: The output shaft assembly is supported by dual-directional needle roller thrust bearings pressed straight into the case-hardened forward housing. This layout directly handles heavy axial thrust and radial loads from augers or winch drums, maintaining alignment of the internal geroler assembly and preventing eccentric wear.

Application Areas

The TG0530, TG0625, and TG0785AA030AAAA series motors deliver high torque output and reliable overhung load resistance, making them suitable for demanding industrial and mobile applications:

• Heavy-Duty Agricultural Machinery & Harvesting Implements: Primary cutter-bar drives for combine harvesters, sugarcane chopper systems, large timber processing feed rolls, and heavy tree-spade installations.

• Mobile Recovery Winches & Marine Anchor Systems: Direct-drive systems for heavy towing recovery winches on utility wreckers, flatbed transports, and small-to-medium marine anchor capstans.

• Municipal Construction & Trenchless Utility Boring Rigs: Power-head rotation circuits for horizontal directional drilling (HDD) setups, compact piling augers, and scissor/boom lift traction drives.

• Industrial Shredding & Processing Aggregates: Heavy waste shredders, asphalt or grout mixing drums, and bulk chemical/feed pellet blenders.

Expert Maintenance Tips

• Connect an External Case Drain Line in Sustained High-Backpressure Circuits: Although the composite shaft seal handles high internal housing pressures, applications with series-connected motor loops or long return lines running over 70°C can accelerate seal lip wear. For these setups, remove the case drain plug from the center section of the housing and connect a low-pressure line back to the reservoir. This zero-pressure circuit helps lower the load on the shaft seal and extends its operating life.

• Prevent No-Load High-Flow Overspeed Conditions: TG orbital motors are low-speed, high-torque units with a maximum continuous flow limit of 115 L/min. If a system directional valve malfunctions and routes full pump flow through the motor without an external mechanical load, the motor can overspeed beyond 400 rpm. This condition can lead to rapid frictional heating along the geroler starry profiles, risking instantaneous component galling and seizure.

• Implement a Graduated Pressure Run-in Sequence Upon Initial Commissioning: Do not subject a newly installed motor to full operating loads immediately upon installation. First, lift the drive elements or configure the loop into a bypass state to run the motor without load for 15 to 20 minutes to purge trapped air. After venting, increase the pressure in 50 bar increments, running for 10 minutes at each level, to allow the internal surfaces to achieve a proper wear break-in.
