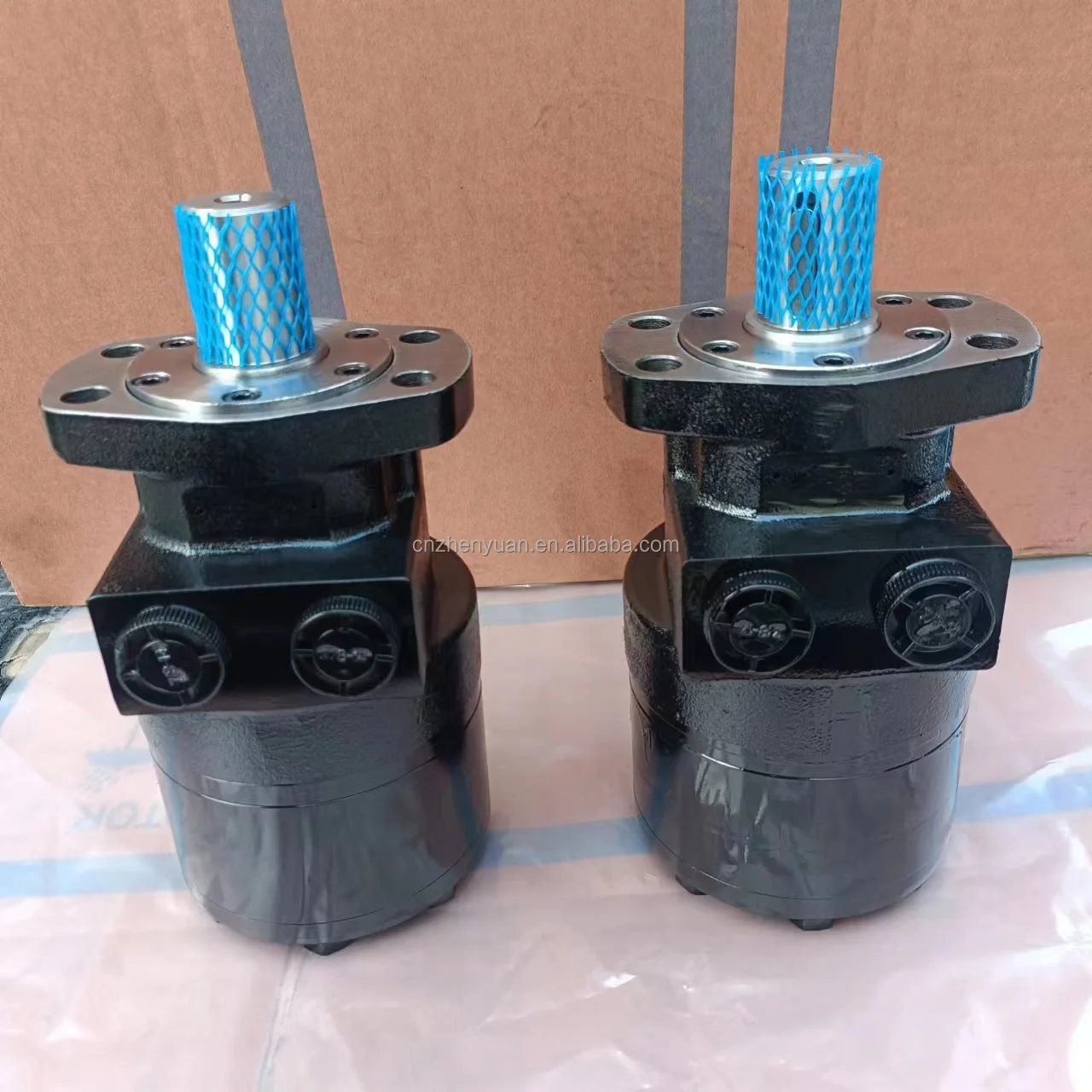

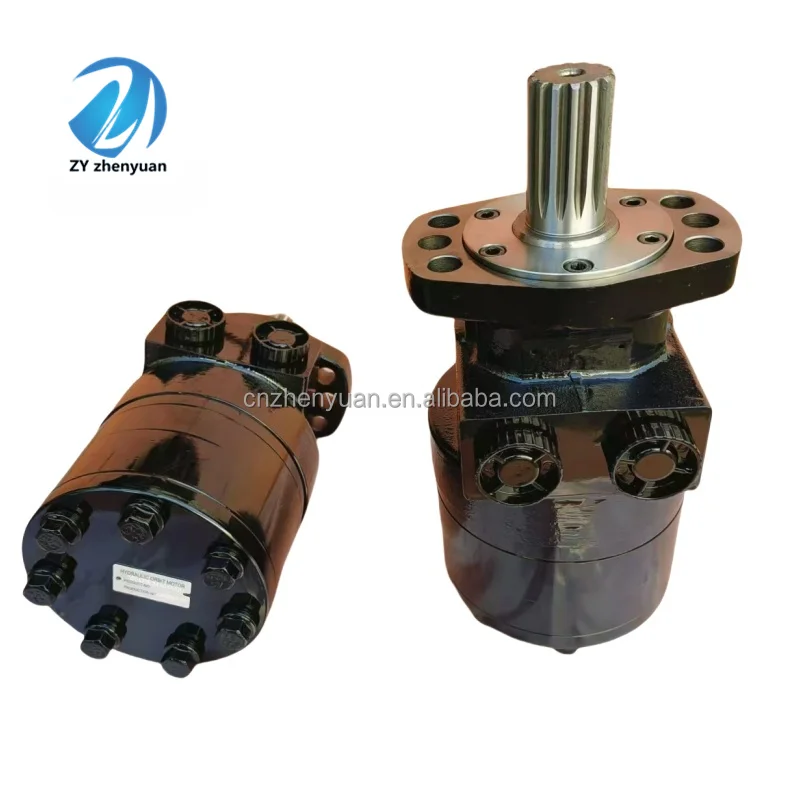

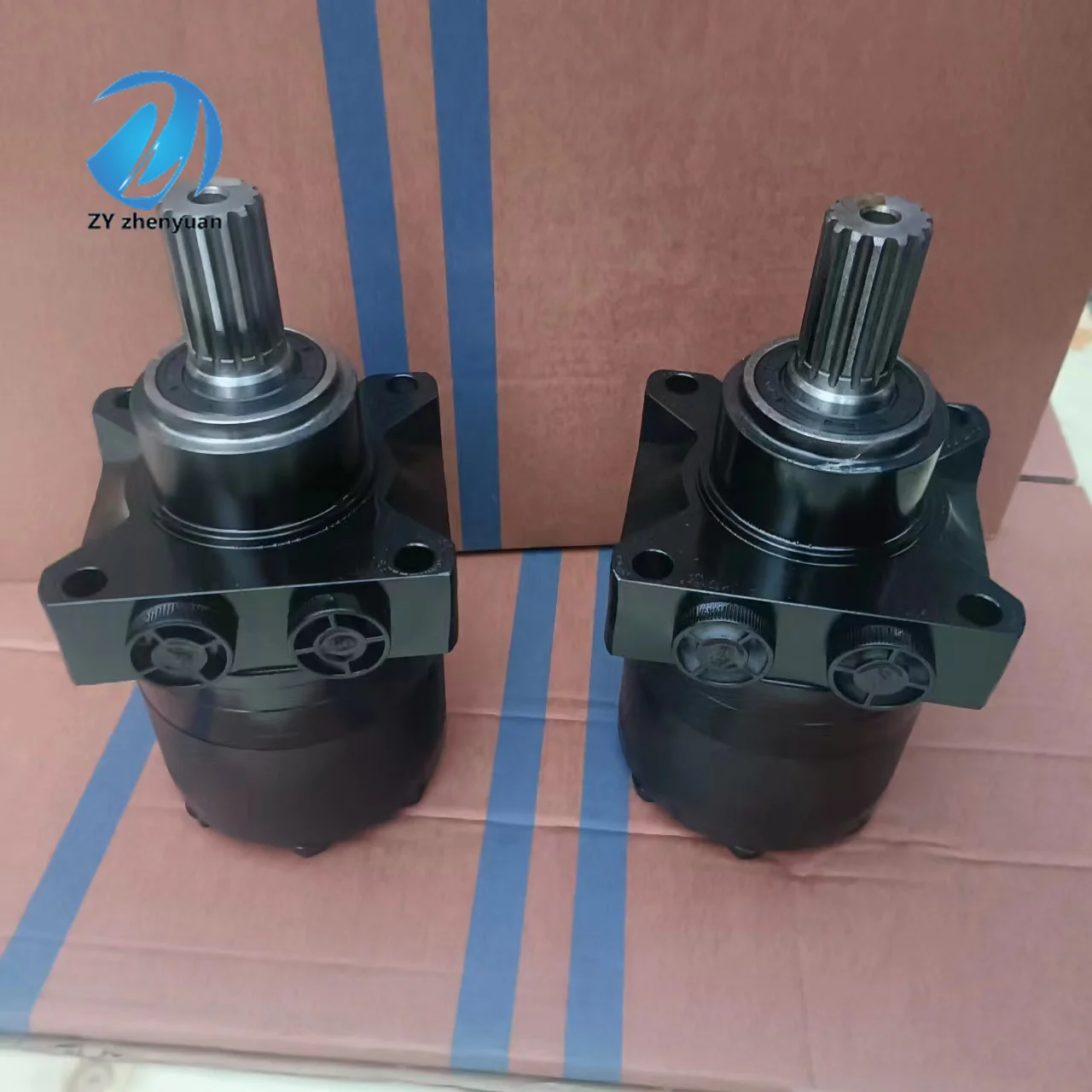

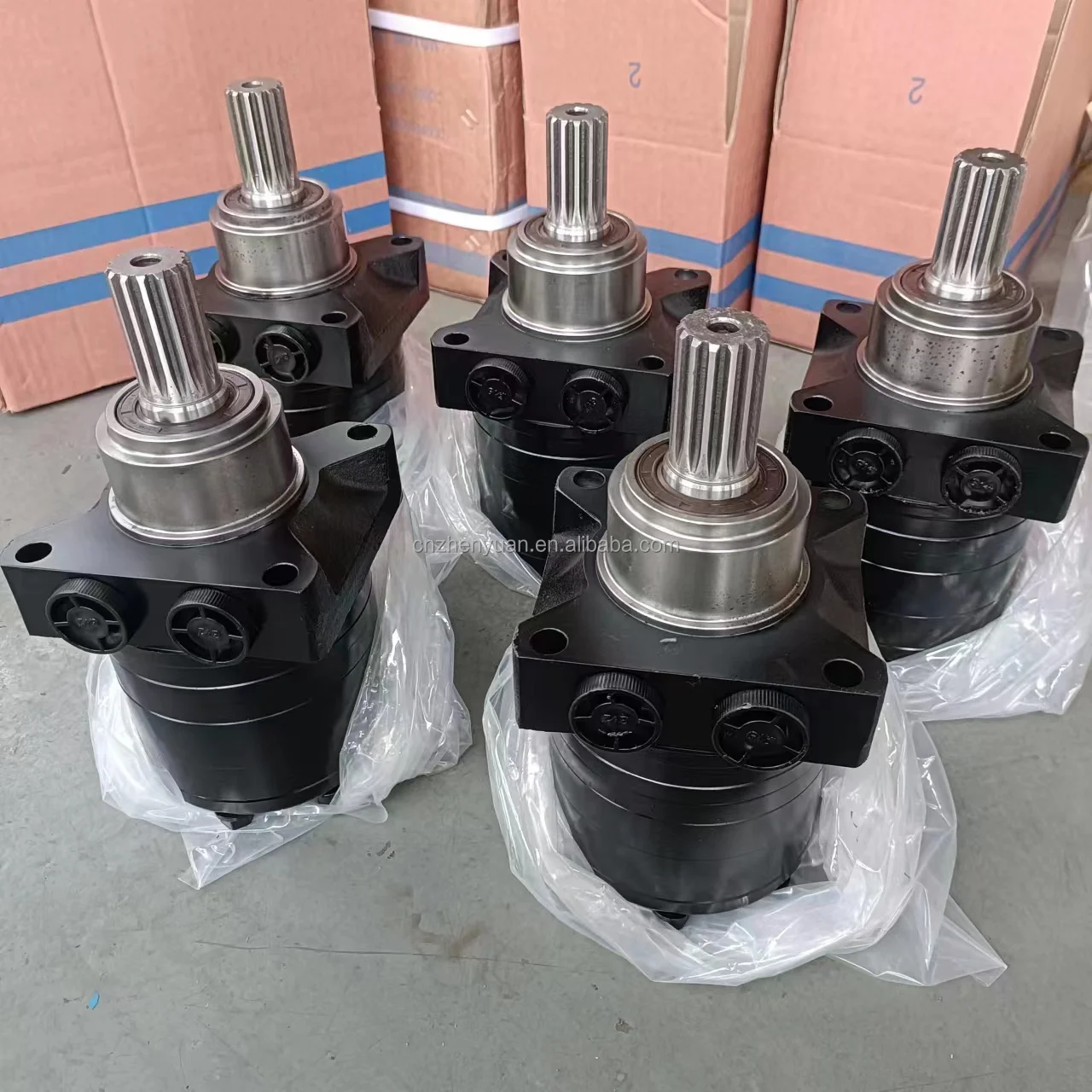

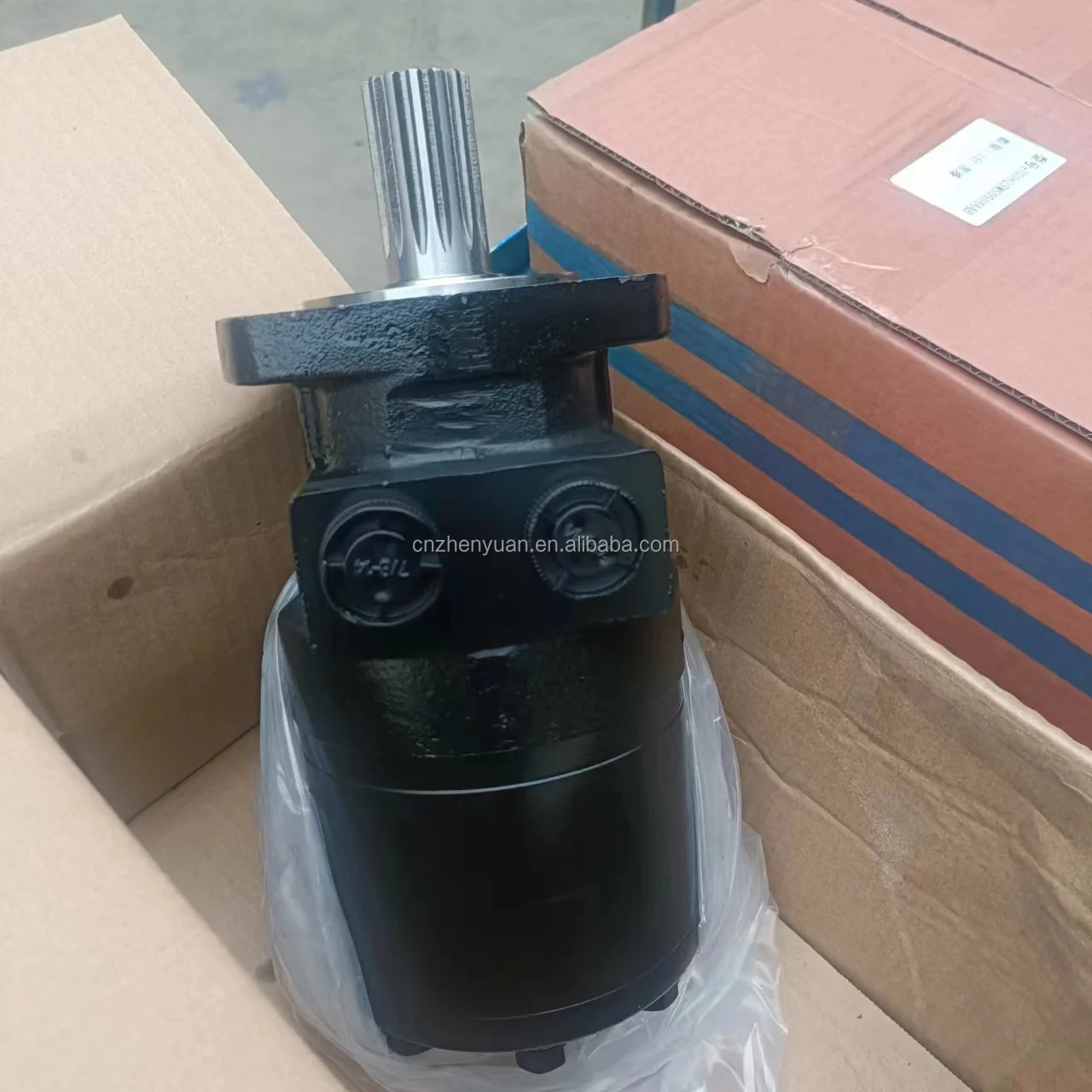

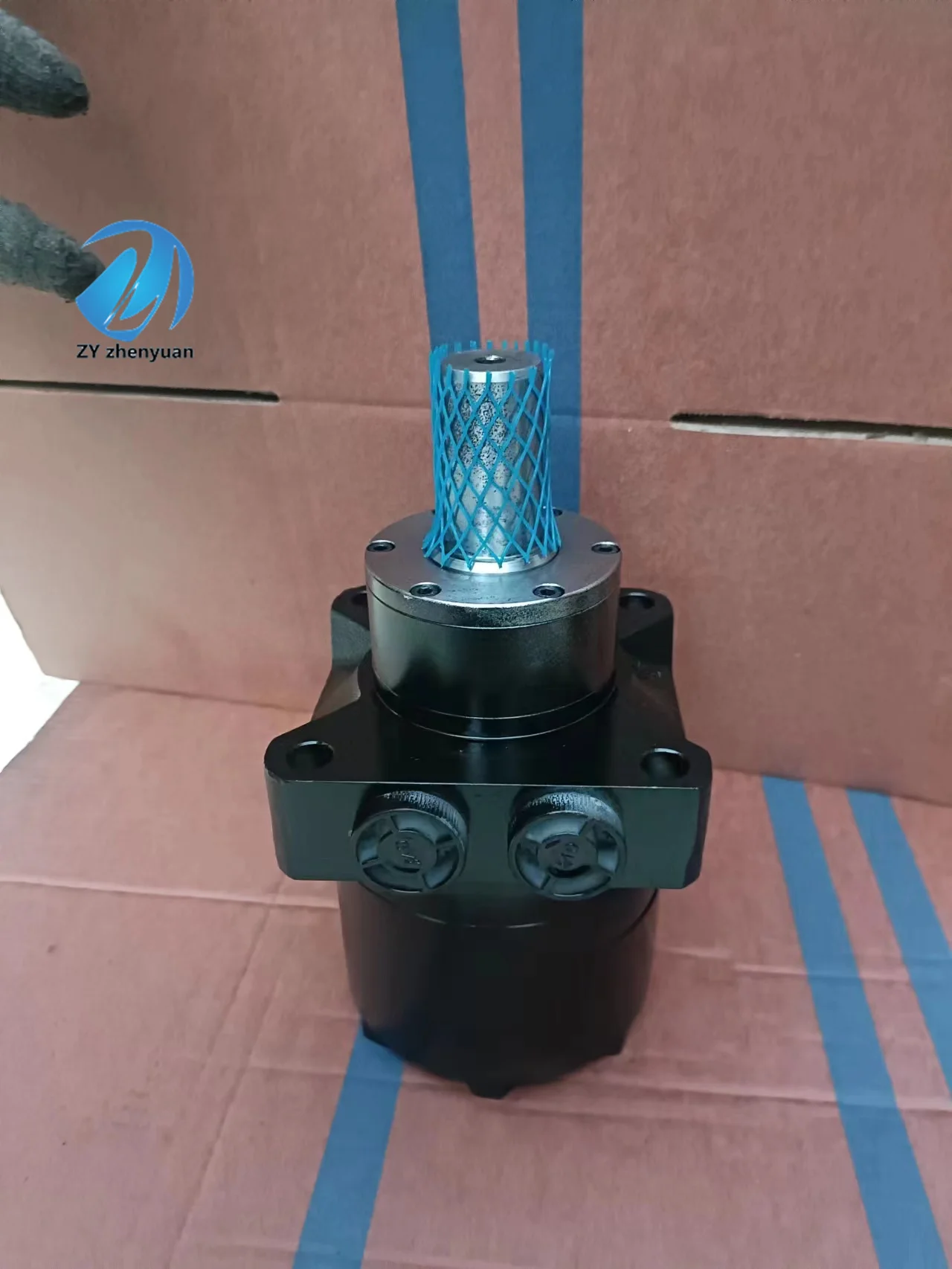

Parker TF TG Series Replacement High Torque Hydraulic Orbital Motor
| Model Number | TG0405US080AAAA |
|---|
Product Description
The TE, TF, TG, and larger series Low-Speed High-Torque (LSHT) heavy-duty orbital hydraulic motors manufactured by LIC Hydraulic (including specific ordering codes like TG0405US080AAAA, TG0475, and TG0530) are high-end fluid power units purpose-built for the most challenging mobile and industrial drive environments. In terms of essential engineering specifications—such as mounting configurations (e.g., standard SAE 4-bolt formats), output shaft variables (standard 1-1/4” keyed or splined profiles), port configurations, and torque efficiency slopes—this product line ensures 100% drop-in interchangeability with original Parker Hannifin orbital motors.
As a premium industrial alternative optimized for the global B2B supply chain, LIC places engineering emphasis on the structural fatigue limits of the drivetrain. Every TG series motor undergoes 100% full-load simulated extreme work-condition factory testing before dispatch. This systematic validation guarantees that our motors provide high volumetric consistency and uniform torque transmission under severe shaft overhung loads or abrupt bi-directional reversals, representing an excellent procurement alternative for international OEMs and distributors.
Technical Specifications
Accurate, non-hallucinated technical parameters for the model configuration TG0405US080AAAA derived from standard catalog parameters:
Product Series: TG Series Heavy-Duty Disc-Valve LSHT Hydraulic Orbital Motor
Complete Designation Part Number: TG0405US080AAAA
Nominal Displacement: 405 cm³/rev (24.7 ci/rev)
Continuous Operating Pressure Limit: 140 bar (2030 psi)
Intermittent Peak Operating Pressure: 200 bar (2900 psi)
Maximum Continuous Output Torque: 845 Nm (7478 lb-in)
Maximum Intermittent Output Torque: 1180 Nm (10444 lb-in)
Rotational Speed Spectrum: Smooth operation down to 5 rpm; maximum continuous speed up to 360 rpm
Maximum Continuous Fluid Flow Rate: 115 L/min (30 GPM)
Output Shaft Configuration (US Code): 1-1/4″ Diameter straight keyed shaft with 5/16″ square key
Mounting Flange Profile (080 Code): Standard SAE A 4-bolt Magneto mounting flange
Inlet/Outlet Port Profile (AA Code): 7/8-14 UNF 2B O-ring radial ports
Net Unit Weight: Approx. 15.1 kg (33.3 lbs)
Key Technical Advantages
Heavy-Duty Geroler® Technology with Precision Rollers: LIC incorporates high-strength star-and-ring sets processed via multi-axis CNC ultra-finish grinding. Integrating precision steel rollers radically drops initial mechanical breakaway resistance. This ensures uniform torque delivery down to 5 rpm without cogging or stick-slip phenomena, yielding significantly less internal wear compared to standard non-roller orbit profiles.
Reinforced High-Tensile Drive Link Architecture: Because the TG series is dedicated to high mechanical torque transmission, LIC has scaled up the core drive link diameter. Forged from optimized alloy steels, it undergoes advanced through-hardening combined with surface carburization. The high-hardness crowned splines on both ends cushion severe torsional stress under rapid bi-directional reversals.
Forced-Lubricated Double Tapered Roller Bearings: The front section features two large-capacity tapered roller bearings that are constantly lubricated and cooled by low-pressure case-return oil pathways. This heavy-duty assembly provides structural immunity against intense overhung radial forces and heavy axial thrust, allowing the motor to directly drive heavy vehicle wheels or chain sprockets without auxiliary bearing blocks.
Independent Hydrostatically-Balanced Disc Valve: Unlike basic spool-valve configurations, the TG platform utilizes an isolated disc valve distribution mechanism. The micro-polished distribution faces dynamically maintain a calibrated axial clearance under pilot system pressure. This prevents pressure degradation over thousands of continuous operating hours, keeping overall volumetric efficiency above 94%.
Application Areas
The TG0405, TG0475, and TG0530 series high-torque motors are engineered to operate reliably as the low-speed drive heart within prominent global B2B sectors:
Mobile Construction Equipment: Heavy-duty utility truck winches, asphalt milling machinery conveyor drives, and primary steering loops for wheeled skid loaders.
High-Demand Agricultural Machinery: Primary feeder roll drives in large-scale sugarcane harvesters, mobile industrial wood chippers, and main cutting assemblies in forage equipment.
Material Handling & Mining Equipment: High-capacity apron feeders, heavy-duty material lifting cranes, and vibratory screening/sorting drives.
Industrial Plant Automation: High-viscosity industrial chemical mixers and heavy-duty rewinder drums on automated steel manufacturing lines.
Expert Maintenance Tips
Mandatory Pre-Commissioning Fluid Priming: When integrating a new motor configuration (such as
TG0405US080AAAA) into a dry system, never apply full pressure immediately. Pre-fill the internal chambers with clean anti-wear hydraulic fluid via the ports, and manually cycle the output shaft several revolutions. This establishes a baseline lubrication film across the disc valve and internal splines, preventing metal galling during the initial startup phase.Case Pressure Management & Dedicated Drainage: Parker-type TG motors utilize internal check valves to safely shunt internal case weeping into the low-pressure return line. However, if your circuit undergoes harsh directional changes or runs multiple motors in series where return line backpressures routinely cross 25 bar, installing an external case drain line directly to the reservoir is highly recommended to protect the shaft seal.
Enforce Tight Thermal Regulation & Filtration Standards: High-torque applications running under high continuous load are prone to heat generation. Ensure your system utilizes robust oil coolers to sustain a target operating temperature of 30°C to 60°C. Maintain strict fluid properties calibrated to ISO 4406 19/16/13 standards or cleaner to safeguard the Geroler profile against micro-particle wear.
