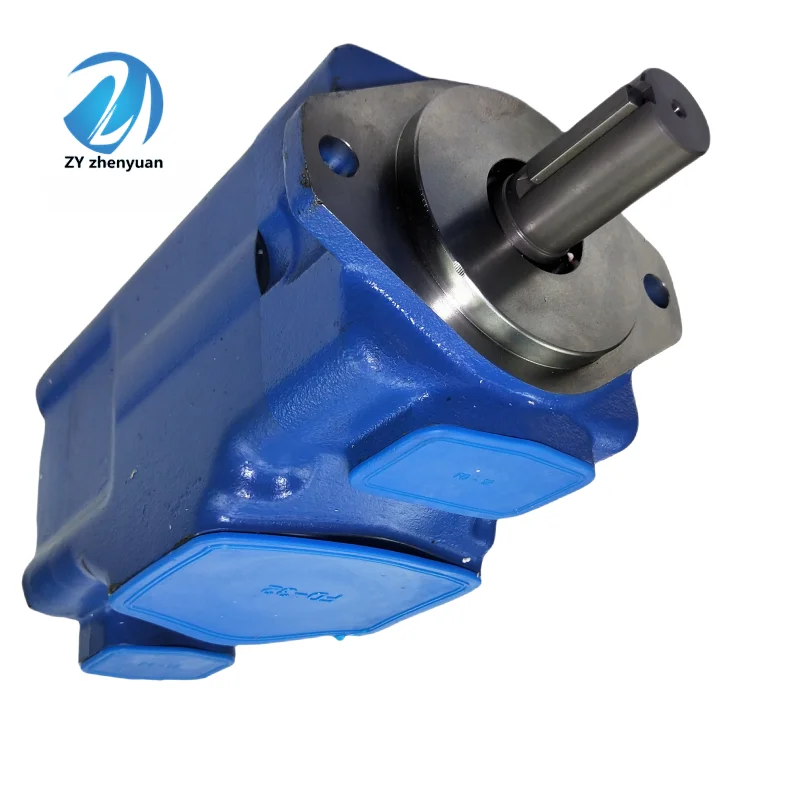

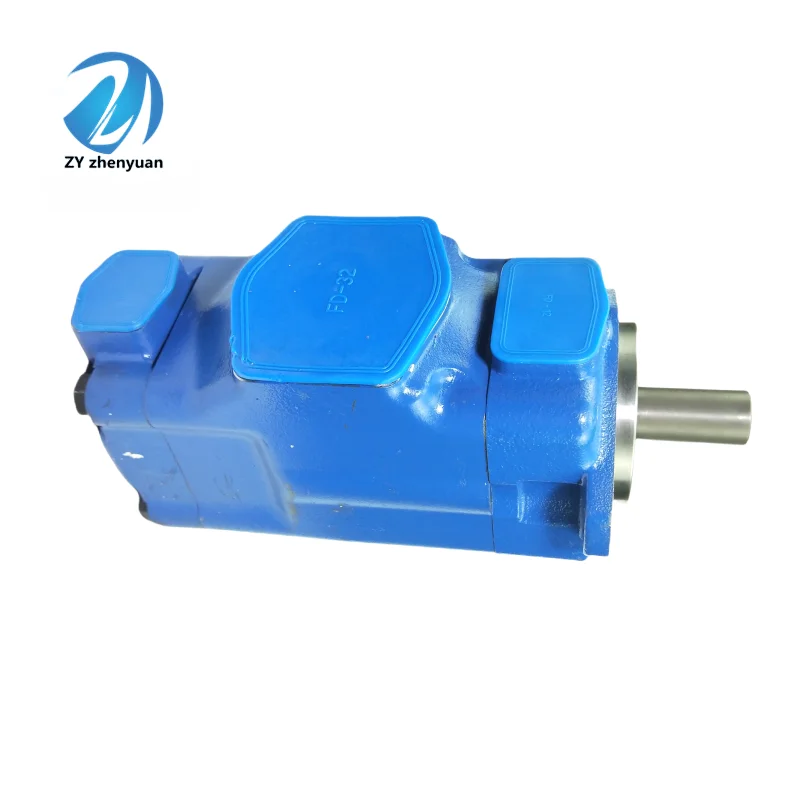

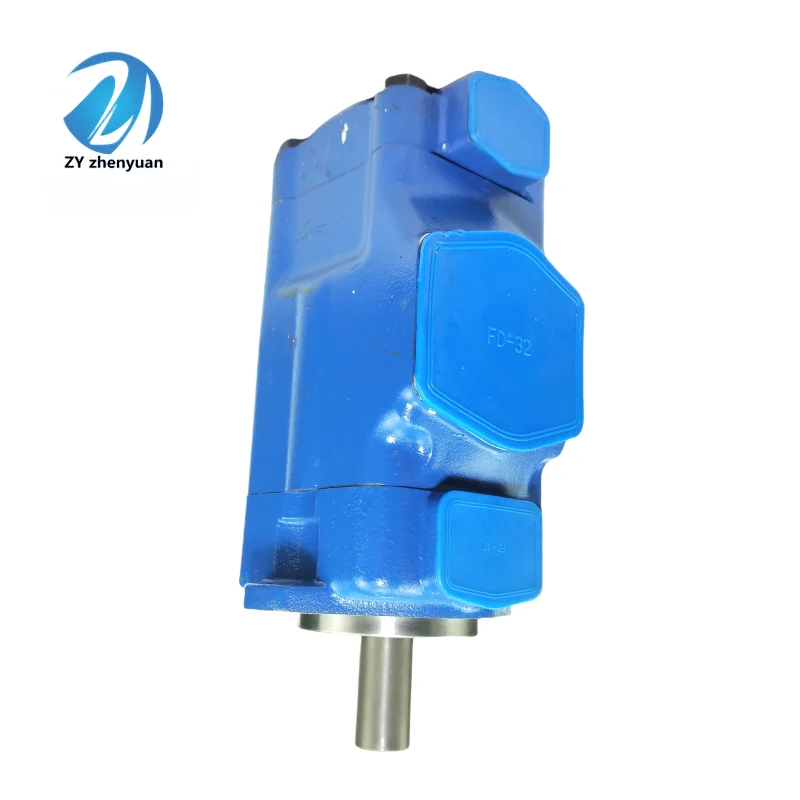

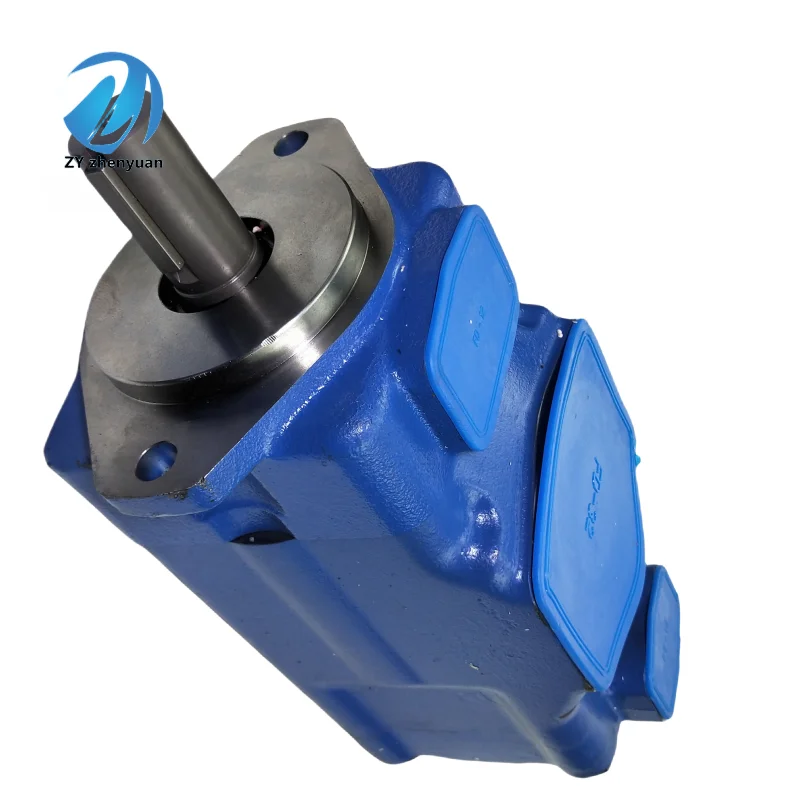

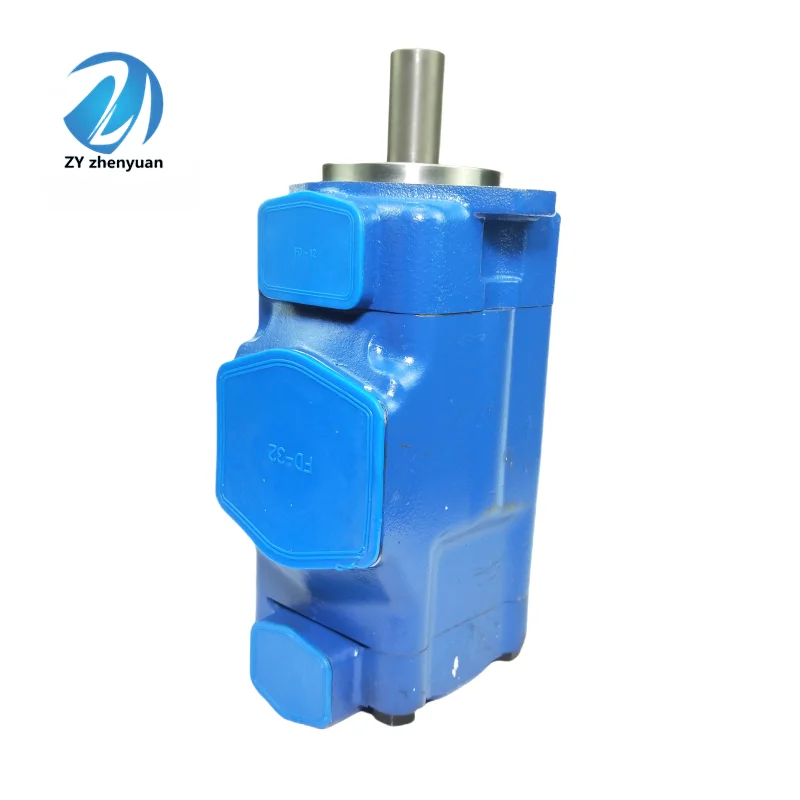

Vickers VQ Series Double Vane Pump | 2520VQ 3525VQ 4535VQ | 2520VQ-10A12-1CC-10R
| Model Number | 2520VQ-12A12-1CC-10R, 2520VQ-10A12-1CC-10R |
|---|
Product Description
LIC Hydraulic’s Vickers VQ Series double vane pumps are the industry standard for high-pressure mobile applications. These dual-section pumps (including 2520VQ, 3525VQ, 4525VQ, and 4535VQ) utilize the legendary Intra-Vane technology, which balances hydraulic loading to allow for higher operating pressures and extended service life. We offer 100% Drop-in Interchangeability for configurations like 2520VQ-10A12-1CC-10R. The VQ series is famous for its Modular Cartridge Design, allowing for rapid field repairs without disconnecting hydraulic lines, ensuring your machinery stays productive in mining and construction sites worldwide.
Technical Specifications (Model Breakdown)
Series Models: 2520VQ, 3520VQ, 3525VQ, 4520VQ, 4525VQ, 4535VQ.
Max Operating Pressure: Up to $210\text{ bar}$ ($3000\text{ PSI}$).
Speed Capability: Rated up to $2700\text{ RPM}$.
Technology: Intra-Vane Pumping Element for reduced friction and heat.
Interchangeability: Fully compatible with Eaton/Vickers OEM standards.
Efficiency: High volumetric efficiency maintained throughout the RPM range.
Key Technical Advantages
Intra-Vane Design: By routing pressurized oil under the vanes, the contact force against the cam ring is precisely controlled, minimizing wear and allowing the pump to handle severe pressure spikes.
Dual-Circuit Versatility: Two independent cartridge groups on a single shaft provide simultaneous power for different functions (e.g., steering and lifting) while saving space and PTO ports.
Easy Field Serviceability: The “cartridge kit” concept allows for complete overhauls in minutes. Simply replace the internal rotating group to restore factory-new performance.
Balanced Hydraulic Loading: The dual-chamber design balances the internal radial loads on the bearings, leading to exceptional MTBF (Mean Time Between Failures).
Application Areas
Earthmoving Equipment: Steering and implement circuits for wheel loaders and scrapers.
Mining Machinery: Hydraulic power for haul trucks and drill rigs.
Specialty Vehicles: Compaction power for refuse trucks and heavy-duty lift trucks.
Expert Maintenance Tips
Rotation Direction Verification: Before installing a replacement cartridge kit, double-check that the “V” notch direction matches the rotation of your drive shaft. Incorrect rotation orientation will cause immediate failure.
Initial Priming: Always fill the pump housing with clean hydraulic oil through the inlet port before startup. Running a vane pump “dry” for even a few seconds can score the cam ring.
Inlet Filtration: To prevent vane sticking, ensure the hydraulic system is equipped with high-quality suction strainers and return filters. Maintain an ISO 4406 cleanliness level of 19/17/14.
3525VQ35A21 86AA20
3525VQ35A21 1CC20
3525VQ35A21 1AB20
3525VQ35A21 11CC20
3525VQ35A21 11AD20
3525VQ35A17 11AA20
3525VQ35A14 1CC20
3525VQ30A21 86CC20
3525VQ30A21 1CC20L
3525VQ30A21 1CC20
3525VQ30A21 11CC20
2520VQ-19A9-1CC-10R
2520VQ-10A11-1CC-10R
2520VQ-12A11-1CC-10R
2520VQ-14A11-1CC-10R
2520VQ-17A11-1CC-10R
2520VQ-19A11-1CC-10R
2520VQ-10A12-1CC-10R
2520VQ-12A12-1CC-10R
2520VQ-14A12-1CC-10R
2520VQ-17A12-1CC-10R
2520VQ-19A12-1CC-10R
2520VQ-17A14-1CC-10R
2520VQ-19A14-1CC-10R
2520VQ12A2 1BB22R
2520VQ12A2-1CA22R
2520VQ12A5 1DD22R
2520VQ12A5-1AD22R
2520VQ12A8 1AA22R
2520VQ12A8 1CC22R
2520VQ12A8 1DD22R
2520VQ12A11 1AA22R
2520VQ12A11 1DD22R
2520VQ14A5 1DD22R
2520VQ14A8-1BB22R
2520VQ14A8 1CC22R
2520VQ14A11 1DD22R
2520VQ14A12 1AA22R
2525VQ 10A 10 1C22R
2525VQ 12A 10 1C22R
2525VQ 14A 10 1C22R
2525VQ 17A 10 1C22R
2525VQ 10A 21 1C22R
2525VQ 12A 21 1C22R
2525VQ 14A 21 1C22R
2525VQ 17A 21 1C22R
2525VQ 21A 21 1C22R
2525VQ 10A 10 1C22R
3525VQ30A17 1AA20L
3525VQ30A17 1AA20
3525VQ30A17 11CC20
3525VQ30A17 11BB30L
3525VQ30A12S 111DC30
3525VQ30A12 1CC20
3525VQ30A12 11CC20
3525VQ30A12 11AC20
3525VQ30A12 11AA20
3525VQ30A 17 86AA20L
3525VQ25A21 86AA20
3525VQ25A21 1CC20
3525VQ25A17 11CB20
3525VQ25A14 11CB20
3525VQ25A12 1AA20
3525VQ21A21 11AD20
3525VQ-25A10-1CC-10R
3525VQ-25A12-1CC-10R
3525VQ-25A14-1CC-10R
3525VQ-25A17-1CC-10R
3525VQ-25A19-1CC-10R
3525VQ-30A10-1CC-10R
3525VQ-30A12-1CC-10R
3525VQ-30A14-1CC-10R
3525VQ-30A17-1CC-10R
3525VQ-30A19-1CC-10R
3525VQ-35A10-1CC-10R
3525VQ-35A12-1CC-10R
3525VQ-35A14-1CC-10R
3525VQ-35A17-1CC-10R
3525VQ-35A19-1CC-10R
3525VQ-38A10-1CC-10R
3525VQ-38A12-1CC-10R
3525VQ-38A14-1CC-10R
3525VQ-38A17-1CC-10R
3525VQ-38A19-1CC-10R
3525VQ35A21-1BA22R
3525VQ38A12-1BB-22R
3525VQ38A14 11AA22R
3520V30A11-86CC22R
3520V30A12-1AA22R
3520V30A12-1AD22R
3520V30A12-1DC22R
3520V30A14-1AA22R
3520V30A14-1CB22R
3520V35A5-1BB22R
3520V35A5-1CC22R
3520V35A8-1CC22R
3520V35A8-86AA22L
3520V35A14-1BB22R
3520V38A5-1AA22R
3520V38A8-1BB22R
3520V38A11-1AA22R
3520V38A11-1BA22R
3520V38A12-1AA22R
3520V38A12-1CC22R
3520V38A14-1AA22R
3520V38A14-1AD22R
3520VQ38A5 11AB20
3520VQ38A14 1CC20
3520VQ38A14 1AA20
3520VQ38A14 11CB20L
3520VQ38A12 1CC20
3520VQ38A11 1CC20
3520VQ38A11 11DD20
3520VQ38A11 11CB20
3520VQ35A8S 123BD21L
3520VQ35A8 86CC20L
3520VQ35A12 1AA20
3520VQ35A11 19CC20
3520VQ30A8 1CC20
3520VQ30A8 11AA20
3520VQ30A5 11CC20
3520VQ30A5 11BC20L
3520VQ30A14 11CB20
3520VQ30A12 86AD20
3520VQ30A12 11CC20
3520VQ30A11 1CC20
3520VQ30A11 1AA20
3520VQ30A11 11CB20
3520VQ25A8 1CB20L
3520VQ25A8 1AD20L
3520VQ25A8 11AA20
3520VQ25A5 1AD20
3520VQ25A5 11DC20
3520VQ25A14 86CC20
3520VQ25A12 1AD20L
3520VQ25A12 1AD20
3520VQ25A11S 114CB21L
3520VQ25A11S 114AA21
3520VQ25A11 1CC20
3520VQ25A11 1AD20L
3520VQ25A11 1AD20
3520VQ25A11 11BA20L
3520VQ25A11 11AA20
3520VQ21A5 11BC30L
3520VQ25A11 86CC20R
3520VQ25A11 1DB20
3520VQ-25A5-1CC-10R
3520VQ-30A5-1CC-10R
3520VQ-35A5-1CC-10R
3520VQ-38A5-1CC-10R
3520VQ-25A8-1CC-10R
3520VQ-30A8-1CC-10R
3520VQ-35A8-1CC-10R
3520VQ-38A8-1CC-10R
3520VQ-25A9-1CC-10R
3520VQ-30A9-1CC-10R
3520VQ-35A9-1CC-10R
3520VQ-38A9-1CC-10R
3520VQ-25A11-1CC-10R
3520VQ-30A11-1CC-10R
3520VQ-35A11-1CC-10R
3520VQ-38A11-1CC-10R
3520VQ-25A12-1CC-10R
3520VQ-30A12-1CC-10R
3520VQ-35A12-1CC-10R
3520VQ-38A12-1CC-10R
3520VQ-25A14-1CC-10R
3520VQ-30A14-1CC-10R
3520VQ-35A14-1CC-10R
3520VQ-38A14-1CC-10R
3520VQ25A5 1CC22R
3520VQ25A8-86CB22R
3520VQ30A5 1DC22R
3520VQ30A8 1AA22R
3520VQ30A8 1CC22R
3520VQ30A8-1DD22R
3520VQ30A8 1CB22R
3520VQ30A8 1DC22R
3520VQ30A11 1BB22R
3520VQ30A12 1DC22R
3520VQ30A14 1AA22R
3520VQ30A14-1AA22L
3520VQ35A8 86AA22L
3520VQ35A11-1DD22R
3520VQ35A14 1BB22R
3520VQ38A5 1AA22R
3520VQ38A8 1BB22R
3520VQ38A11 1AA22R
3520VQ38A12-1DC22R
3520VQ38A14 1AA22R
3520VQ 25A 5 1C22R
3520VQ 30A 5 1C22R
3520VQ 35A 5 1C22R
3520VQ 38A 5 1C22R
